Vicon ROC RT 730
Side or centre delivery mergers
Universal Mergers with variable working width from 7 to 7.3m
Highlights
Clean raking of crop thanks to unique tine design and controlled pick-up. High capacity due to exceptional suspension system. Protection of grass field due to wide suspended tandem wheels under the belt. Even and fluffy swaths due to unique belt design. High versatility in crop placing and swath volume. Possibility to load crop on the stopped belt to clean cornersDescription

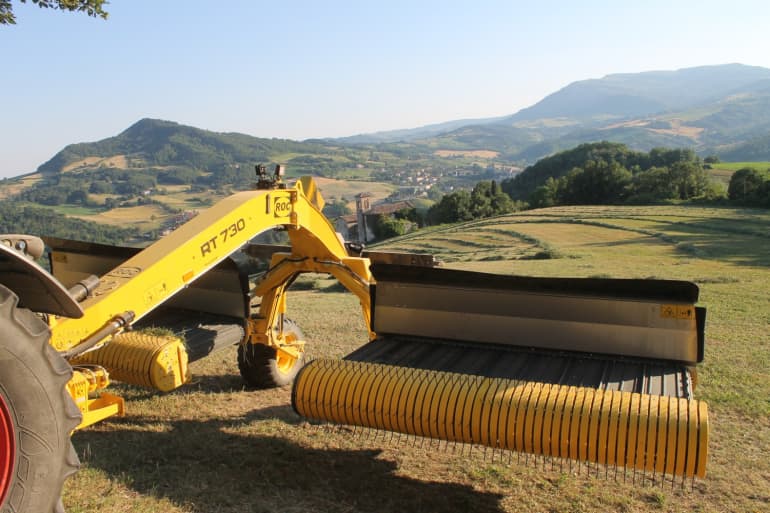

The Vicon ROC RT 730 machine is designed with two pick-up units that can be hydraulically shifted to allow the operator to use it for side or centre delivery. The side delivery has a minimum working width of 7m, while the centre swath can expand to a maximum of 7.30m.The remarkable features include excellent suspension for lifting and transporting crops without soil contamination. Its six-bar pick-up and roller work well for various silage cuts, and the reinforced belt has saw-blade-shaped crossbars for all crop conditions.

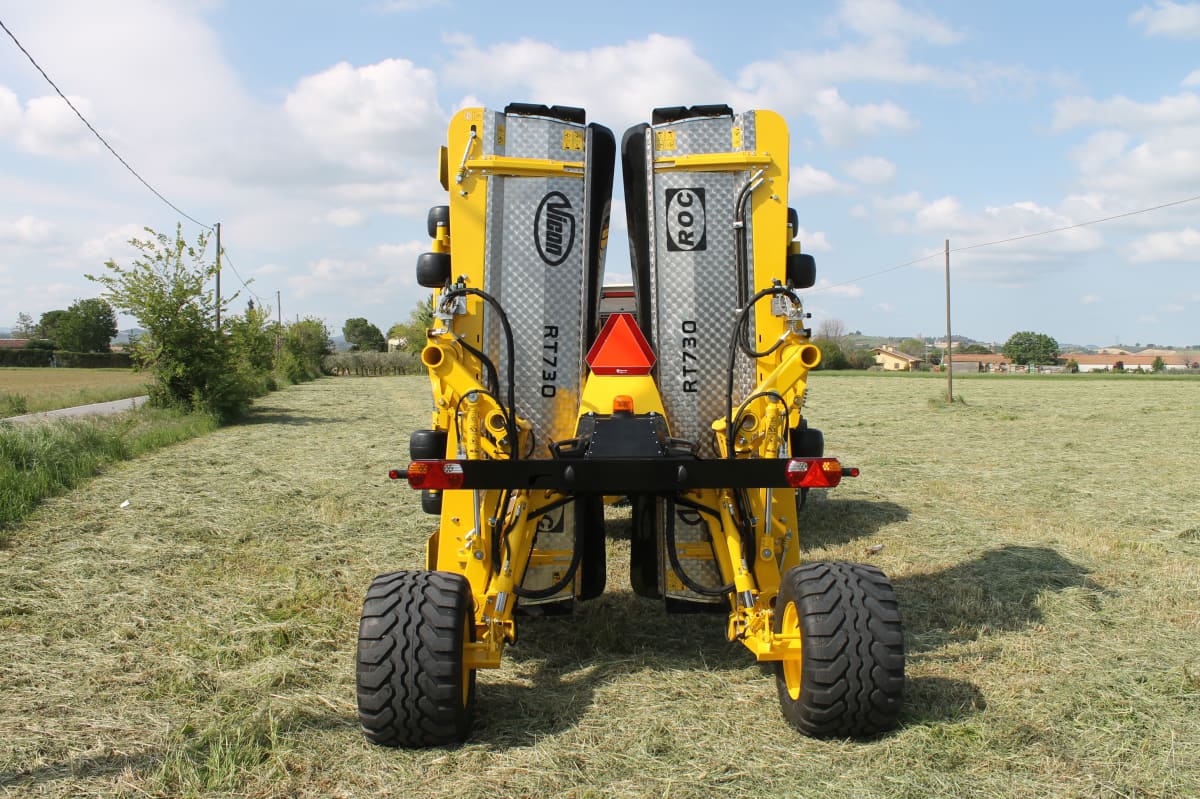

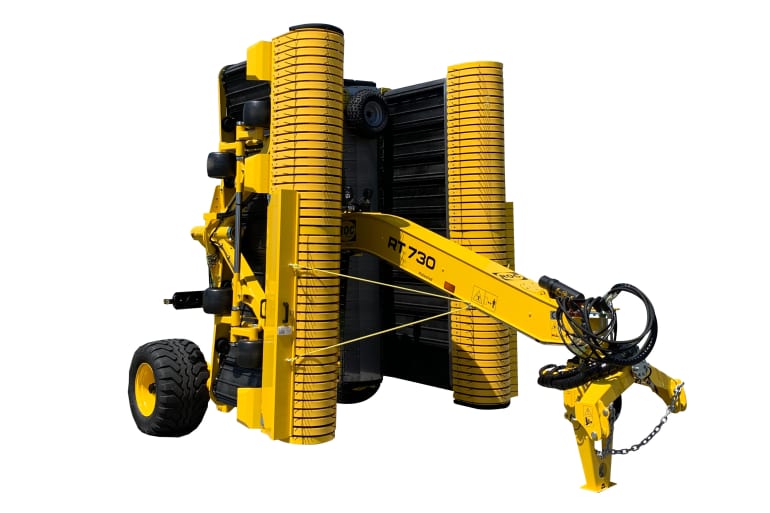

The Vicon ROC RT 730 can be folded to 2.5m width for easy road transport and has road suspension for comfortable and fast transportation.
Highlights
• Rear-mounted 2 belt merger with variable working width from 5.95m to 7.30m.
• Designed for universal use as a side or central swath delivery.
• Unique pick-up system with 6 bars to ensure clean merging.
• Unique transport suspension carrier with centrally suspended turning point for pick-up units and tandem wheels.
• Electric height adjustment system
• High steering and manoeuvrability
• Foldable 2.5m width for road transport.
• Easy maintenance, quality, and replacement of components.
• An intuitive control unit operates all important functions.
Features
- A single belt system with two pick-ups

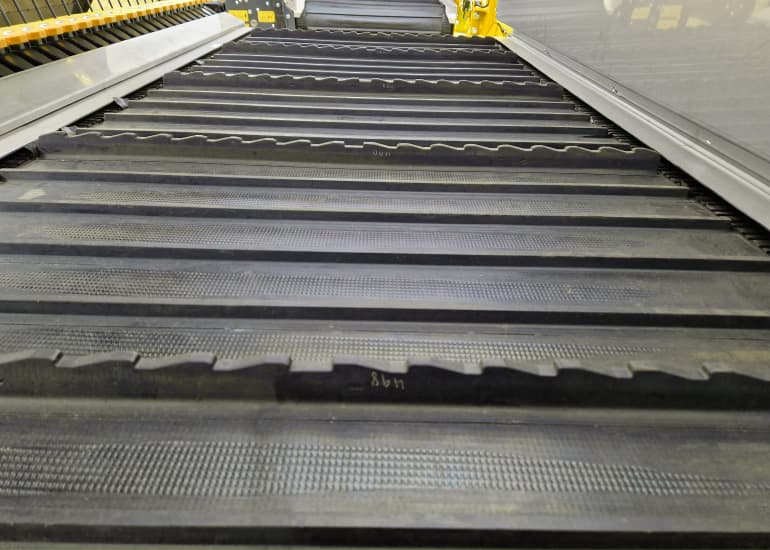

- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- The machine is designed for both centre and side delivery

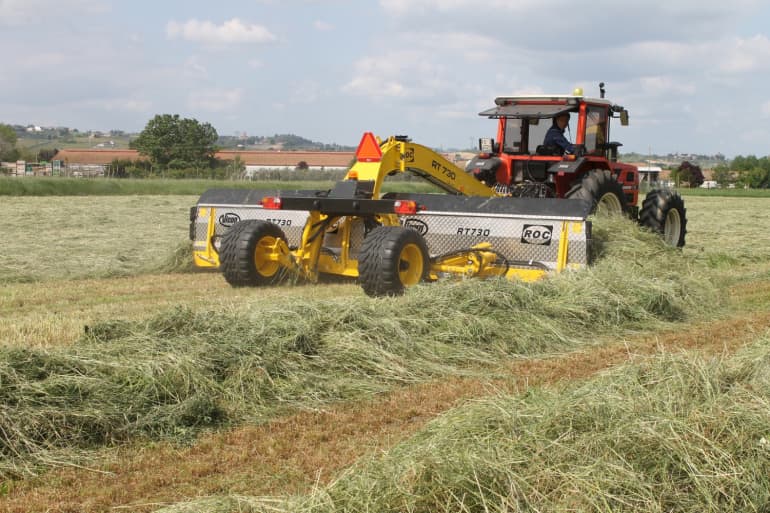

- The side delivery has a working width of 7m, expanding to a maximum of 7.3m
- With expanded pickups, the rake can create a central swath or side belts turning left or right

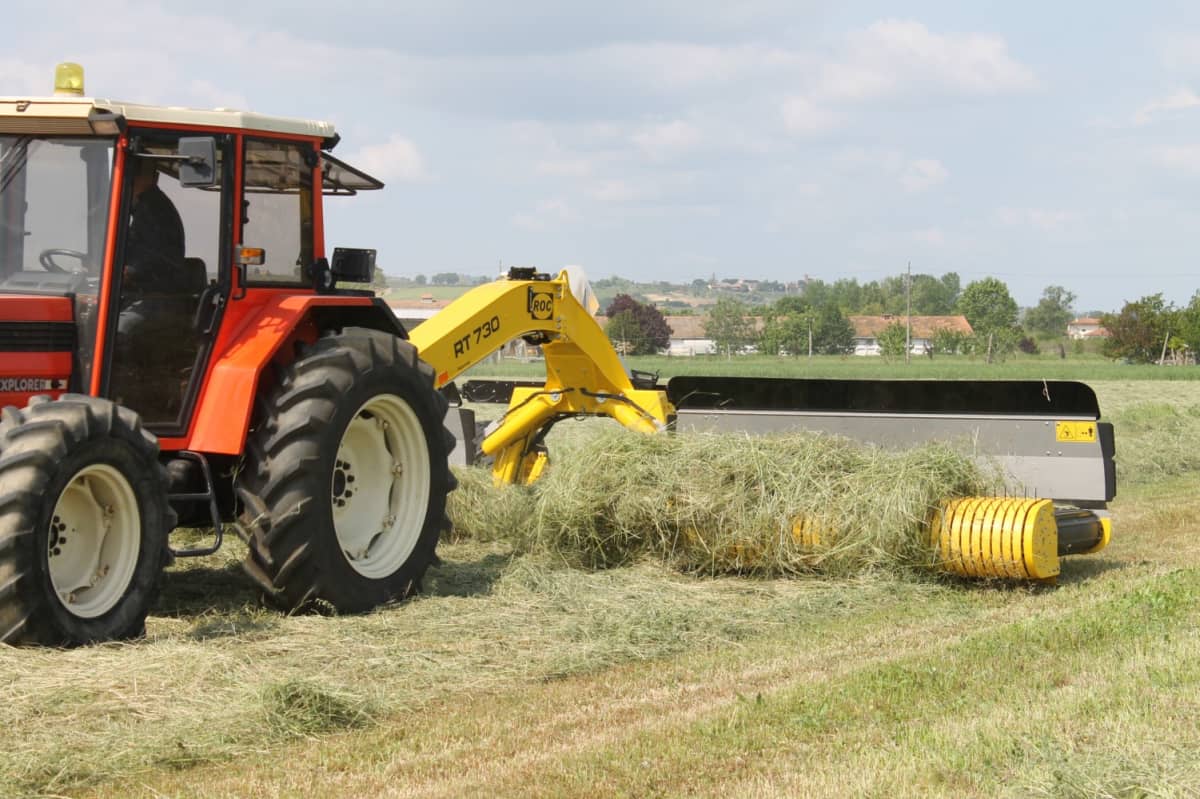

- As the crop is transported on the belt, there is no roping, so the swath can be picked up and transported several times

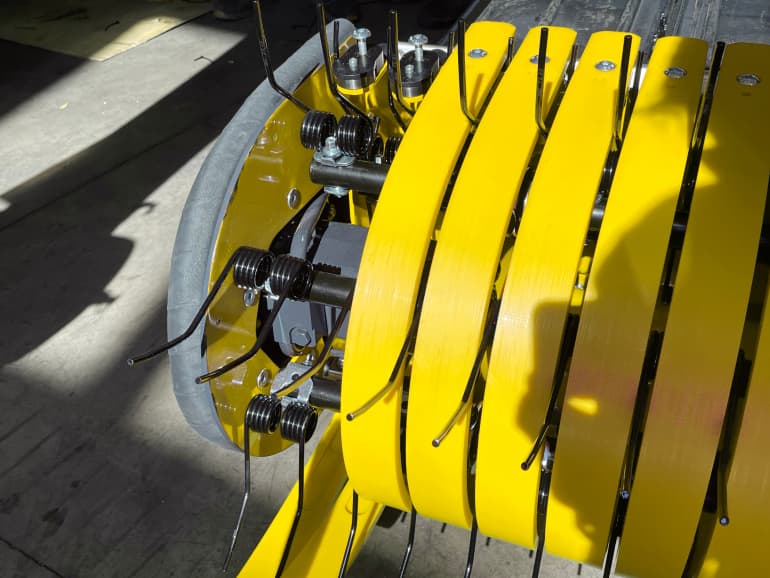

- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts

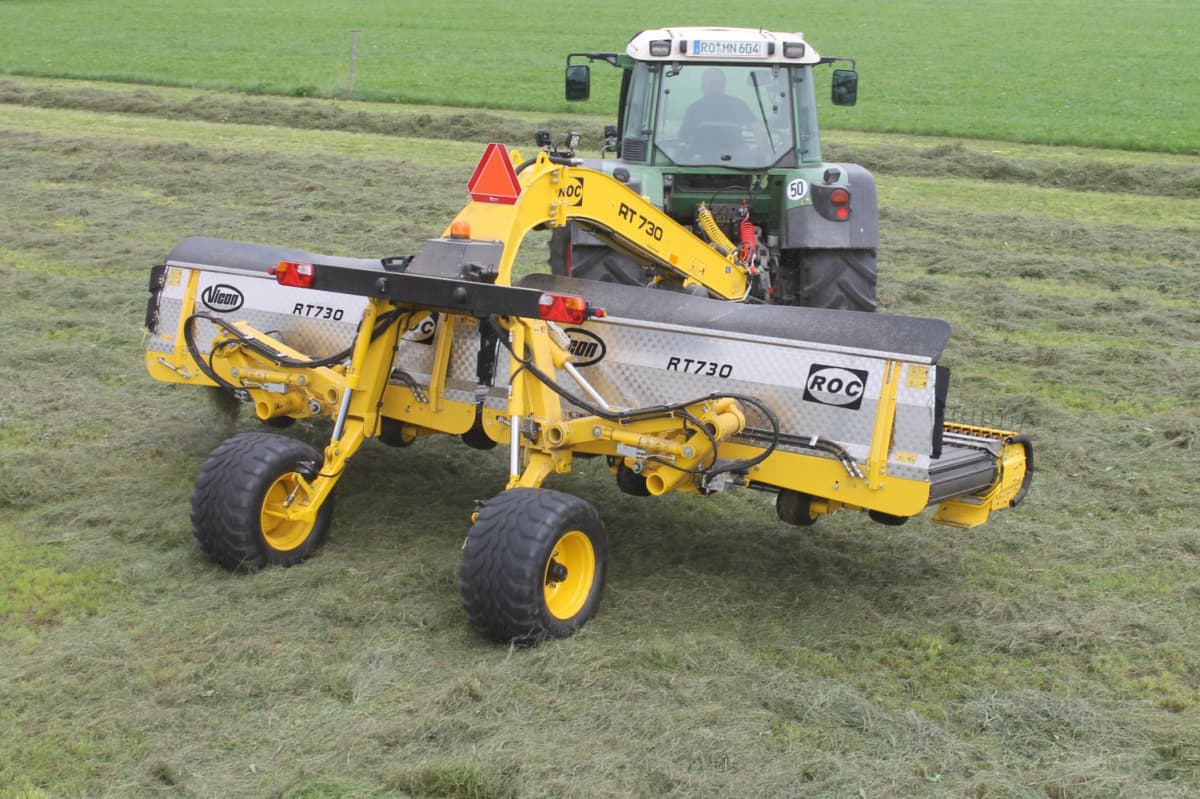

- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- With a transport width of only 2.5 m the machine can travel easily on narrow roads and does not require any special permissions
- An easy-to-use control panel manages all essential functions.
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- The safety system allows basic machine functions and operation without electronics
Technical specifications
Technical specifications
Download brochure| Vicon ROC RT 730 | ||
|---|---|---|
| Working width (m) | 7-7.3 | |
| Pick up width (m) | 2 x 2.95 | |
| Transport width (m) | 2.5 | |
| Belts n. | 2 | |
| Power requirement (hp) | 70 | |
| Weight (kg) | 3180 | |
Technical specifications
Technical specifications
Download brochure
|
Working width center swath (m) |
Pick-up width (m) |
Belts n |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
Vicon ROC RT 730 |
7-7.3 |
2x2.95 |
2 |
2.5 |
70 |
3180 |
