Vicon Shredex 850
The Bedding Specialist
Mounted bale chopper for working with straw for bedding purposes.
Description

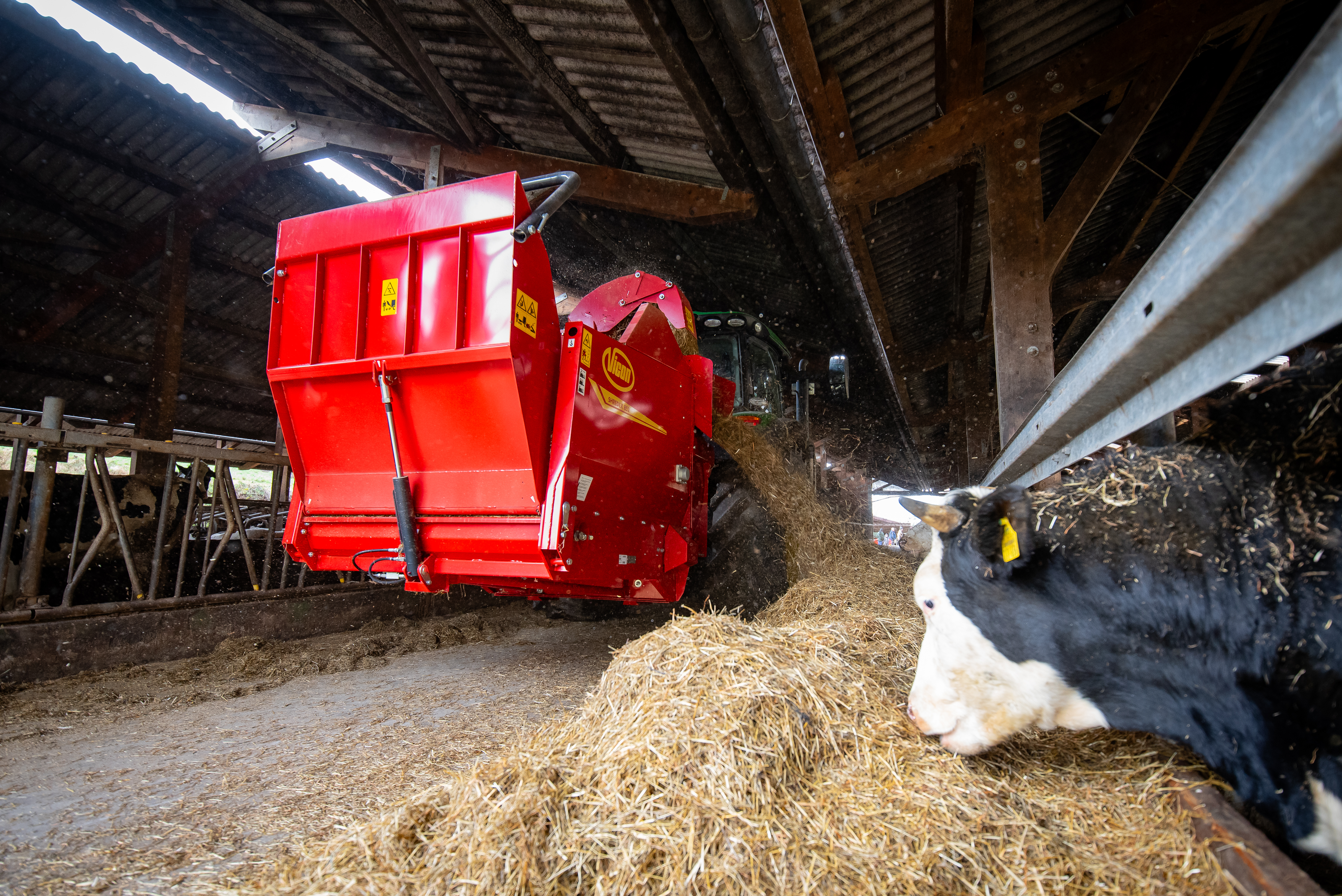

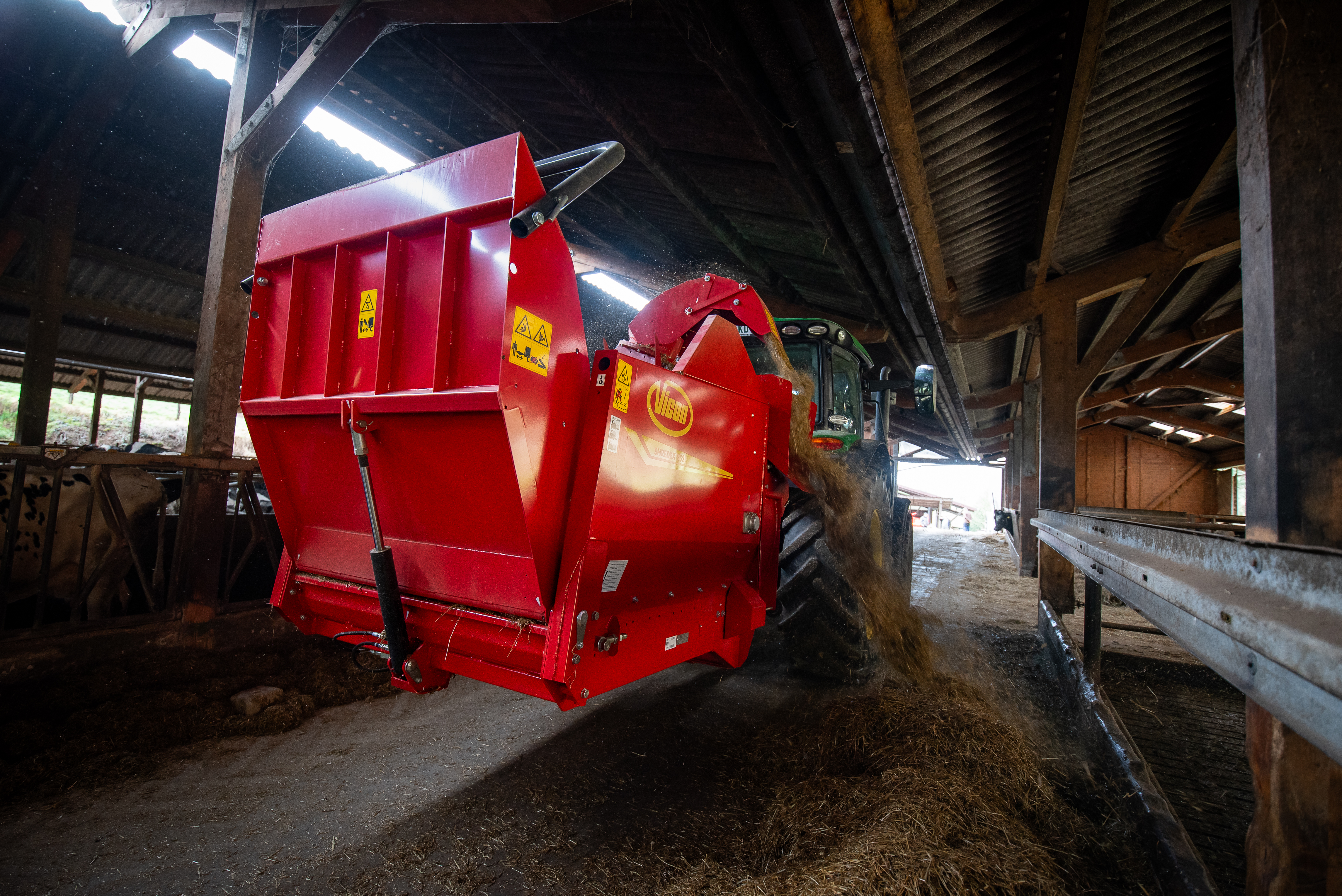

Vicon Shredex 852 mounted bale chopper is specially designed for working with straw for bedding purposes. The 2m3 chamber offers fast and easy loading of bales and the rear door offers the possibility to carry an extra bale for improved efficiency. The working heart of the 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats. Shredex 852 is fitted standard with a swivelling chute for accurate direct bedding. For multipurpose of bedding and feeding, a silage kit with extended comb is available.
Features
- The working heart of the Shredex 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats.
- The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber.

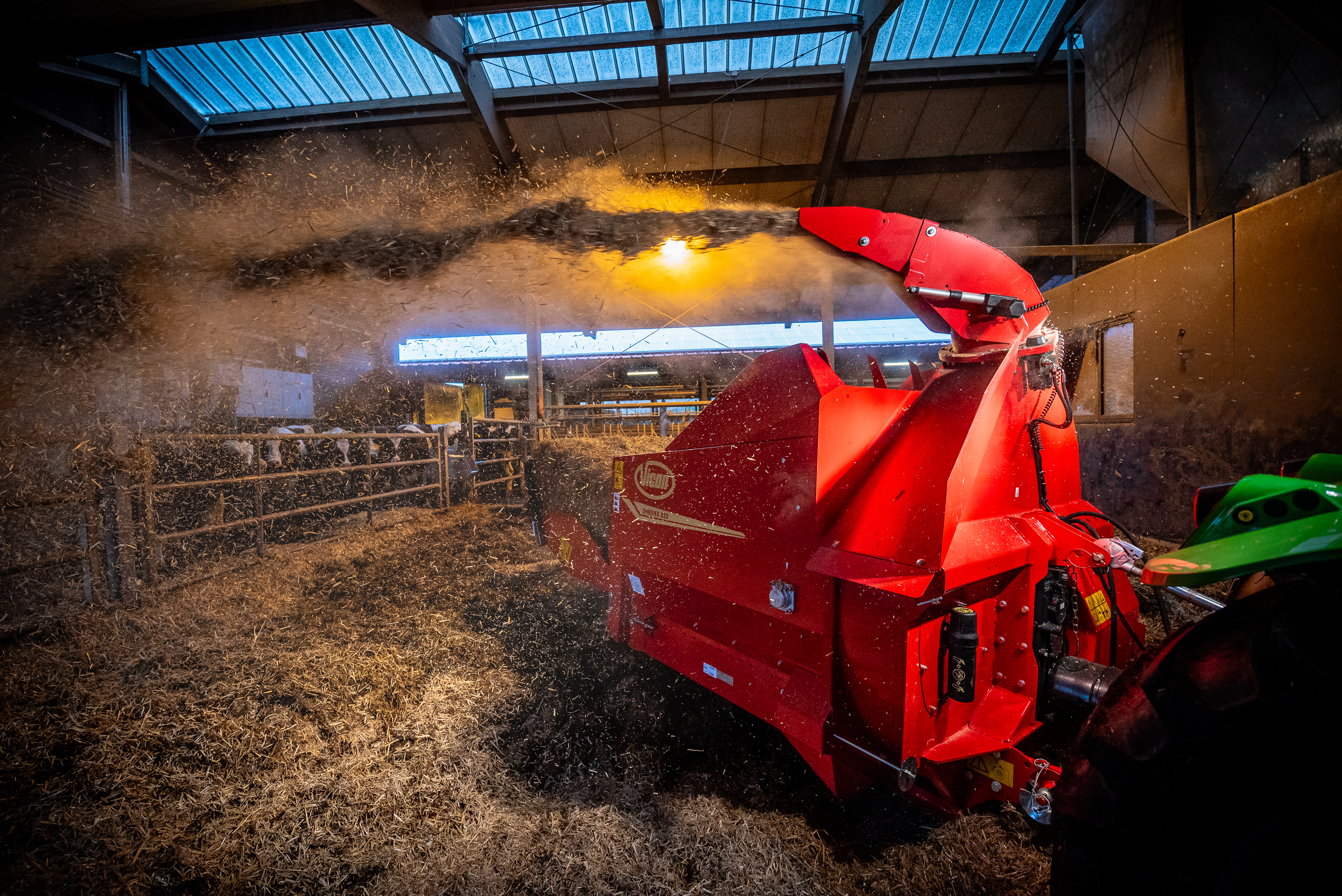

- The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres - even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level.
- The Shredex 852 is fitted as standard with a new swivel chute that offers a 280° rotation of the chute.
- It allows the operator to accurately direct bedding materials into otherwise inaccessible areas of the building.
- The new chute is positioned right above the flywheel where the blow is strongest.
- This give a more efficient distribution of the material and reduces the risk of blockages.
- The end flap of the swivel chute operates via an electric actuator whilst the 280° rotation of the chute is hydraulically operated.
- The Shredex 852 can discharge the straw at a distance of up to 15m.
- The 1.55m diameter flywheel of the Shredex 850 series is fitted with 6 blowing paddles, providing a powerful blow for the most efficient distribution of the material and an excellent cleaning of the flywheel housing.
- The flywheel does not chop the straw, thus ensuring virtually full length material suitable for bedding of covered yard areas.
- In combination with the 2-speed gearbox (standard on Shredex 853) the flywheel can throw straw up to 18 metres (on high speed) or gently feed hay/silage at the side of the machine (at low speed).
- With the 280° swivel chute discharge straw can be blown up to 15m.

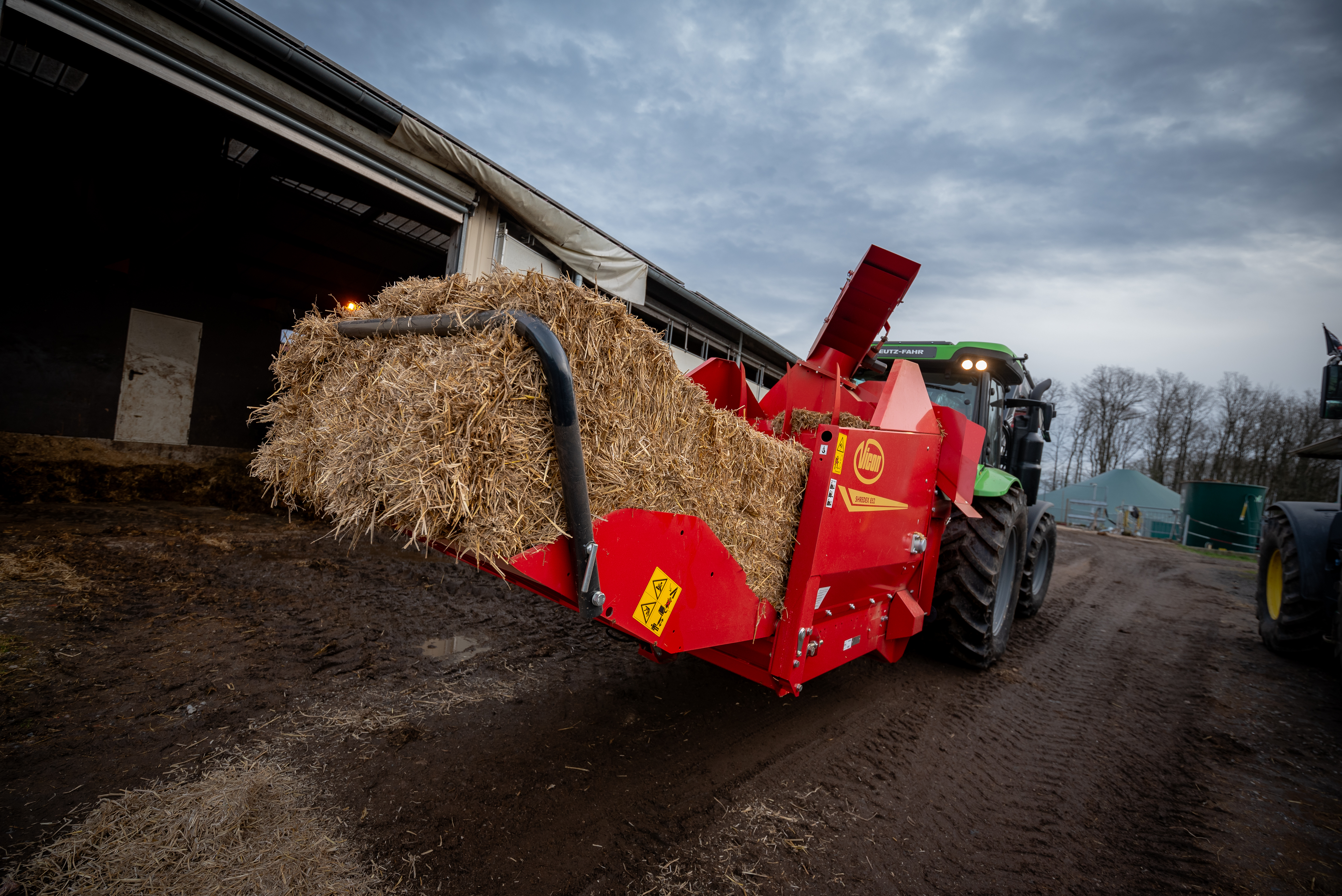

- The hydraulically operated rear door provides a self loading facility for easy loading of square and round bales.
- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
Technical specifications
Technical specifications
Download brochure| Model Shredex | 852 | |
|---|---|---|
| Chute | 3-Stage Sw. Chute | |
| Cubic volume (m3) | 2.00 | |
| Blowing distance* (m) | up to 18 | |
| Chassis | Mounted | |
| Metering system | Single Drum | |
| PTO power req. min (kW/hp) | 40/55 |
* Depending on material and barn-specific conditions |
Technical specifications
Technical specifications
Download brochureCubic Volume |
Load Capacity |
Power Req, Min |
|
Shredex 852 |
2.00m³ |
800kg |
40/55 kW/HP |
* Depending on material and barn-specific conditions |
