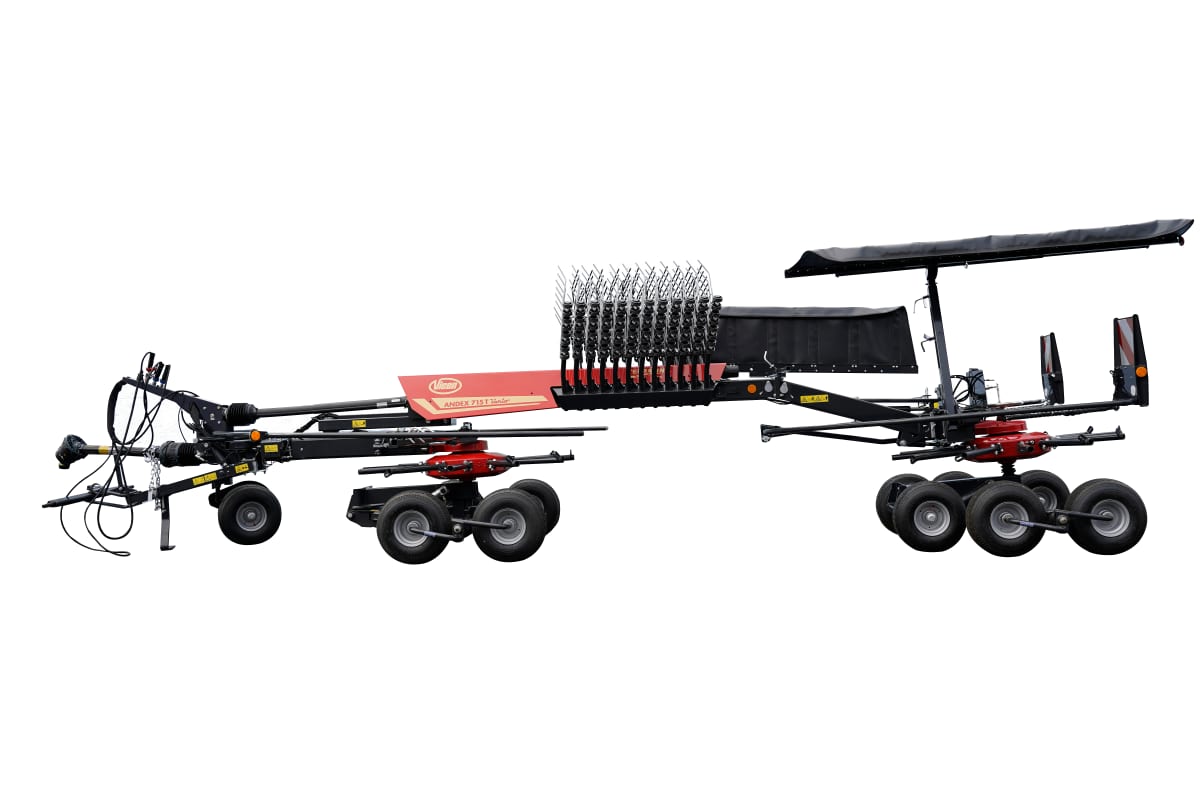

Vicon ANDEX 715 T VARIO
The CompactLine trailed side delivery rakes have a working width of 7.1m.
TerraLink Quattro PLUS for excellent ground contour followings
Highlights
TerraLink Plus can collect crops into a single swath up to 12.5 meters wide QuickLift – drive over the swaths without any damage Unique feature SideSift - avoid damages on the tractor CompactLine gearbox with fully oil bath design Multiple functions can be easily managed from the cabinDescription

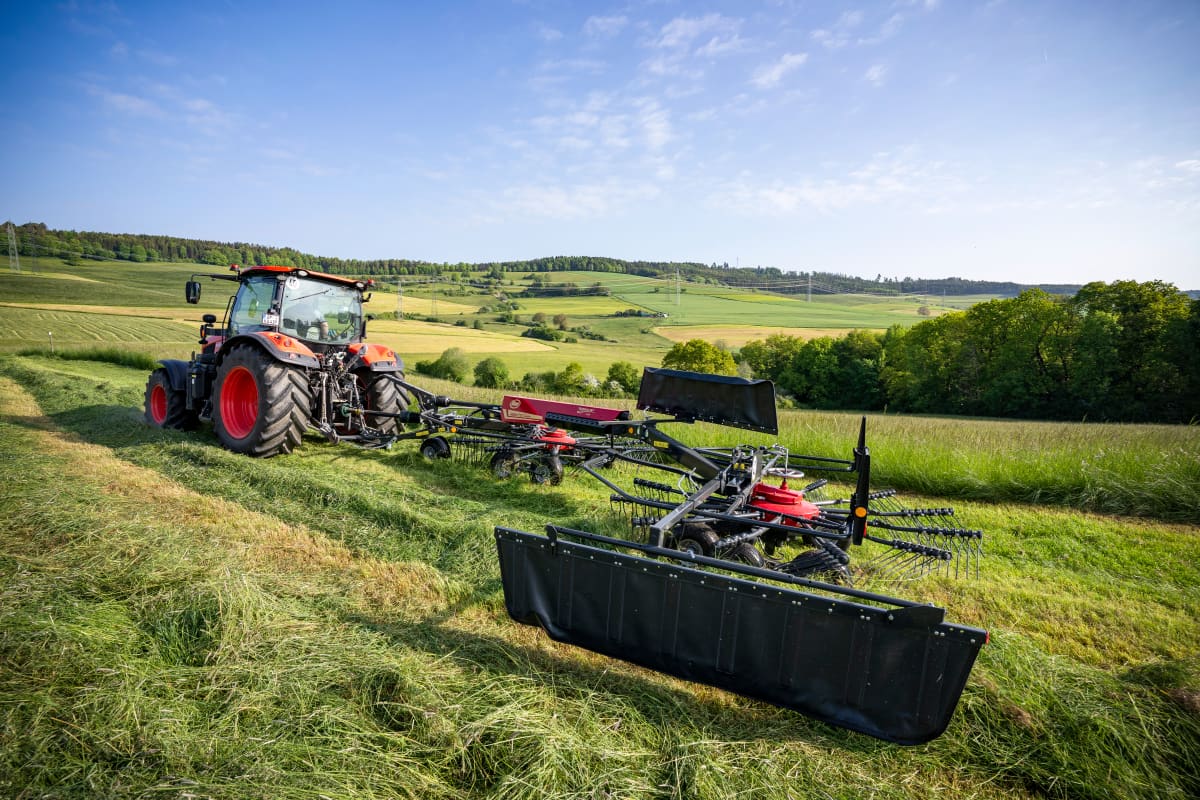

The Vicon Andex 715T Vario is a rake with a 7.1m working width that offers maximum flexibility for raking in various conditions. The TerraLink Plus system ensures that the complete frame is highly flexible and can work in challenging field conditions without leaving crops on the ground.
The machine's twin rotors operate separately, allowing for the collection of one large swath or two smaller ones. Additionally, the rotors can combine two large swaths into one, making it possible to gather up to 12.5m of crop in a single pass. The Vario functions allow the front rotor to shift right or left beside the tractor, reducing crop driving by 50%. Additionally, the swath placement on the left-hand side makes it easy to rake close to hedges and fences.
Highlights
TerraLink Plus contour following system for raking comfort also in challenging conditions.
QuickLift offers fast lift at headlands and sufficient space to drive over the swaths without damages
Unique feature: SideSift device provides the possibility to side shift the front rotor to avoid damage to the tractor
Maintenance-friendly CompactLine gearbox with fully enclosed oil bath design
Features
- The Vicon CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Vicon-developed cam tracks are specifically tailored to individual rotor diameters for optimal raking at any working width and on any model.
- The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions.
- A special feature on the Andex 714T Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
- With this patented system, raking along field boundaries or around trees is no problem – the tractor can run at a safe distance from the obstacles.
- It is also possible to run on raked fields while having the rake offset to the left side.
- It is possible to collect either one large swath or two smaller swaths.
- Andex 714T Evo & Andex 715T Vario can place two large swaths into one, allowing a total of up to 12.5 m crop to be gathered into one swath.
- Andex 705 Vario can also place two large swaths into one, allowing a total of up to 13.0 m crop to be gathered into one swath.
- It is also possible to place two small night swaths for hay crops.
- Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- Vicon Andex 714T models are equipped with the QuickLift system as standard.
- This ensures a lifting height of 50 cm to easily cross over existing swathes.
- Rotors are lifted using only a single acting valve.
- During transport the swath board automatically folds clear. Transport width is below 3m (2.45m with tine arms removed).
Technical specifications
Technical specifications
Download brochure| Andex 715 T VARIO | ||
|---|---|---|
| Working Width | 6.6/7,1m | |
| Tine Arms | 11/12 | |
| Weight (kg) | 1400 | |
| Rotor diameter (m) | 2.95 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 715T Vario |
6.60/7.10m |
11/12 |
1400kg |
Andex 714T Evo |
6.60/7.10m |
11/12 |
1350kg |
