Vicon FANEX 1124 C
Reliable performance with smart transport solution
Mounted tedder with transport running gear
Highlights
Maintenance-free driveline & strong ProLine gearboxes Trailed design for use with low lift tractors Flexible HexaLink finger clutch on outside rotors Optional electric comfort control Hydraulic border tedding adjustmentDescription

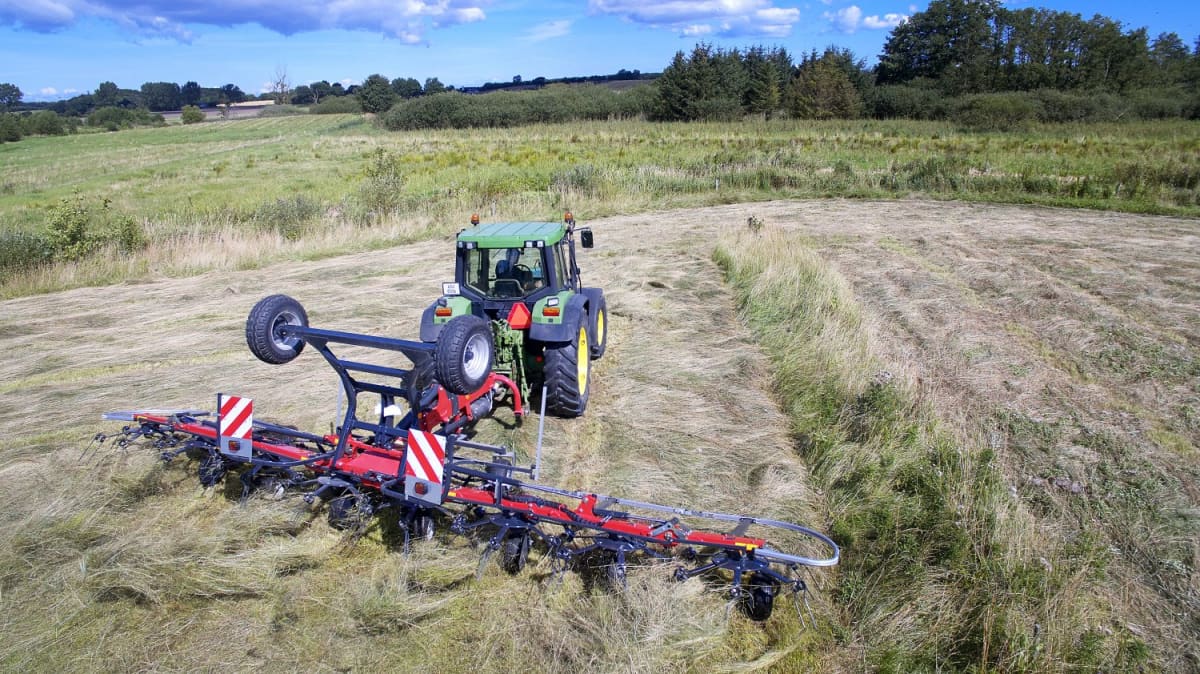

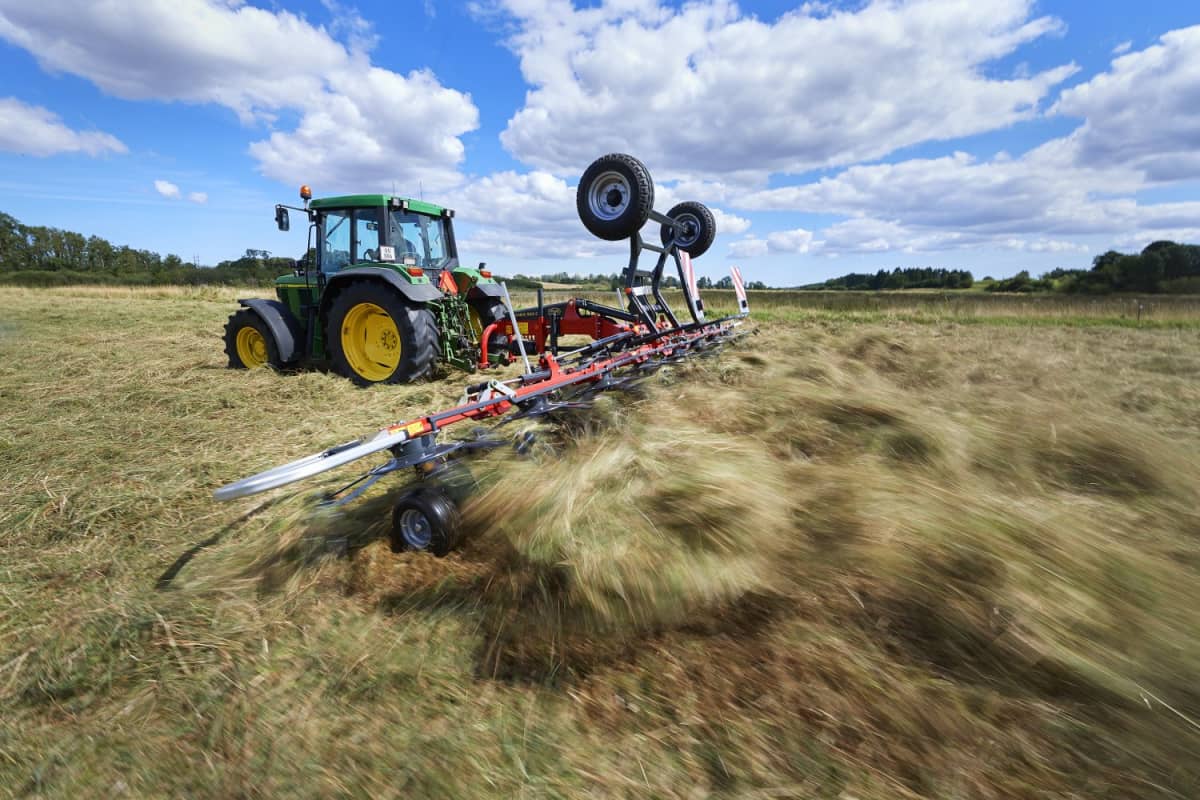

Fanex 1124C, with 11.2m working width, is a carrier frame tedder purpose-built for use with smaller tractors. The wide track width ensures stable running characteristics during road transport. Due to the carrier frame concept, the lifting capacity of the tractor is not a limiting factor and it can be operated with smaller tractors. It offers very compact storage and transport height due to the implementation of the HexaLink finger clutch system in the joints of the two outer rotors.
Highlights
- Fully maintenance-free in season, except PTO and carrier
- Strong driveline, sturdy u-joints on the inside rotors and flexible HexaLink finger clutch on outside rotors
- Highly flexible frame ensures best possible ground adaptation
- Transport running gear for use with low HP tractors
- Central hydraulic adjustment for border tedding
- Strong and sturdy design with closed V-shaped central unit
- Central adjustment for border spreading keeping the crop inside the field
Features
Solid Design- Maintenance Free Operation
- Gearbox does not serve as part of the main frame, but is bolted on. No strain is transmitted to the gearbox.
- Permanent oil bath lubrication – no maintenance of the gearbox required.
- Dust and water proof gearbox design. No corrosion.
- Double bearing on both sides of the drive shaft for highest durability to withstand the most severe conditions.
- Crown wheel and pinion positioned in one housing for very reliable drive.
- Powered by maintenance-free driveline and gearboxes.
- Reliable driveline with a strong combination of maintenance free universal joints and HexaLink finger clutch.
- Hinges are connected with strong maintenance-free roller bearings for extended longevity and stability of the connection points.

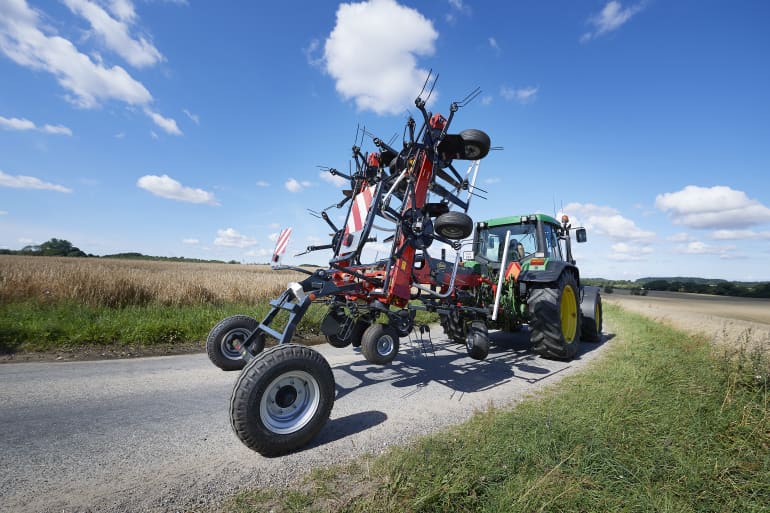

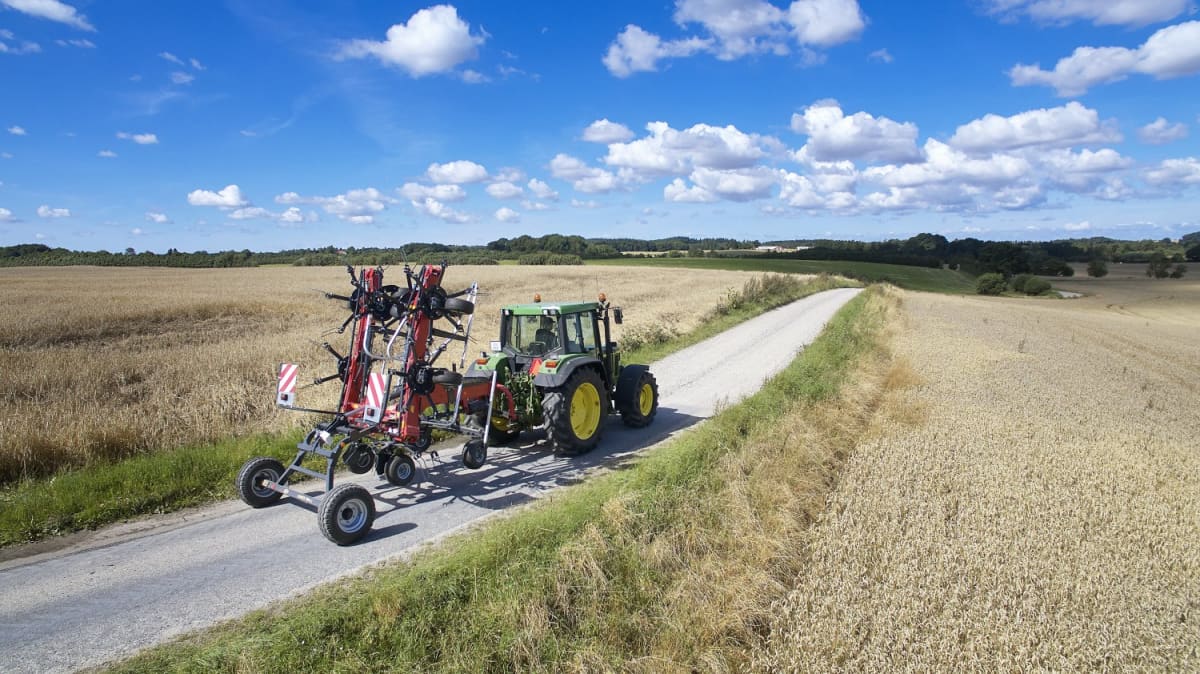

- Transport position with weight on the transport carrier allows for using small tractors down to app. 70 hp
- Large wheels on the carrier 10.0/75-15.3 with an outstanding wide track of 2.45 m ensure excellent and stable track following and smooth running characteristics

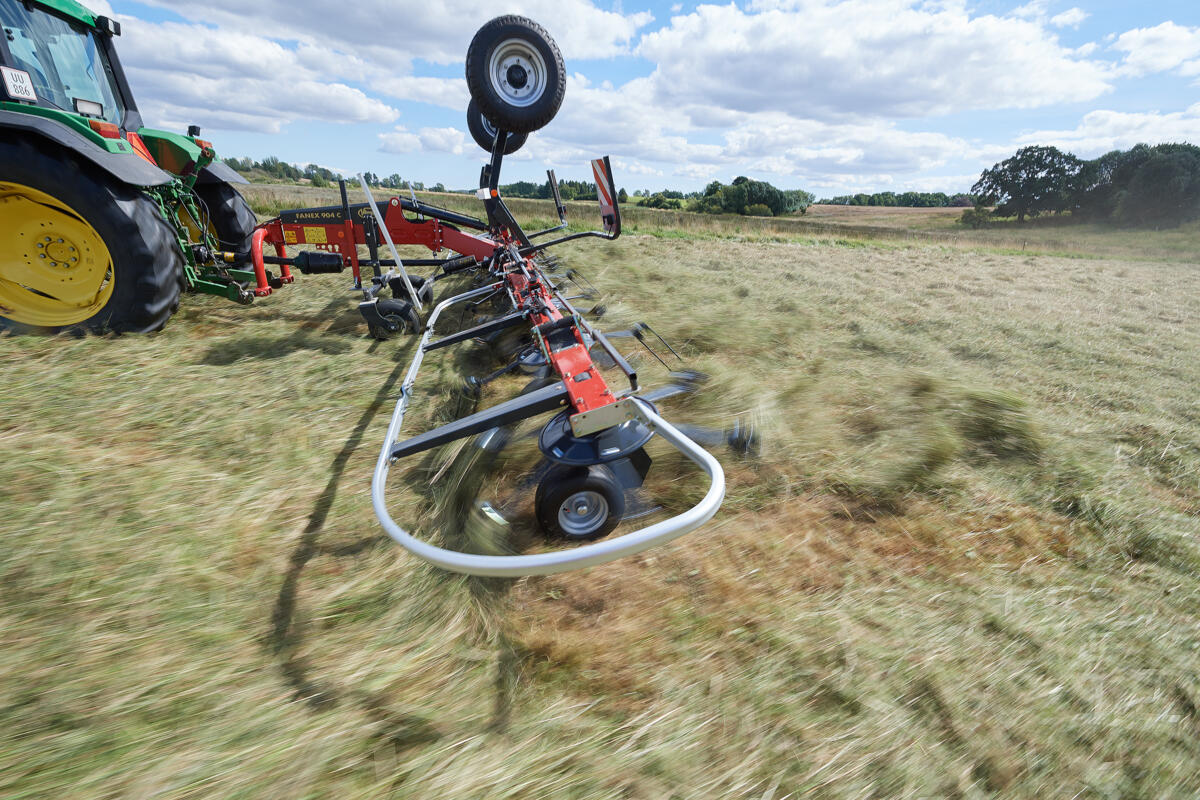

To increase productivity, all mounted tedders are Standard equipped with a mechanical border tedding device.
Carried tedders 904C & 1124C both have standard hydraulic solution for border tedding.
A marker cleverly shows the position of the axle.
Electro-hydraulic Control of main functions with simple Joystick (optional).
Technical specifications
Technical specifications
Download brochure| Model Fanex ProLine | 1124C | |
|---|---|---|
| Working width (m/ft) | 11.20 / (38’8”) | |
| Number of rotors | 10 | |
| Number of tines/rotor | 6 | |
| Transport width (m/ft) | 2.96 / (9’9”) | |
| Transport length (m/ft) | 4.26 / (13'9") | |
| Storage height (m/ft) | 3.94 / (12’11”) | |
| Capacity theor. (ha/h) | 9.0 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Rotors/Tines |
Weight |
|
Fanex 904C |
9.00m |
8/6 |
1700kg |
Fanex 1124C |
11.20m |
10/6 |
2225kg |
