Highlights
Strong frame for stable raking & high-ground clearance TerraLink Quattro with adaptation in 3 dimensions Adjustable working width from the tractor cab ProLine gearbox with fully enclosed oil-bath design Special designed rear axle for narrow roadsDescription

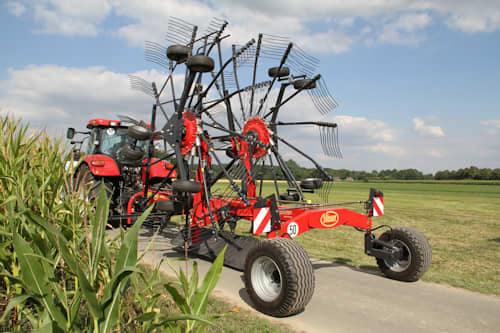

The Andex 904 Hydro ProLine rake is designed for easy operation with several features to make the whole process very easy with a 9.0m working width and offers the flexibility to adjust the working width between 8-9.00m. Thanks to the Hydro transport, axles will stay below 4.00m during transport, even with fully mounted tine arms. The machine comes with a simple lift arm suspension, individual rotor lifting, and the option of adding the optional electric height adjustment as standard.
Highlights
High-performance maintenance-free gear to cope with the largest amount of crop
TerraLink Quattro – excellent ground adaptation thanks to a simple system with no joints to wear out
Excellent manoeuvrability with steered wheels for tight turns of up to 80°
Standard with the individual lifting of rotors and rotor suspension
Features
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400 mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Vicon features.
- Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Vicon centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
Technical specifications
Technical specifications
Download brochure| Andex | 904 Hydro | |
|---|---|---|
| Working Width | 8.0-9.0m | |
| Tine Arms | 2x14 | |
| Weight (kg) | 2350 | |
| Rotor diameter (m) | 3.85 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 804 |
7.00-8.00m |
2x12 |
2065kg |
Andex 844 |
7.60-8.40m |
2x12 |
1950kg |
Andex 904 Hydro |
8.00-9.00m |
2x14 |
2350kg |
