Vicon Bromex PX
Easy and minimal maintenance
Versatile, useful and reliable
Highlights
Heavy construction for a reliable operation Versatile rotor for perfect shredding in all conditions Minimal maintenance, reduction of maintenance costs Headstock designed and tested for heavy applicationsDescription

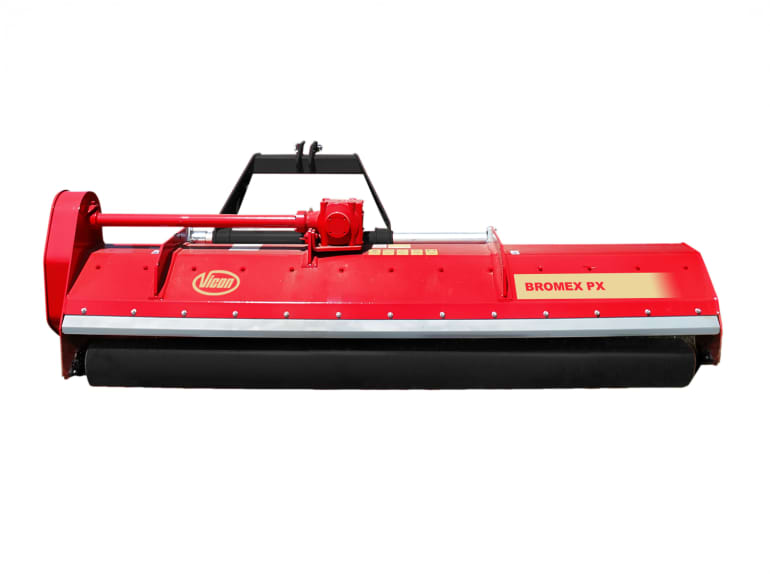

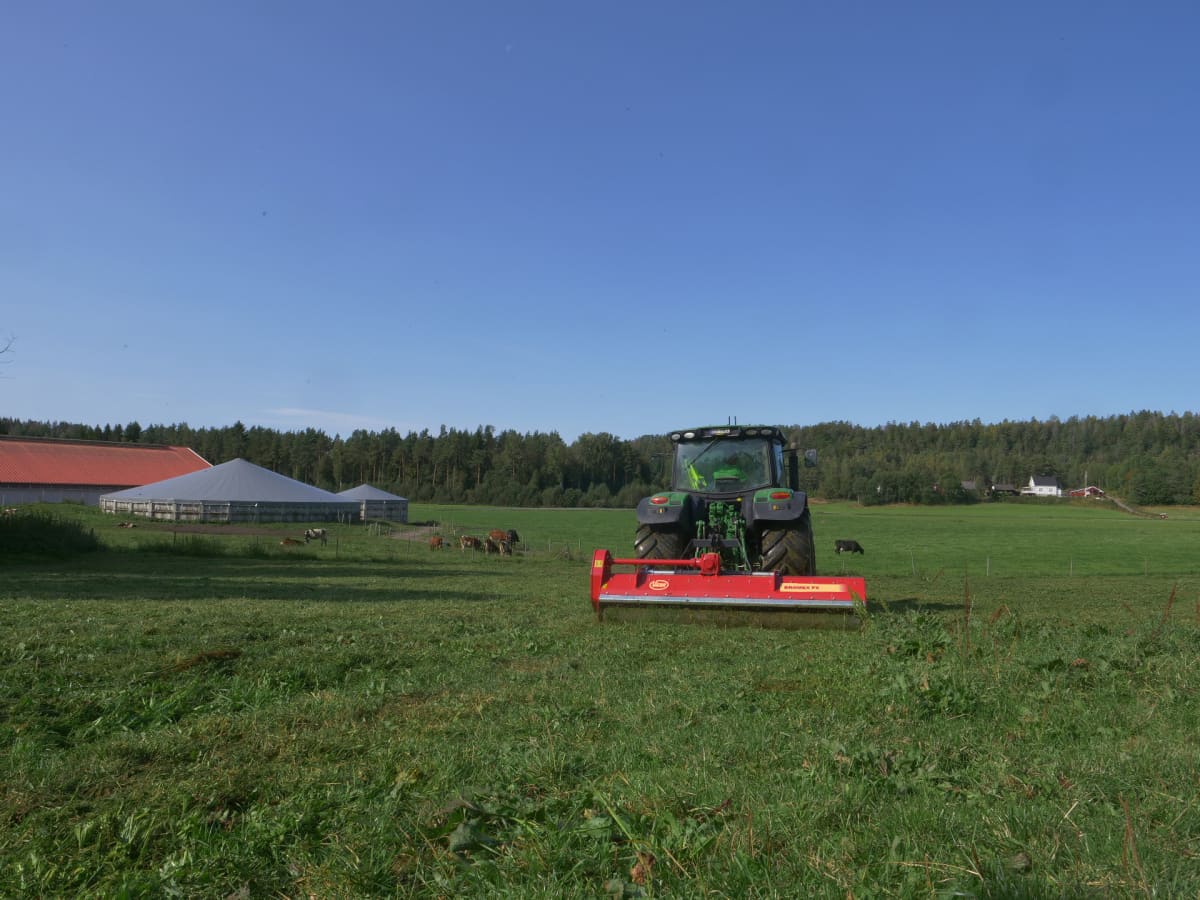

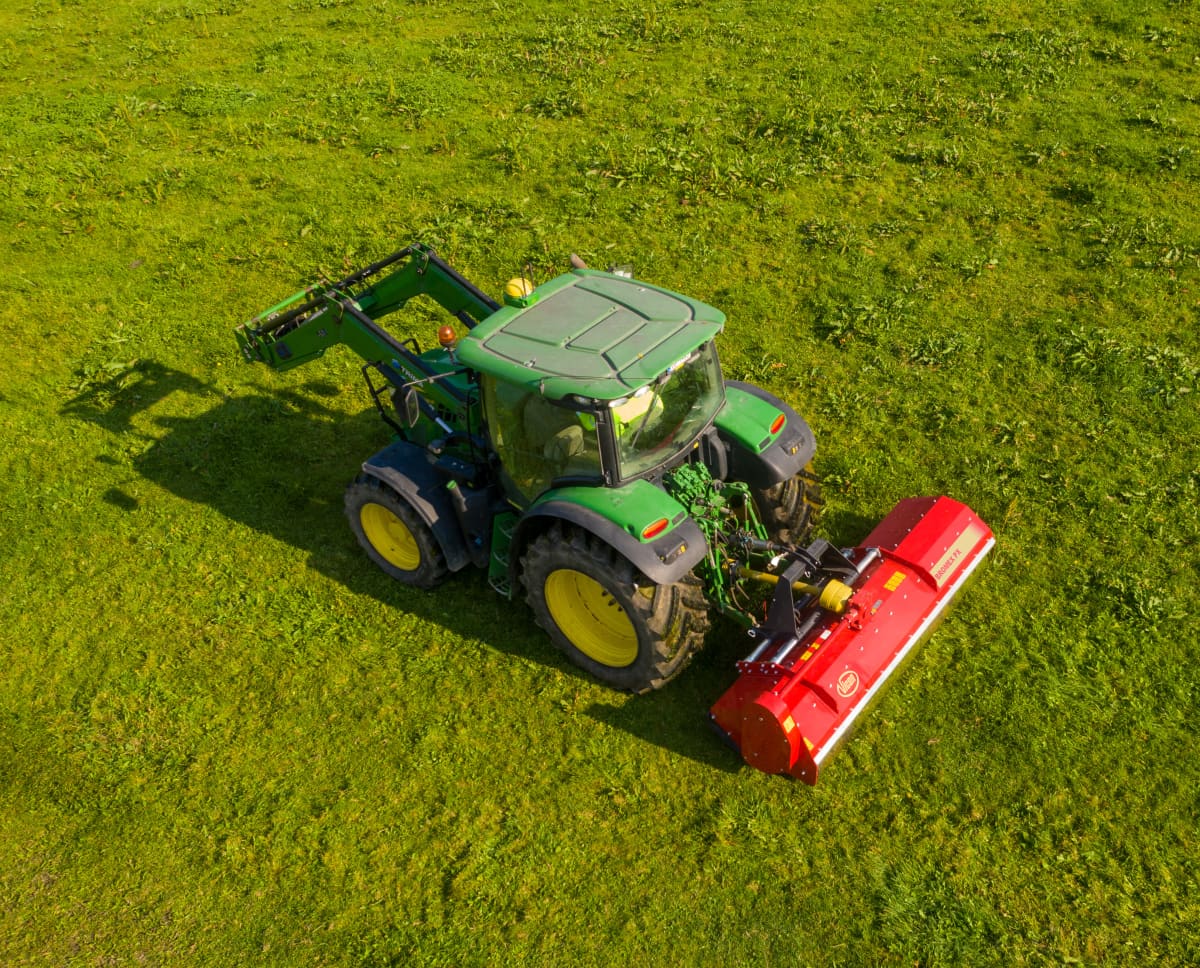

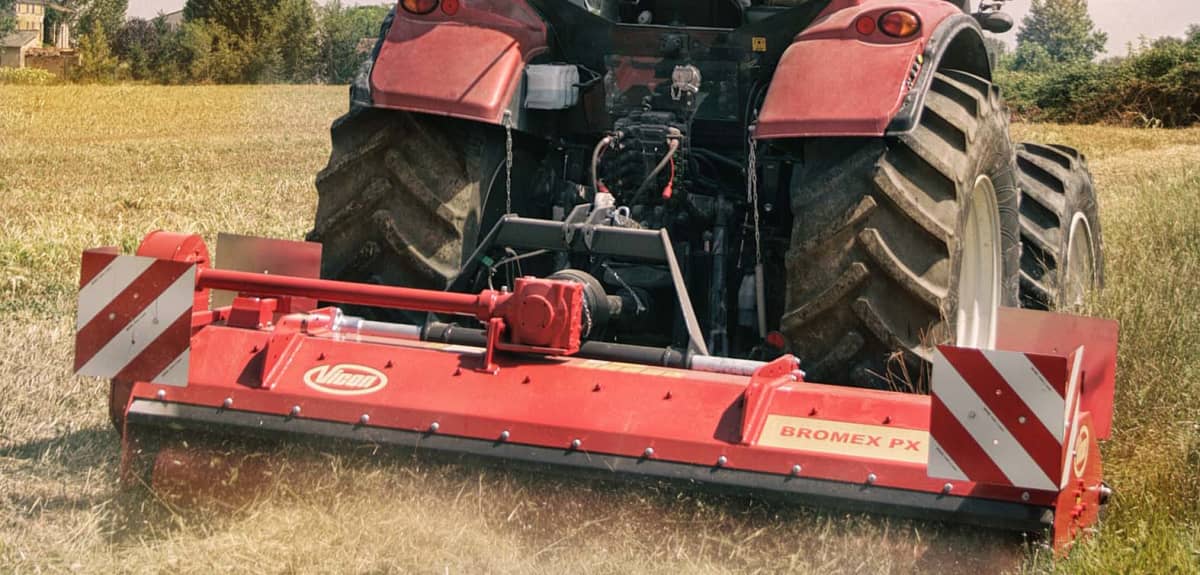

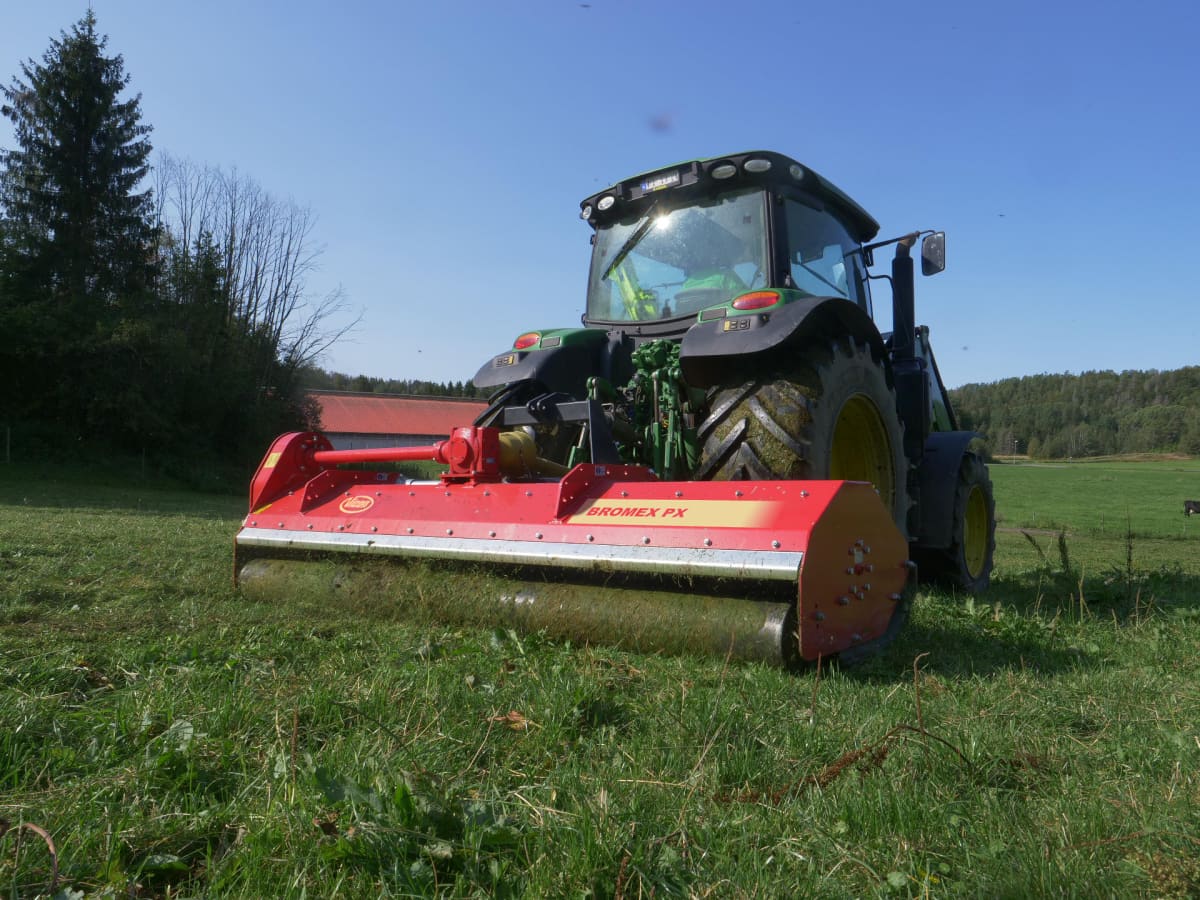

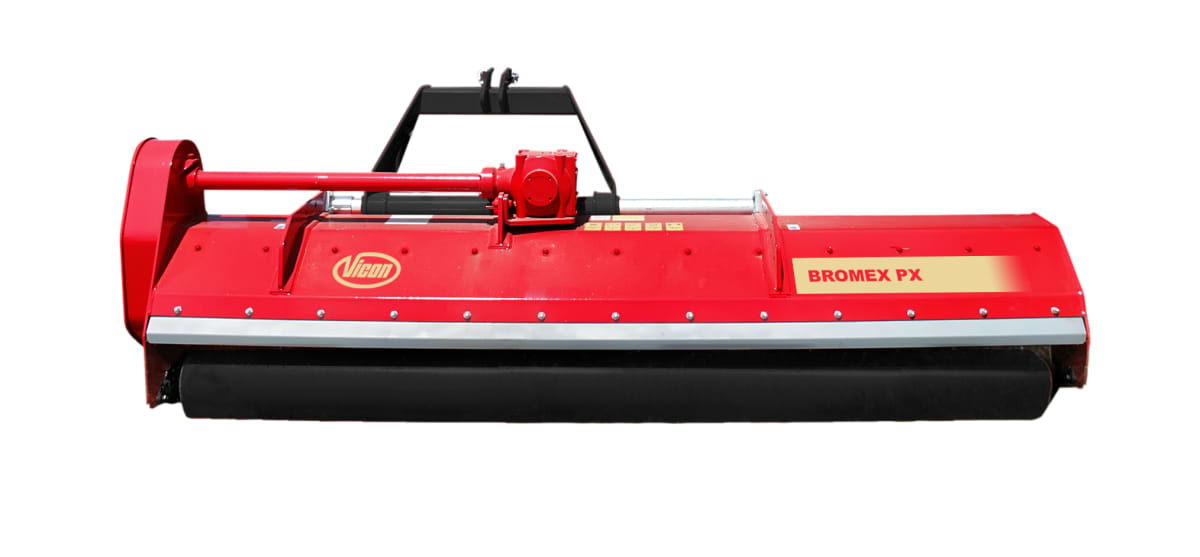

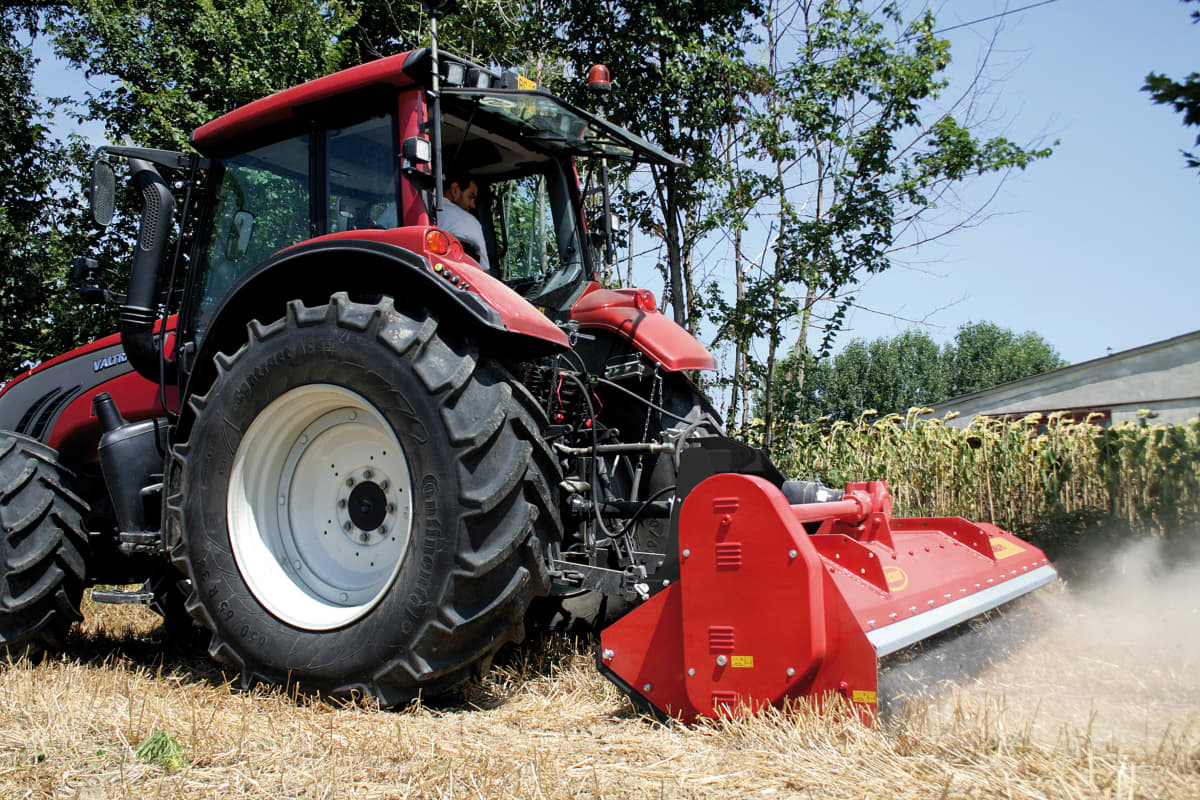

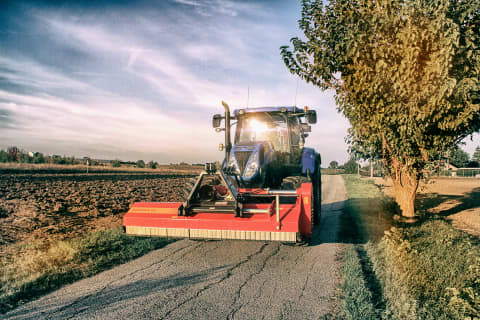

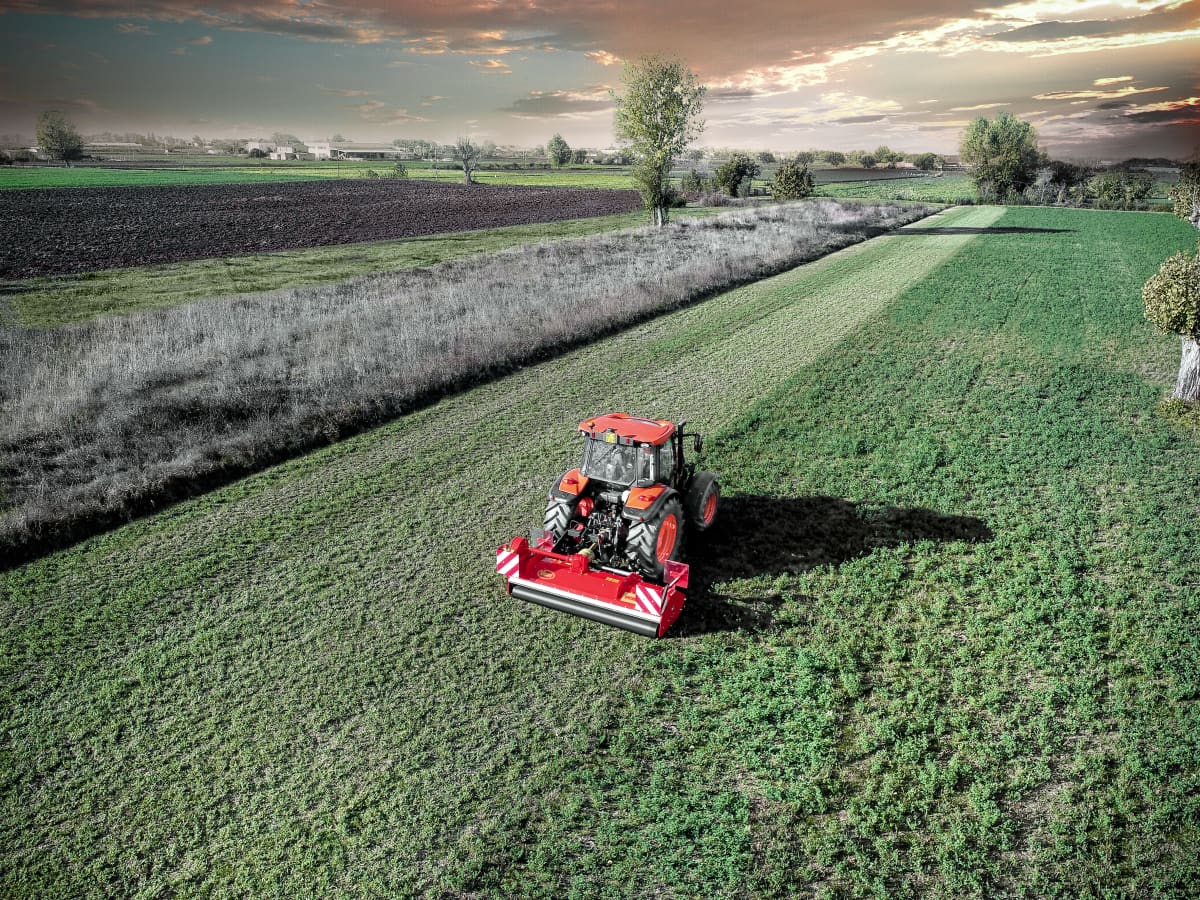

The Vicon Bromex PX is a multi-purpose machine for chopping grass, pasture, set-aside land and stubble. The hydraulic offset of the Bromex PX gives you the possibility to clear out field edges, orchards and roadside verges. Hammer blades or universal Y blades with short fan blades allow a perfect shredding quality in all conditions. With a large sliding offset of up to 52cm, Bromex PX is the ideal solution for field and farm maintenance. In addition, the large 540mm cutting diameter rotor provides excellent cut quality with low power requirement.
Features
- Versatile for use; front, rear, and offset ability, for tractors up to 160 hp
- Offset Frame: Machined after welding for precise alignment and enhanced accuracy.
- PTO tractor input at 540rpm or 1000rpm
- Central gearbox up to 160 hp
- Efficient rotor transmission with 5 V-belts and the BTS automatic belt tensioning system
- Strong construction: Built to endure demanding conditions with reliability and stability.
- Constructed with a durable 245x10mm tube for exceptional strength.
- The large diameter ensures precise balancing and vibration-free performance.
- The rotor stays straight during operation, ensuring an even and clean cut.

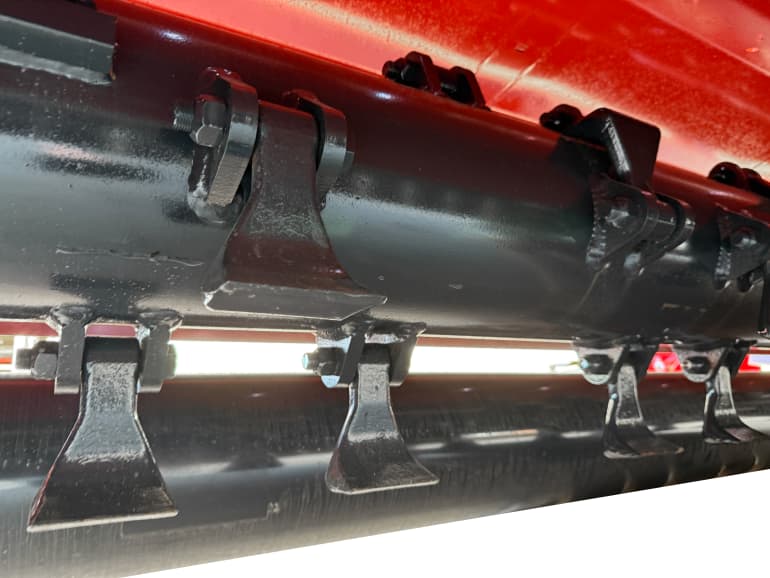

- Universal Y and Hammer blades are designed to provide exceptional performance and reliability.
- A second counter knife is available as an option
- A double skin can be bolted in case of harsh working conditions (option)
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
Bromex PX 235 | Bromex PX 280 | Bromex PX 320 | ||
---|---|---|---|---|
Working width (cm) | 235 | 280 | 320 | |
Transport width (cm) | 255 | 300 | 345 | |
No.of blades (univ /hammer)) | 56/28 | 72/36 | 80/40 | |
Weight (kg) | 1025 | 1135 | 1225 |
Unable to load the table
Multipurpose choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of universal/hammer blades |
Bromex PX 235 |
2.35 |
1025 |
56/28 |
Bromex PX 280 |
2.80 |
1135 |
72/36 |
Bromex PX 320 |
3.20 |
1225 |
80/40 |
