The advantages of this Plain mower
- NonStop BreakAway device
- Floating suspension with three-dimensional adaptation
- Flexible swath width
- Excellent ground adaptation
Description

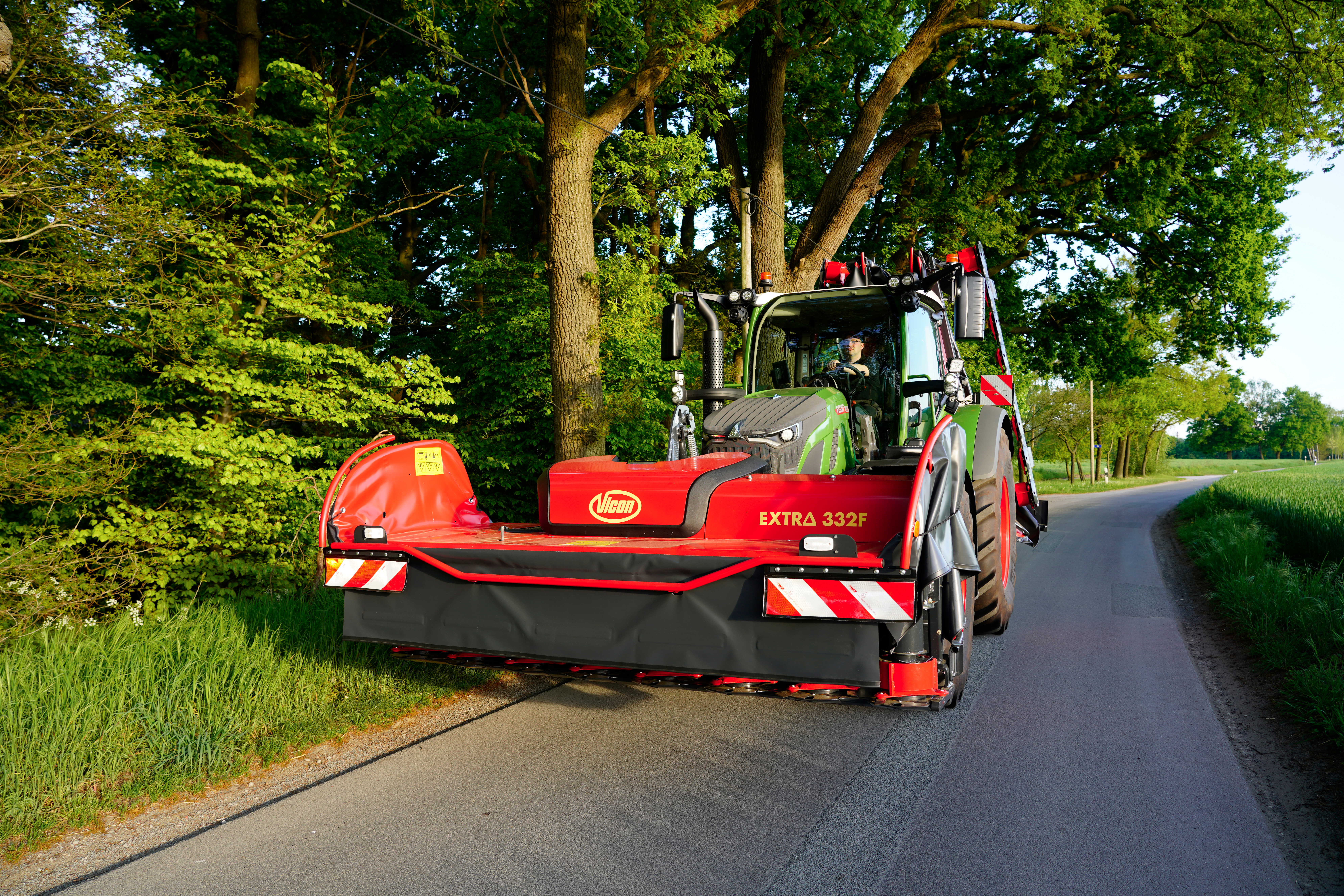

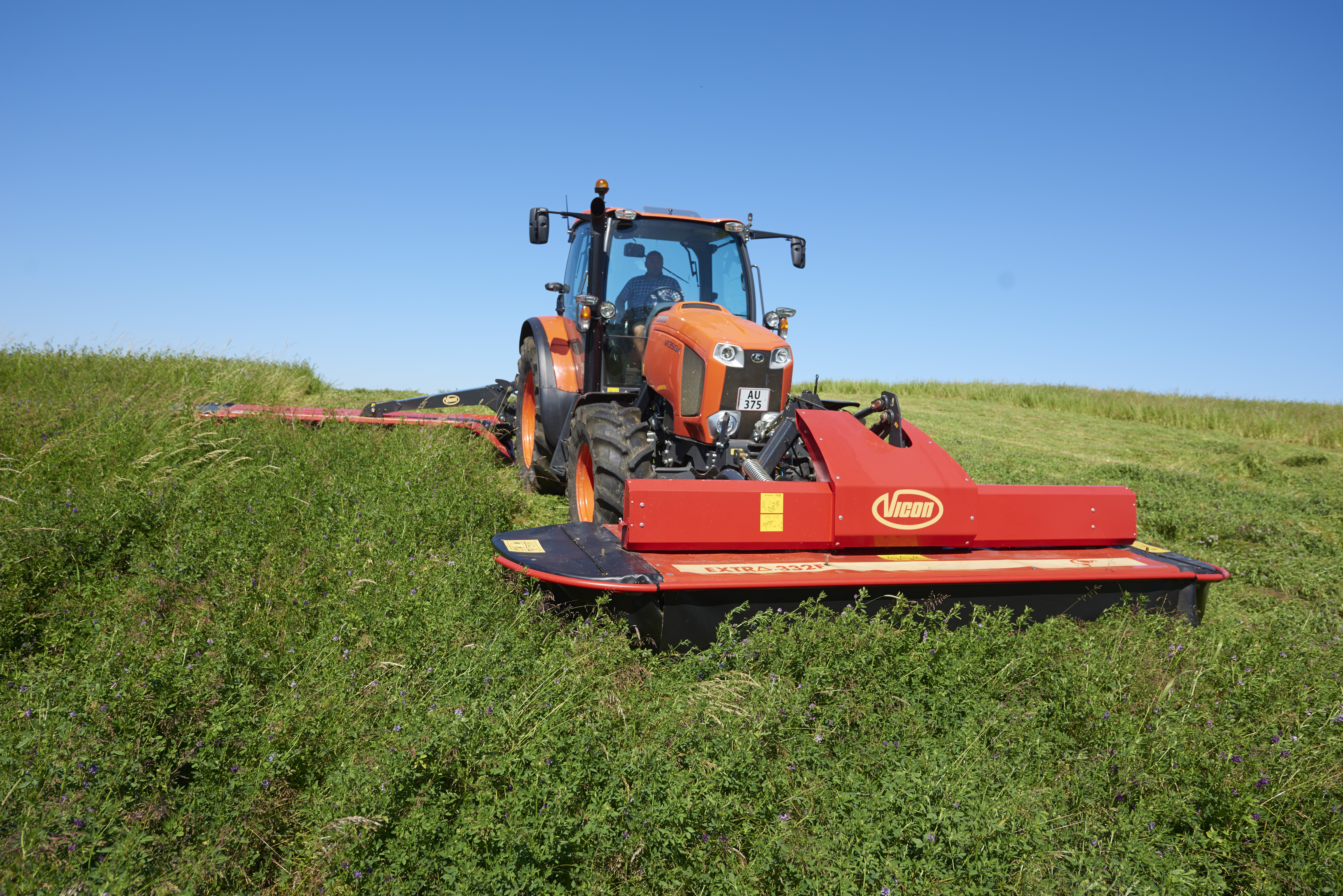

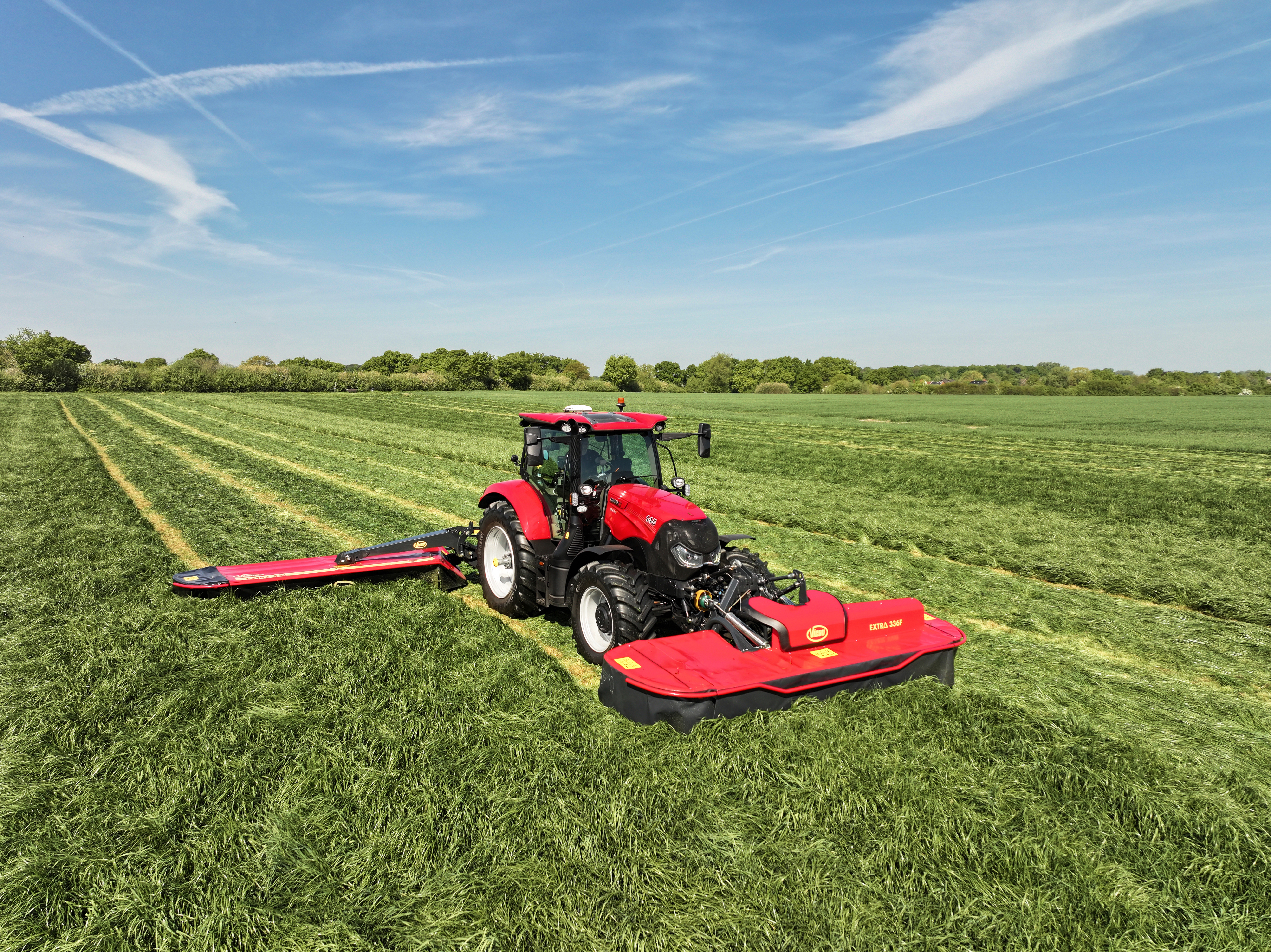

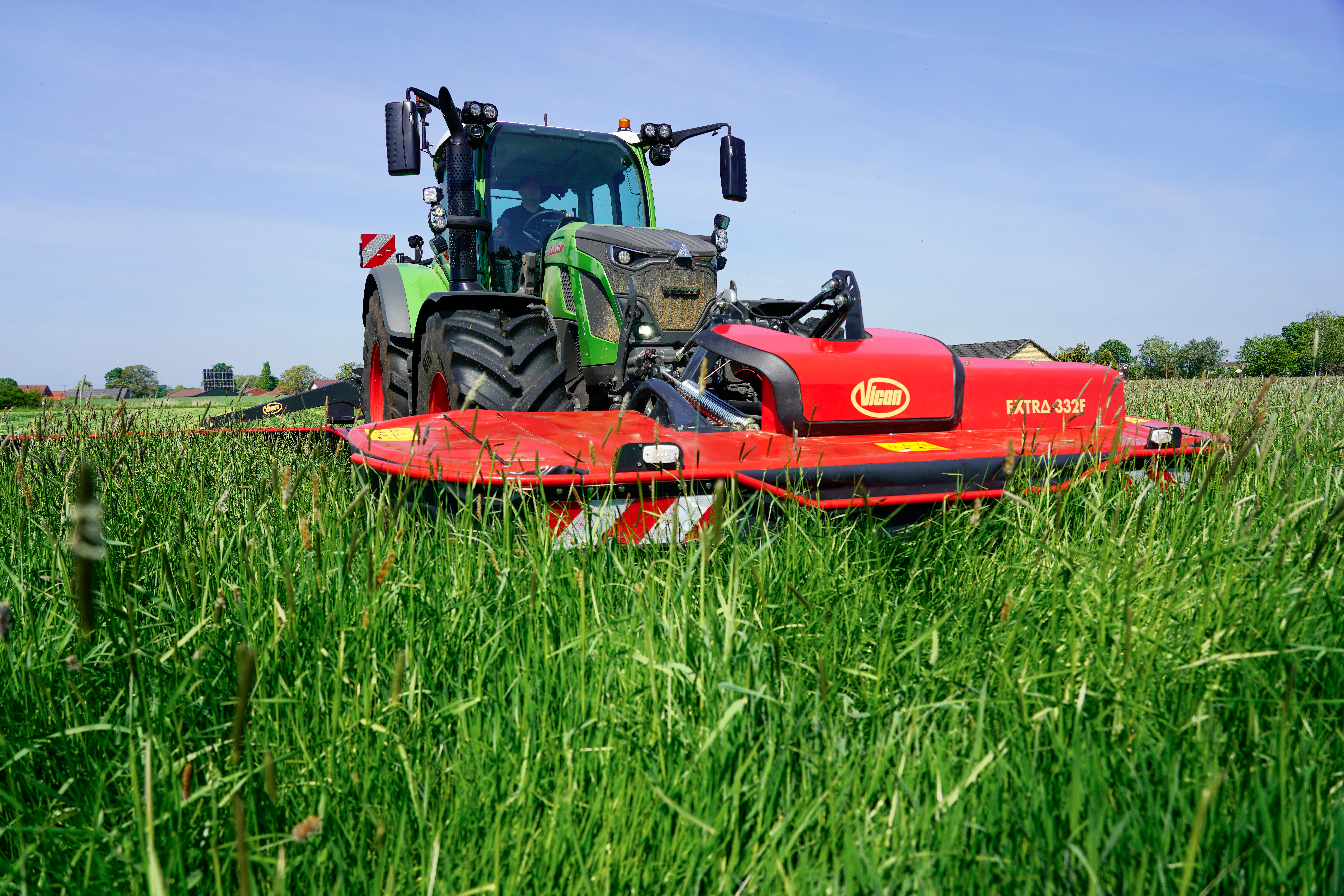

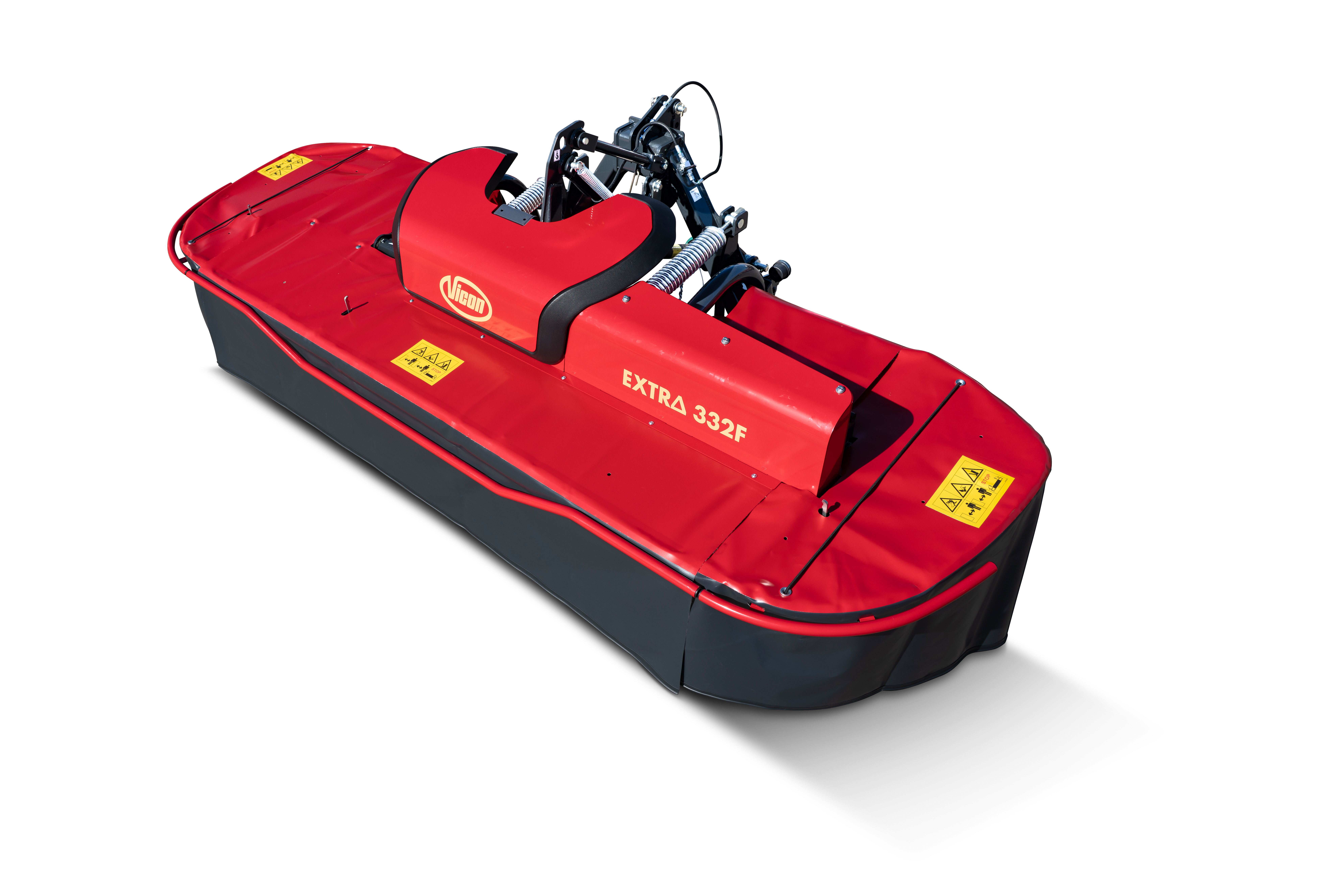

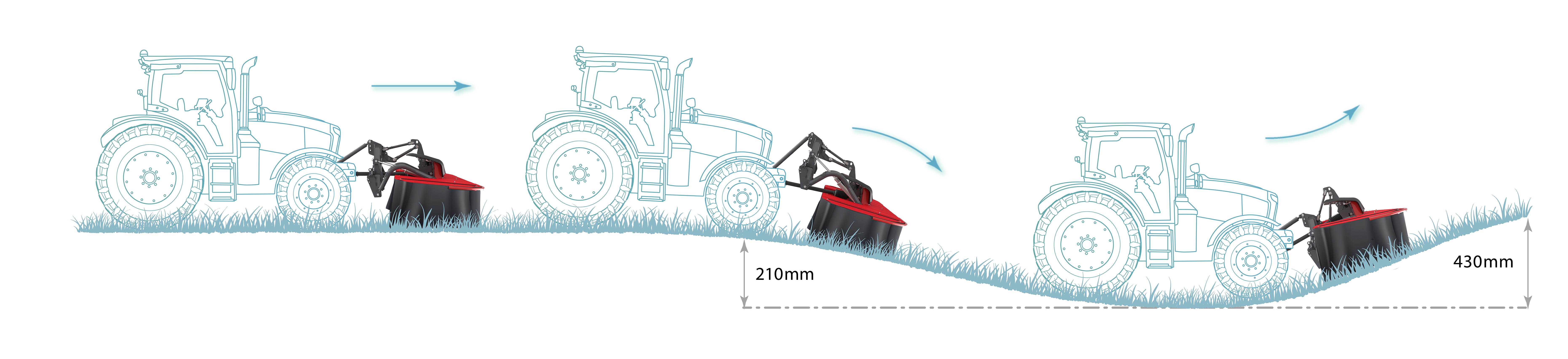

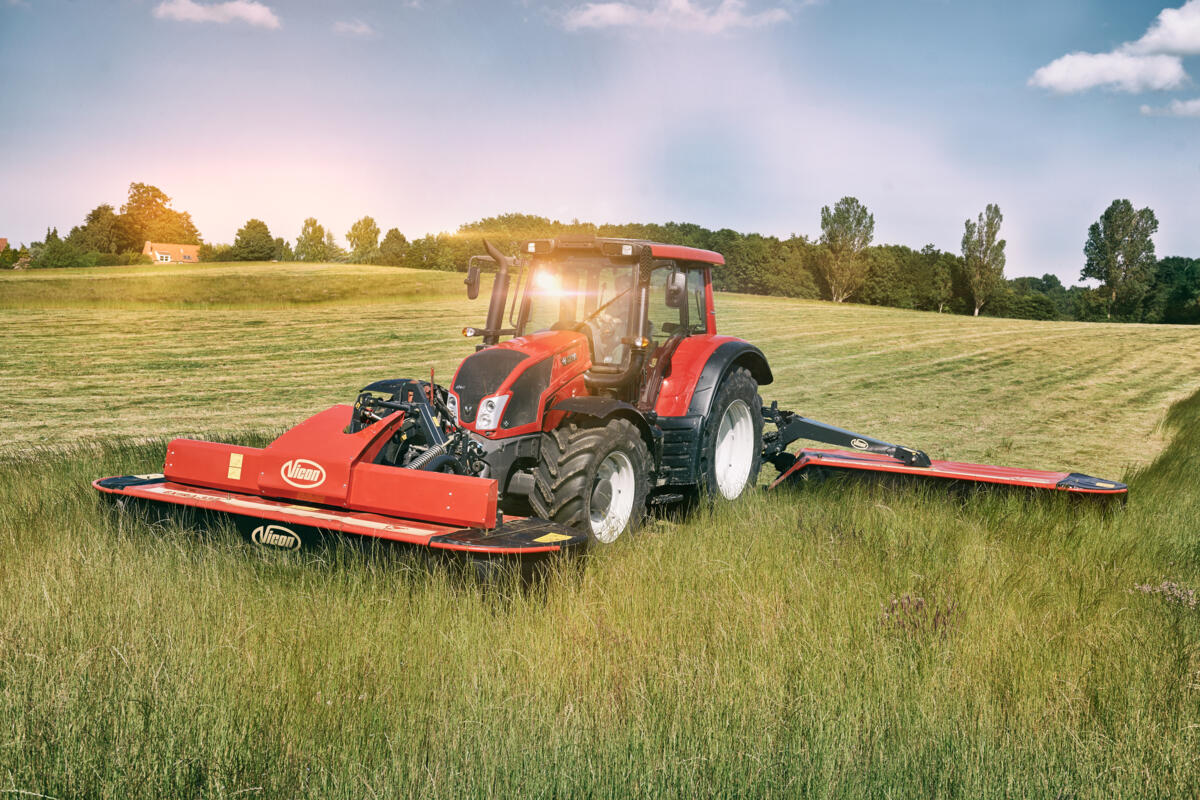

Vicon EXTRA 300F series front mounted disc mowers, with 2.84-3.50m working width, is characterized by outstanding ground following ability, easy operation and low weight, leading to excellent cutting performance and ground following ability in all terrain. At standard settings the cutterbar has a remarkable 430mm upwards and 210mm downwards adaptation range, in combination with a transverse pivoting range of 17°. The design does not require a flexible front linkage, as the movement is built into the machine.
Features

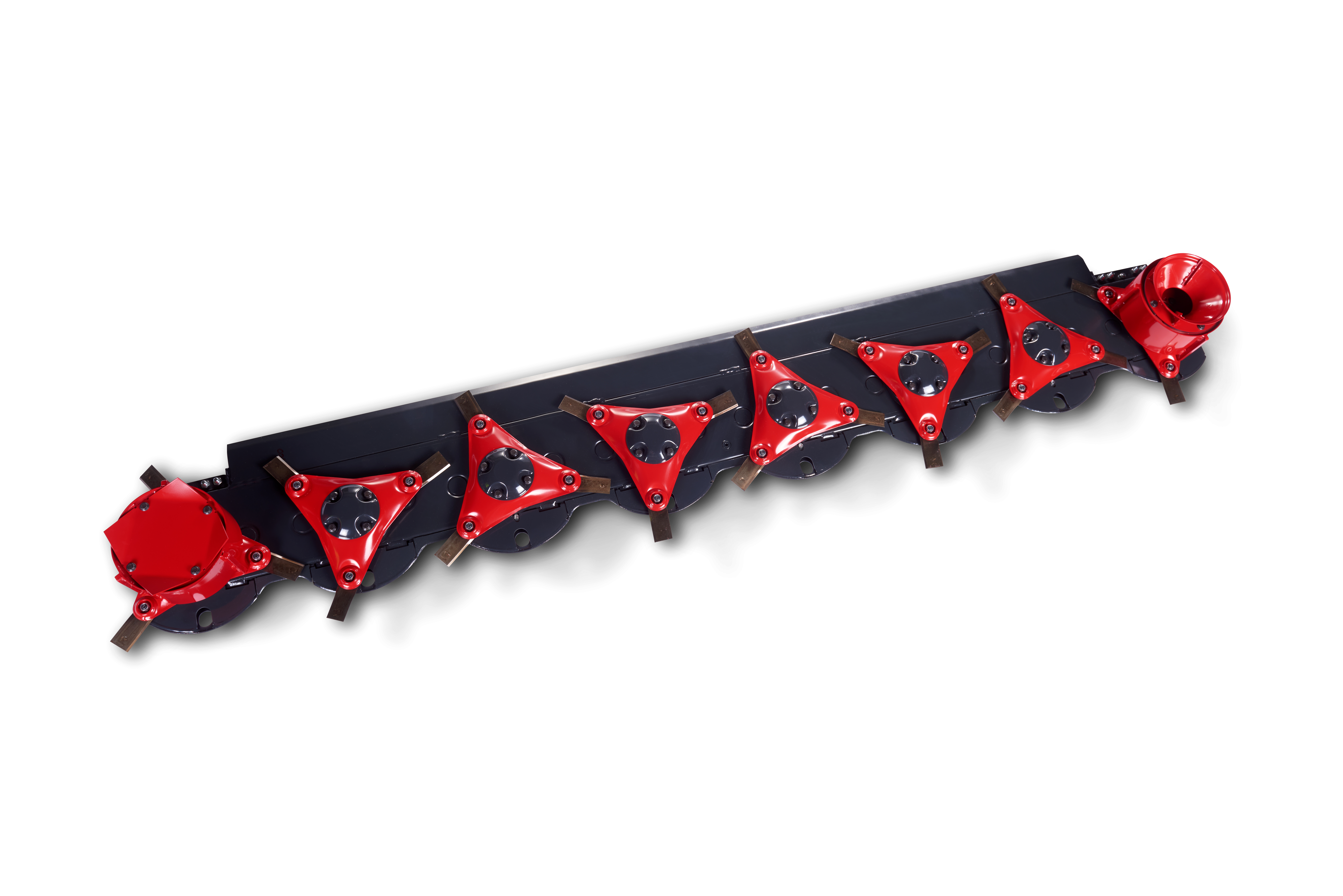

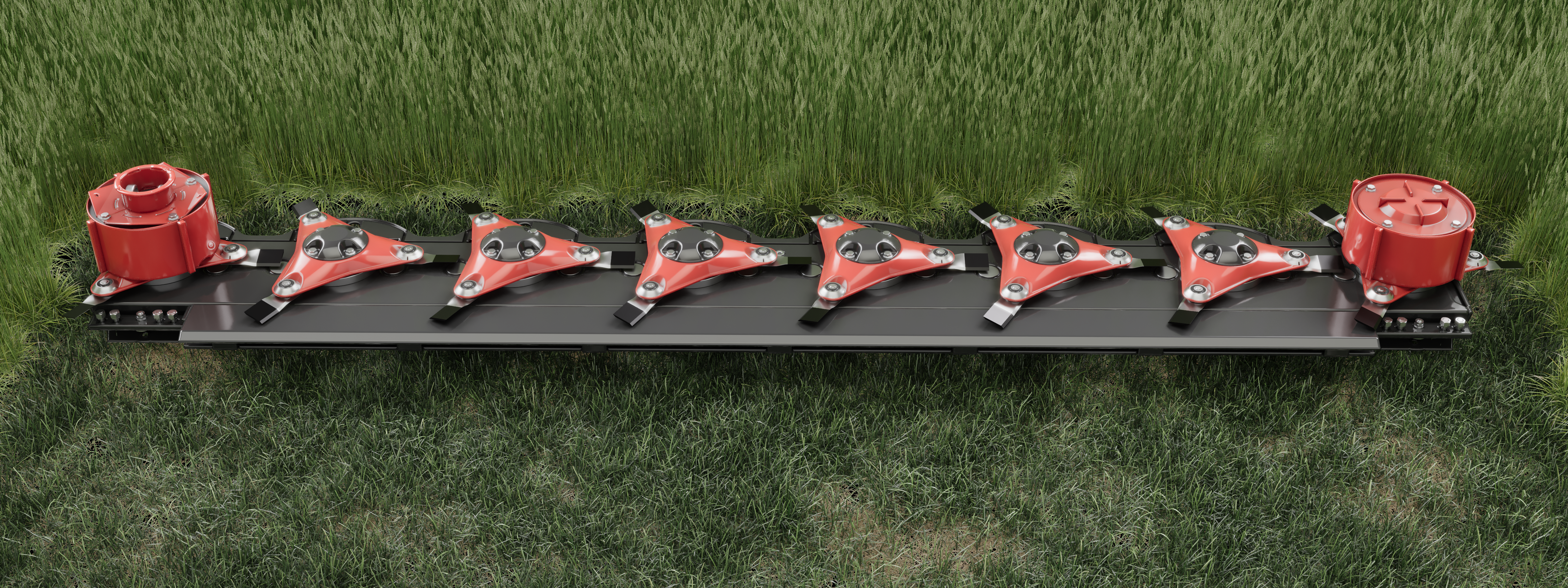

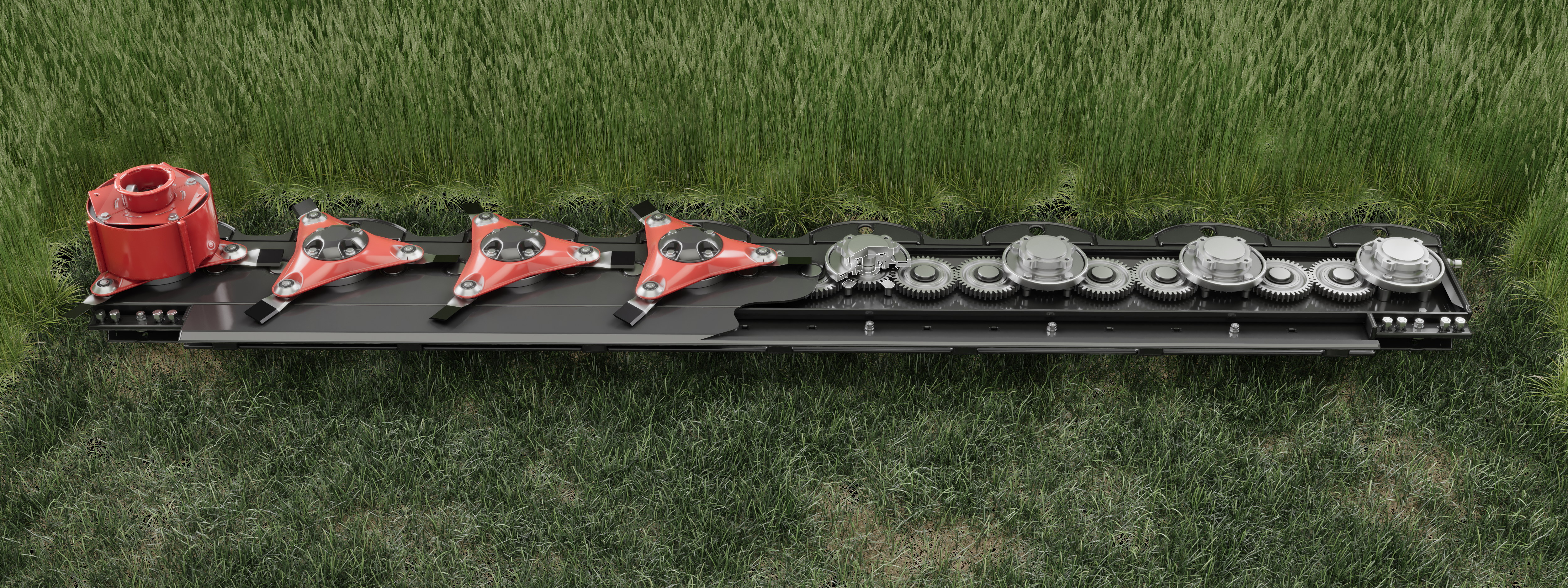

- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.

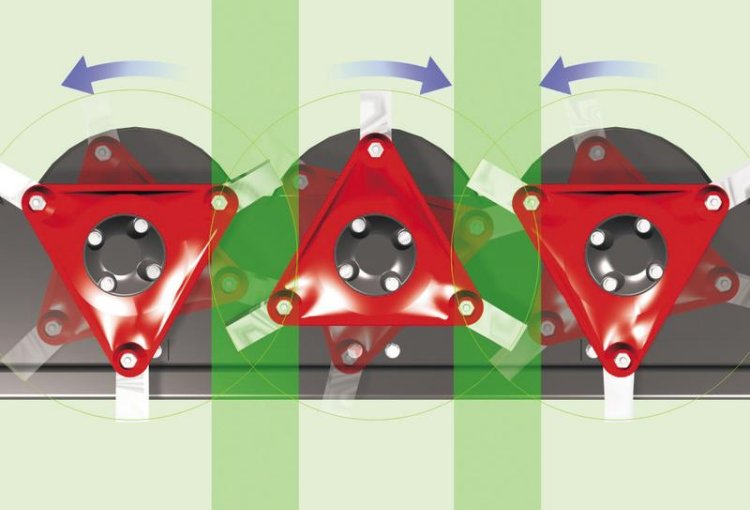

- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.

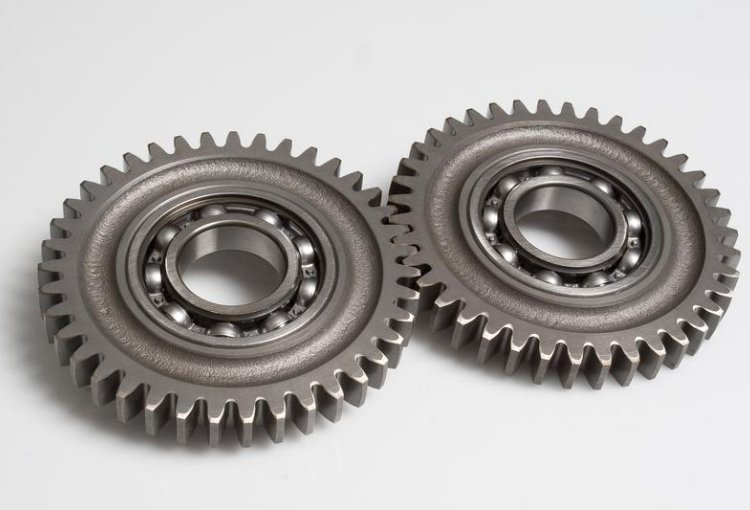

- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.

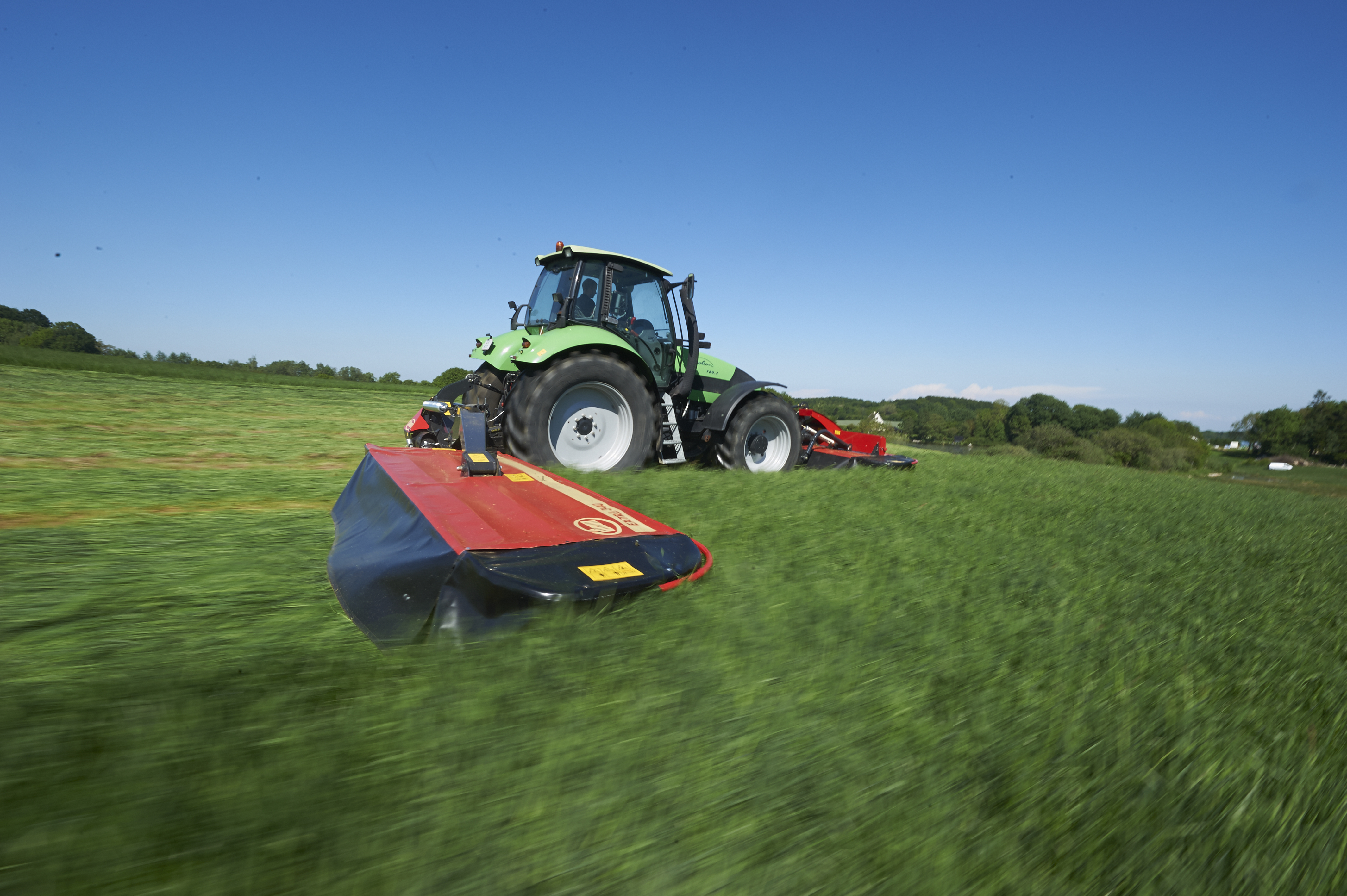

The EXTRA 300F series is characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.
To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage.

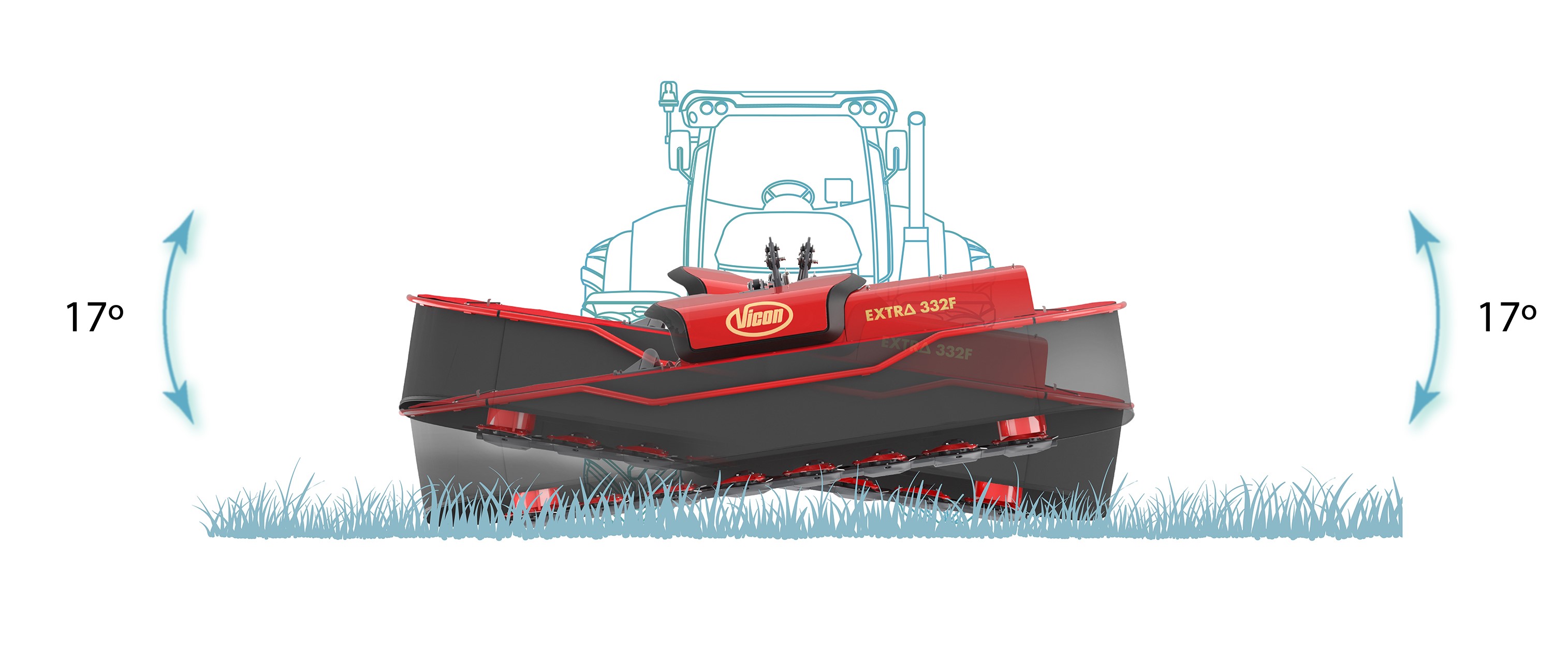

The mower design allows a transverse adaptation of up to 17°

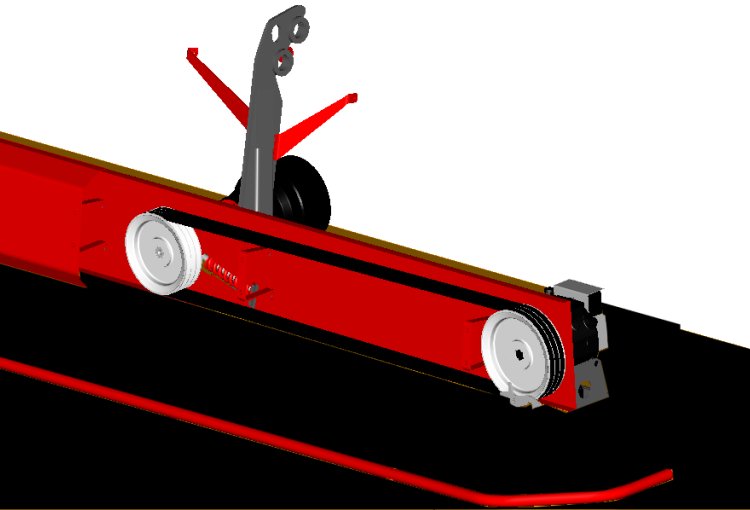

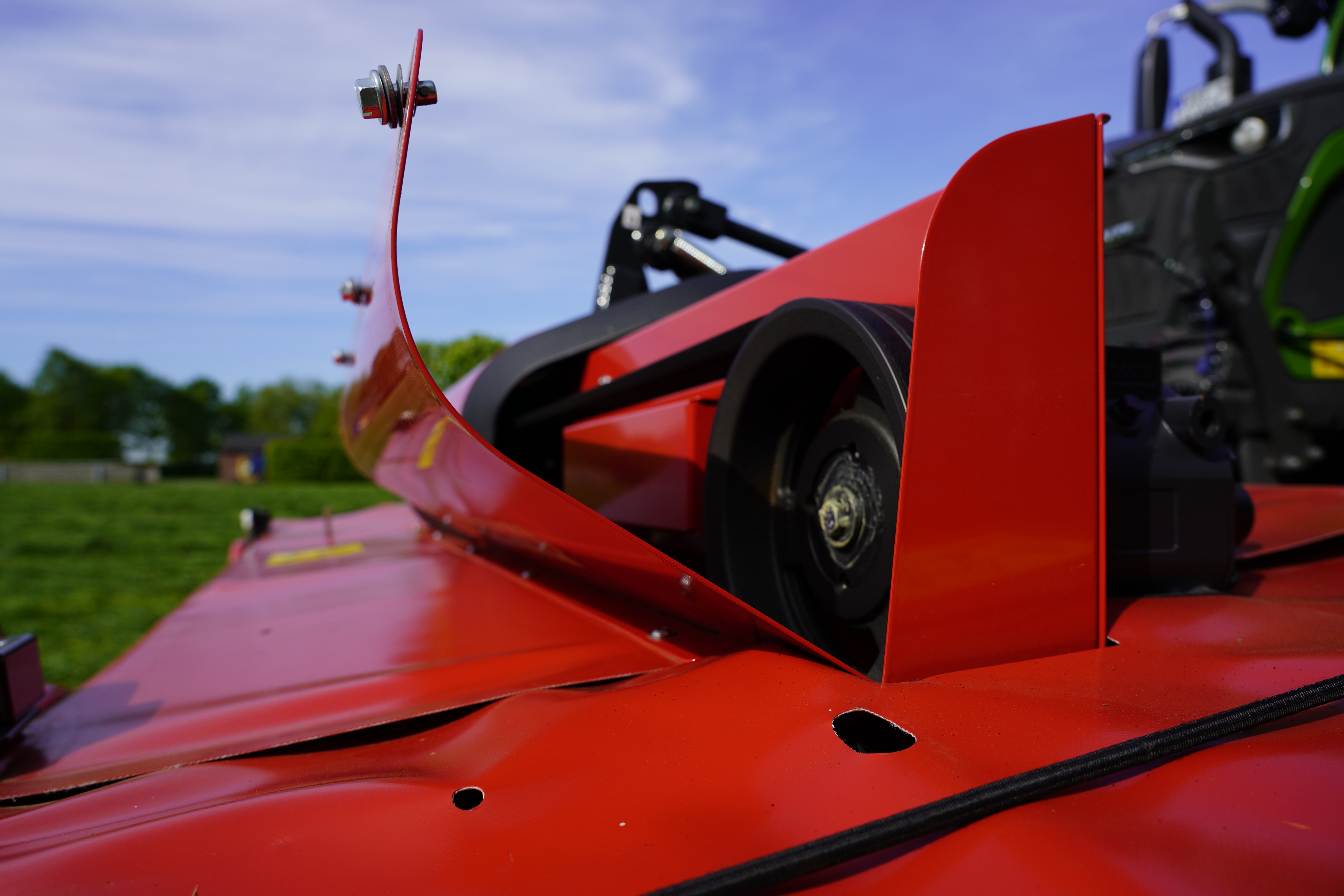

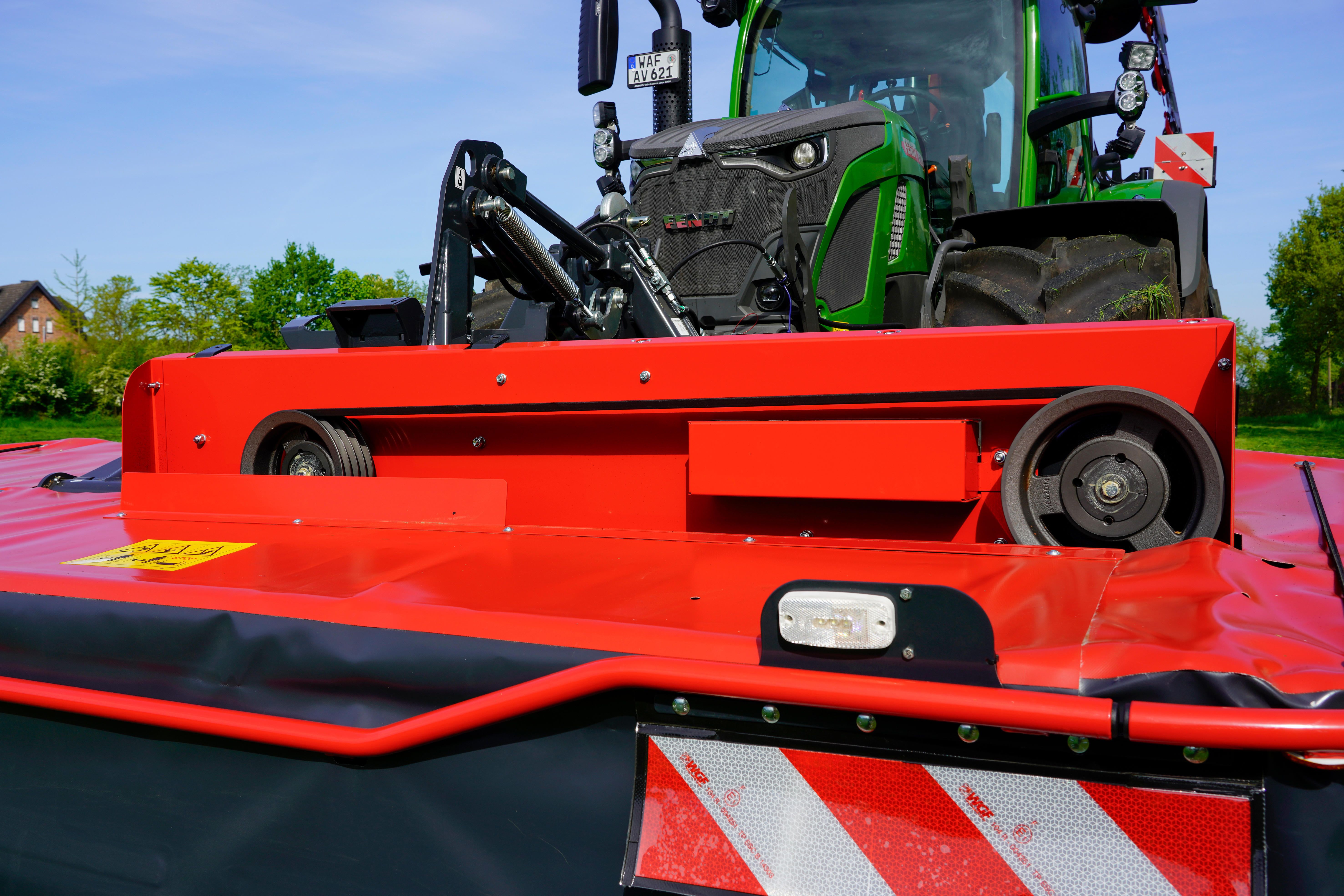

- Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved.
- This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed.
Technical specifications
Technical specifications
Download brochure| Model EXTRA | 324F | 328F | 332F | 336F | |
|---|---|---|---|---|---|
| Working width (m/ft) | 2.42(7’11”) | 2.84(9’4”) | 3.18(10’5”) | 3.50(11'6") | |
| Transport width (m) | 2.2 | 2.6 | 3.0 | 3.4 | |
| Linkage (CAT) | 2 | 2 | 2 | 2 | |
| PTO (rpm) | 750/1000 | 750/1000 | 750/1000 | 750/1000 | |
| Min. power req. PTO output (kW/hp) | 23/31 | 26/35 | 29/40 | 37/50 | |
| Number of discs and knives | 6/18 | 8/24 | 8/24 | 10/30 |
Technical specifications
Technical specifications
Download brochureWorking Wdith |
Weight |
Power Req, Min |
|
EXTRA 328F |
2.84m |
700kg |
26/35 kW/hp |
EXTRA 332F |
3.18m |
740kg |
29/40 kW/hp |
