Vicon Bromex Mplus
Compact and easy
Multi-purpose side pivoting chopper
Highlights
Large diameter rotor & high rotation speed Different blades can be mounted on the same rotor Rear roller and optional skids for better ground following Counter knife, double skin for a good chopping resultsDescription

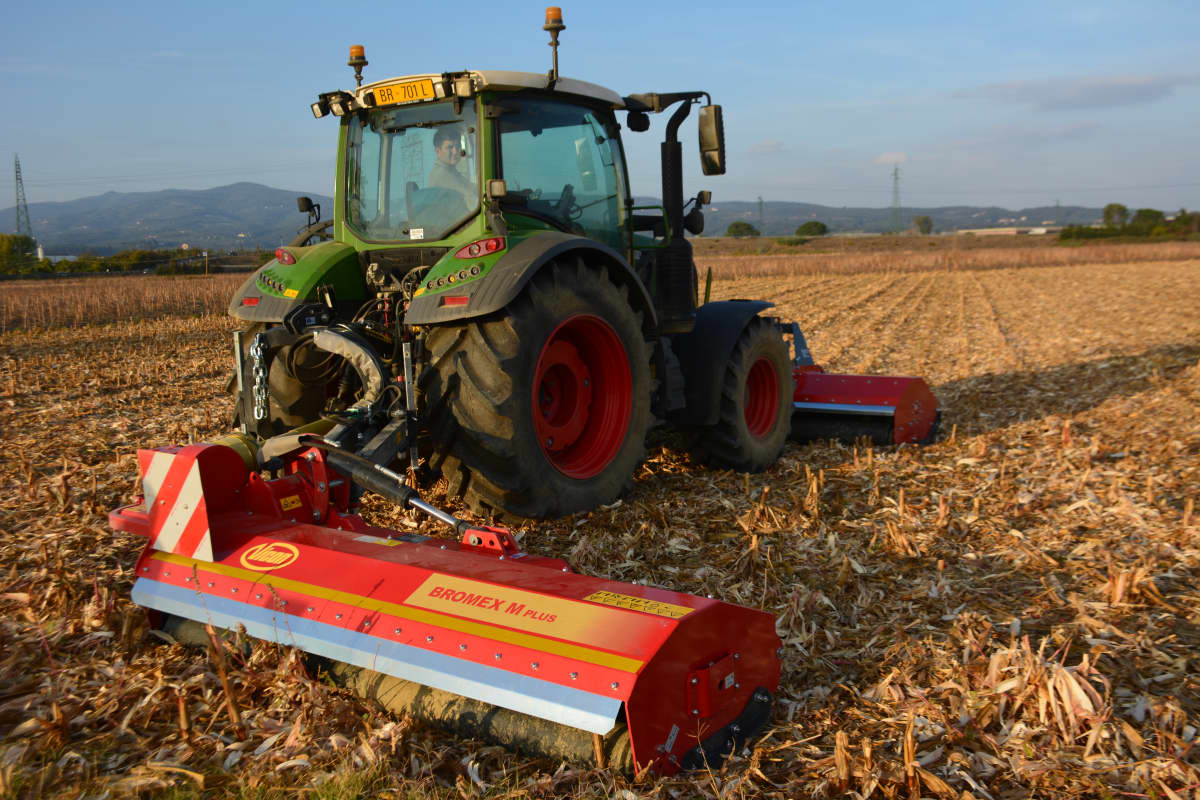

Vicon Bromex M plus is a multi-purpose chopper suitable for roadside verge maintenance, clearing out field edges, ditches and hedges. In addition, the new Bromex M plus allows versatile use on grass, light wood and bushes ideal for keeping parks, gardens and rough ground under control. Combined with a front-mounted chopper (Bromex PF or Bromex PXD), the pivoting chopper Bromex M plus can make a high-performance set-up for all circumstances.
Highlights
Large diameter rotor, precise balancing, high rotation speed (1858 rpm)
Different blades can be mounted on the same rotor: universal & hammer blades
Counter knife and double skin for improved chopping results and longer working life
Accumulator to prevent any damage due to collision with obstacles
Features
- Features a sturdy headstock- Highly resistant to stress from heavy usage
- Reinforced parallelogram enhances stability and flexibility.
- Different working widths can achieve various offset positions.
- Oil-bath gearboxes, up to 150hp, guarantee durability and longevity.
- An automatic belt tensioner requires minimal maintenance, eliminating the need for belt adjustments.
- Compact, low-profile, and rounded, crafted for heavy-duty applications.
- Robust build to prevent damage and withstand intensive use.
- Maintenance: easy access to multiple greasing points enhances efficient upkeep.
- Made from a sturdy 169x10mm tube, this design ensures strength with a cutting diameter of 452mm.
- Large diameter ensures precise balancing and smooth, vibration-free operation.
- Universal Y and Hammer blades are designed to offer you exceptional performance and reliability.
- Double Skin- Standard thickness of 4mm
- The first counter knife is standard, while the second is an option
Technical specifications
Technical specifications
Download brochureBromex M plus 200 | Bromex M plus 230 | Bromex M plus 250 | ||
---|---|---|---|---|
Working width (cm) | 200 | 230 | 250 | |
Transport width (cm) | 255 | 285 | 305 | |
No.of blades (univ /hammer) | 52/26 | 60/30 | 64/32 | |
Weight (kg) | 900 | 960 | 985 |
Multipurpose choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of blades (universal/hammer) |
Bromex M plus 200 |
2.0 |
900 |
52/26 |
Bromex M plus 230 |
2.3 |
960 |
60/30 |
Bromex M plus 250 |
2.5 |
985 |
64/32 |
