Highlights
Heavy construction for tractors up to 160hp Versatile rotor for perfect shredding in all conditions The high rotor speed with a large number of blades Optional rear wheels for effective deep control Minimal maintenance, reduction of maintenance costsDescription

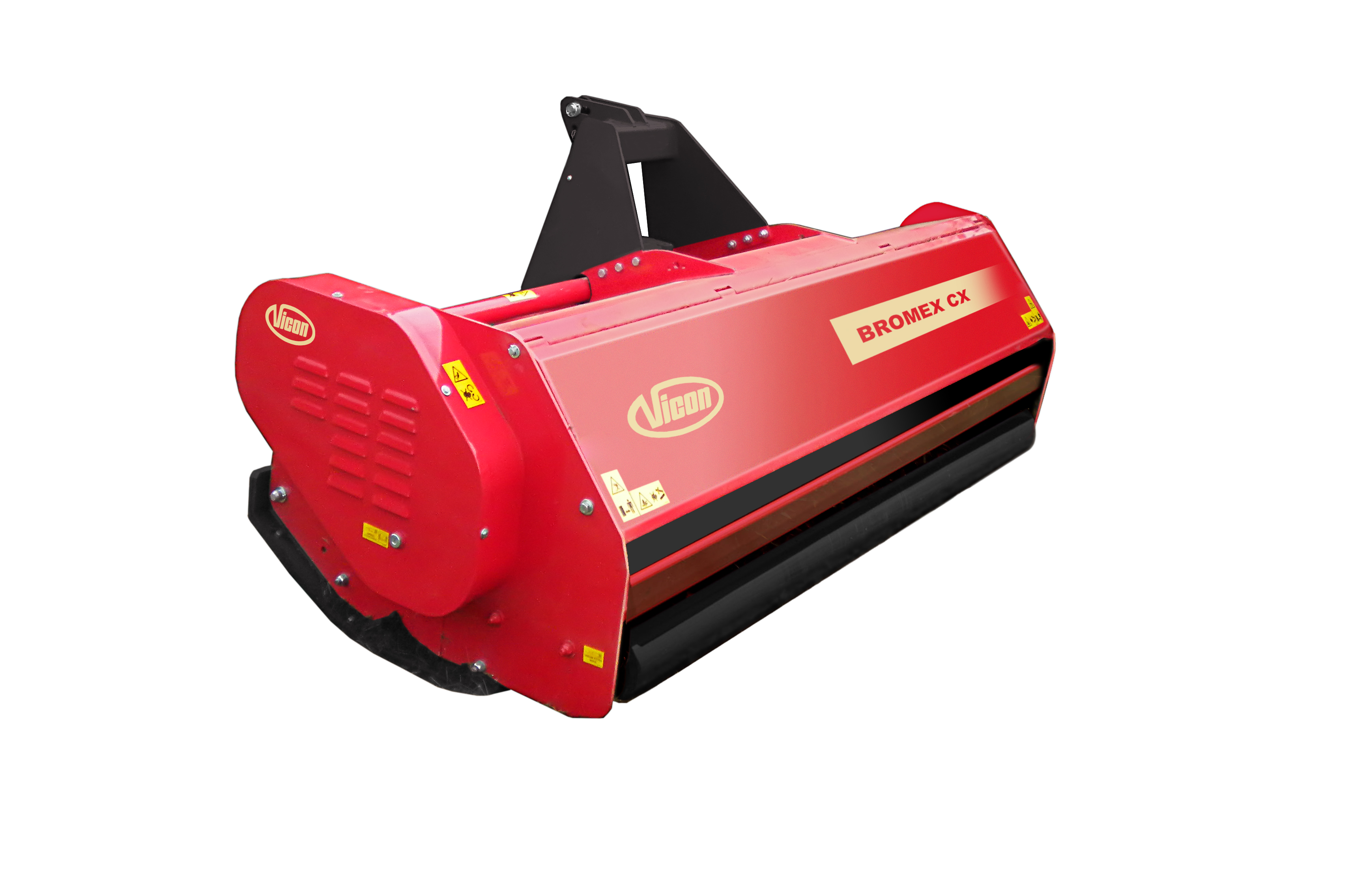

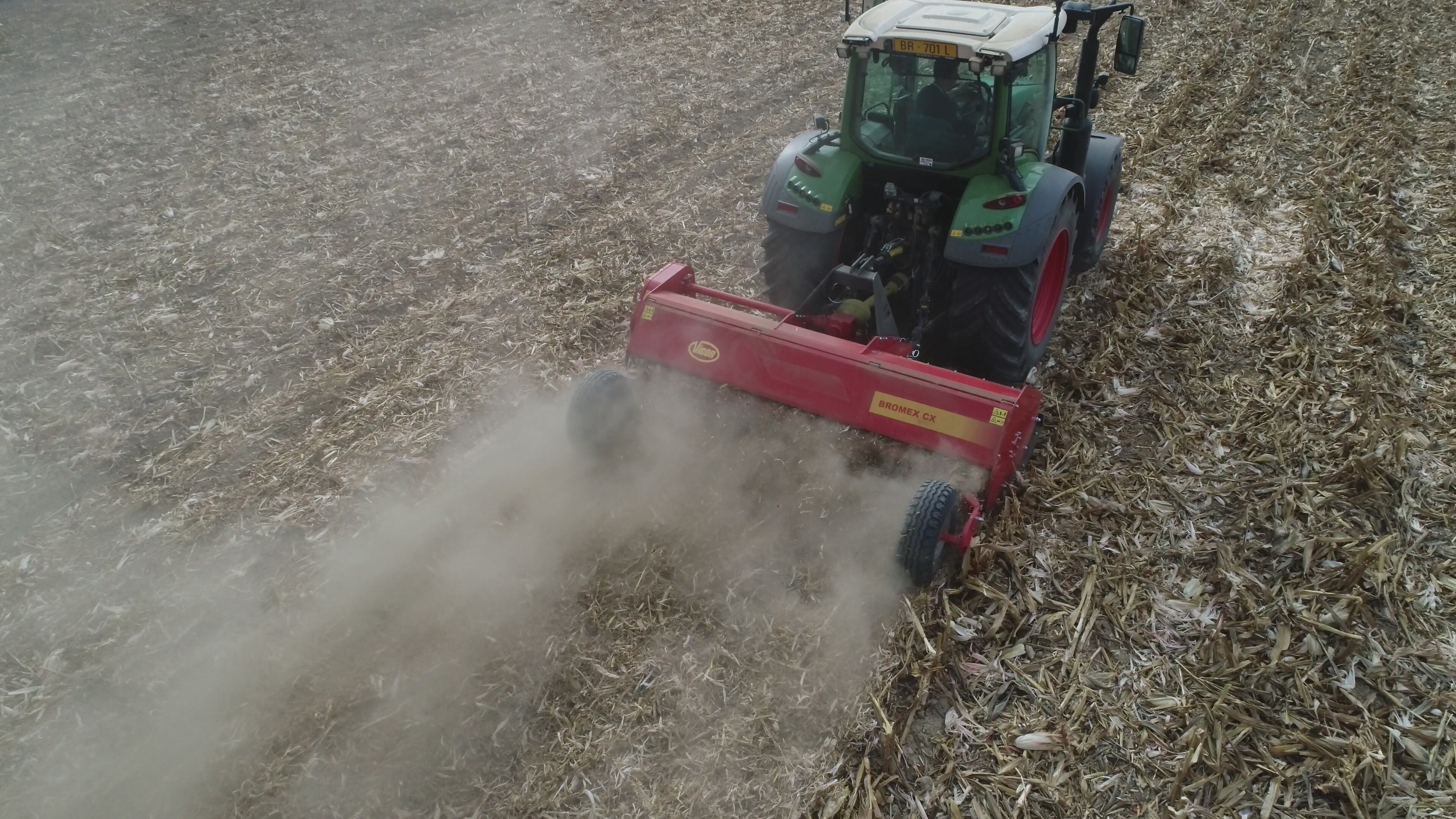

The Vicon Bromex CX range is Vicon’s toughest series of grass and straw choppers, designed for heavy-duty work on set-aside land and cultivated fields. The Bromex CX chopper is indispensable on grass fields or for chopping straw, stubble and other crop residues after harvesting. It is also ideally suited to fruit farms, clearing scrub and tidying pastures. The Bromex CX is available in two working widths covering all requirements for the intensive user. An easy and minimal maintenance make the Bromex CX a profitable chopper, designed for minimal downtime.
Features

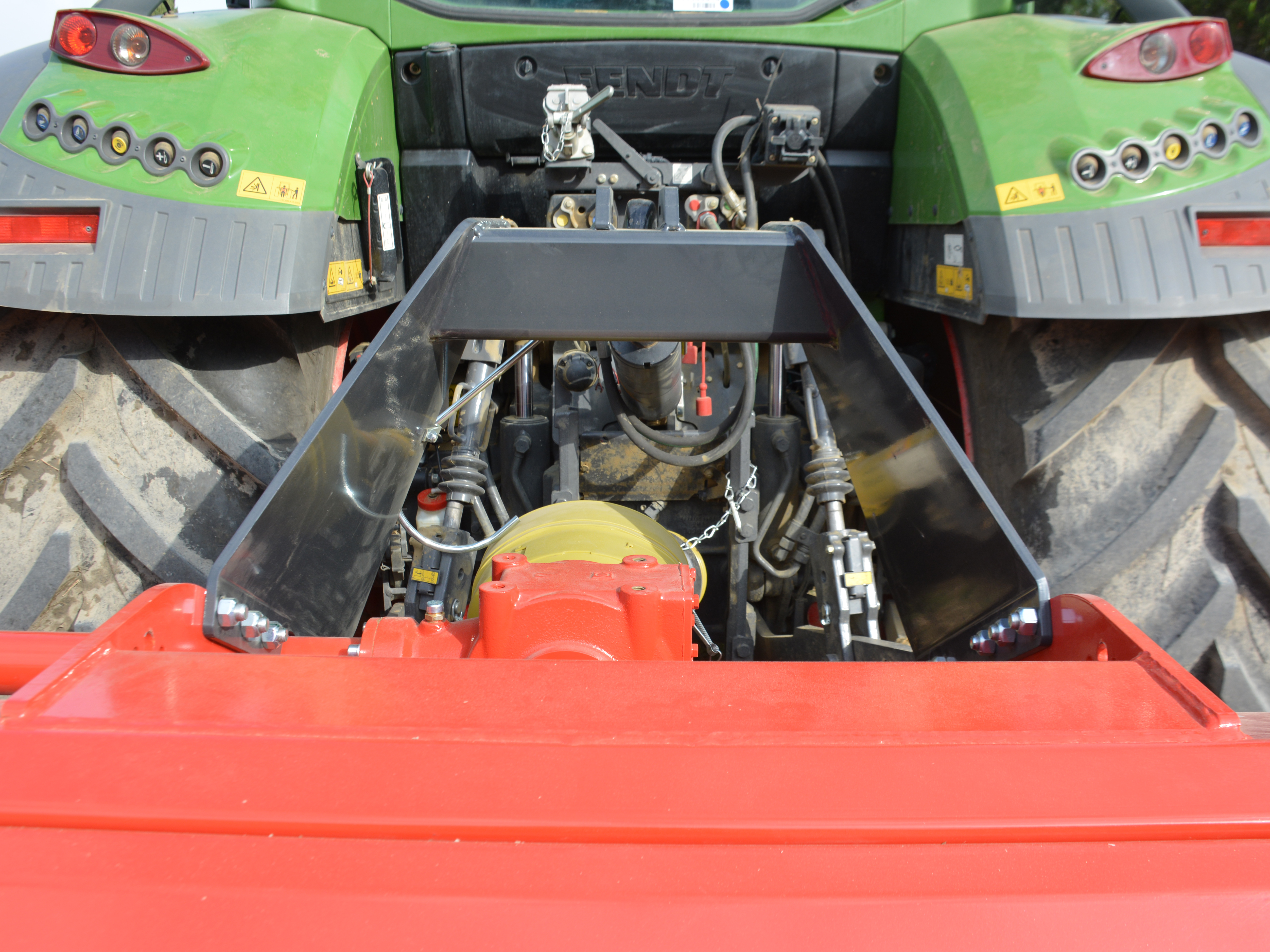

- Third point linkage with the oscillating bracket

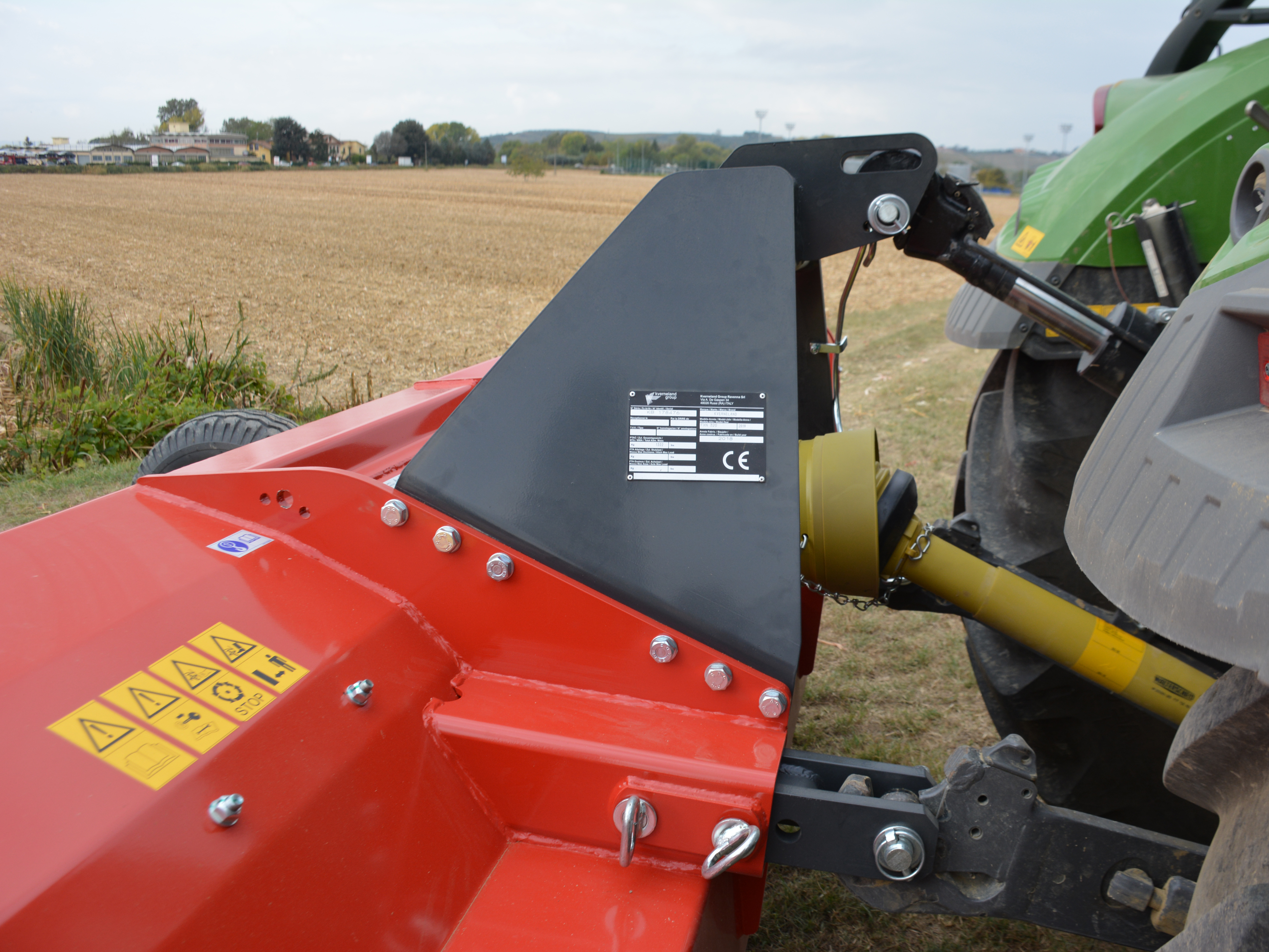

- Headstock designed and tested for heavy applications.

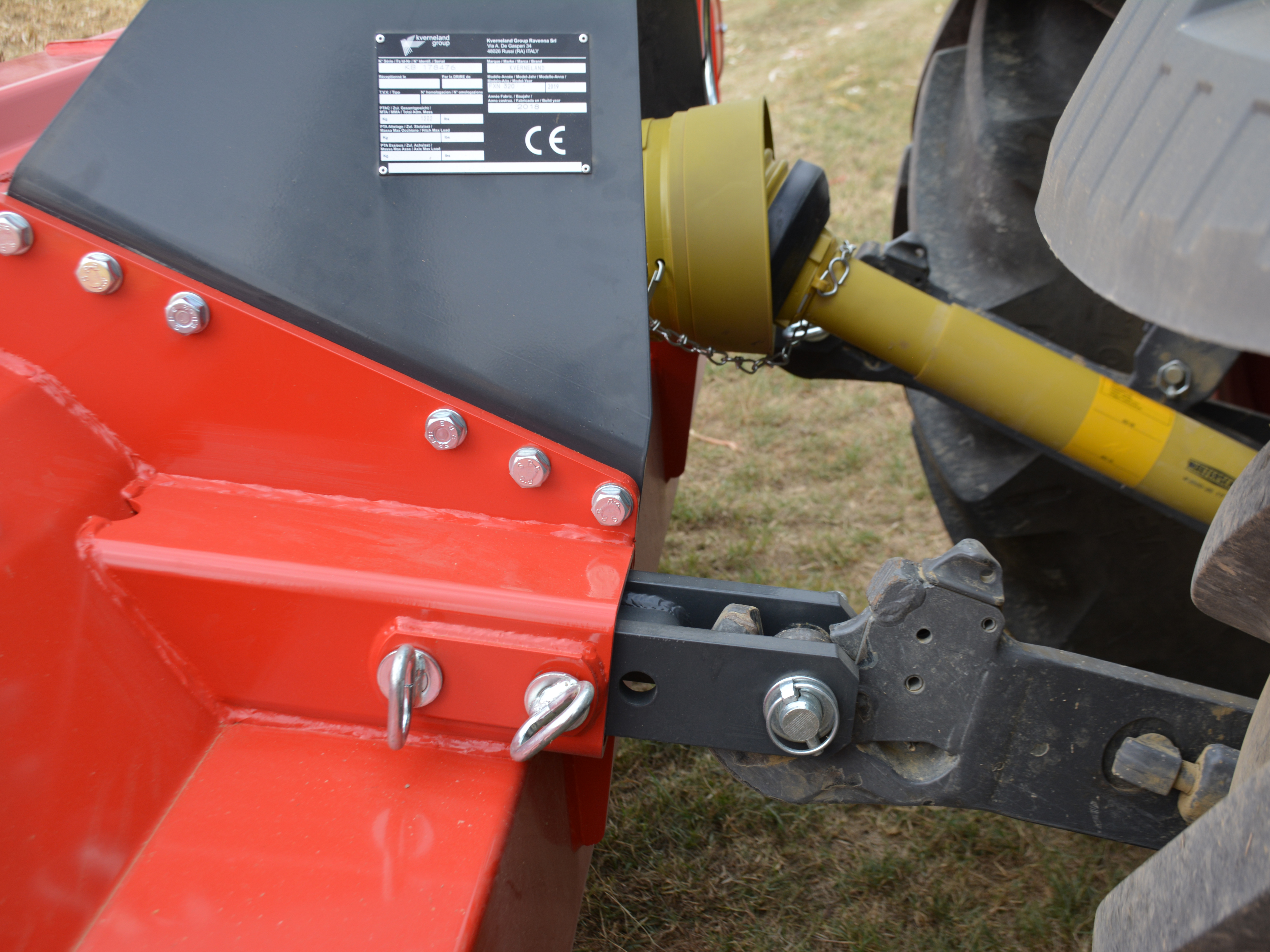

- PTO tractor input at 1000rpm; lateral transmission by 2 PTO shaft
- Central gearbox up to 260 hp with integrated freewheel as standard

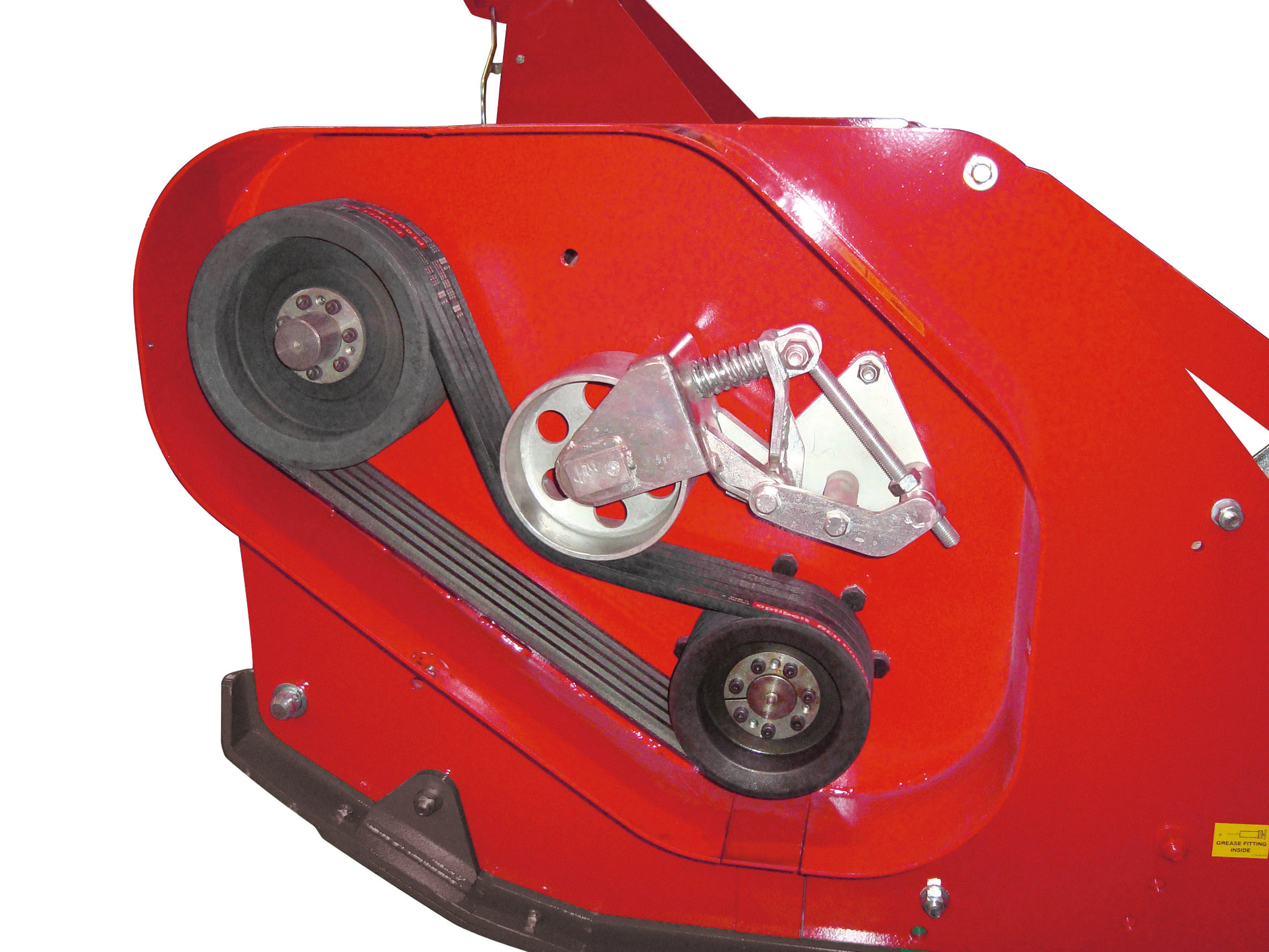

- Transmission on each side via 4 grooved V-belts.
- Heavy construction of the frame; robust welding guarantee longer working life
- Large diameter ensures easy and precise balancing and smooth running without vibrations

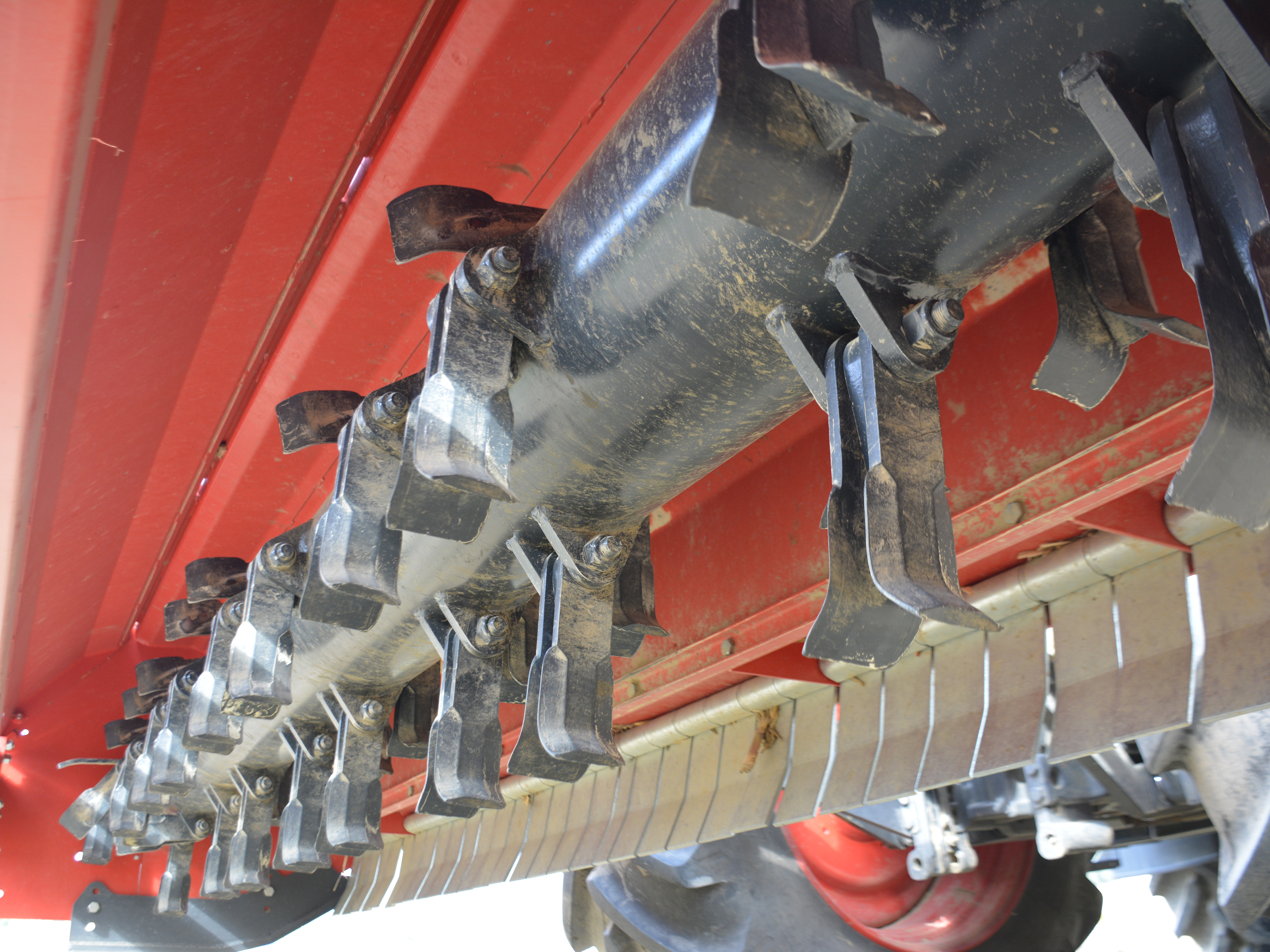

- The wide diameter of the rotor (767mm) guarantees an excellent cut with lower power requirement

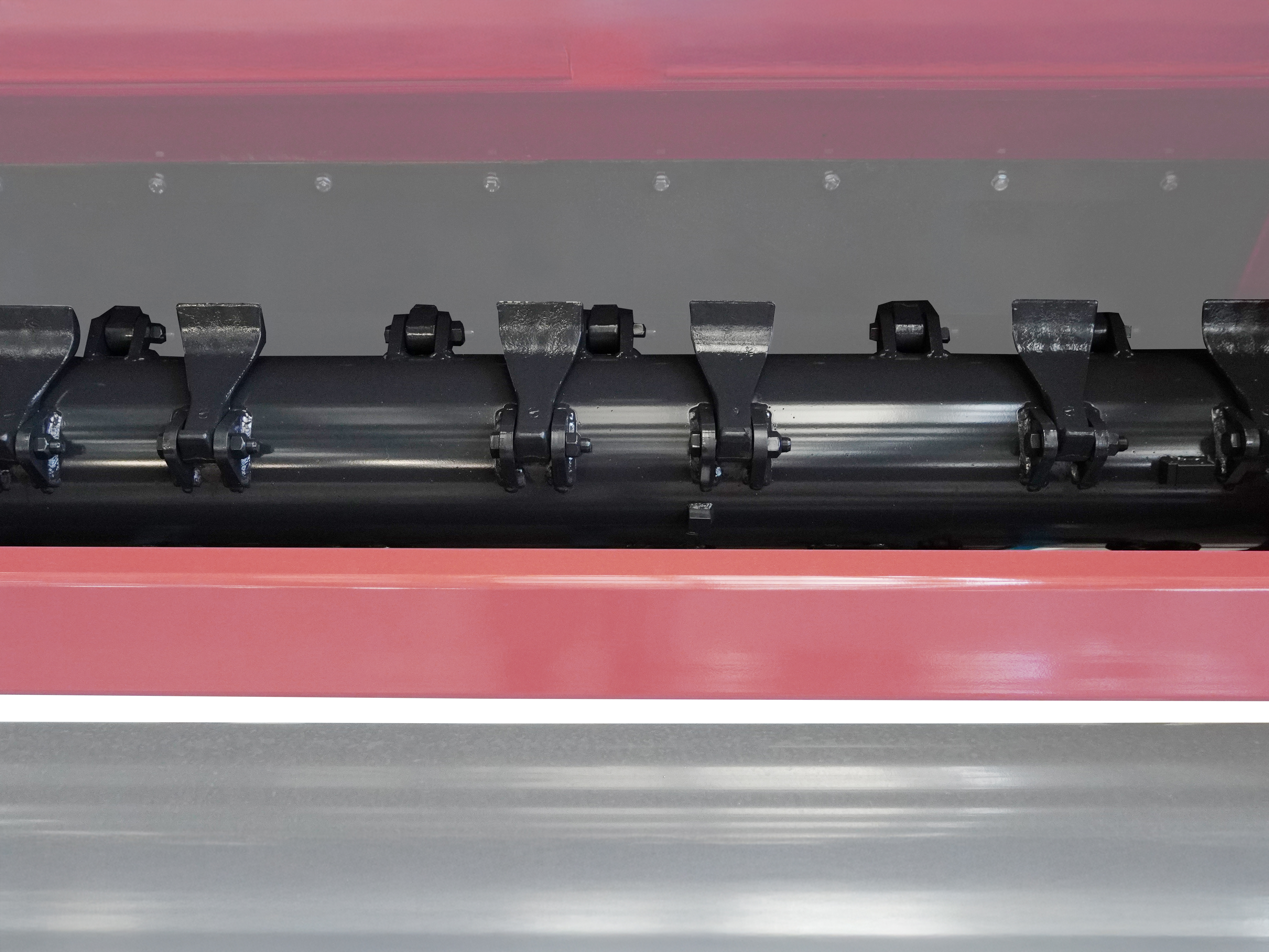

- Universal Y and Hammer blades are designed to provide exceptional performance and reliability.

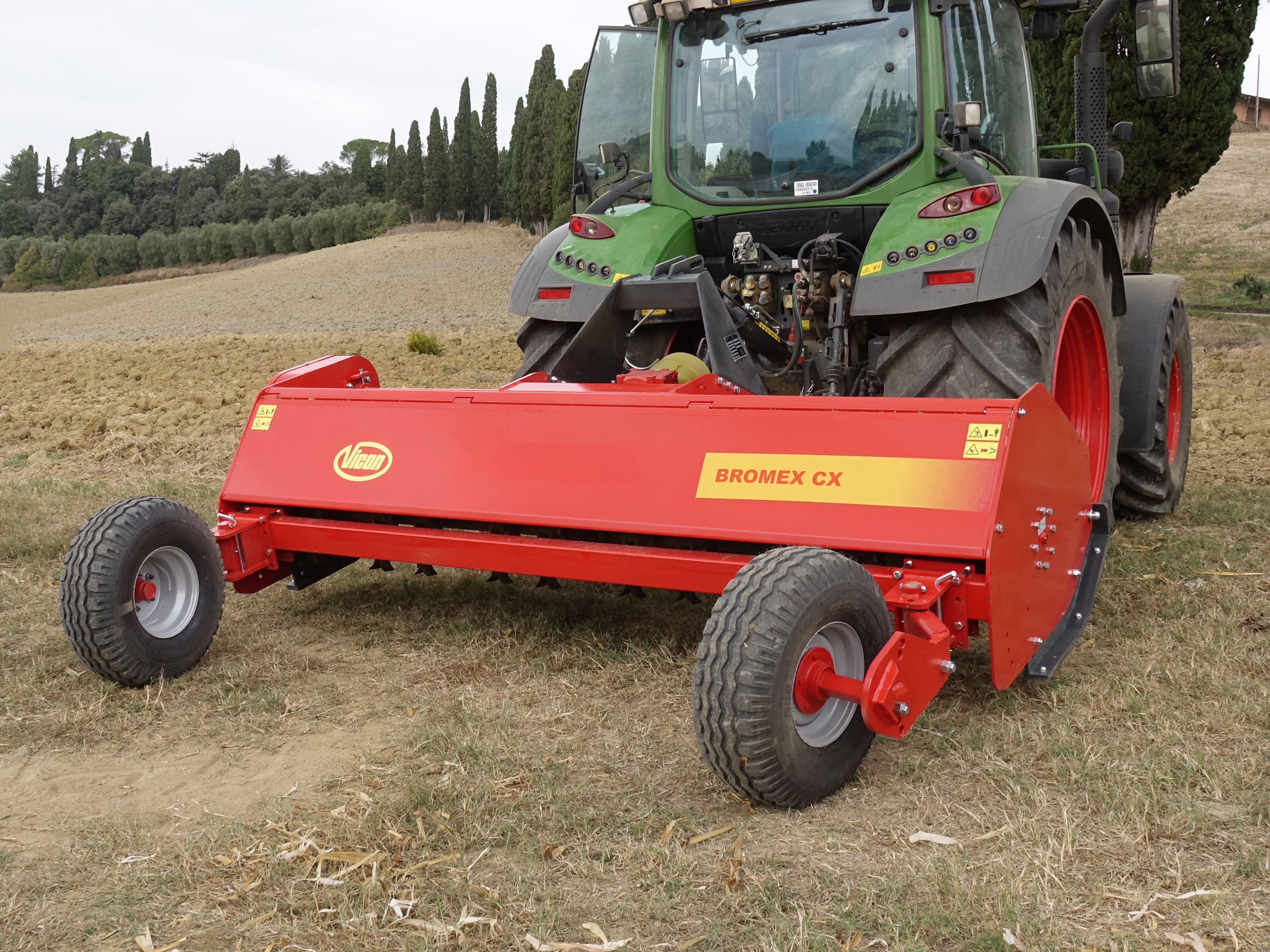

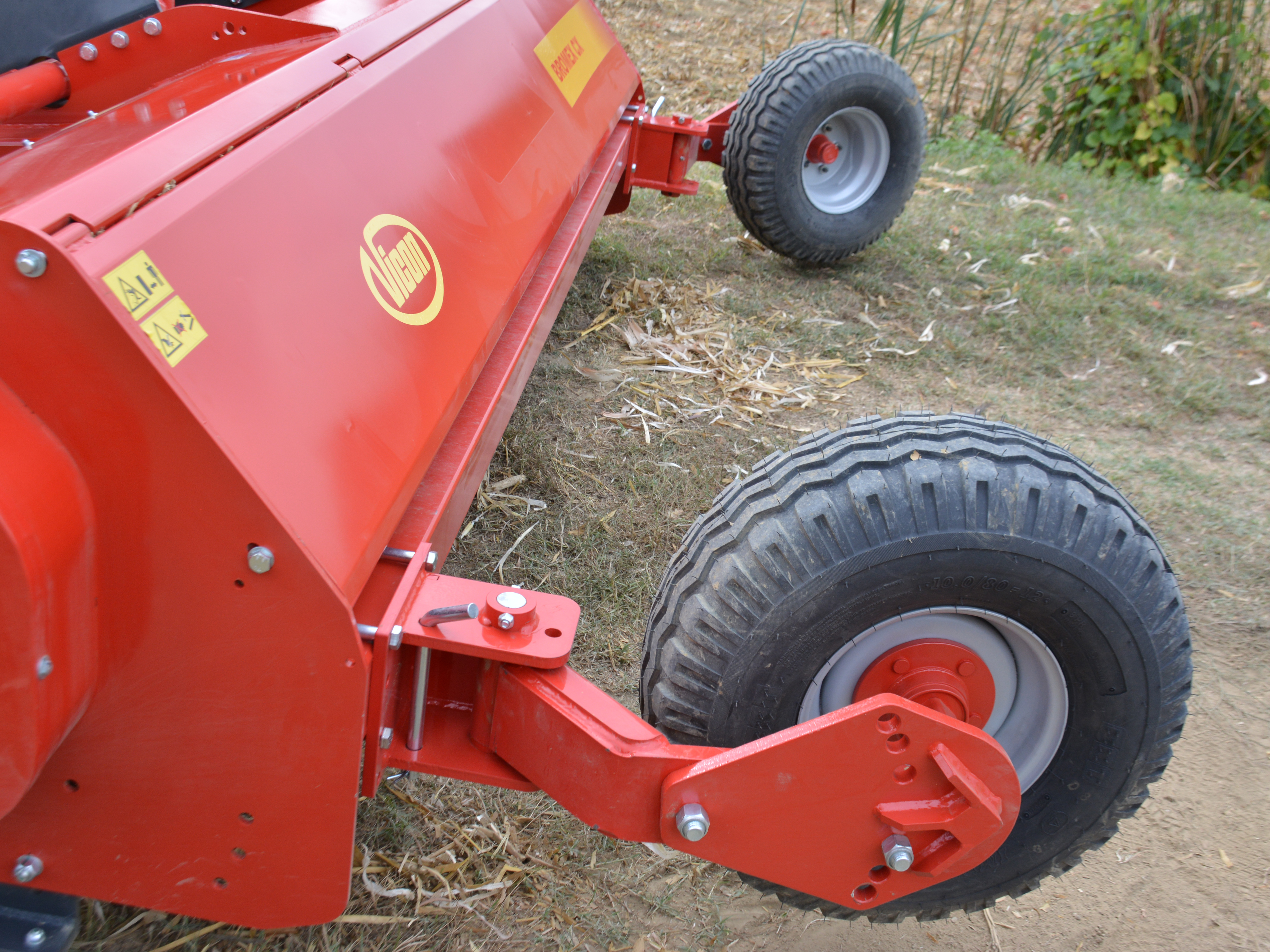

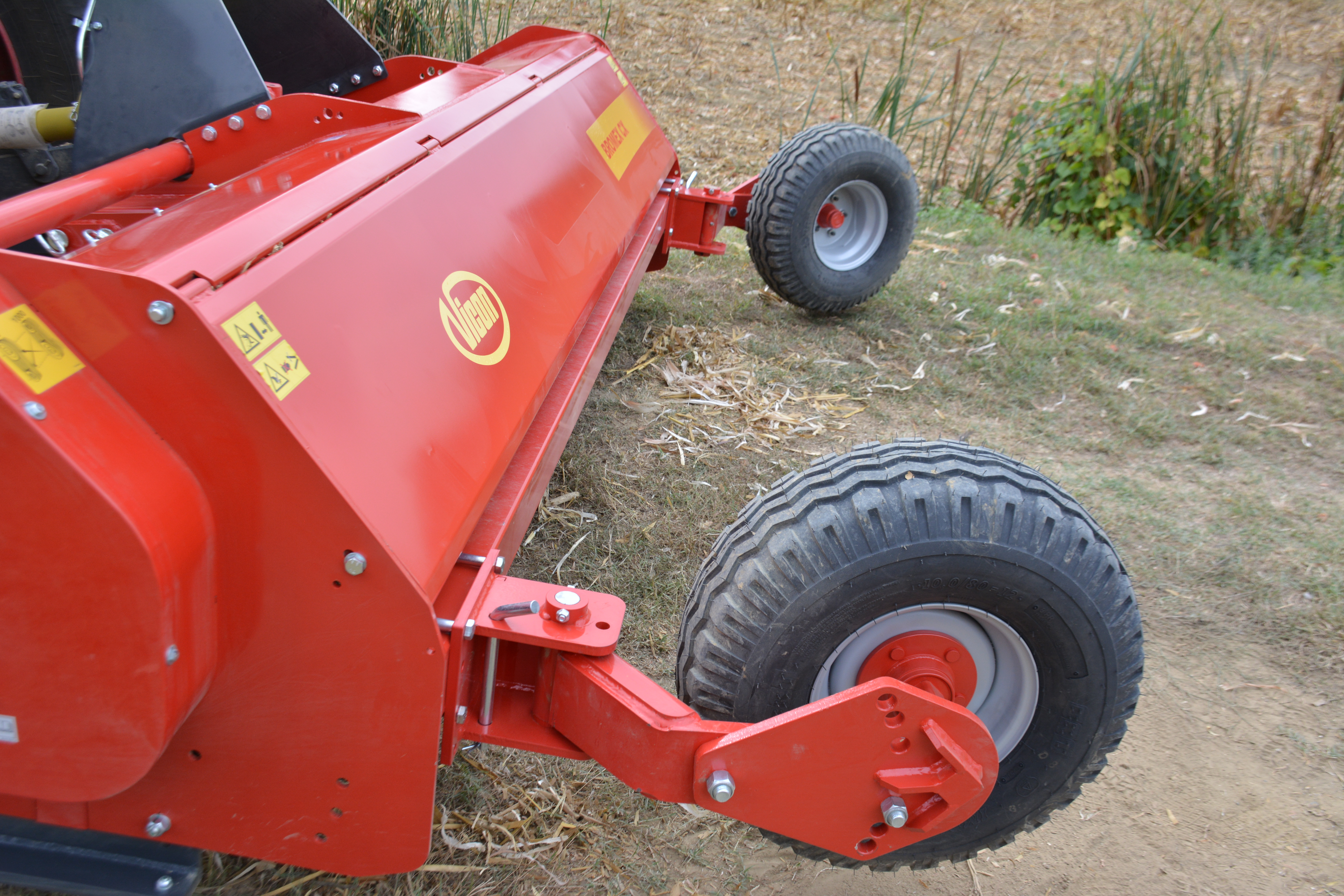

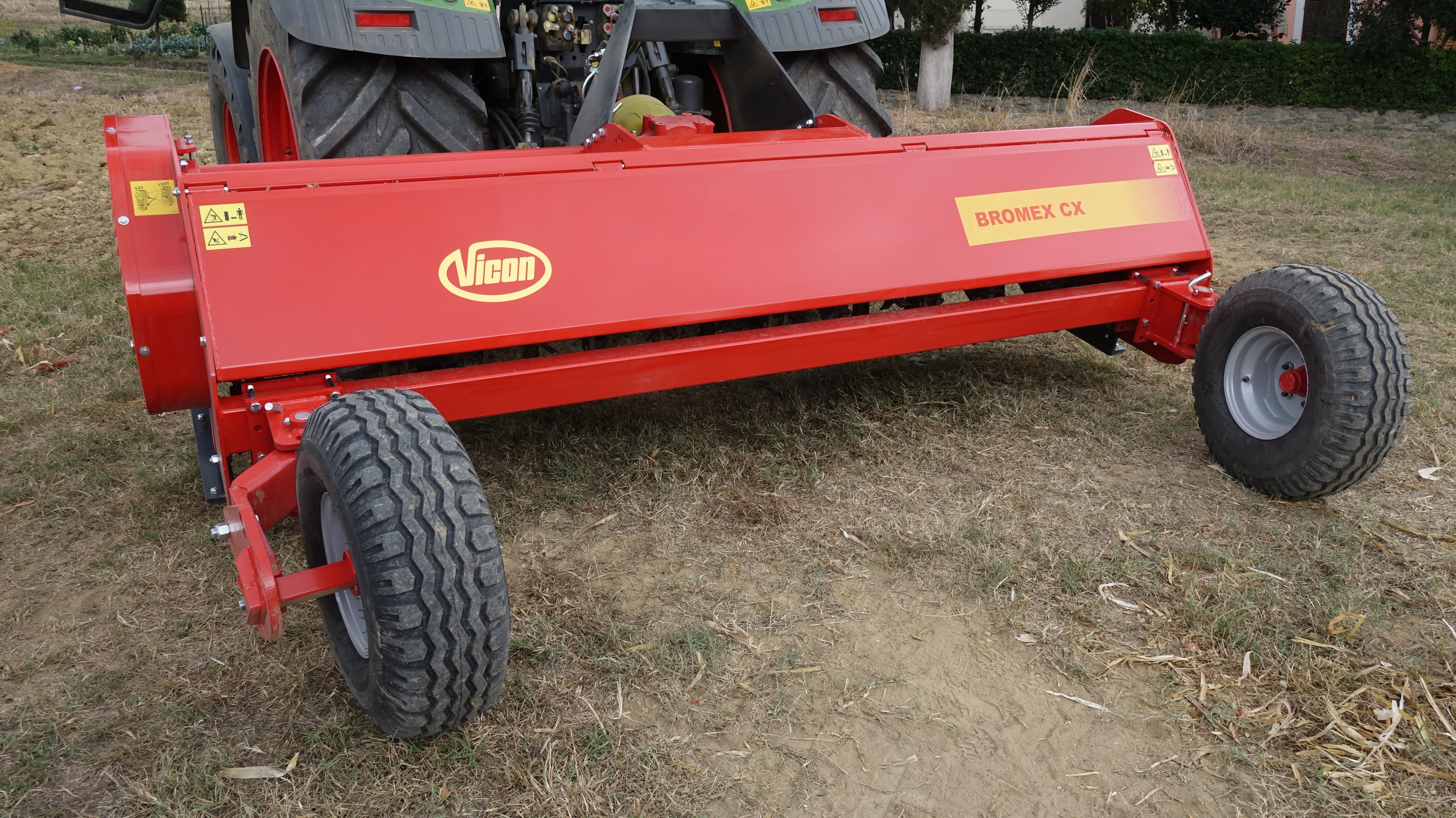

- A pair of wheels (10/8.8x12.8 ply) comes standard for effective working depth control.

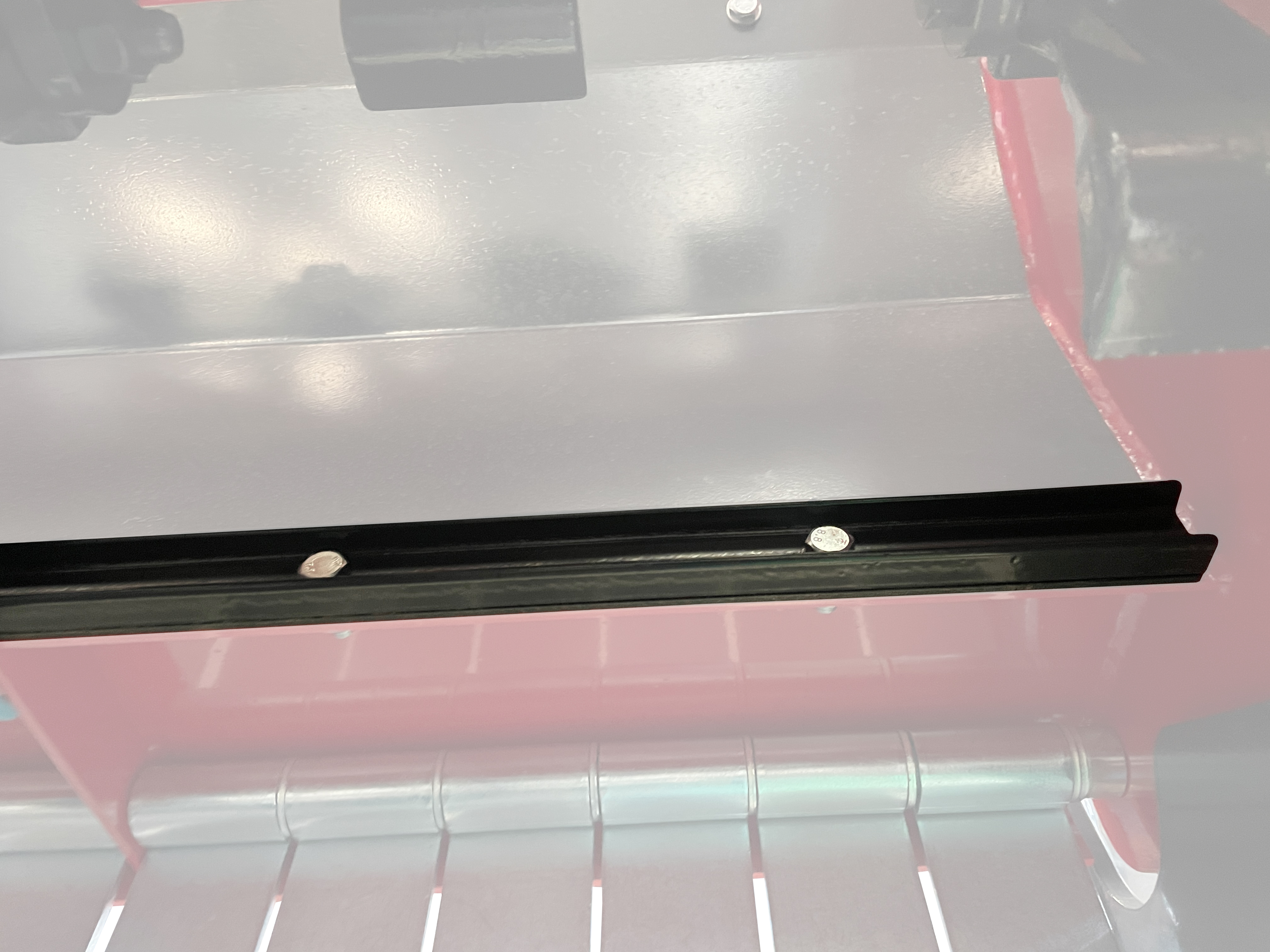

- Second counter knives can be fitted for finely chopping residues.
- A double skin can be bolted on if the machine operates in areas with rocky terrain
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Bromex CX 280 | Bromex CX 320 | ||
|---|---|---|---|
| Working width (cm) | 280 | 320 | |
| Transport width (cm) | 302 | 342 | |
| No.of blades (univ /hammer) | 72/36 | 80/40 | |
| Weight (kg) | 1174 | 1302 |
Unable to load the table
Agri choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of universal/hammer blades |
Bromex CX 280 |
2.80 |
1174 |
72/36 |
Bromex CX 320 |
3.20 |
1302 |
80/40 |
