Highlights
The unique tine design and cam-controlled pick-up mechanism The exceptional suspension system allows for high capacity. Suspended tandem wheels prevent grass field damage The unique belt design creates even and fluffy swaths The unique merger can operate with one belt down while the other is in transport. Possibility of loading crop on the stopped belt to clean cornersDescription

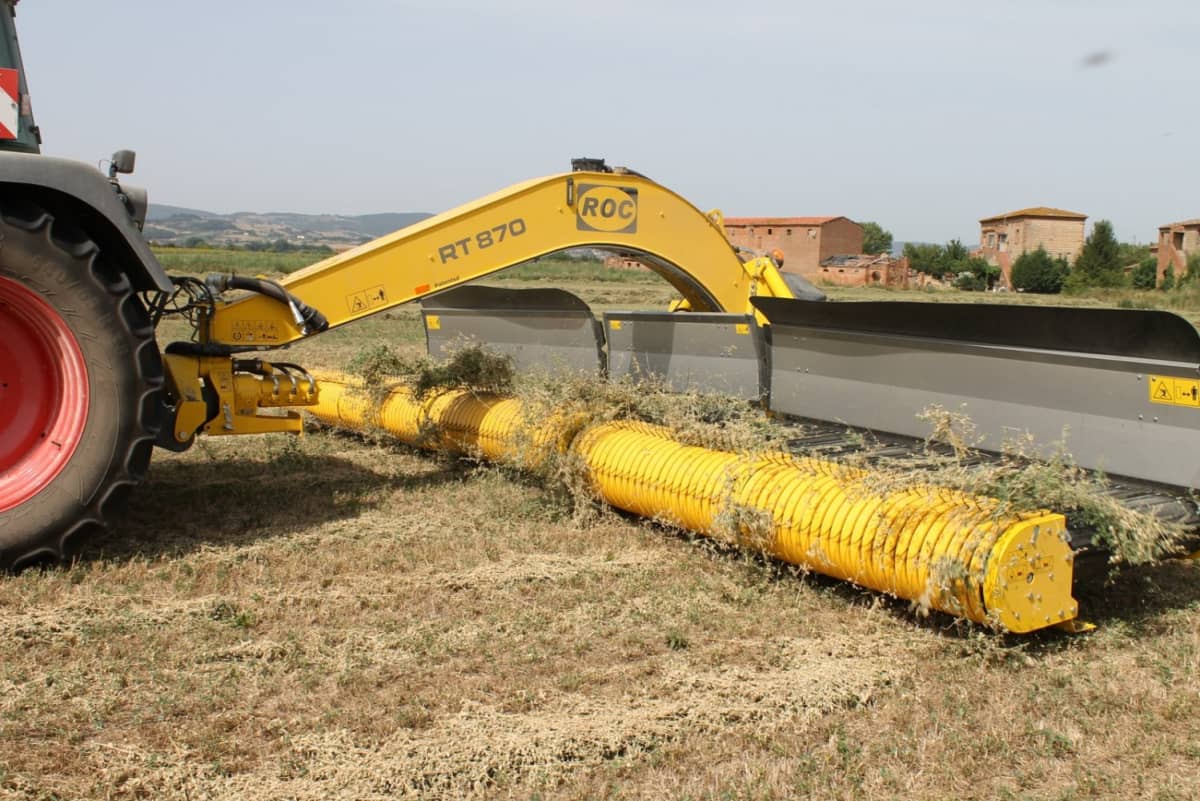

The continuous merger of Vicon ROC RT 870 is designed for professional use.

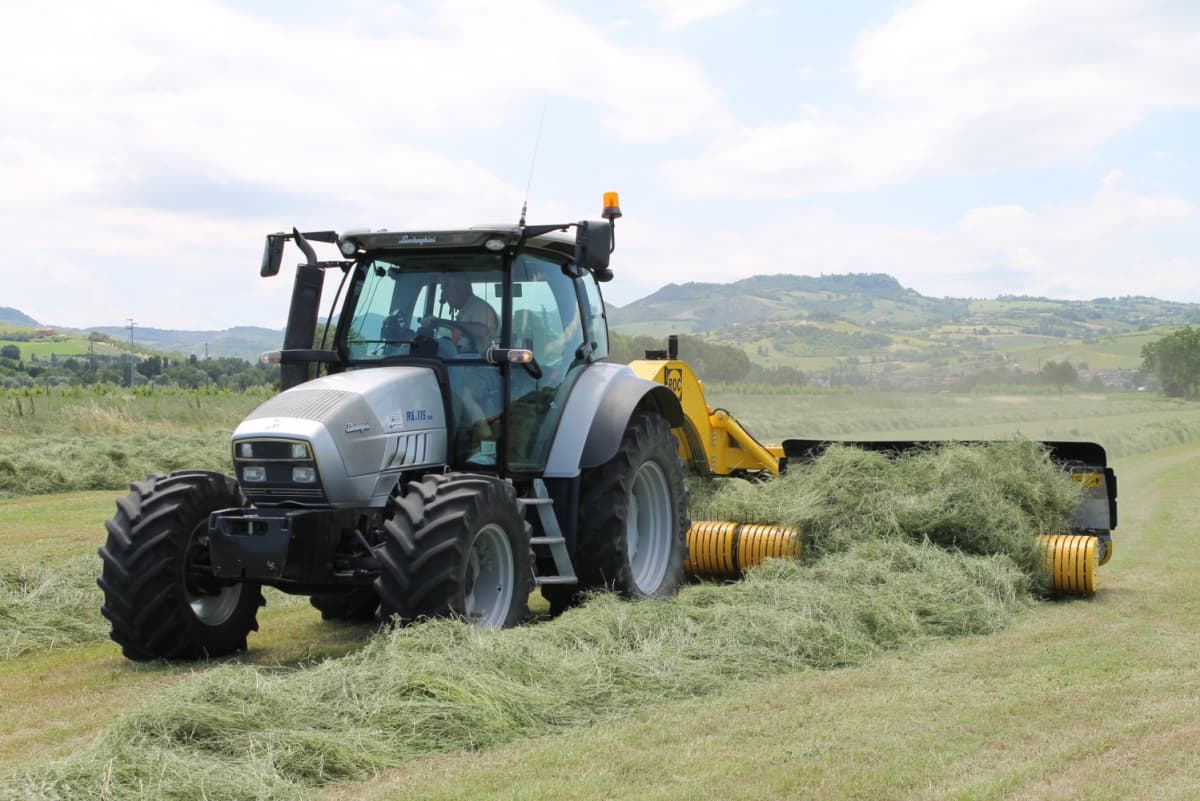

The machine has 3 pick-ups with a 7.6m width. The advanced pick-up system offers several advantages over traditional rakes, including reduced hay loss, improved silage quality, and the use of six rows of springs to lift crops onto a conveyor belt. It features a revolutionary raking system that requires minimal power. To operate the merger, you will need an 80-horsepower tractor. This setup optimises working hours, reduces power consumption during harvesting, and ensures gentle swath production.
The Vicon ROC RT 870 is the only model equipped with rear-wheel suspension. This allows for a width of 2.55 m, height of 3.0 m, and length not exceeding 5.10 m when folded, allowing for travel without limitations or authorization.
Highlights
- High capacity, rear mounted 3 belt merger with 8.7m working width - side delivery.
- Unique Pick-up system with 6 bars to ensure perfect ground adaption and clean merging.
- Partially or fully folding allows for raking smaller swaths or turning an existing one.
- Electric height adjustment systemHigh steering and manoeuvrability

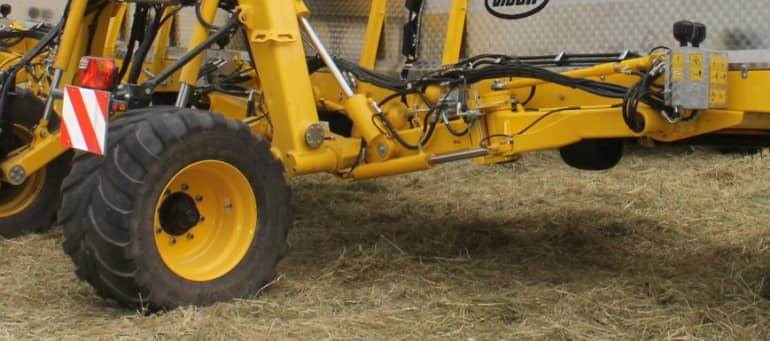

- Unique hydropneumatic road suspension system for fast and stable road transport
- Easy maintenance, quality, and replacement of components.
- An intuitive control unit operates all important functions
Features
- A three belt system with three pick-ups
- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally

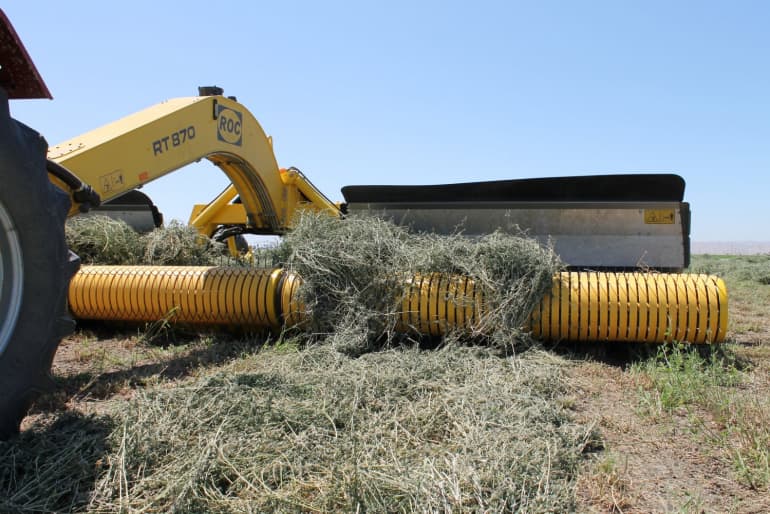

- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system

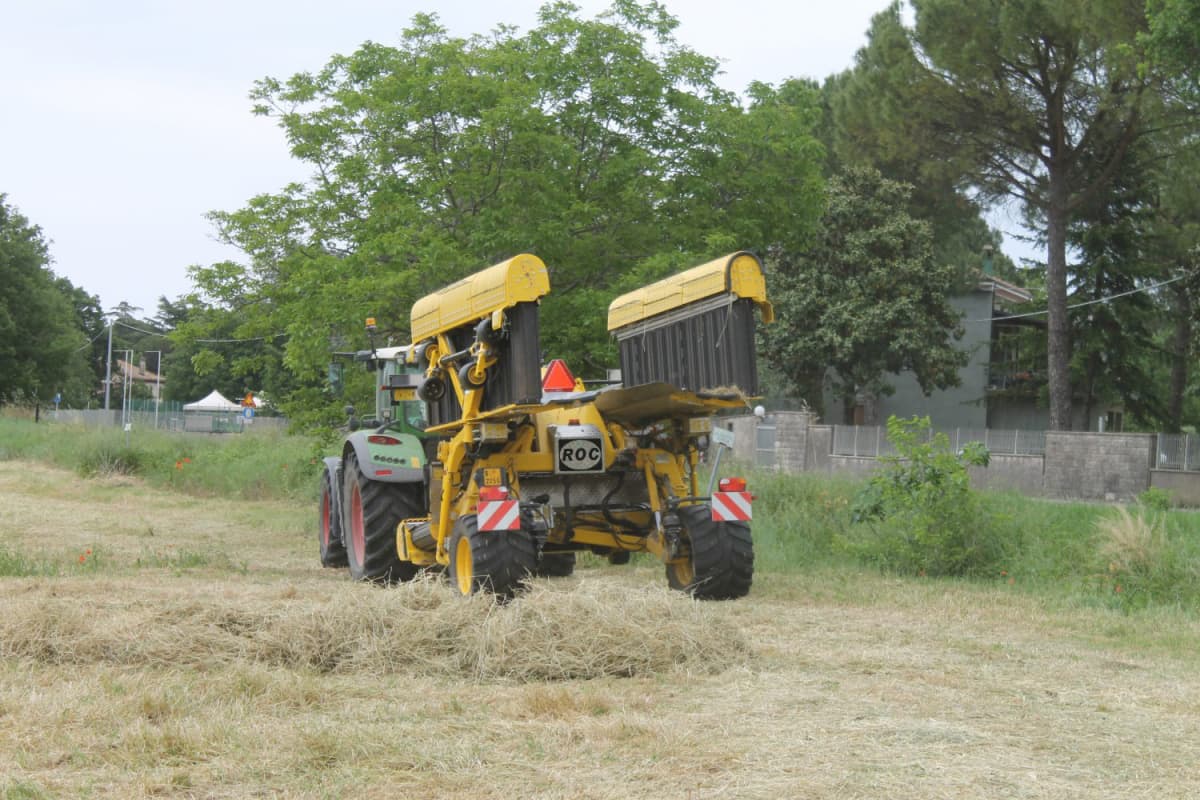

- With a transport width of only 2.5 m the machine can travel easily on narrow roads and does not require any special permissions

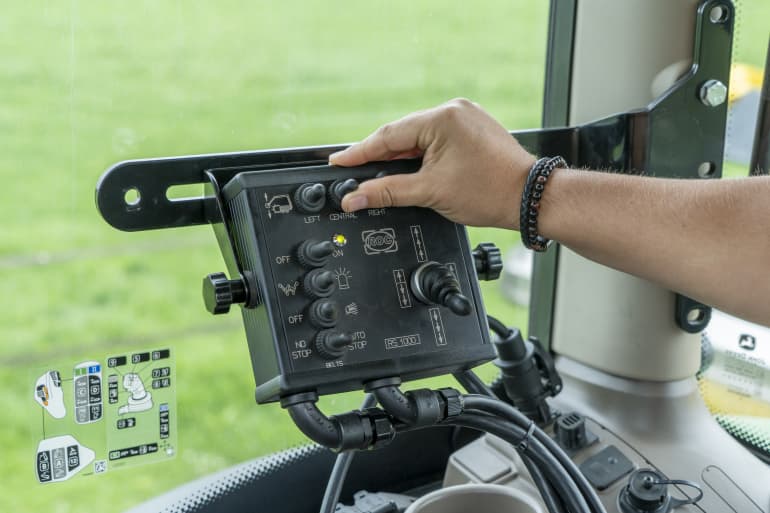

- An easy-to-use control panel manages all essential functions.
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- The safety system allows basic machine functions and operation without electronics
Technical specifications
Technical specifications
Download brochure| Vicon ROC RT 870 | ||
|---|---|---|
| Working width (m) | 8.7 | |
| Pick up width (m) | 7.6 | |
| Transport width (m) | 2.5 | |
| Belts n. | 3 | |
| Power requirement (hp) | 80 | |
| Weight (kg) | 4440 | |
Technical specifications
Technical specifications
Download brochureProduct name |
Working width (m) |
Pick-up width (m) |
Transport width/ height(m) |
Belts n. |
Power requirement (hp) |
Weight (kg) |
Vicon ROC RT 870 |
8.7 |
7.6 |
2.5 |
3 |
80 |
4440 |
