Vicon Shredex 860 Pro

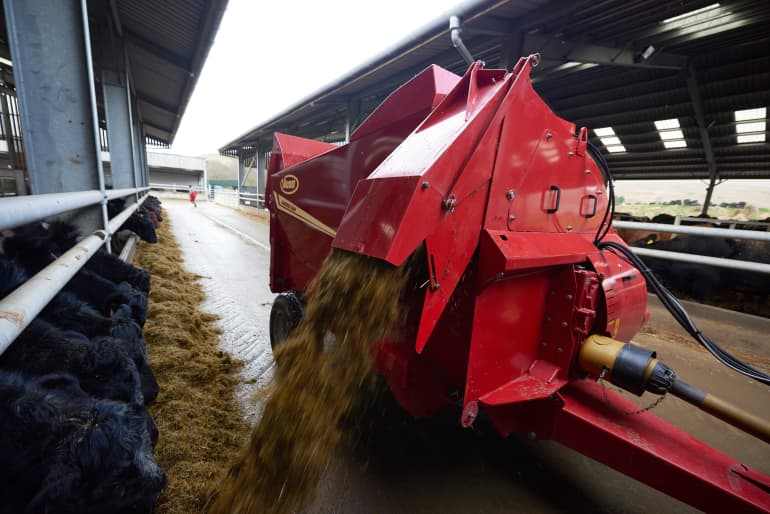

• To provide the correct flywheel speed for bedding and feeding the Shredex 863 & 864 is fitted with a two speed gearbox.
• At lower speeds the flywheel ensures a metered flow of silage or hay for feeding.
• At high speed a powerful blow for the most efficient distribution during bedding is ensured.
• The gearbox speed is adjusted via the handle on the front of the machine.

• The hydraulically operated rear door provides a self loading facility for easy loading of square and round bales.
• Tailgate and floor chain can be operated via the remote control on the side of the machine.
• The rear door also offers the ability to carry a second round bale for increased capacity.
• A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
• The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.

Besides the features shared with the standard 863, 863 Pro also includes hydraulic activation of shredder rotor, hydraulic comb and top guard, all adding to easier control and more productivity.

• With the hydraulic belt clutch solution the shredder rotor can be run independently from the flywheel and can be disengaged when starting up the flywheel. This allows the flywheel to go to full speed before the shredder rotor is activated and starts feeding material into the flywheel housing.
• The operator will enjoy the new hydraulic comb that is controlled from the tractor cab. It is an efficient tool to control the flow of material into the flywheel, to avoid blocking flywheel and chute. Especially when feeding loosing material like clamp silage it proves to be a valuable feature.
• The top guard reduces spillage and ensures material stays inside the bale chamber. It efficiently guides material towards the shredders.

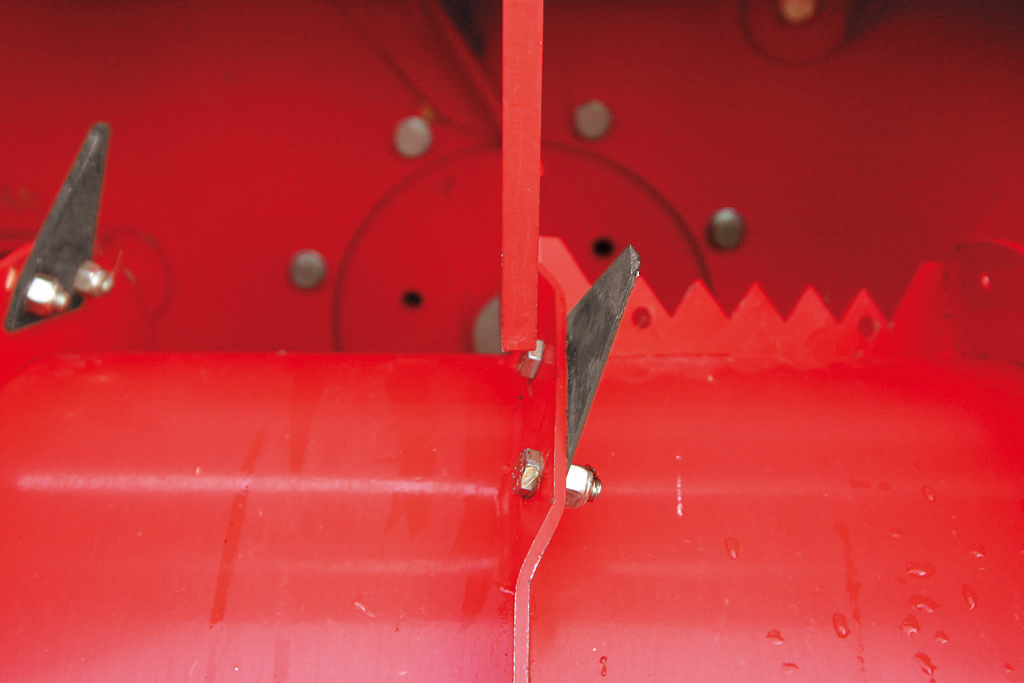

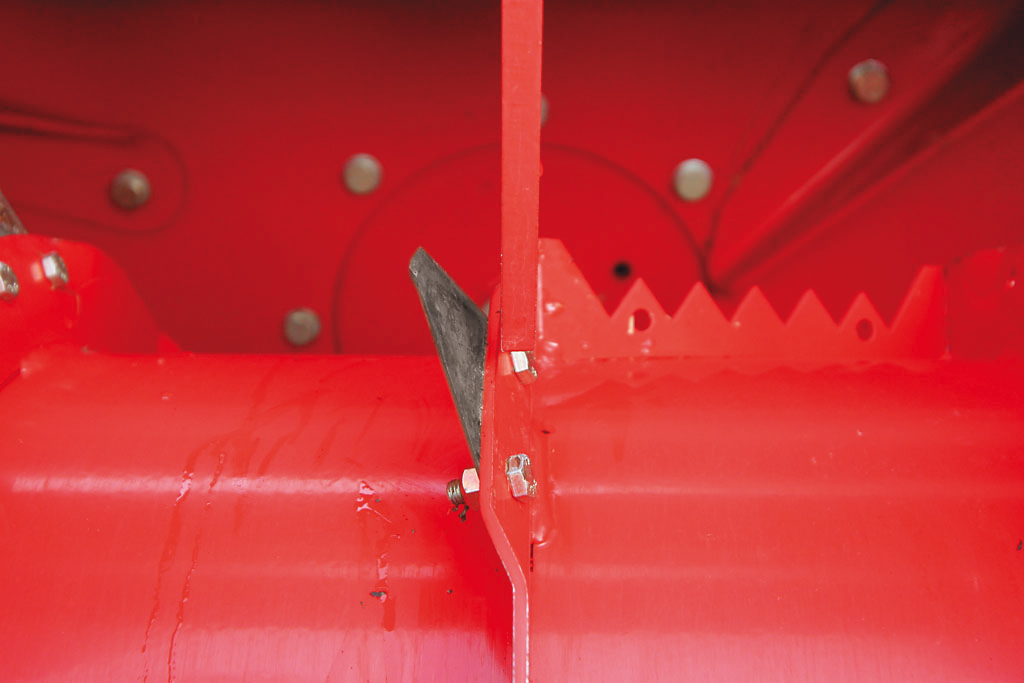

• The Shredex 863 - 864 feature a unique drum – knife configuration.

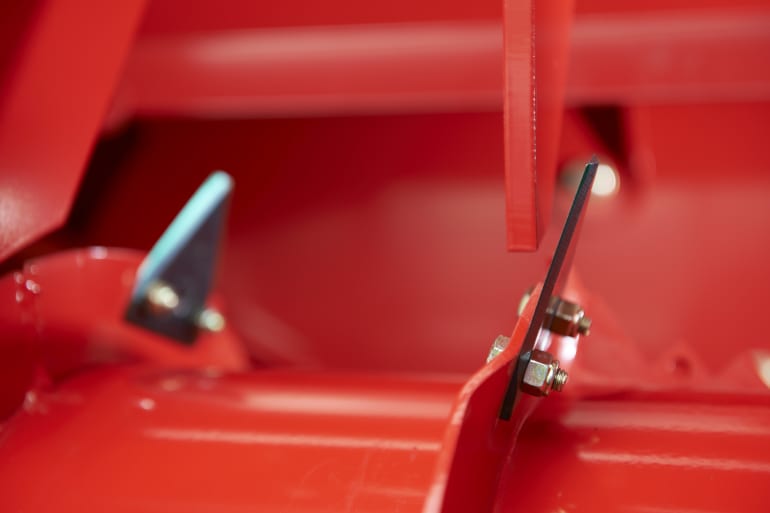

• Knives are mounted on angled rings so that they pass a fixed ‘comb’ on alternative sides.
• This ensures that materials are cut and fed into the flywheel chamber evenly, reducing the risk of blockage, offering even discharge & leaving the drum and comb clean.
• The drum is fitted with 14 blades as standard, but will accept a further 28 blades according to material type – simply bolt them on in a matter of minutes.
• A patented system - the knives pass the fixed comb on alternative sides for a more even cut.
