Highlights

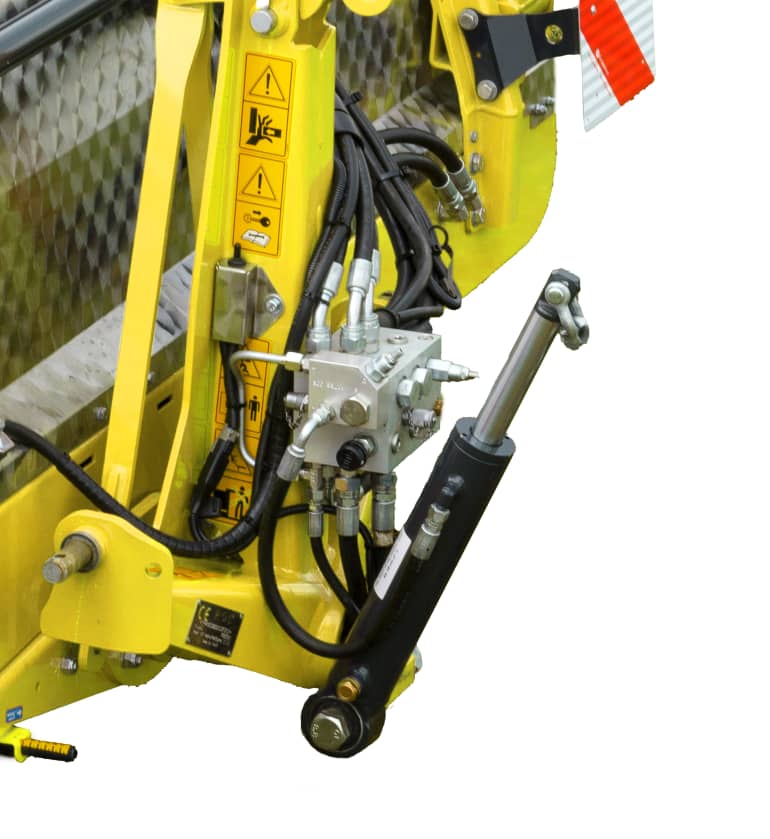

Six bar pick-up and wide stripes provide the best performance in all types of crops The headstock can be equipped with an optional hydraulic suspension Standard wide suspended tandem wheels and emergency skids to protect the pickup Electric adjustable working height Even and fluffy swaths due to unique belt systemDescription

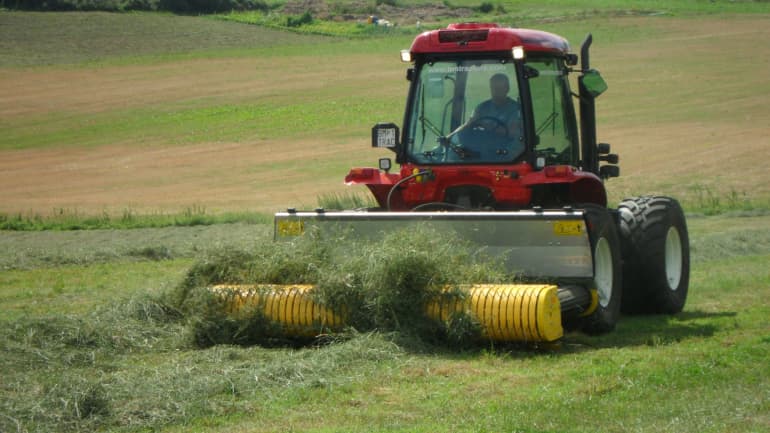

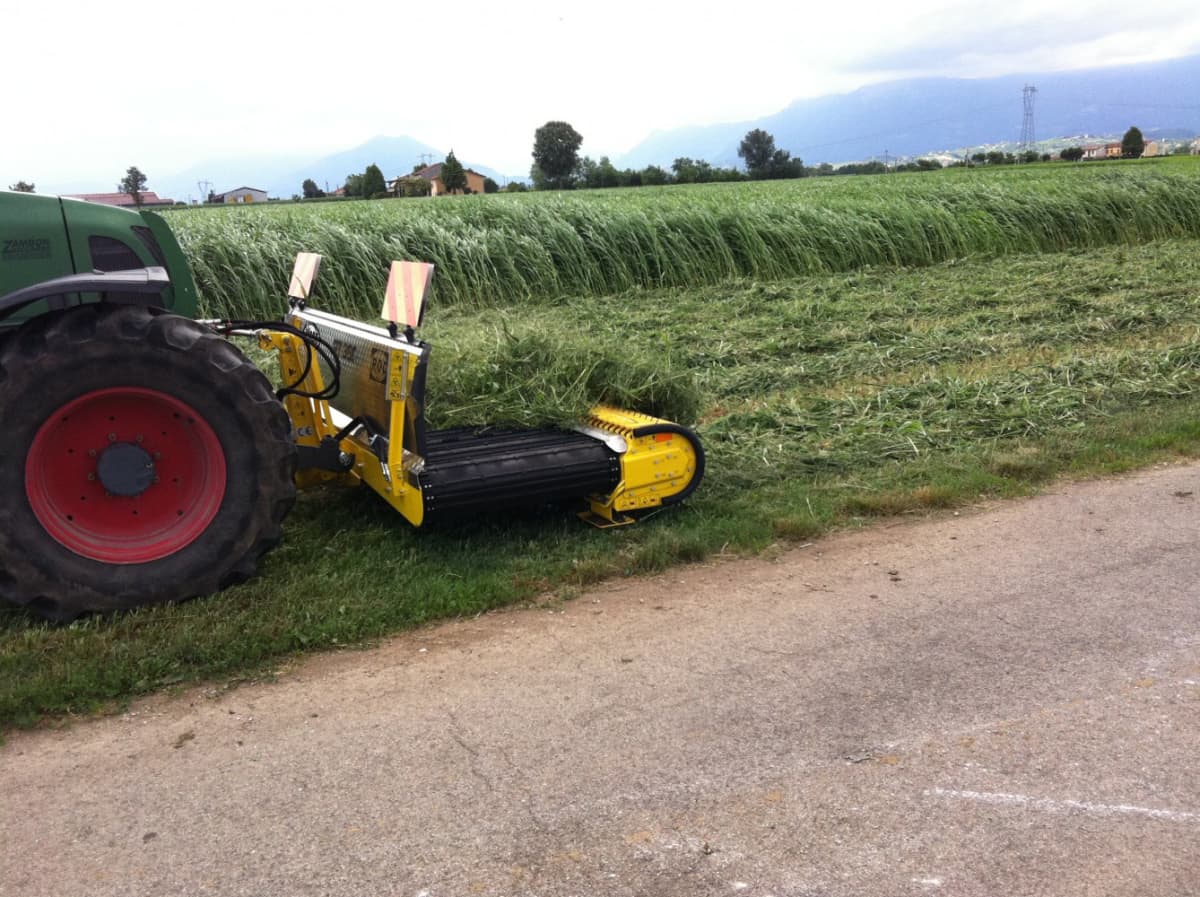

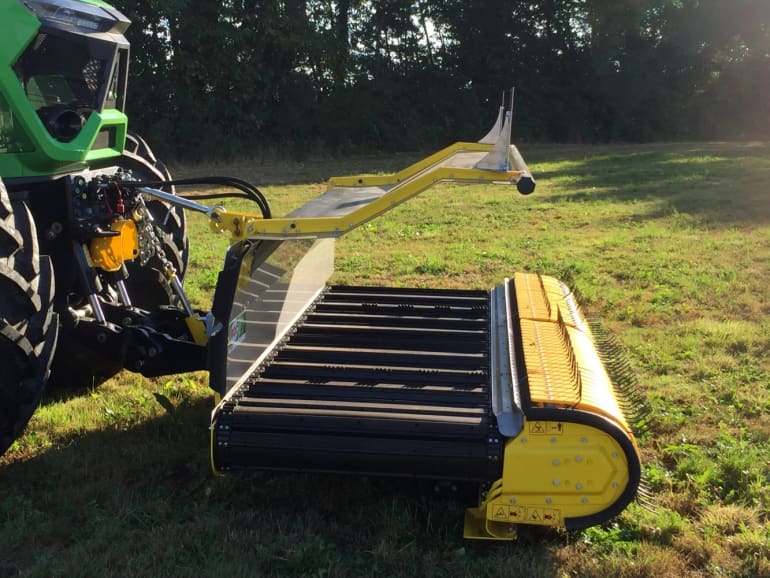

The Vicon ROC RT 380 is a lightweight machine designed for hilly regions and challenging terrain. It can be mounted on the front or rear of a tractor and enables raking without driving on the crop. It offers comfortable driving with a transport width of less than 3m and standard mirrors.The Vicon Mergers have a unique pick-up and belt design, enabling efficient crop picking and consistent flow. It can also turn existing swaths without roping during crop transportation for multiple pickups.The tractor's hydraulic oil flow allows the belt to rotate left or right, and its standard mechanically suspended tandem wheels ensure good ground tracking. The headstock is automatically locked when lifted, allowing for easy adaptation to the ground.
Highlights
- Reversible 3-point mounted merger with 3.8m working width suitable for dry and long crop
- Designed to be mounted in front or rear of a tractor
- Unique pick-up system with 6 bars & belt design to ensure clean merging.
- Standard hydraulic system and mirrors ensure complete control of the machine
- Suspended tandem wheels.
- Electric height adjustment system
- Easy maintenance, quality, and replacement of components
Features

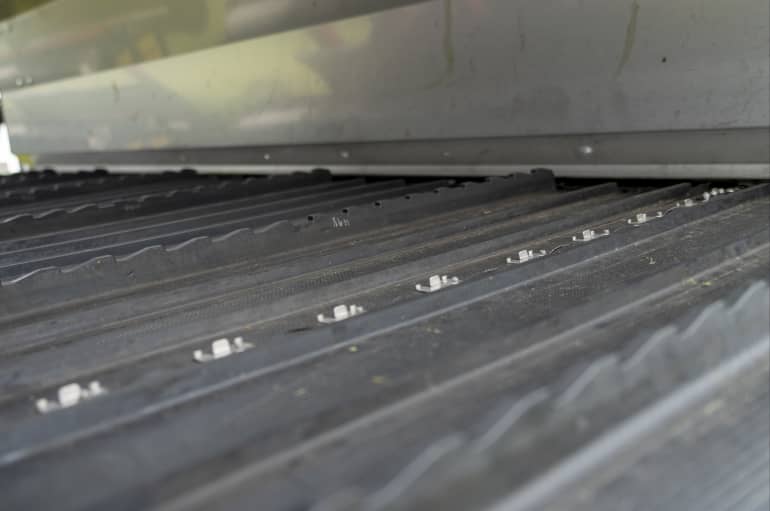

- A single belt system
- Fibreglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- Transport even the shortest crops easily with hydraulic adjustable and suspended roller
- Heavy-duty plastic strippers are designed to maintain their shape even when they encounter rocks.
- The design of strippers is specifically made to prevent crop displacement caused by the tine
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track and tine bars without disassembling the pick-up
- Electric height adjustment

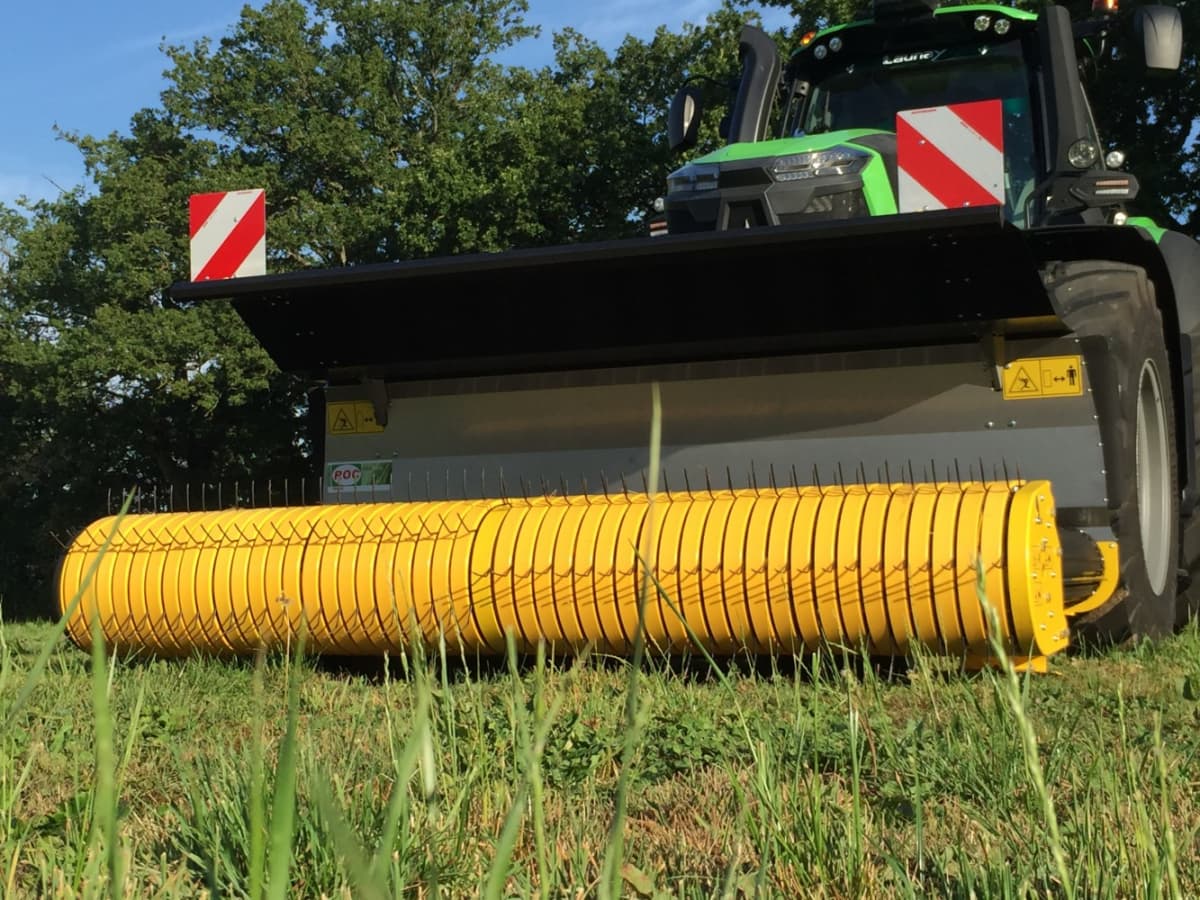

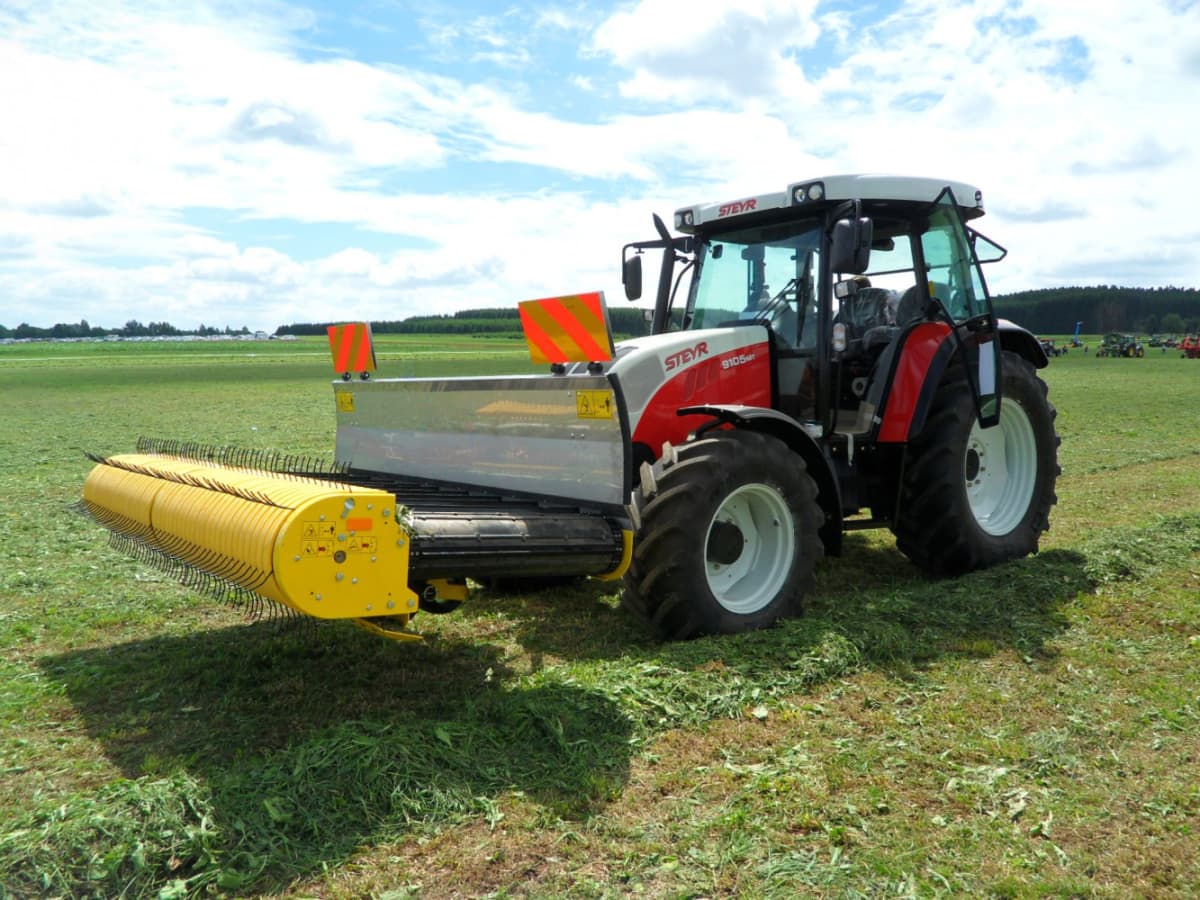

- Perfect solution for raking in front of the wheels (rear mounting is possible as well, for driving in reverse)
- Easy to enter corners and small fields
- Ideal combination with small squares or round balers
- Ideal for turning existing swaths like straw after the combine
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system

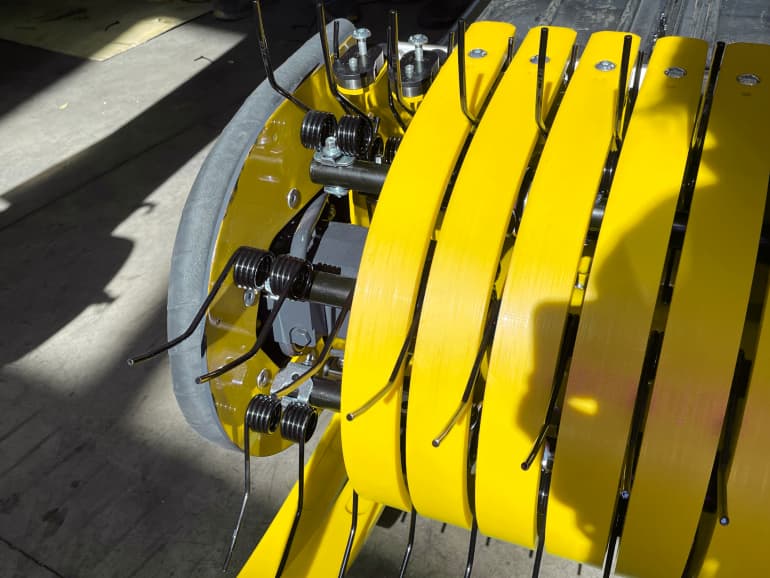

- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
Technical specifications
Technical specifications
Download brochure| Vicon ROC RT 380 | ||
|---|---|---|
| Working width (m) | 3.8 | |
| Pick up width (m) | 2.95 | |
| Transport width (m) | 3.0 | |
| Belts n. | 1 | |
| Power requirement (hp) | 60 | |
| Weight (kg) | 820 | |
Technical specifications
Technical specifications
Download brochureWorking width (m) |
Pick-up width (m) |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
|
Vicon ROC RT 380 |
3.8 |
2.95 |
3 |
60 |
820 |
