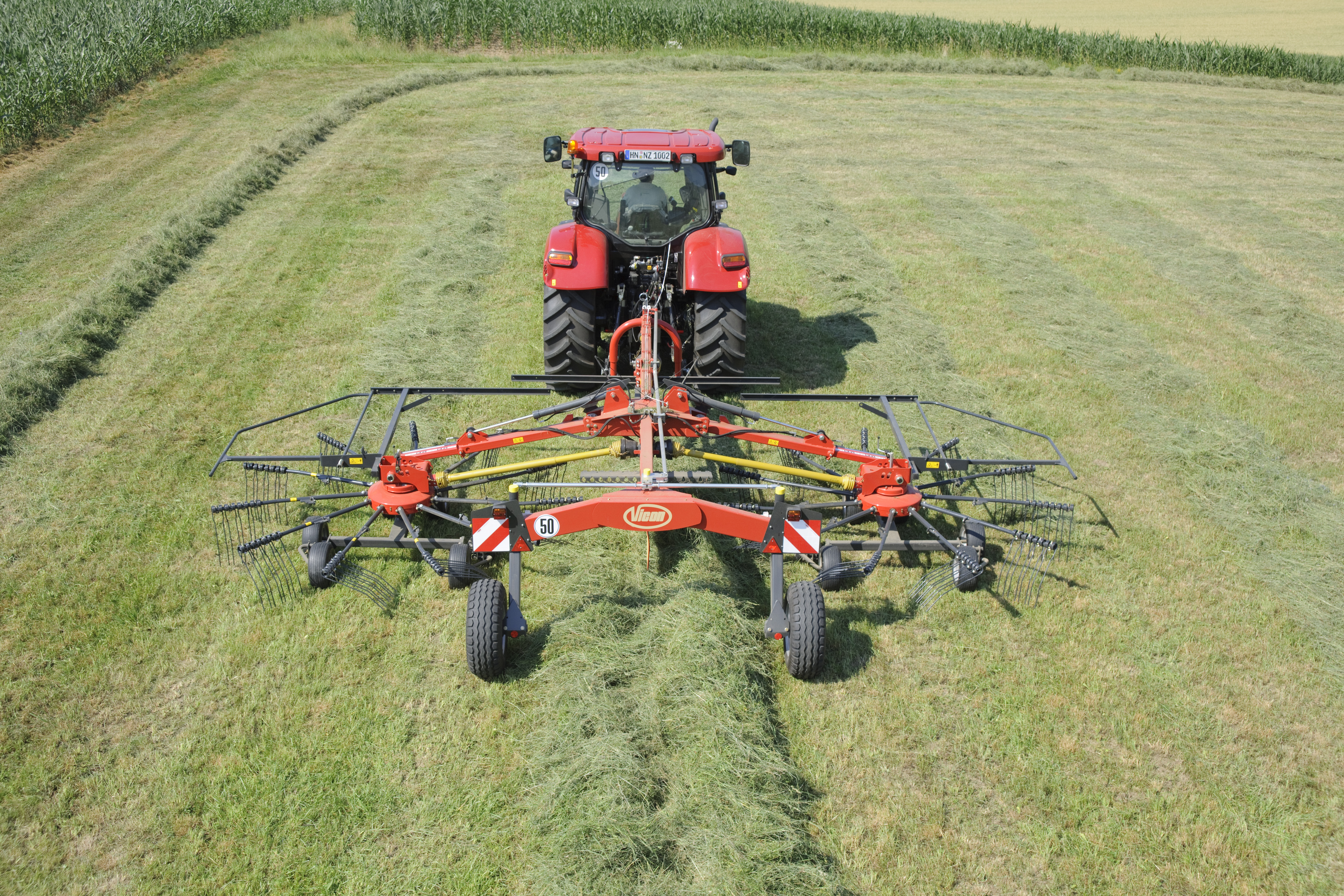

Vicon ANDEX 764
Strong carrier frame for stable raking performance and high ground clearance
CompactLine multirotor rakes with 7.6m working width
Highlights
Compact two-rotors rake with lower specs Steered transport carrier Maintenance-friendly oil-immersed gearbox Compact transport positionDescription
Vicon offers four cost-effective two rotor rakes with solid frames. The Andex 764 –CompactLine multirotor cost-effective rakes with 7.6m working width and mounted on a strong and stable frame ensure a long lifetime. Features include actively steered wheels, TerraLink Quattro system and hydraulic adjustment of working width as standard.
Features
- The Vicon CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Vicon-developed cam tracks are specifically tailored to individual rotor diameters for optimal raking at any working width and on any model.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Vicon features.
- Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Vicon centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Andex | 764 | |
|---|---|---|
| Working Width | 7.0-7.8m | |
| Tine Arms | 11 | |
| Weight (kg) | 1640 | |
| Rotor diameter (m) | 3.65 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 644 |
6.40m |
2x10 |
1510kg |
Andex 724 |
6.20-7.20m |
2x11 |
1640kg |
Andex 724 Hydro |
6.20-7.20m |
2x11 |
1680kg |
Andex 764 |
7.00-7.80m |
2x11 |
1640kg |
