Description

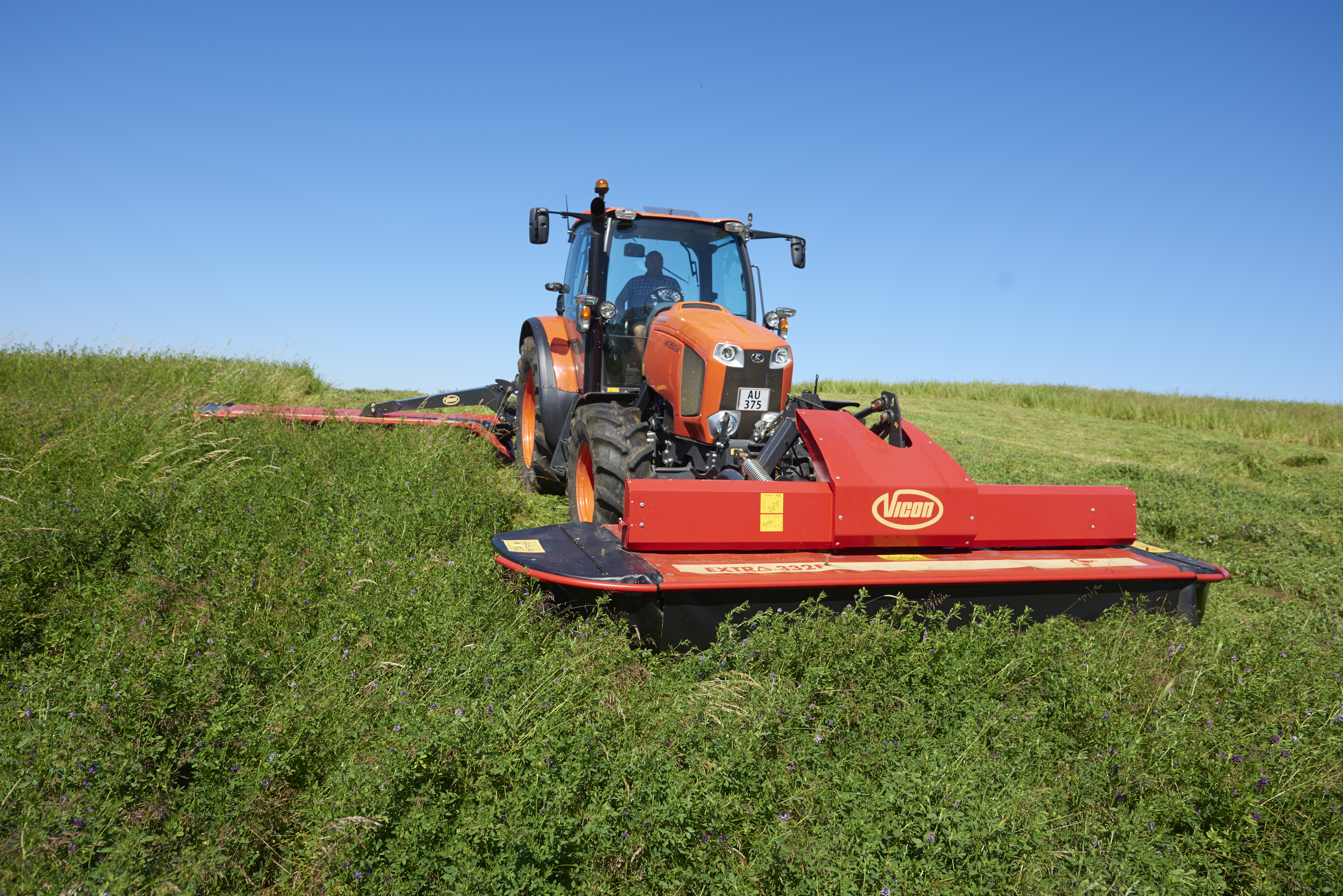

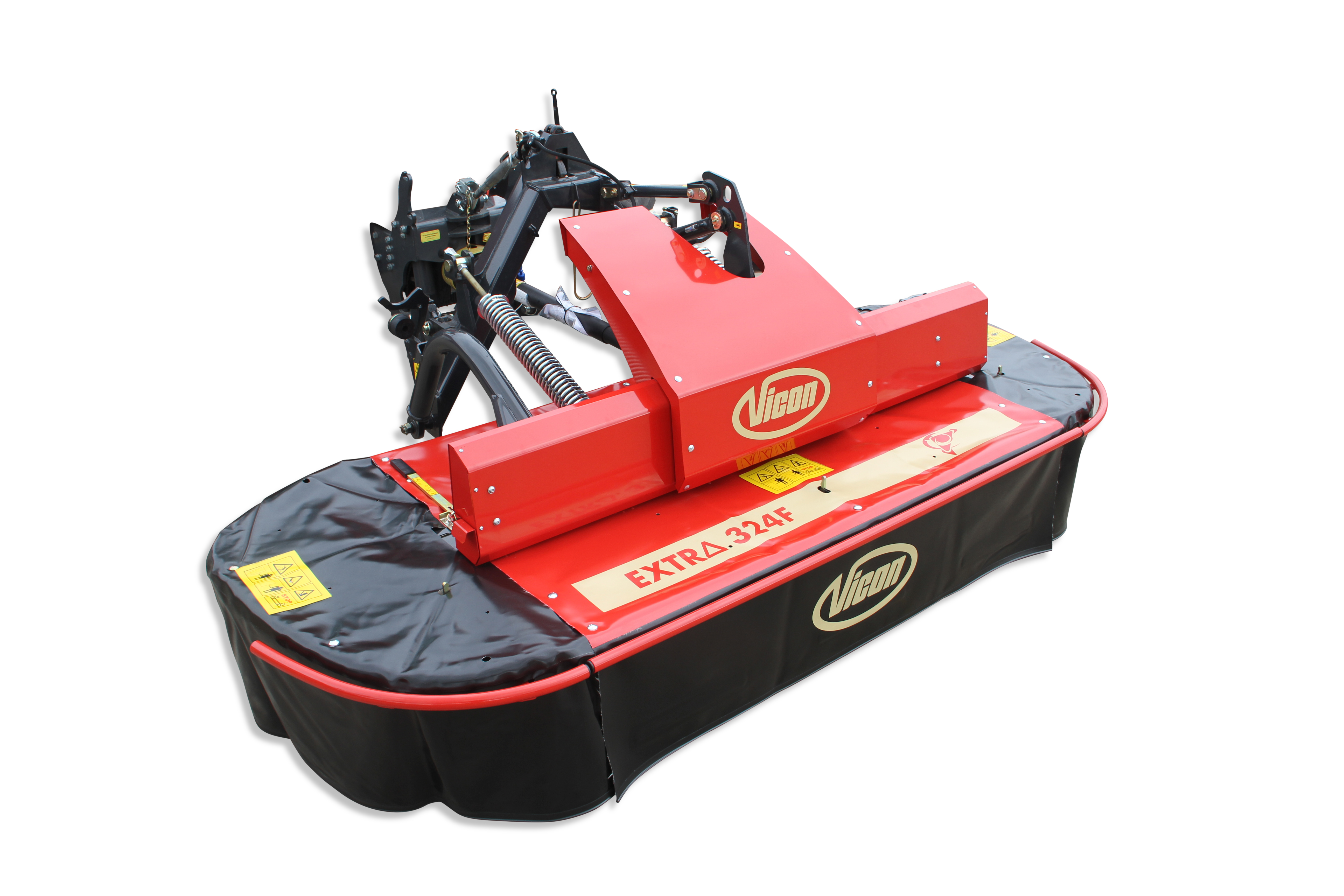

Vicon EXTRA 324F front mounted disc mower, with 2.4m working width, is characterized by outstanding ground following ability, easy operation and low weight, leading to excellent cutting performance and ground following ability in all terrain. At standard settings the cutterbar has a remarkable 430mm upwards and 210mm downwards adaptation range, in combination with a transverse pivoting range of 17°. The design does not require a flexible front linkage, as the movement is built into the machine.
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model EXTRA | 324F | |
|---|---|---|
| Working width (m/ft) | 2.42(7’11”) | |
| Transport width (m) | 2.2 | |
| Transport height (m) | - | |
| Linkage (CAT) | 2 | |
| PTO (rpm) | 750/1000 | |
| Min. power req. PTO output (kW/hp) | 23/31 | |
| Number of discs and knives | 6/18 |
