Vicon VariBale 160

• 2.0m Pick-up on EasyFeed version with 4 tines bar.
• 2.30m Pick-up on PowerFeed and ChopFeed version.
• Twin cam tracks on the 2.3m wide pick-up.
• Tine bars with two central supports on the 2.3m wide pick-up.

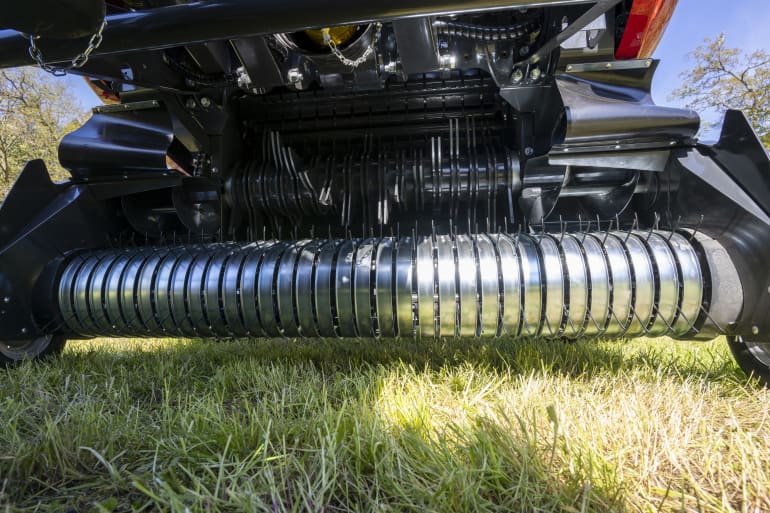

• Small diameter pick-up design.
• Roller crop press is standard on the 2.0m and 2.3m wide pick-up.
• Narrow transport width.

ChopFeed15

• The ChopFeed15 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 70 mm, it is the ideal solution for producing tight bales with superb silage quality.
• Each knife is spring-protected against foreign obstacles. The knife will immediately return to its position once the obstacle has passed.

 PowerFeed Rotor Intake

• Truly impressive intake capacity can be achieved with the PowerFeed rotor intake system - easily handling all crop types, whatever the conditions.
• The PowerFeed rotor, with its 14 rotor fingers, proactively forces the material into the bale chamber for higher intake speed and capacity, providing instant bale start.

EasyFeed intake:

• EasyFeed rotary intake system with huge intake capacity and gentle crop handling.
• This technology incorporates integrated augers into the rotor feed design, allowing the crop to flow across the entire width of the bale chamber, resulting in increased capacity and bale density

DropFloor

• The ChopFeed15 and PowerFeed intake features come equipped with the highly effective Parallelogram Drop Floor system, which makes clearing blockages faster and easier. Unlike traditional systems that only lower the rear edge of the drop floor, this system also lowers the front section of the floor, where blockages are more likely to occur.

• A combination of three rollers and four endless belts provide smooth bale rotation and minimal crop losses, even when working in dry brittle straw.
• Hydraulic belt tensioner and fast tailgate operation place the variable series in the top list of most efficient round balers in the market.
• Spiral profile scrapper roller for efficient cleaning effect in all condition.
• Profiled rollers provide instant bale formation and are equipped with self cleaning scrapers designed for working in all crop conditions.

• Vicon VariBale balers feature the patented front-mounted PowerBind net system, eliminating troublesome feed rollers and boasting a market-leading cycle time.

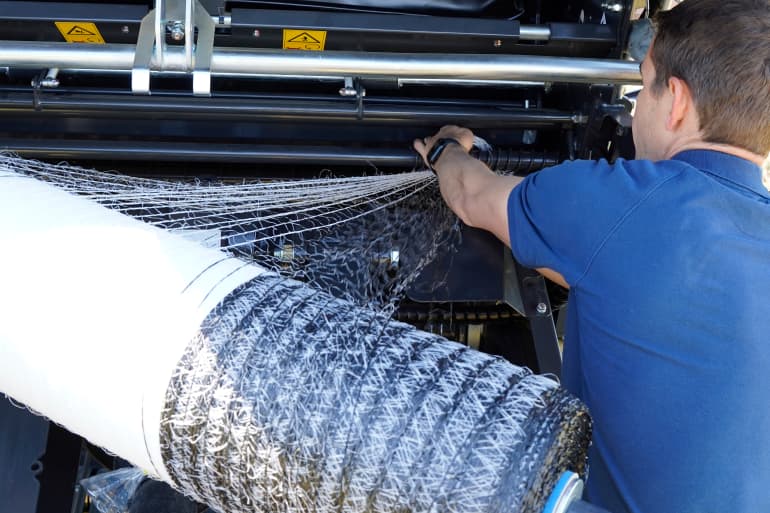

•  The PowerBind injection arm continuously retains the net. When the bale is 90% complete, the arm moves forward in preparation for net injection.
•  When the bale is 100% complete, the net is fed flat and tight for accurate and reliable injection. PowerBind ensures a professional job without wind or crop interference.

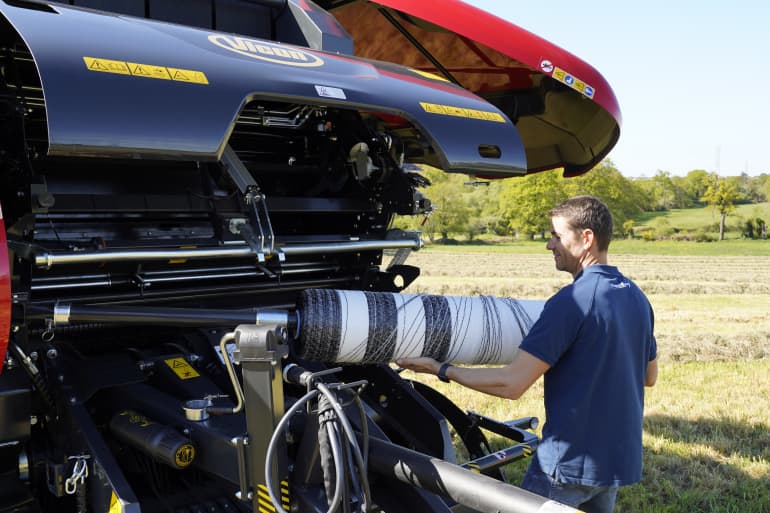

•  Low net loading height

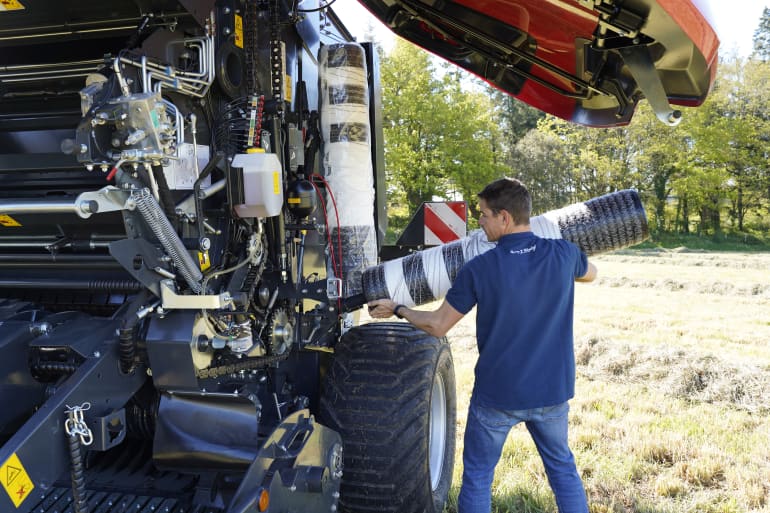

•  PowerBind offers a convenient and time-saving solution with its low loading height, allowing for easy replacement of rolls.
•  The new vertical net roll storage allows a comfortable net roll handling and a wide access to the machine for daily maintenance.

ISOBUS Control

IsoMatch Tellus

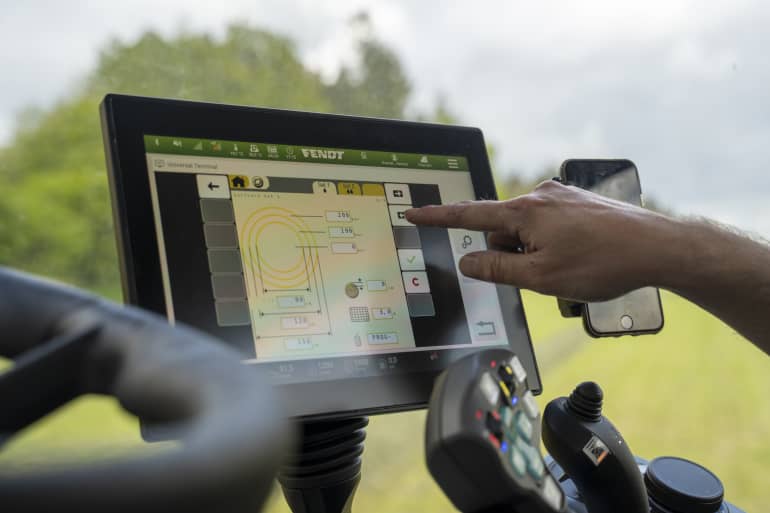

The IsoMatch Tellus is the new virtual terminal, offering 2 Interface screens in 1 terminal. The large 12” easily programmable touch screen offers ergonomic use and is designed for long days of operation.

Due to the increasing number of functionalities that can be added to a machine, such as cameras, the operator can monitor finished bales using the baler interface on the top screen and a camera display on the bottom screen.

Another possibility is to use the baler interface at the top screen and the tractor interface screen at the bottom.

IsoMatch Tellus GO+

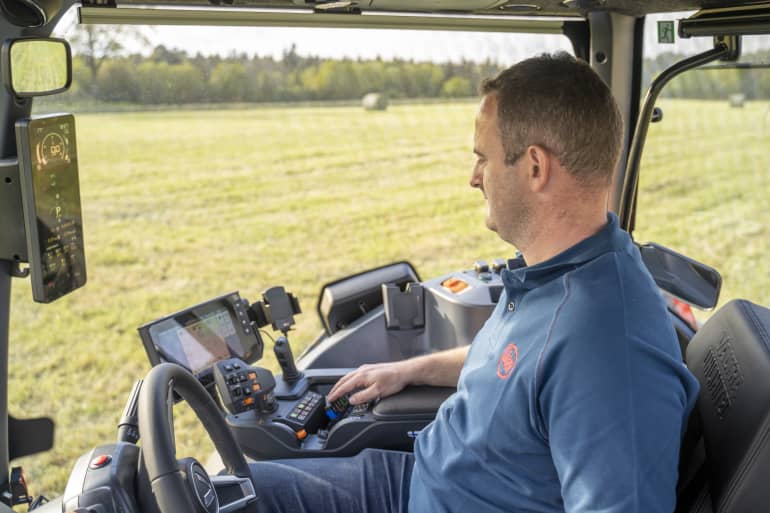

IsoMatch Tellus Go+ is a full Isobus terminal able to easily control all Isobus machines.

The compact design makes integrating into the tractor cab easy, despite the comfortable 7" touch screen allowing perfect machine set-up and control. Hard keys combined with the rotary switch on the right-hand side allow direct access to main functions while driving.

Focus 3 Control

This terminal is developed for specific implement types and will only be delivered as a package for those implements, together with the electronics for balers. Terminal Focus 3 is positioned in the market as an economic solution.

Focus 3 terminal is easy to learn and very intuitive, with focus on functionality and operating simplicity.

Focus 3 terminal is a universal control terminal which can also be used with other implements from Kverneland Group.

Focus 3 terminal gives you full control of all functions from the tractor cab. They are shown on a large and very clear digital display.

The Focus 3 terminal monitors and controls all necessary functions, with all relevant

• Each bearing is clearly marked from the greasing bank making the maintenance simple.
• External bearings are reducing the service time to the minimum.
• Automatic chain lubrication with individually adjustable outlets.

• Thanks to the actuator and work light kit, control the net brake directly from the binding and maintain easily the machine even during long days.
