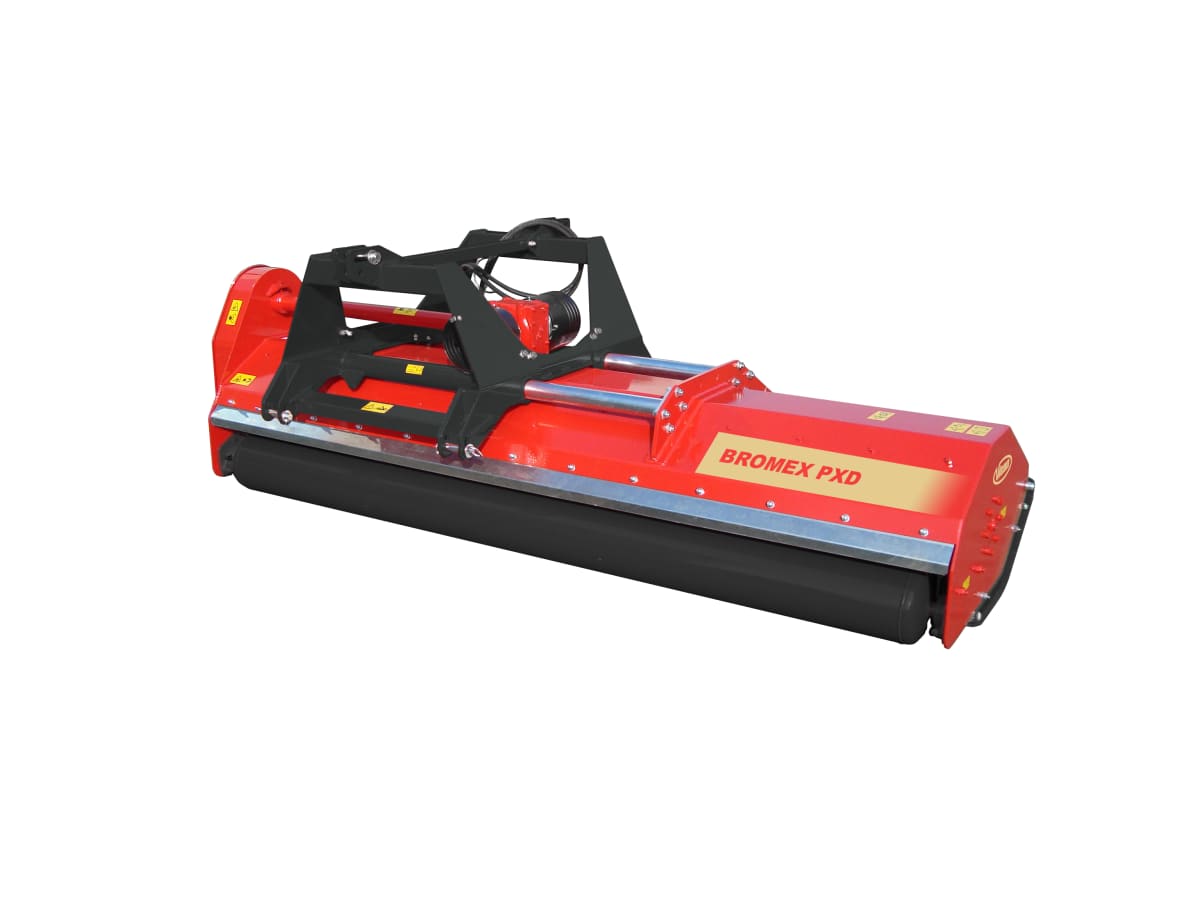

Vicon Bromex PXD
Versatility combined with efficiency

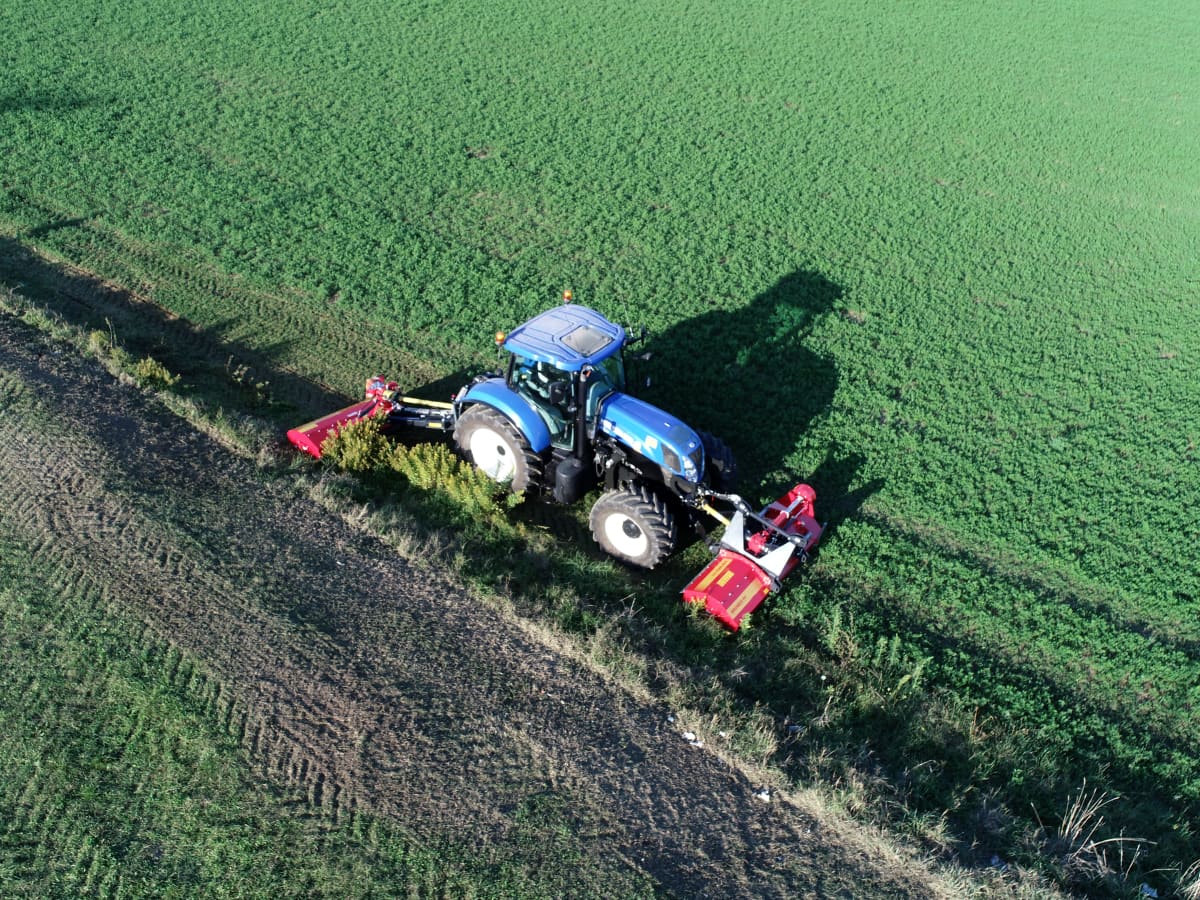

Versatile machine for front and rear tractor mounting
Highlights
Double headstock for front or rear mounting Versatile use on grass, pasture, set-aside land and stubble High-performance rotor for high-quality cutting Easy operation in the field by hydraulic offset Counter knife and double skin for a finer shredding Low maintenance costsDescription
The Vicon Bromex PXD is a versatile machine suitable for front and rear tractor mounting. The headstock is taken from the well-known and proven power harrow design. The sliding tube is integrated into the headstock; all forces and stress are concentrated on the 3-point linkage. The Bromex PXD is fitted as standard with a hydraulic-operated offset facility of 52cm. A central gearbox rated up to 160 hp with a double integrated freewheel is standard. The PTO tractor input can be 540 or 1000rpm, achieved by inverting the belt pulleys. Five V-belts combined with an automatic belt tensioner ensure smooth transmission, preventing slippage even in the toughest working conditions. No maintenance is required.
Features
- Versatile for use; front, rear, and offset ability, for tractors up to 160 hp
- Offset Frame: Machined post-welding for precise alignment.
- Double Headstock: Mounts at both front and rear.
- PTO tractor input at 540rpm or 1000rpm
- Central gearbox up to 160 hp
- Efficient rotor transmission with 5 V-belts and the BTS automatic belt tensioning system
- Strong Construction: Designed for reliability in demanding conditions.
- Constructed with a robust 245x10mm tube for exceptional durability.
- The large diameter guarantees precise balancing and vibration-free performance.
- The rotor remains straight during operation, ensuring an even and clean cut.
- Universal Y and Hammer blades are designed to provide exceptional performance and reliability.
- Wheel kit for front use with Ø 580mm
- A second counter knife is available as an option
- A double skin can be bolted in case of harsh working conditions (option)
Technical specifications
Technical specifications
Download brochureBromex PXD 280 | Bromex PXD 320 | ||
---|---|---|---|
Working width (cm) | 280 | 320 | |
Transport width (cm) | 300 | 345 | |
No.of blades (univ /hammer) | 72/36 | 80/40 | |
Weight (kg) | 1220 | 1380 |
Multipurpose choppers
Technical specifications
Technical specifications
Download brochureModel |
Working Width (cm) |
Weight (kg) |
No. of universal/hammer blades |
Bromex PXD 280 |
280 |
1220 |
72/36 |
Bromex PXD 320 |
320 |
1380 |
80/40 |
