Description
Vicon Shredex 850 Pro series offers a strong package of features such as redesigned flywheel, 4-stage swiveling chute, patented drum feed control system and remote control of tailgate and floor chain. 853 Pro is specifically designed to distribute straw, hay and silage. The 3m³ bale chamber is capable of transporting the largest square bales or 2 round bales. Shredex 856 Pro is a 2-drum solution able to handle up to 3 round bales for added chopping capacity. A Shredex hallmark is the funnel design bale chamber. Special attention has been directed towards this, to ensure an efficient flow of material from chamber to drum.
Highlights
- 3m³-6m³ chamber
- Blowing distance up to 20m
- 4-stage swivelling Pro chute or side chute
- Drum Feed Control System (853 Pro only)
- Two drum solution (856 Pro only)
- Optimsed feeding and bedding
- Unique drum-knife configuration to handle a wide variety of materials
- Two speed gearbox for reduced flywheel speed when discharging feed materials
Features
- The working heart of the Shredex 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats.

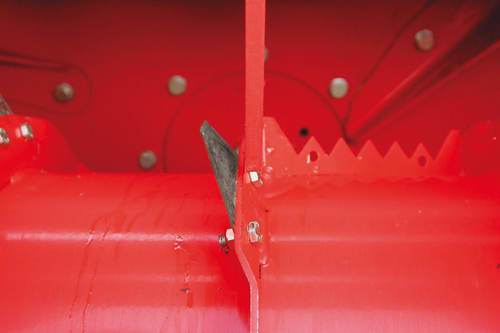

- The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber.
- The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres - even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level.
- The Shredex 852 is fitted as standard with a new swivel chute that offers a 280° rotation of the chute.
- It allows the operator to accurately direct bedding materials into otherwise inaccessible areas of the building.
- The new chute is positioned right above the flywheel where the blow is strongest.
- This give a more efficient distribution of the material and reduces the risk of blockages.
- The end flap of the swivel chute operates via an electric actuator whilst the 280° rotation of the chute is hydraulically operated.
- The Shredex 852 can discharge the straw at a distance of up to 15m.
- The 1.55m diameter flywheel of the Shredex 850 series is fitted with 6 blowing paddles, providing a powerful blow for the most efficient distribution of the material and an excellent cleaning of the flywheel housing.
- The flywheel does not chop the straw, thus ensuring virtually full length material suitable for bedding of covered yard areas.
- In combination with the 2-speed gearbox (standard on Shredex 853) the flywheel can throw straw up to 18 metres (on high speed) or gently feed hay/silage at the side of the machine (at low speed).
- With the 280° swivel chute discharge straw can be blown up to 15m.

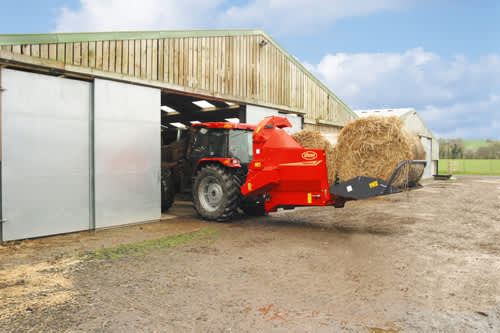

- The hydraulically operated rear door provides a self loading facility for easy loading of square and round bales.
- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model Shredex | 853 Pro | 853 Pro | 856 Pro | 856 Pro | |
|---|---|---|---|---|---|
| Chute | Side Chute | 4-stage Sw. Chute | Side Chute | 4-stage Sw. Chute | |
| Cubic volume (m3) | 3.00 | 3.00 | 6.00 | 6.00 | |
| Blowing distance* (m) | up to 20 | up to 18 | up to 20 | up to 18 | |
| Chassis | Trailed | Trailed | Trailed | Trailed | |
| Metering system | Single Drum DFCS | Single Drum DFCS | Two-Drum | Two-Drum | |
| PTO power req. min (kW/hp) | 48/60 | 48/60 | 56/75 | 56/75 |
Unable to load the table
* Depending on material and barn-specific conditions |
Technical specifications
Technical specifications
Download brochureCubic Volume |
Load Capacity |
Power Req, Min |
|
Shredex 852 |
2.00m³ |
800kg |
40/55 kW/HP |
* Depending on material and barn-specific conditions |
