The advantages of this Tedder 3pt mounted
- CompactLine gearbox - low maintenance
- Vibration dampers standard fitted
- 500mm rotor plate diameter
- Double bearings from pinion to crown wheel
- Easy 3-step adjustment of spreading angle
- Super-C tines with large spring coil diameter
Description

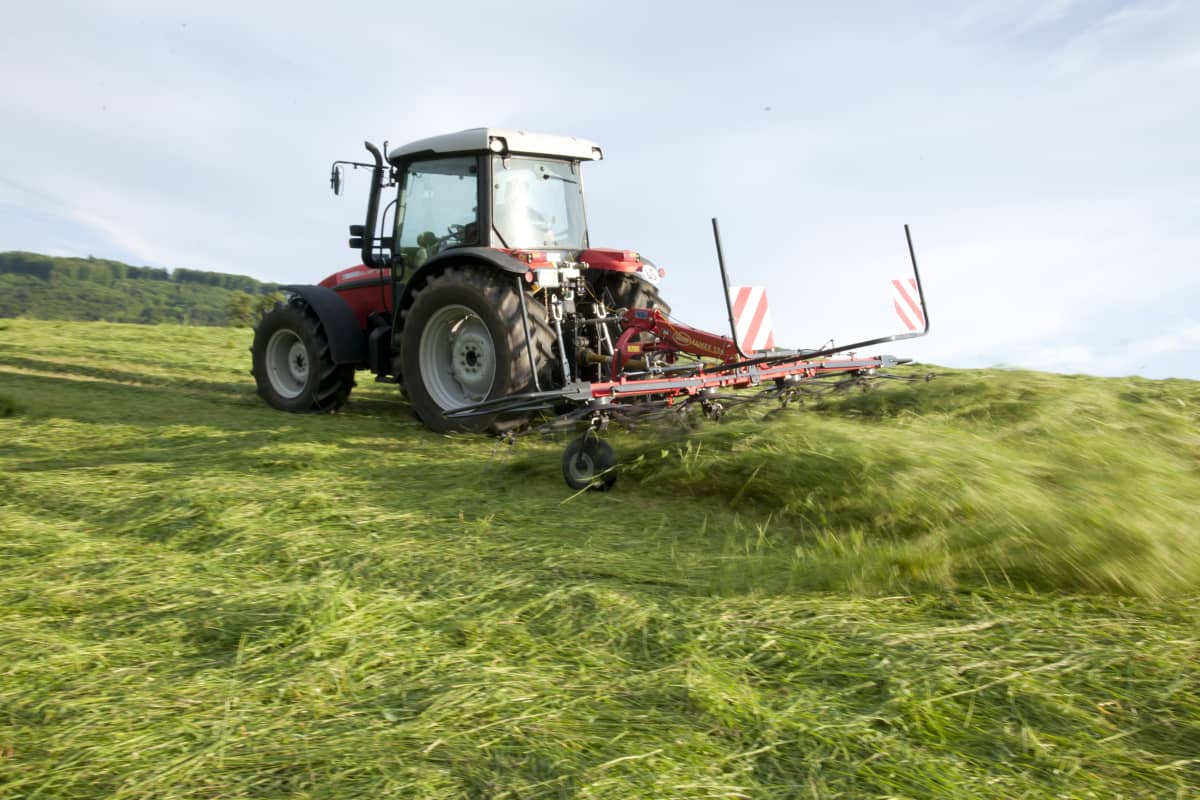

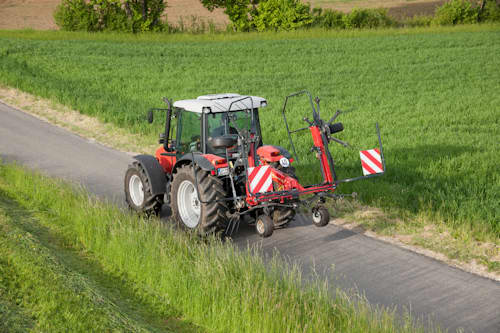

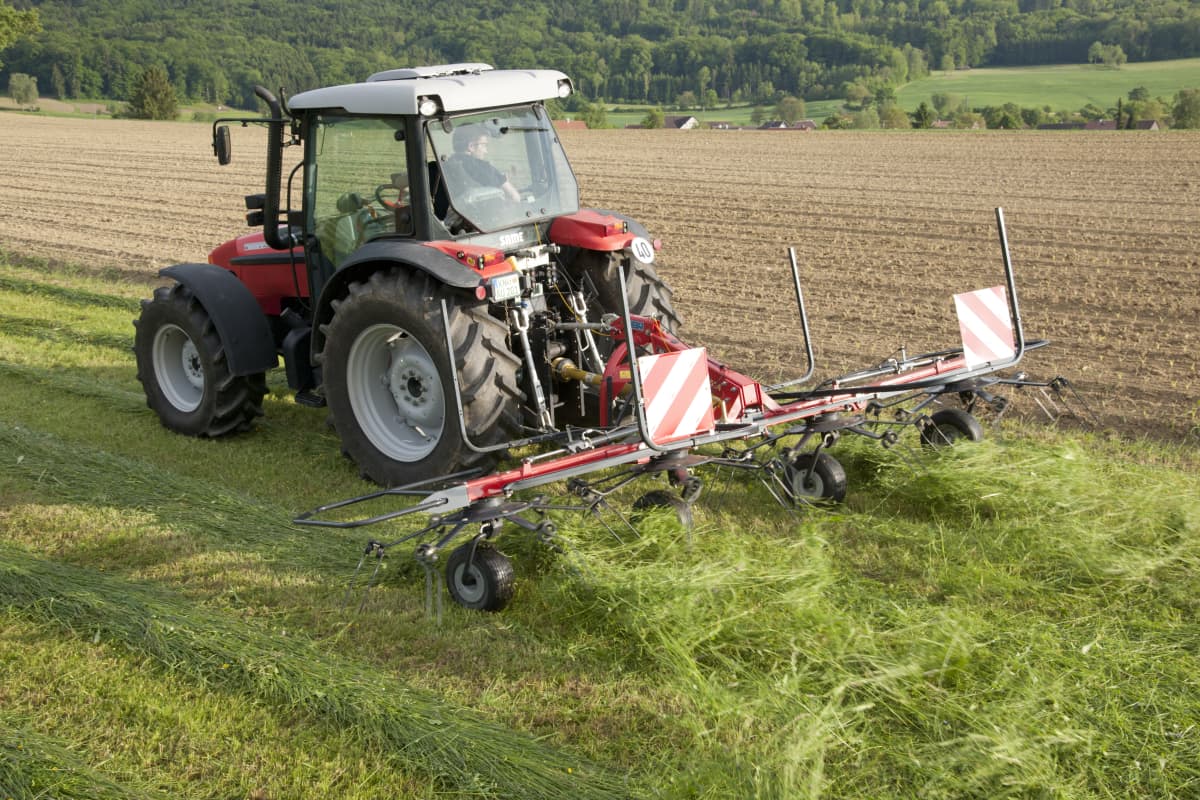

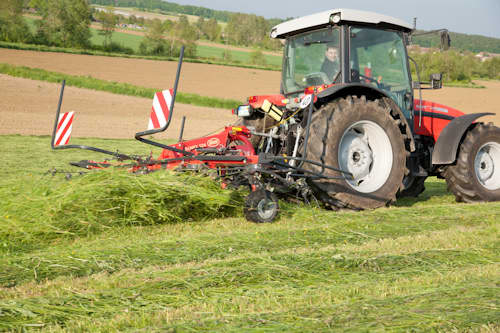

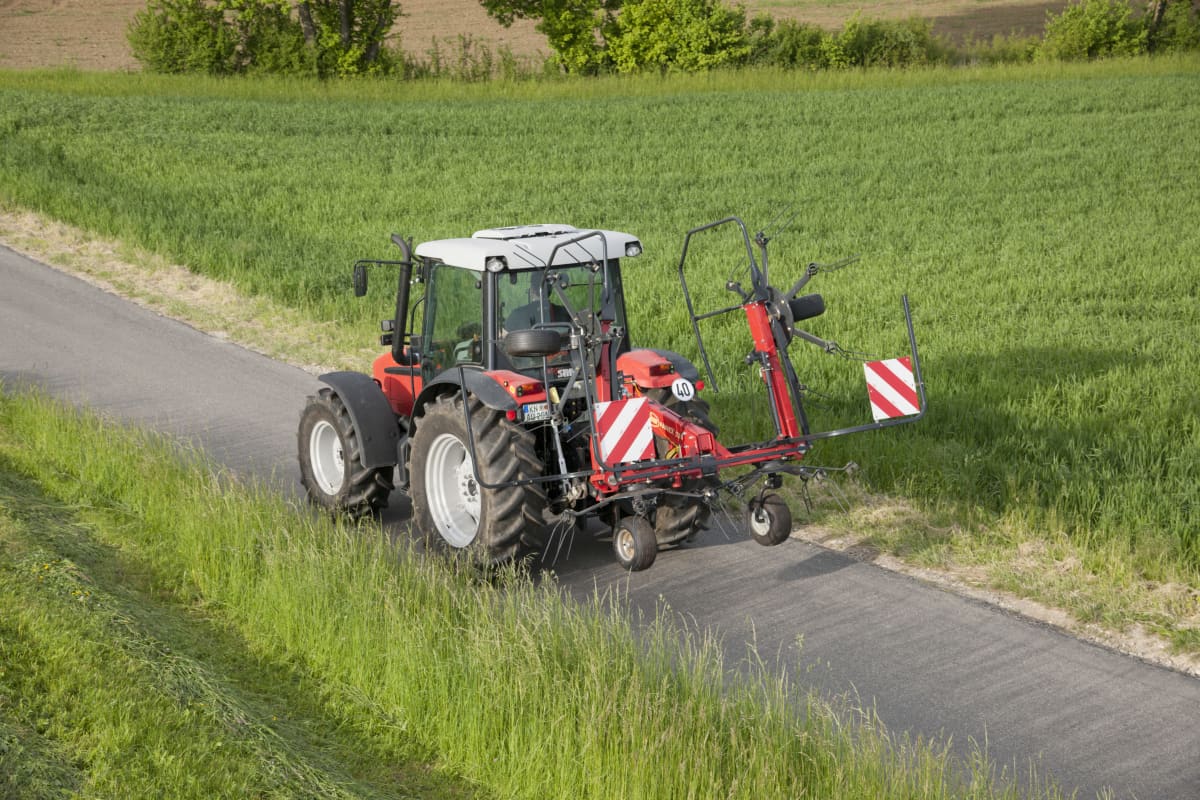

Fanex 464, with 4.6m working width, has low maintenance requirements and includes maintenance-friendly features such as 500mm rotor plates and an easy-to-maintain gearbox with only one grease nipple. Fanex 464 can be adjusted centrally to move the tedder to the desired position for border tedding. Hydraulic operation and reduction gearbox for night swaths is optionally available.
Highlights
- Low maintenance CompactLine gearbox with only one grease nipple.
- Compact tedder with low weight and power requirement.
- Rotor plate dimension of 500mm.
- Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
- Easy setting of spreading angle through simple three-way adjustment of wheel height.
Features
- Box shaped main frame with only one welding seam for maximum rigidity.
- The frame design is fully enclosed at the top edge for maximum strength – an exceptionally solid design,
- Double universal joints give smooth and efficient transfer of power.
- Greasable pivoting points with large diameter guarantee a very strong and reliable construction.
Simple three-way adjustment of wheel height, allows the optimum spreading angle to be achieved according to crop conditions.
- High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
- Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
- The mower swaths are neatly lifted by the tines and evenly spread over the full width.
- Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model Fanex CompactLine | 464 | |
|---|---|---|
| Working width (m/ft) | 4.60 / (15’1”) | |
| Number of rotors | 4 | |
| Number of tines/rotor | 5 | |
| Transport width (m/ft) | 2.85 / (9’4”) | |
| Transport length (m/ft) | 2.15 / (7’6”) | |
| Storage height (m/ft) | 2.45 / (8’) | |
| Capacity theor. (ha/h) | 3.7 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Rotors/Tines |
Weight |
|
Fanex 464 |
4.60m |
4/5 |
492kg |
Fanex 524 |
5.20m |
4/6 |
520kg |
