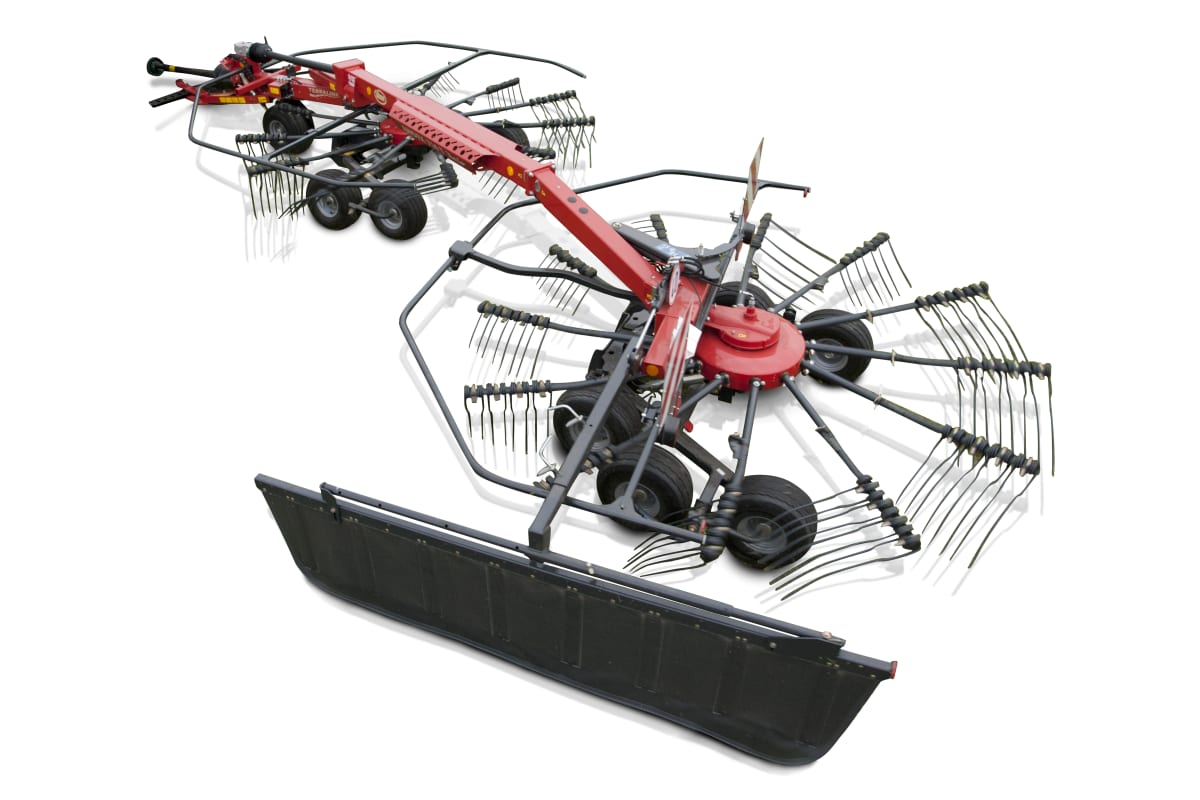

Vicon ANDEX 714 T EVO
Side delivery rakes for the flexible solution
CompactLine trailed side delivery rakes with 7.1m working width
Highlights
TerraLink Plus can collect crops into a single swath up to 12.5 meters wide QuickLift – drive over the swaths without any damage Unique feature SideSift - avoid damages on the tractor CompactLine gearbox with fully oil bath design Multiple functions can be easily managed from the cabinDescription

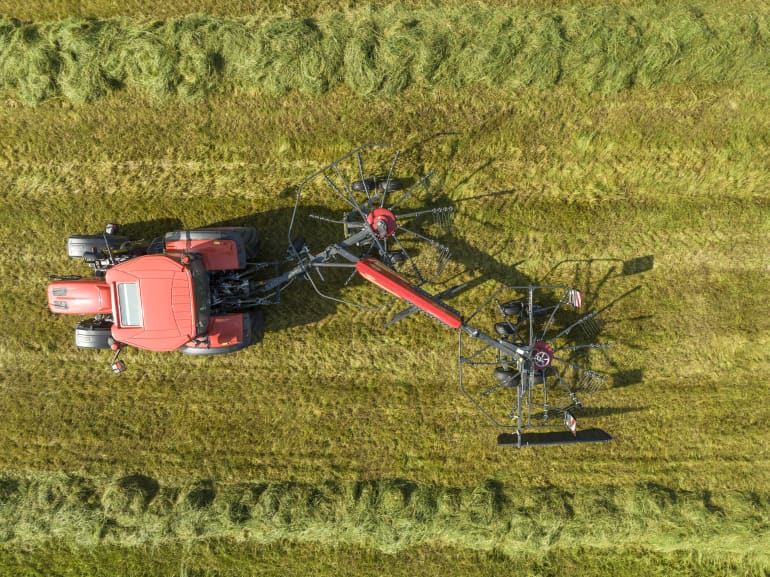

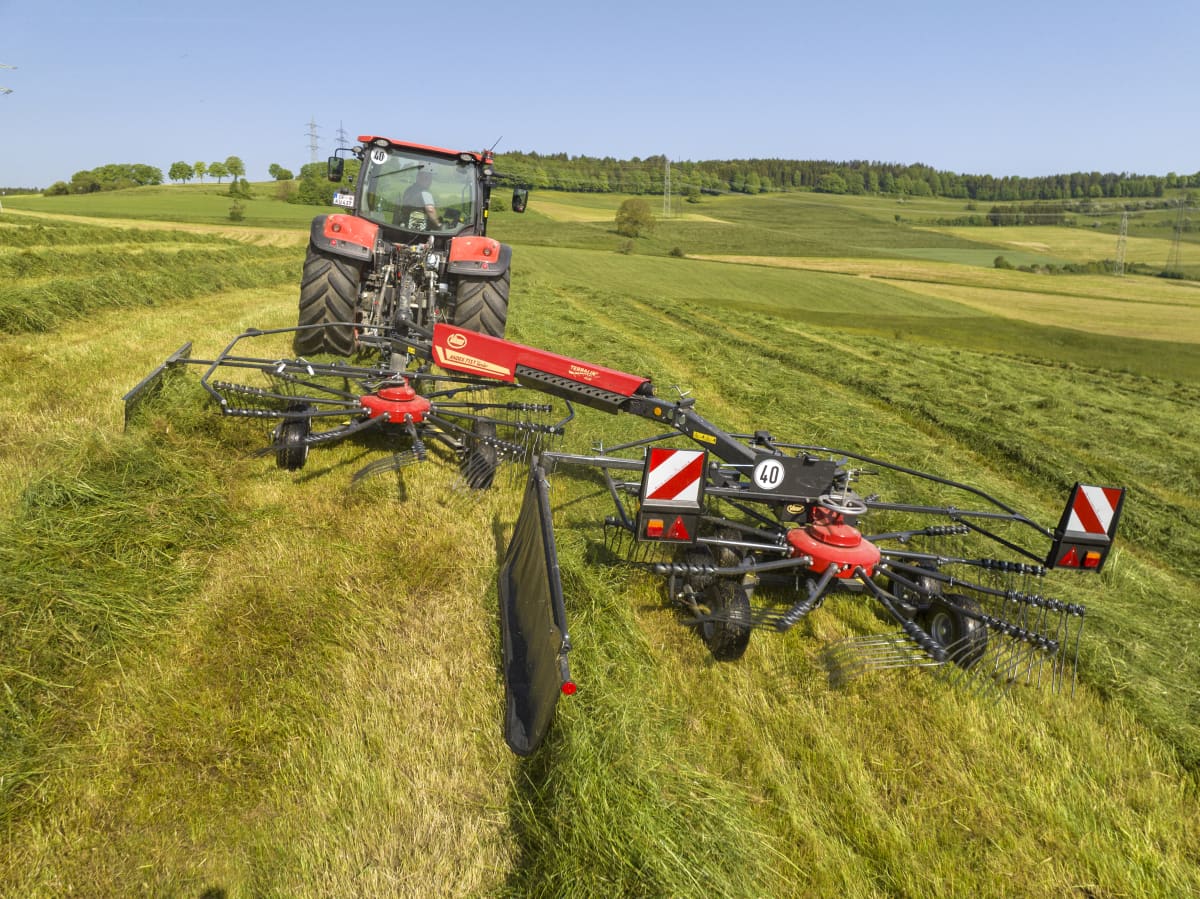

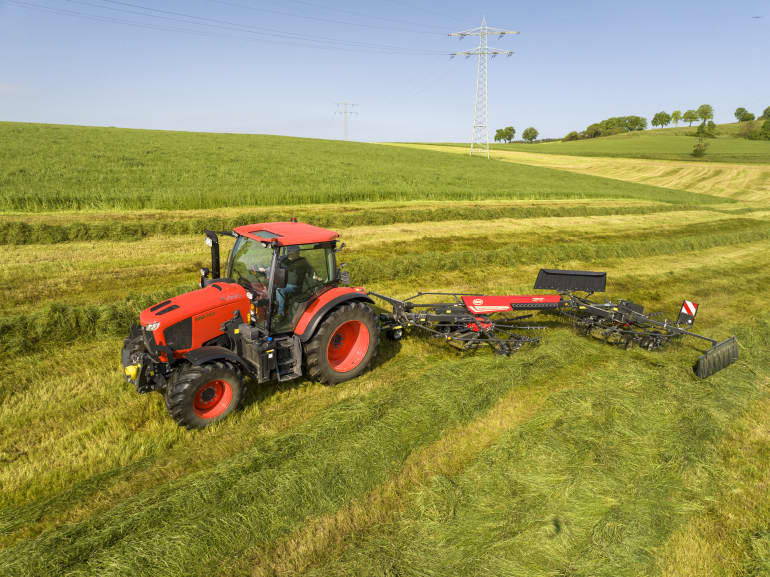

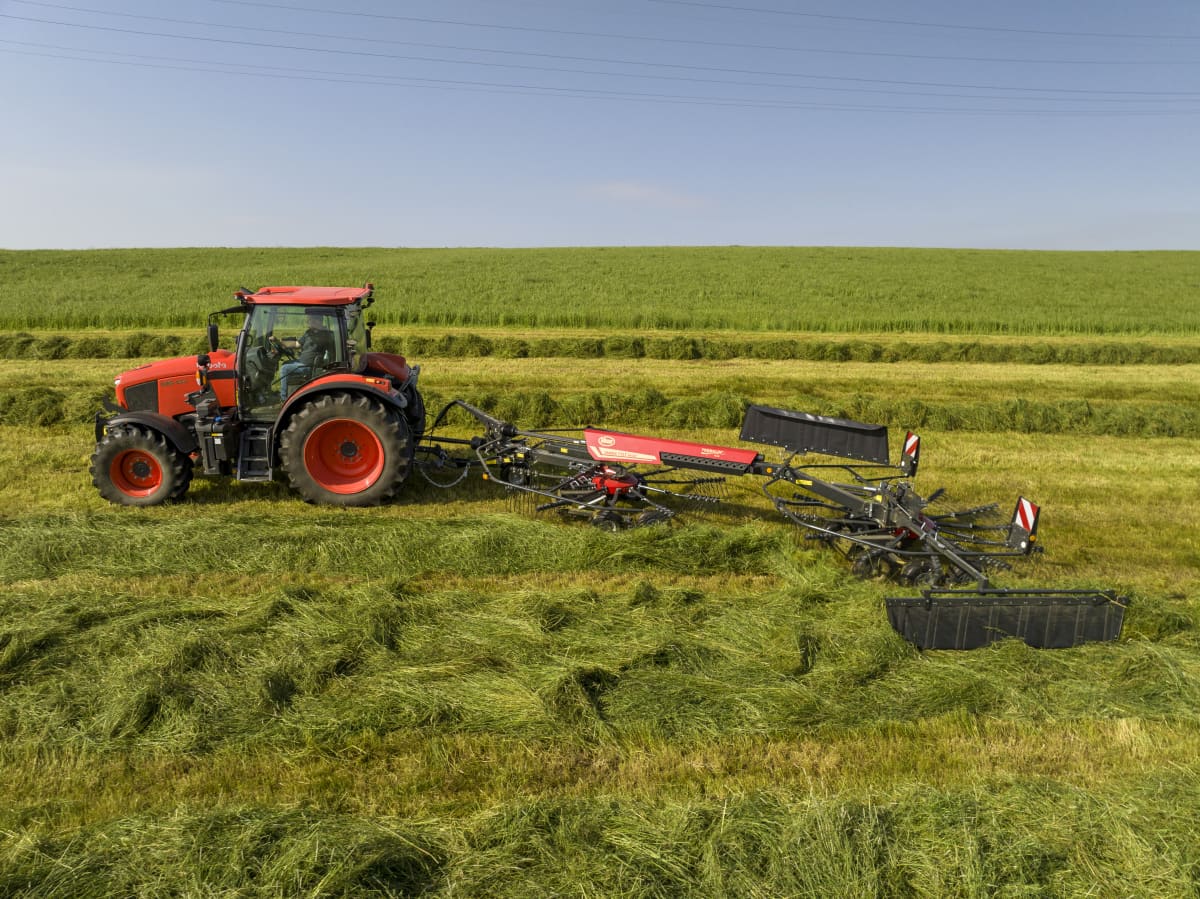

Andex 714 T Evo with a 7.1m working width is designed for maximum flexibility and raking in various conditions. The twin rotors work independently, making it possible to collect either one large swath or two smaller night swaths. These rakes can place two large swaths into one, allowing a total of up to 12.5m crop to be gathered into one swath. In addition, in low volume crops, several passes could be raked into one row.
Highlights
TerraLink provides perfect ground contour followings
Possible to collect the crop into one swath from up to 12.5m or place two smaller night swaths
QuickLift – offers fast lift at the headlands and sufficient space to drive over the swaths without damaging
Maintenance-friendly CompactLine gearbox with fully enclosed oil bath design
Features
- The Vicon CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Vicon-developed cam tracks are specifically tailored to individual rotor diameters for optimal raking at any working width and on any model.

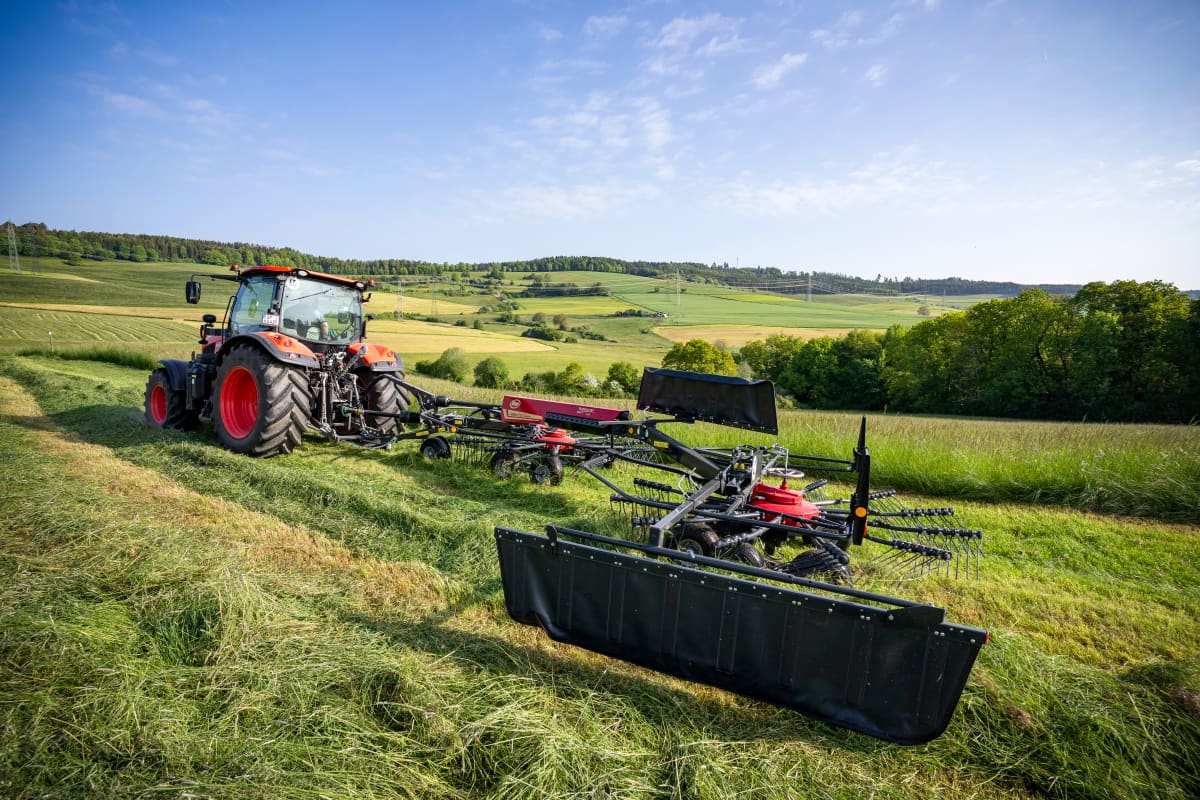

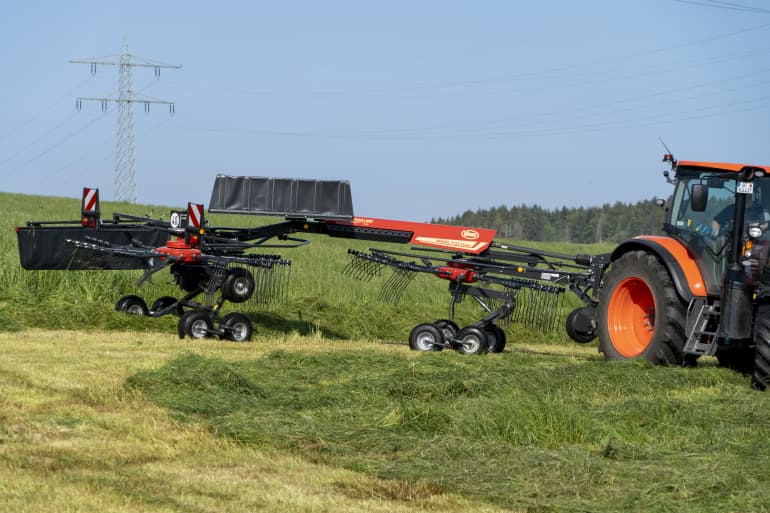

- The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions.

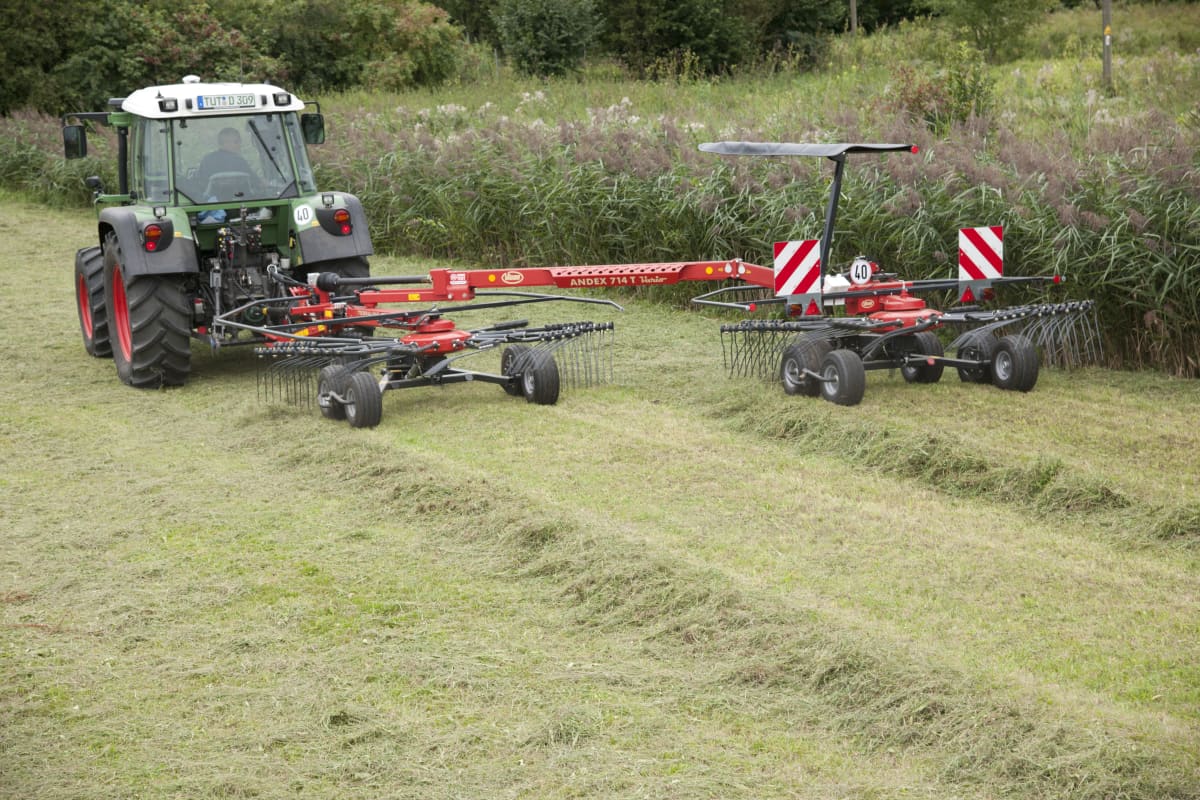

- A special feature on the Andex 714T Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
- With this patented system, raking along field boundaries or around trees is no problem – the tractor can run at a safe distance from the obstacles.
- It is also possible to run on raked fields while having the rake offset to the left side.

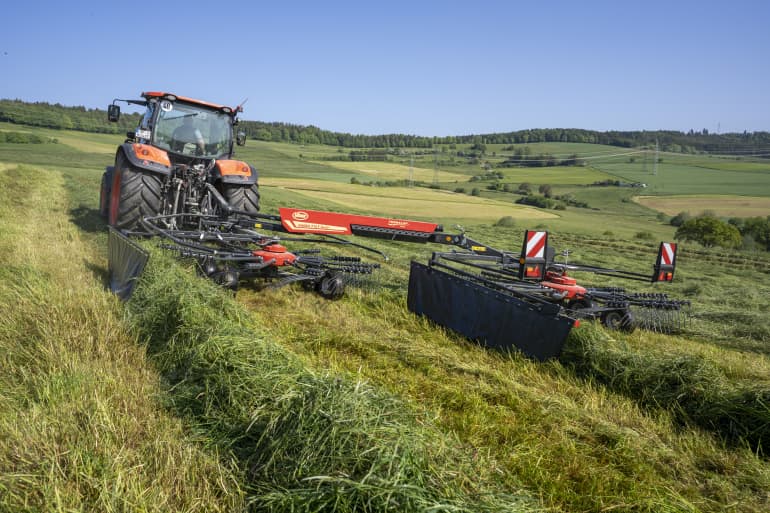

- It is possible to collect either one large swath or two smaller swaths.
- Andex 714T Evo & Andex 715T Vario can place two large swaths into one, allowing a total of up to 12.5 m crop to be gathered into one swath.

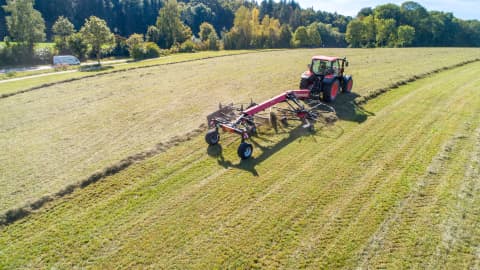

- Andex 705 Vario can also place two large swaths into one, allowing a total of up to 13.0 m crop to be gathered into one swath.
- It is also possible to place two small night swaths for hay crops.
- Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.

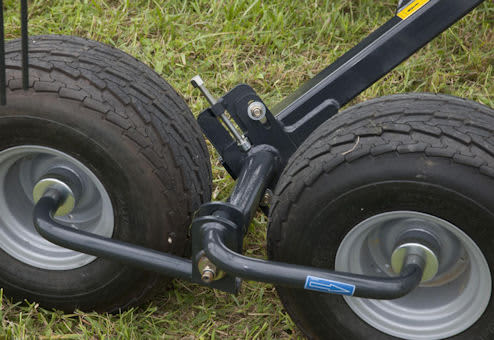

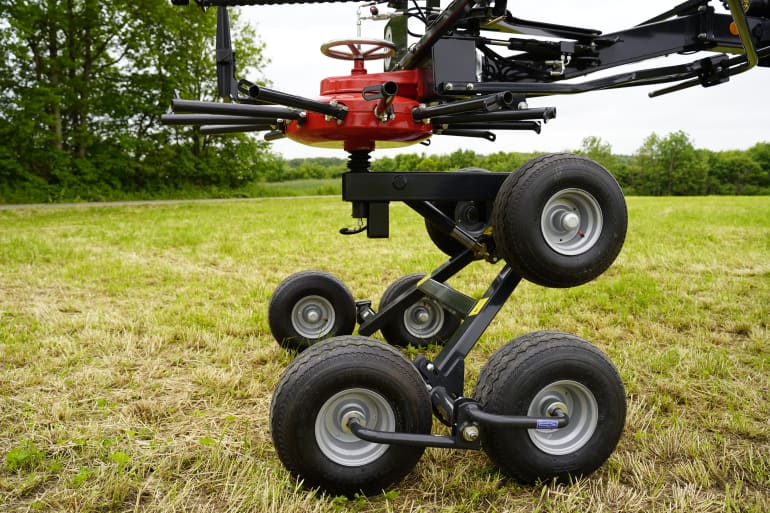

- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.

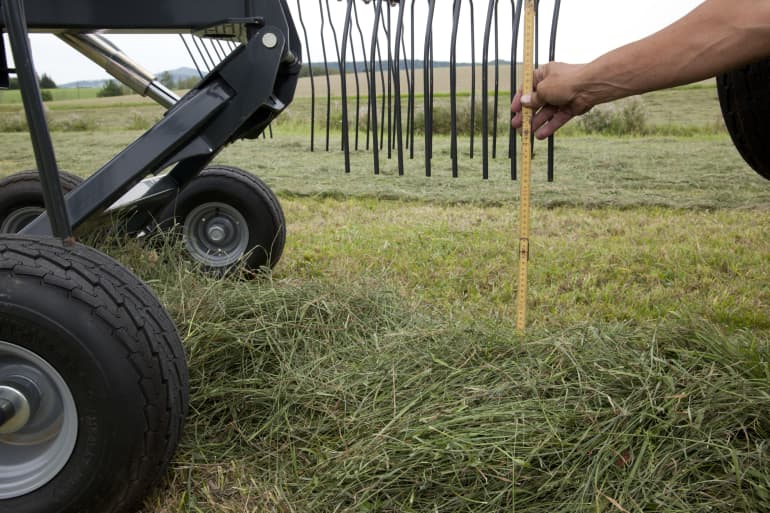

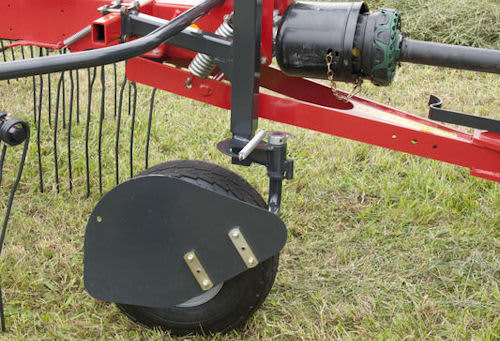

- Vicon Andex 714T models are equipped with the QuickLift system as standard.
- This ensures a lifting height of 50 cm to easily cross over existing swathes.
- Rotors are lifted using only a single acting valve.

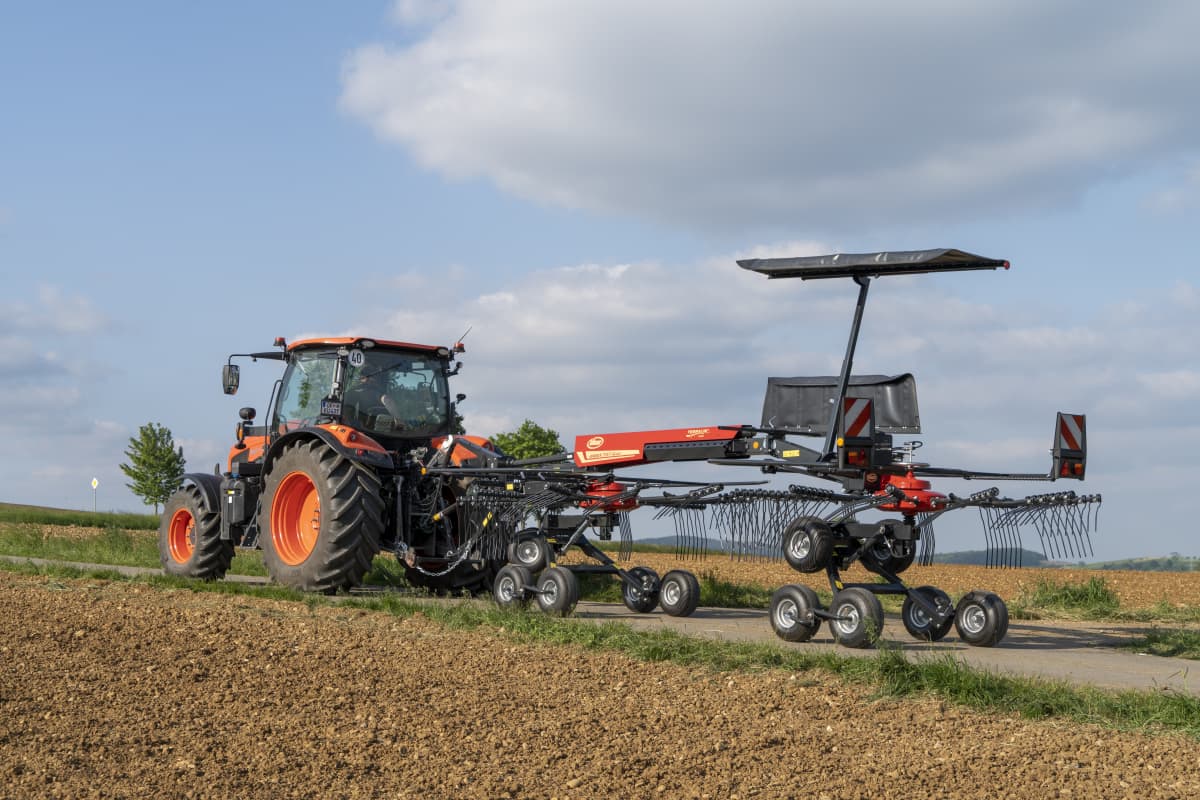

- During transport the swath board automatically folds clear. Transport width is below 3m (2.45m with tine arms removed).
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Andex | 714T EVO | |
|---|---|---|
| Working Width | 6.6/7,1m | |
| Tine Arms | 11/12 | |
| Weight (kg) | 1350 | |
| Rotor diameter (m) | 2.95 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 715T Vario |
6.60/7.10m |
11/12 |
1400kg |
Andex 714T Evo |
6.60/7.10m |
11/12 |
1350kg |
