The advantages of this Plain mower
- User-friendly - easy to operate
- EXTRA cutterbar
- Responsive kinematics - excellent ground following
- 17⁰ sideward adaptation

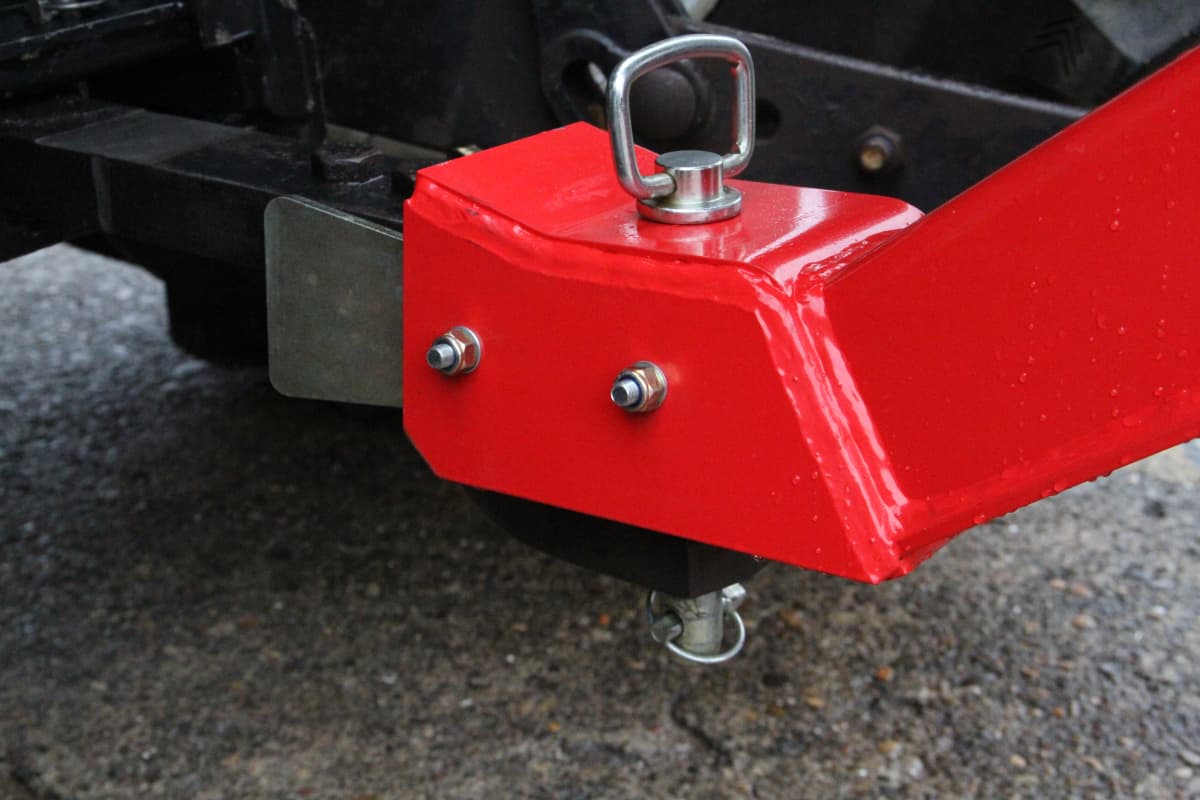

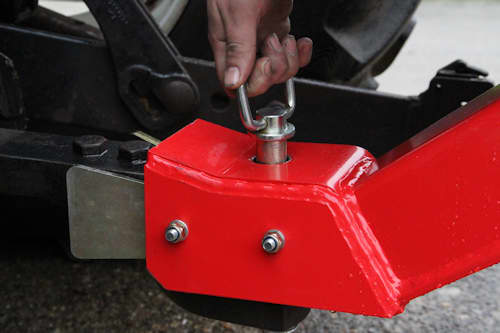

- Simple attachment to tractor
Description

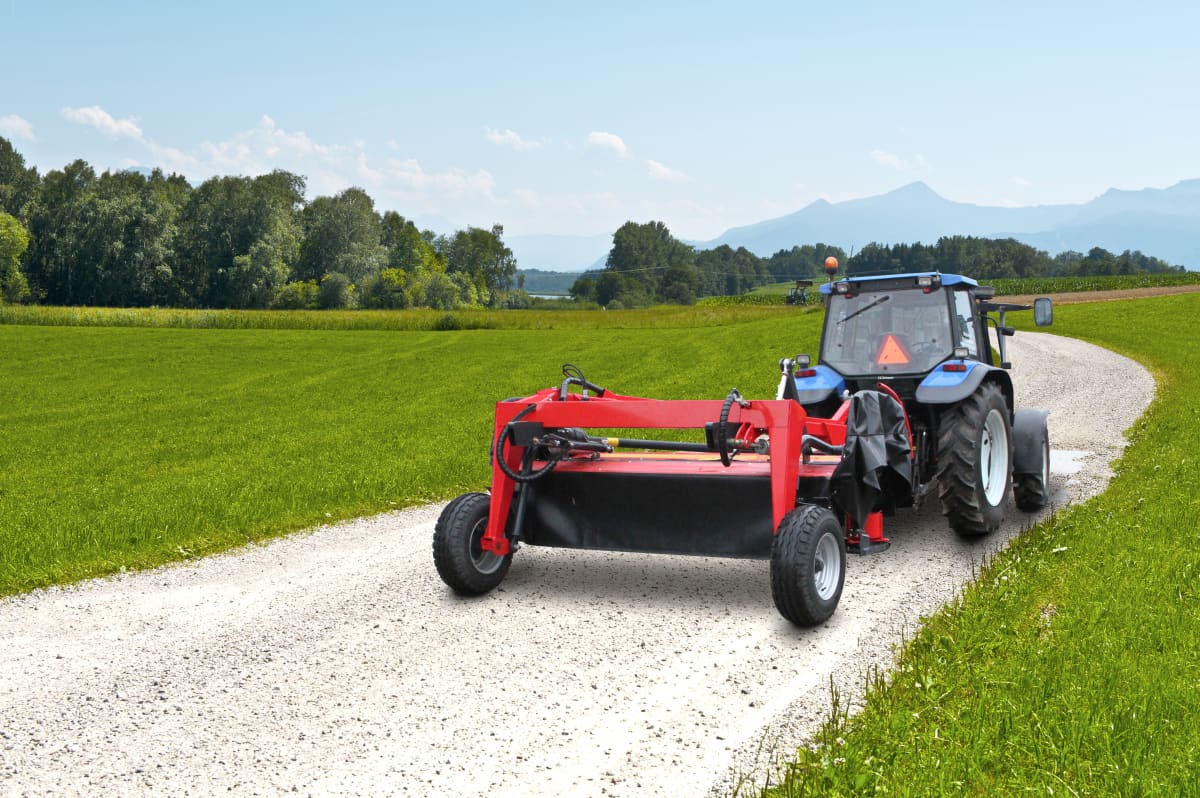

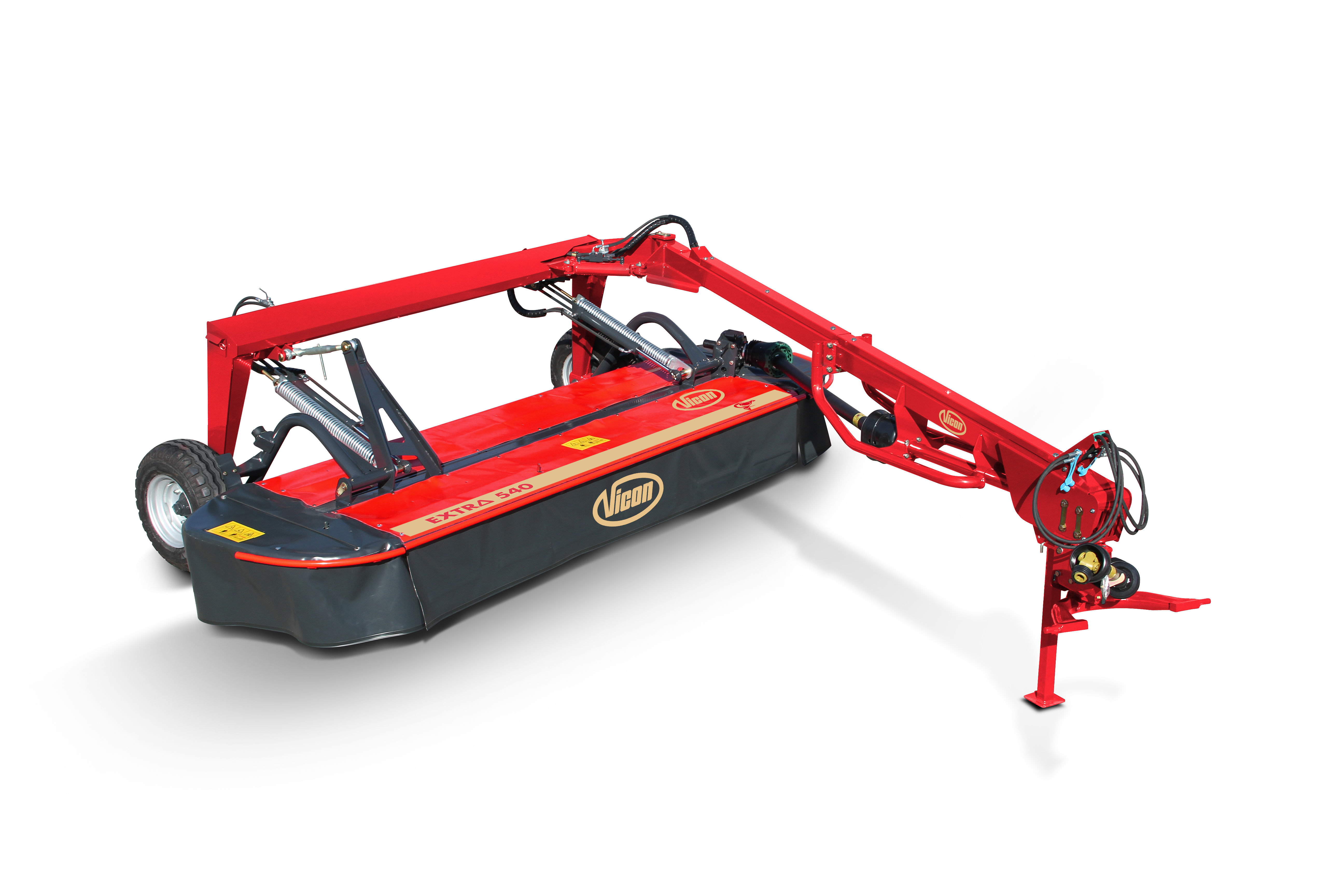

Vicon EXTRA 500 series, with 3.2-4.0m working width, is easy to operate and has a low power requirement, which reduces fuel consumption by allowing the mower to be used with smaller tractors. Due to the independent active suspension, the EXTRA 500 series has a remarkable ability to adapt to ground contours. This technology improves grass flow and is gentler on the crop. It also helps protects the cutterbar from any unforeseen obstacles. EXTRA 500 has a sideward adaption range of 17° in total. This generates many benefits while working on hillsides or controlling the unit on headlands.
Features

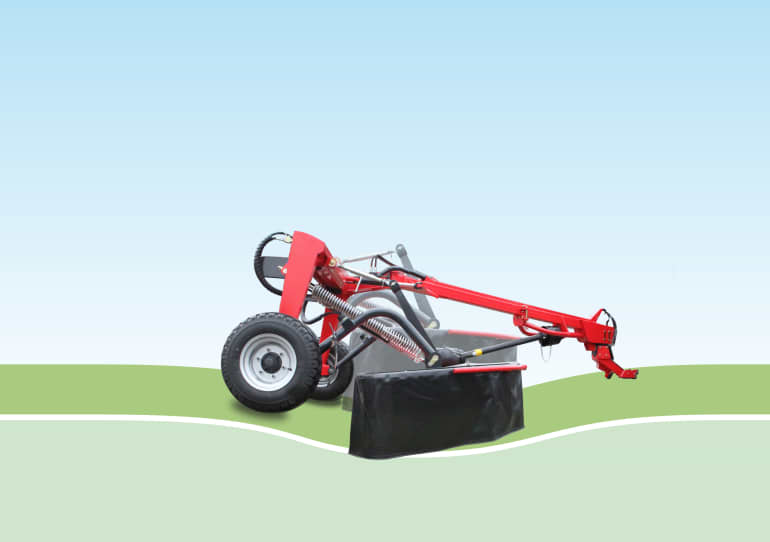

- Exceptional ability to adapt to the ground conditions
- Ensures an even pressure across the entire cutterbar in uneven conditions.
- The range is 17’2” upwards and 8’4” downwards

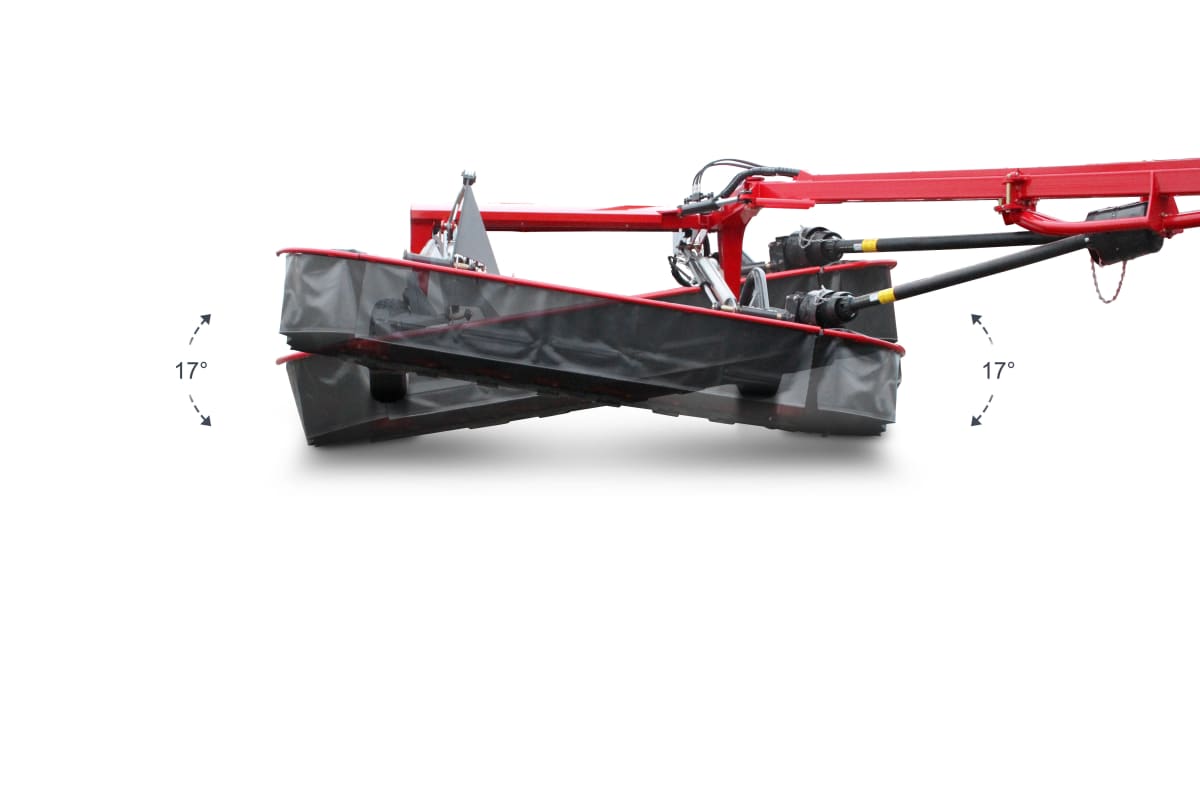

- Sideward adaption which allows a movement up and down of 8.5° degrees to each side – in total 17°.
- Generates many benefits when working on hillsides or along ditches, and also makes it easier to control the unit on headlands.

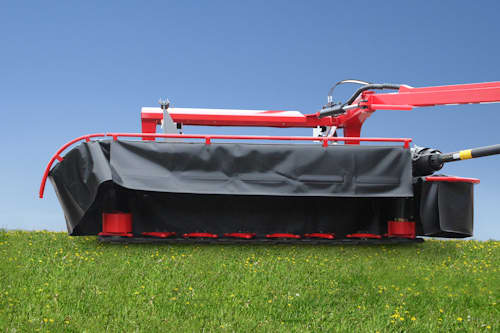

- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.
- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.
- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.

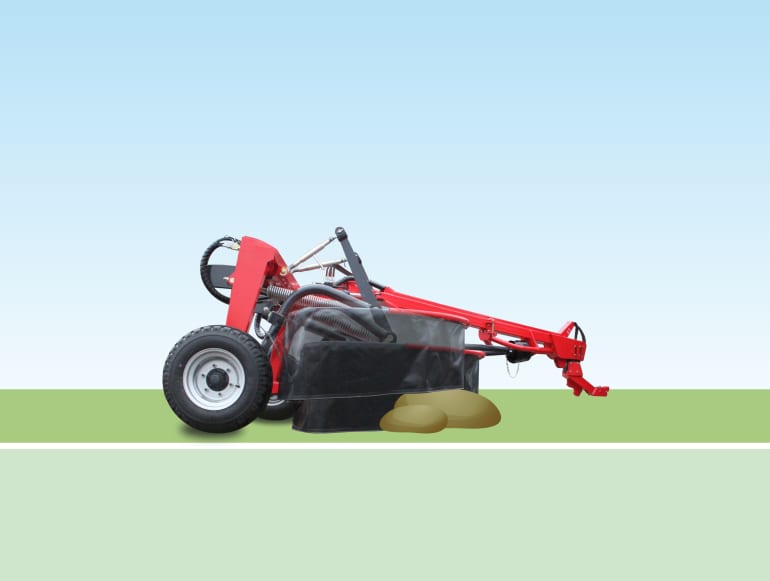

- To offer maximum protection of the cutterbar, these machines are fitted with the well-known Vicon BreakAway solution.
- When encountering an obstacle, the BreakAway will swing the machine backwards and over the obstacle, returning it to the original working position once the obstacle has been passed

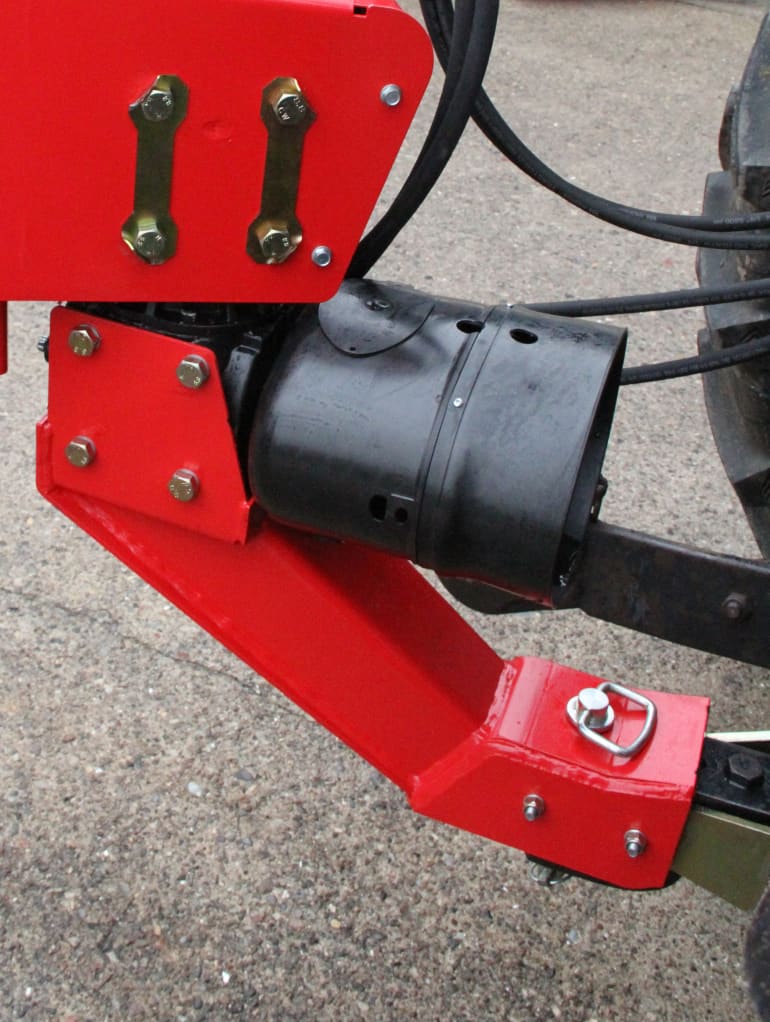

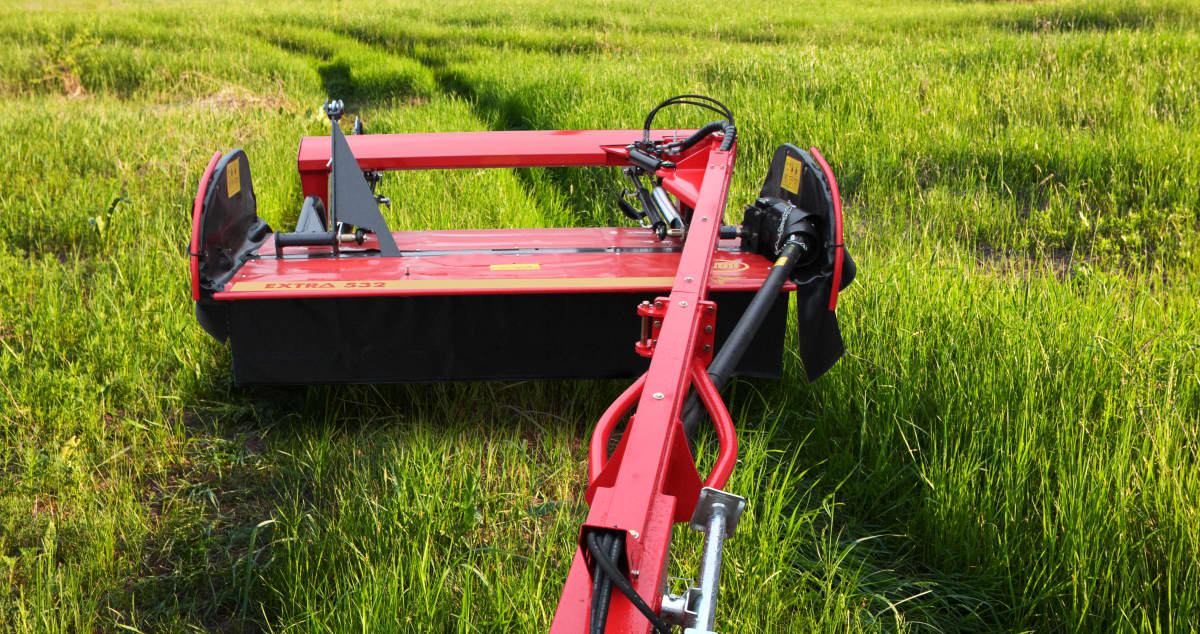

- The gearbox is fixed to the mainframe in order to ensure less movement during operation
- Provides unlimited rotational movement between the machine and the tractor.
- Makes it easier to perform sharp turns
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.

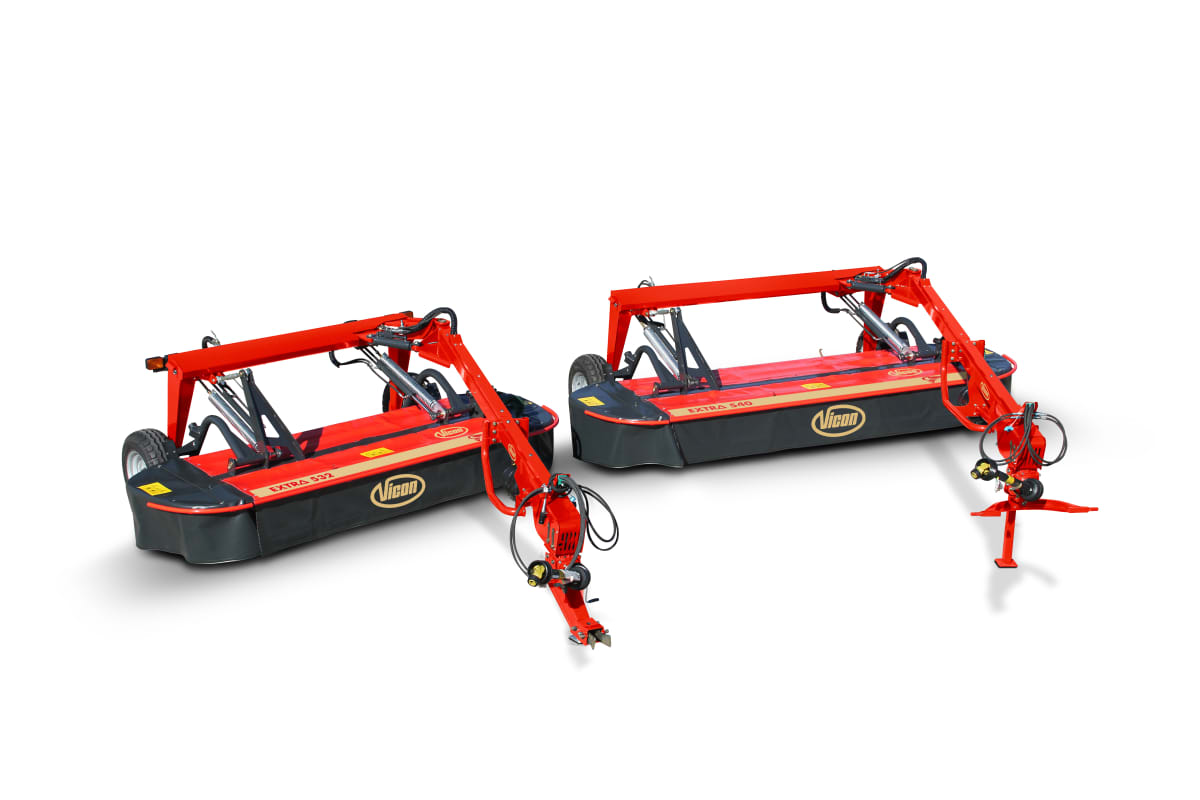

| Model EXTRA | 532 | 540 | |
|---|---|---|---|
| Working width (m/ft) | 3.18(10’5”) | 3.92(12’10") | |
| Transport width (m) | 3.0 | 3.8 | |
| PTO (rpm) | 540/1000 | 540/1000 | |
| Min. power req. PTO output (kW/hp) | 48 / 65 | 63 / 85 | |
| Number of discs and knives | 8/24 | 10/30 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Weight |
Power Req, Min |
|
EXTRA 532 |
3.18m |
1220kg |
48/65 kW/hp |
EXTRA 540 |
3.94m |
1340kg |
63/85 kW/hp |
