Vicon Bromex CXF
Wide in the field - narrow on the road
High-performance rotor for excellent shredding in all conditions
Highlights
High performance rotor for excellent shredding Precise assembly and accurate rotor balancing Wide choice of blades for different conditions Compact in transport Perfect following of ground contoursDescription

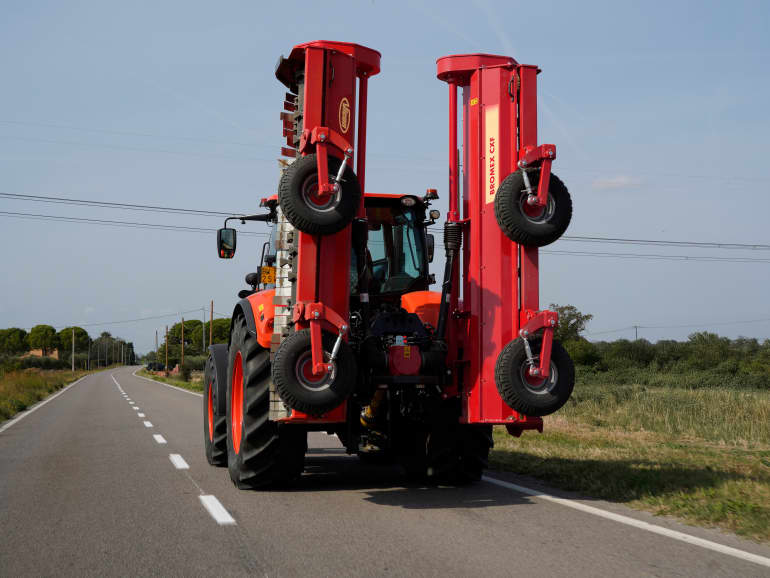

The Bromex CXF foldable is particularly suitable for tractors up to 260hp, with working widths from 5.60 to 6.40m. Wide in the field - narrow on the road: Despite the wide working width the Bromex CXF folds to 2.50m transport width. The highly efficient rotor, which works at a speed of 2025rpm ensures excellent chopping in all conditions, thanks to its cutting diameter of 540mm, and 144 blades plus fan blades.
Features
- Third point linkage with the oscillating bracket.
- Headstock taken from power harrow; designed and tested for heavy applications.
- PTO tractor input at 1000 rpm;
- Central gearbox supports up to 260 hp and comes standard with an integrated free wheel.
- Five V-belts on each side, along with an automatic belt tensioner
- Hydraulic transport lock as standard; safe road transport.
- One counter knife is standard.
- Skids are standard, ensuring precise depth control and preventing soil displacement.
- High rotor clearance improves performance in harsh conditions.
- 5 V-belts per side, combined with an automatic tensioner, ensure smooth transmission.
- The large diameter enables easy, precise balancing and provides smooth, vibration-free operation.
- Universal Y and Hammer blades are designed to provide exceptional performance and reliability

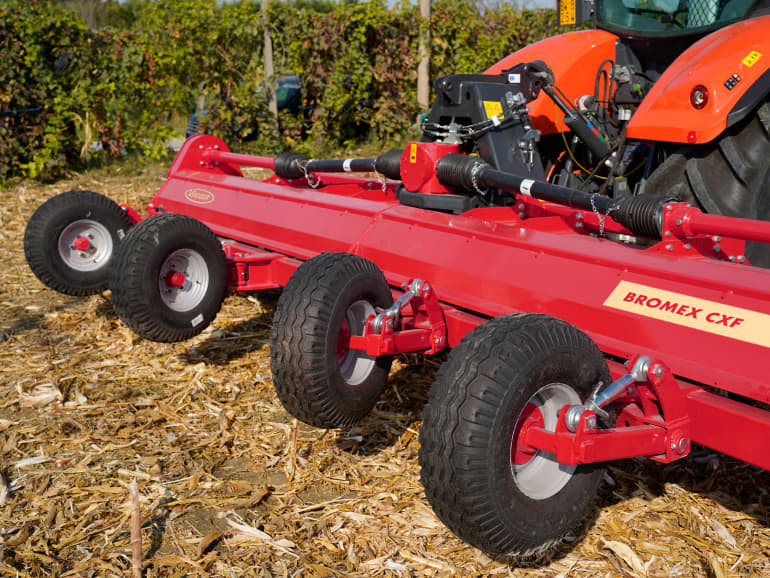

- Wide wheels (10/8.8x12.8 ply) offer effective control during field operations.
- The roller provides reliable depth control in all conditions.
- A double skin can be bolted if FXF operates in areas with rocky terrain.
- A second counter knife is an optional accessory
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
Bromex CXF 560 | Bromex CXF 640 | ||
---|---|---|---|
Working width (cm) | 560 | 640 | |
Transport width (cm) | 250 | 250 | |
No.of blades (univ /hammer) | 144/72 | 160/80 | |
Weight (kg) | 2400 | 2700 |
Unable to load the table
Agri choppers
Technical specifications
Technical specifications
Download brochureModel |
Bromex CXF 560 |
Bromex CXF 640 |
Working width (m) |
5.6 |
6.4 |
Transport width (m) |
2.5 |
2.5 |
Weight (kg) |
2400 |
2700 |
No. of universal blades |
144 |
160 |
No. of hammer blades |
72 |
80 |
Min. - max. power requirement (hp) |
130 - 260 |
130 - 260 |
