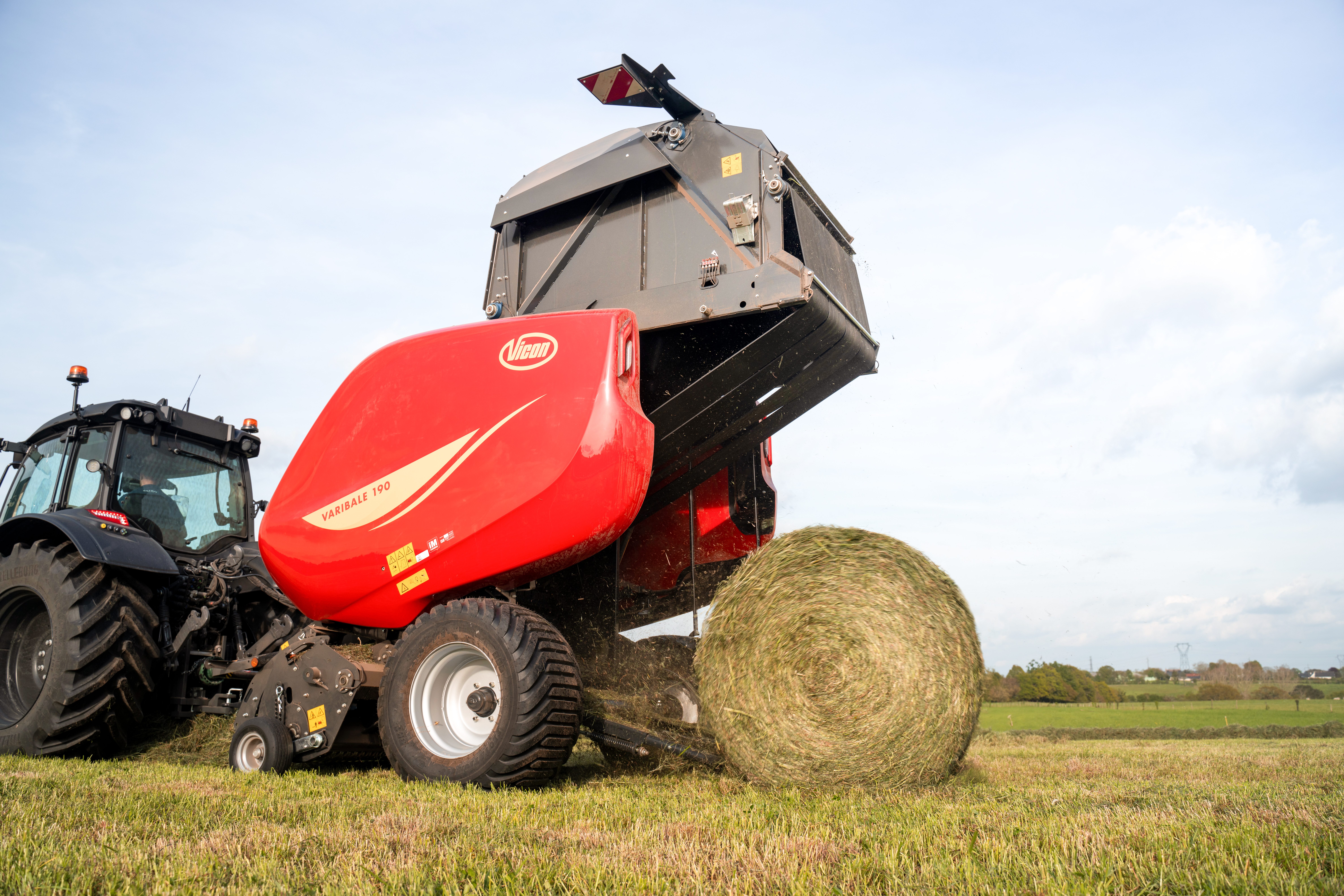

Vicon VariBale 190
New Generation Variable Chamber Balers
Variable chamber baler with bale diameter from 0.70m up to 1.85m
Description
The Vicon VariBale 190 balers are designed to produce well-formed, high-density bales that are essential while harvesting valuable winter fodder and bedding.
Fantastically shaped bales looks good and offer practical benefits such as improved stacking, transporting, and storing efficiency. The Vicon VariBale 190 offers cost-effective operation due to fast cycle times, high output in all crop conditions, and low maintenance requirements. The Vicon VariBale 190 is equipped with various features that improve the baling process. These include four durable endless belts, a larger diameter intake rotor, a 2.30m wide twin cam pick-up, and the renowned PowerBind direct feed net system. These components are designed to increase your productivity and improve the quality of your bales
Highlights
2.30m large working width pick-up
15 single protected knife chopping device
High-capacity, 520mm diameter rotor
Efficient & reliable PowerBind binding
Easy and simple loading of net rolls
Unique, easy to operate Intelligent Density 3D System
Intuitive control with the Focus 3 & ISOBUS terminal
Features
- 2.30m pick-up with a big diameter pick-up reel for fast and efficient throughput.
- Pick-up with 4 or 5 rows of tines, respectively.
- Twin cam tracks on the 2.3m wide pick-up.
- Tine bars with two central supports on the 2.3m wide pick-up.
- Small diameter pick-up design.
- Roller crop press is standard on the 2.3m wide pick-up.
- Narrow transport width.
The ChopFeed15 and PowerFeed intake features come equipped with the highly effective Parallelogram Drop Floor system, which makes clearing blockages faster and easier. Unlike traditional systems that only lower the rear edge of the drop floor, this system also lowers the front section of the floor, where blockages are more likely to occur.
ChopFeed15
- The ChopFeed15 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 70 mm, it is the ideal solution for producing tight bales with superb silage quality.
- Each knife is spring-protected against foreign obstacles. The knife will immediately return to its position once the obstacle has passed.
PowerFeed Rotor Intake
- Truly impressive intake capacity can be achieved with the PowerFeed rotor intake system - easily handling all crop types, whatever the conditions.
- The PowerFeed rotor, with its 14 rotor fingers, proactively forces the material into the bale chamber for higher intake speed and capacity, providing instant bale start.

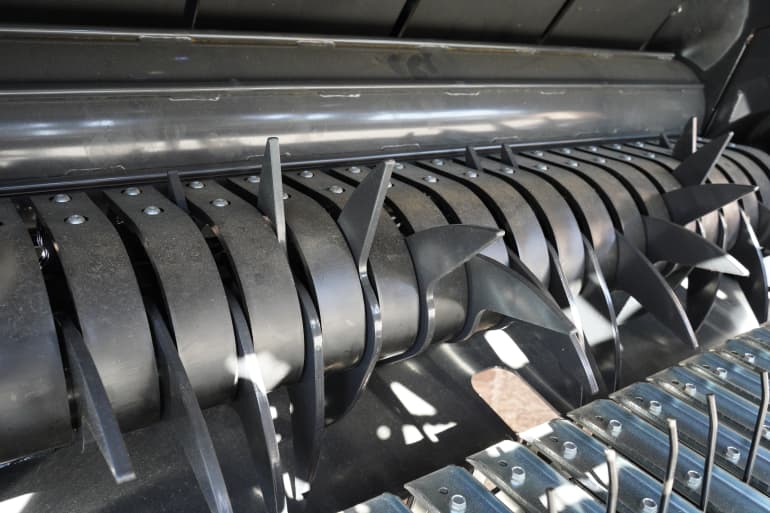

EasyFeed intake:
- EasyFeed rotary intake system with huge intake capacity and gentle crop handling.
- This technology incorporates integrated augers into the rotor feed design, allowing the crop to flow across the entire width of the bale chamber, resulting in increased capacity and bale density
ISOBUS Control

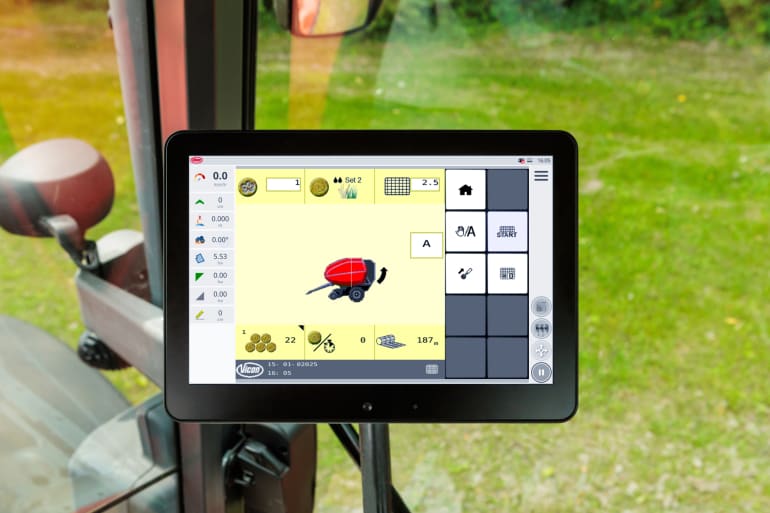

IsoMatch Tellus
The IsoMatch Tellus is the new virtual terminal, offering 2 Interface screens in 1 terminal. The large 12” easily programmable touch screen offers ergonomic use and is designed for long days of operation.
Due to the increasing number of functionalities that can be added to a machine, such as cameras, the operator can monitor finished bales using the baler interface on the top screen and a camera display on the bottom screen.
Another possibility is to use the baler interface at the top screen and the tractor interface screen at the bottom.

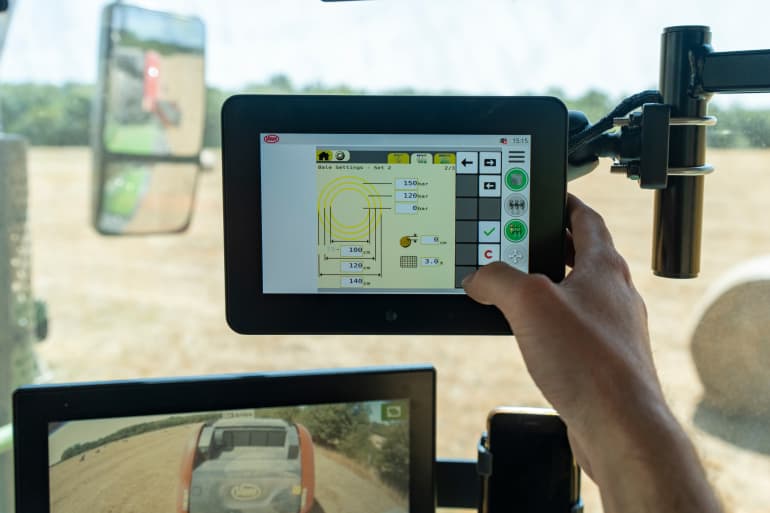

IsoMatch Tellus GO+
IsoMatch Tellus Go+ is a full Isobus terminal able to easily control all Isobus machines.
The compact design makes integrating into the tractor cab easy, despite the comfortable 7" touch screen allowing perfect machine set-up and control. Hard keys combined with the rotary switch on the right-hand side allow direct access to main functions while driving.
Focus 3 Control
This terminal is developed for specific implement types and will only be delivered as a package for those implements, together with the electronics for balers. Terminal Focus 3 is positioned in the market as an economic solution.
Focus 3 terminal is easy to learn and very intuitive, with focus on functionality and operating simplicity.
Focus 3 terminal is a universal control terminal which can also be used with other implements from Kverneland Group.
Focus 3 terminal gives you full control of all functions from the tractor cab. They are shown on a large and very clear digital display.
The Focus 3 terminal monitors and controls all necessary functions, with all relevant

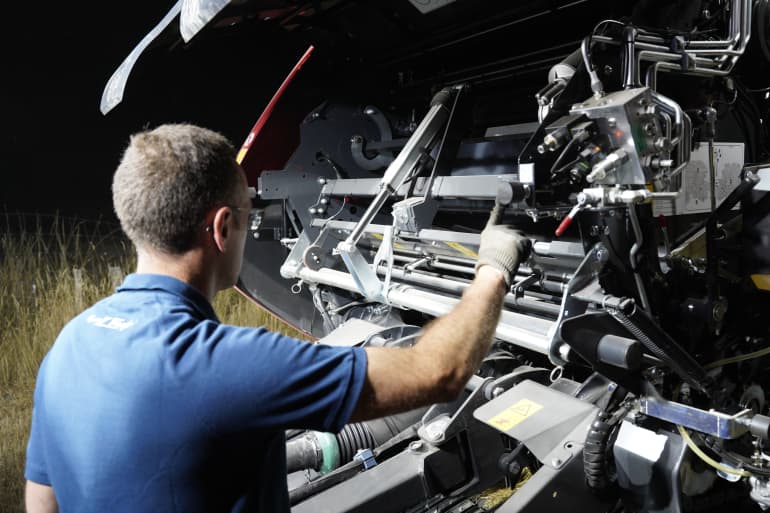

- Vicon VariBale balers feature the patented front-mounted PowerBind net system, eliminating troublesome feed rollers and boasting a market-leading cycle time.
- The PowerBind injection arm continuously retains the net. When the bale is 90% complete, the arm moves forward in preparation for net injection.
- When the bale is 100% complete, the net is fed flat and tight for accurate and reliable injection. PowerBind ensures a professional job without wind or crop interference.
- Low net loading height

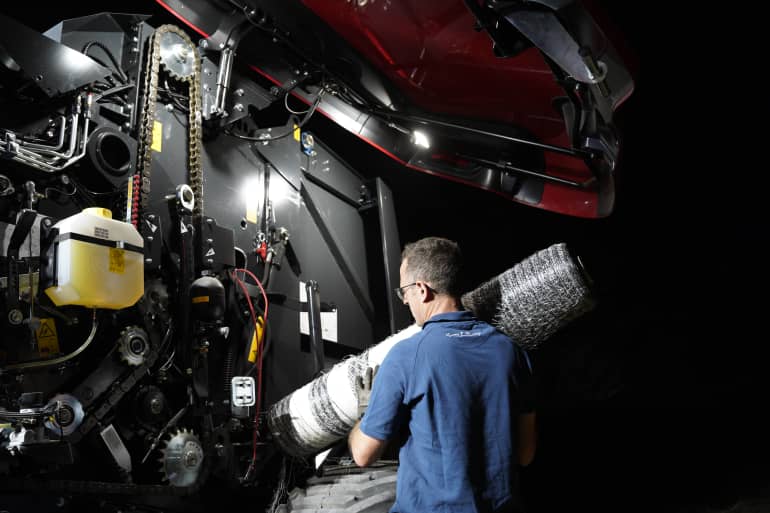

- PowerBind offers a convenient and time-saving solution with its low loading height, allowing for easy replacement of rolls.

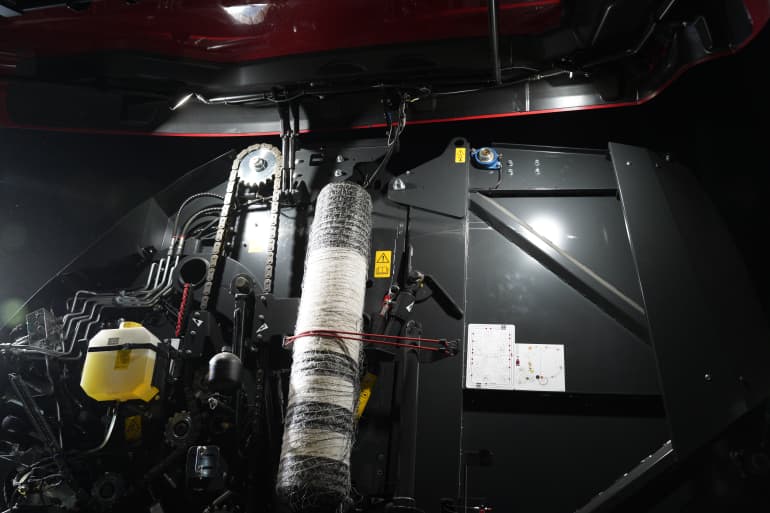

- The new vertical net roll storage allows a comfortable net roll handling and a wide access to the machine for daily maintenance.
Technical specifications
Technical specifications
Download brochureVaribale 190 EF | VariBale 190 PF | VariBale 190 CF15 | ||
---|---|---|---|---|
Bale size (m): | 1.23 x 0.70 to 1.85 | 1.23 x 0.70 to 1.85 | 1.23 x 0.70 to 1.85 | |
Intake: | EasyFeed | PowerFeed rotor | ChopFeed 15 knives | |
Binding: | Net, Net & Twine | Net, Net & Twine | Net, Net & Twine |
