The advantages of this Plain mower
- EXTRA cutterbar
- NonStop BreakAway device
- Flexible suspension
- Vetical position for transport
- Excellent power transmission
Description

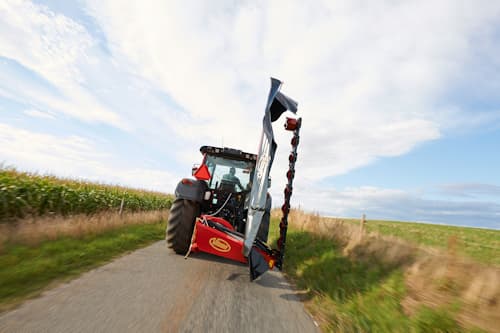

Vicon EXTRA 200 series is a lightweight, simple 2.42-3.18m working width mower with a compact but durable design, for maximum output at a competitive price. Due to the flexible suspension, the mower is exceptionally well suited for work on slopes and in hilly conditions, with an operating angle of 35° up and down. An integrated NonStop BreakAway system will protect the cutterbar from foreign obstacles. When in transport, the mower is folded hydraulically to a vertical position well behind the tractor.
Features
- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.
- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.
- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.

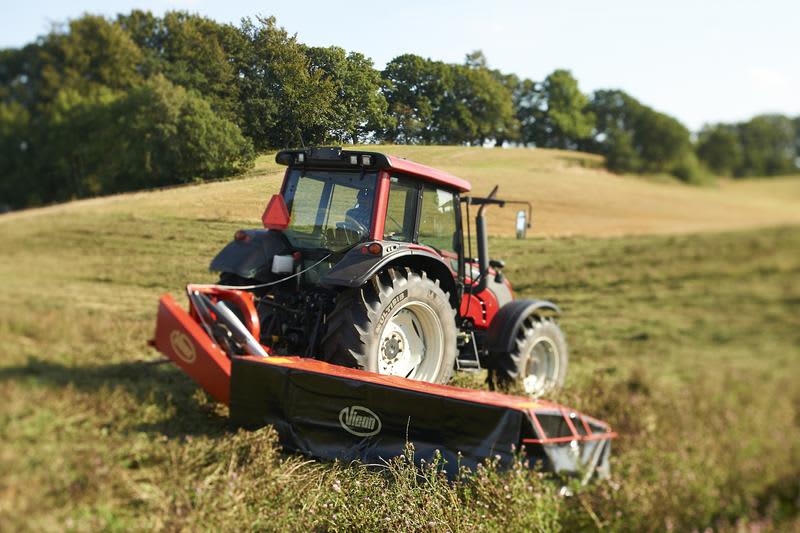

Vicon EXTRA 228 and 232 offers a very flexible suspension giving perfect ground contour following.
This ensures that the mower is able to adapt to extremely uneven field conditions, giving the best mowing result.
The linkage of EXTRA 228 and 232 ensures that the mower is capable of working on steep angles or in hilly conditions.
For extreme hilly conditions an optional hillside equipment is offered
- On headlands the mower is lifted without activating the three-point linkage of the tractor which needs no adjustment in the field. A clever and simple solution ensuring good clearance and eliminating swath damage.
- To offer maximum protection of the cutterbar, these machines are fitted with the well-known Vicon BreakAway solution.
- When encountering an obstacle, the BreakAway will swing the machine backwards and over the obstacle, returning it to the original working position once the obstacle has been passed
Technical specifications
Technical specifications
Download brochure| Model EXTRA | 224 | 228 | 232 | |
|---|---|---|---|---|
| Working width (m/ft) | 2.42(7’11”) | 2.84(9’3”) | 3.18(10'5") | |
| Transport width (m) | 1.4 | 1.4 | 1.4 | |
| Linkage (CAT) | 2 | 2 | 2 | |
| PTO (rpm) | 540 | 540 | 540 | |
| Min. power req. PTO output (kW/hp) | 33/45 | 37/50 | 40/55 | |
| Number of discs and knives | 6/18 | 8/24 | 8/24 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Weight |
Power Req, Min |
|
EXTRA 224 |
2.42m |
606 |
33/45 kW/hp |
EXTRA 228 |
2.84m |
666kg |
37/50 kW/hp |
EXTRA 232 |
3.18m |
680kg |
40/55 kW/hp |
