The advantages of this Flail Chopper
- High versatile solution for grass and crops purposes
- Minimal maintenance
- Wide choice of blades for different conditions
- Automatic tensioner ensures stable rotor transmission
Description
The Vicon Bromex PM is a compact and heavy-duty machine for moderately demanding jobs in soft and top fruit orchards, vineyards and light undergrowth. It is equally perfect for tidying pasture and chopping straw and stubble. The Vicon Bromex PM is suitable for tractors up to 80 hp. It is available in 1.55m, 1.85m, 2.00m, 2.30m and 2.50m working widths. The offset (500mm optional equipment) increases the versatility of this chopper. In addition, the standard roller and skids support the chopper maintaining a constant cutting height.
Features
- A 3-point linkage near the tractor maximises field manoeuvrability with minimal lift power required.
- Possibility of clearing out field edges, orchards, and road edges by offset
- 500mm offset = versatile in all uses (orchards, vineyards, road and field edges)
- Gearbox up to 80 hp - PTO speed drive 540 rpm
- Five V belts with an automatic tensioner, spring-loaded, always ensure a stable rotor transmission.
- A robust but smooth cover protects the lateral drive, ensuring maximum protection and respect for orchard vegetation.
- Compact, low-profile, and rounded shapes are designed for heavy-duty applications.
- A robust tube measuring 169 x 10 mm serves as the foundation: the total cutting diameter is 452mm.
- Supported by two self-adjustable spherical bearings with a grease nipple.

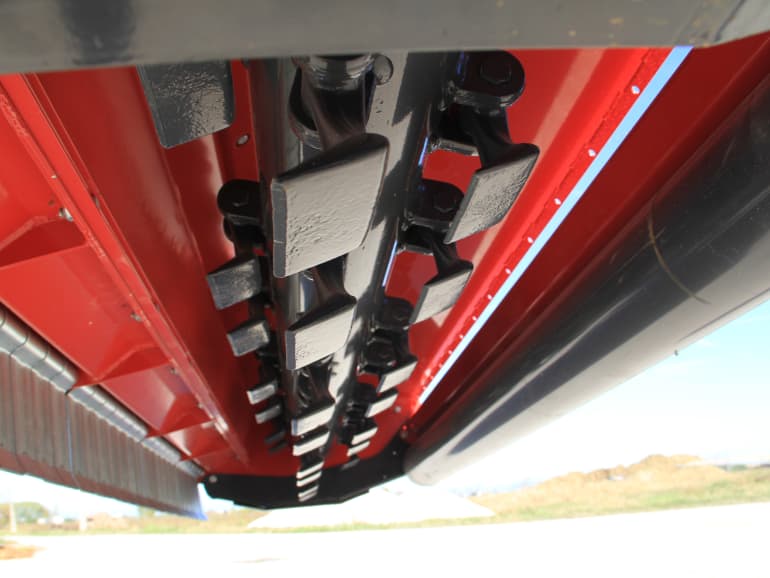

- Large rotor diameter ensures easy and precise balancing for smooth operation without vibration.

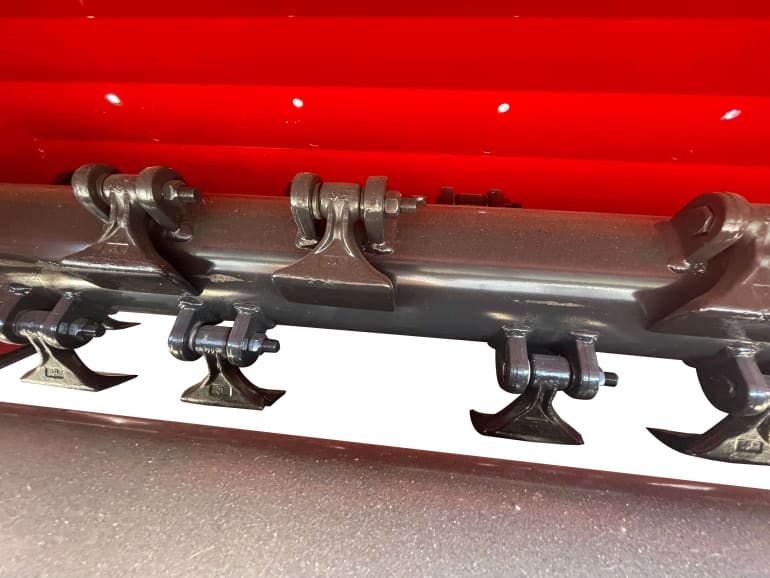

- Universal Y and Hammer blades are designed to provide exceptional performance and reliability
- The first counter knife is standard, while the second is optional.
- Rake Tine kit: Enhances the shredding effect during orchard pruning, ensuring homogeneous and precise harvesting and cutting of both pruned branches and brush.
Technical specifications
Technical specifications
Download brochure| Bromex PM 155 | Bromex PM 185 | Bromex PM 200 | Bromex PM 230 | Bromex PM 250 | ||
|---|---|---|---|---|---|---|
| Working width (cm) | 155 | 185 | 200 | 230 | 250 | |
| Transport width (cm) | 177 | 207 | 222 | 252 | 272 | |
| No.of blades (univ /hammer) | 40/20 | 48/24 | 52/26 | 60/30 | 64/32 | |
| Weight (kg) | 475 | 540 | 572 | 620 | 655 |
Choppers for green area and vineyards
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of universal/hammer blades |
Bromex PM 155 |
1.55 |
475 |
40/20 |
Bromex PM 185 |
1.85 |
540 |
48/24 |
Bromex PM 200 |
2.00 |
572 |
52/26 |
Bromex PM 230 |
2.30 |
620 |
60/30 |
Bromex PM 250 |
3.50 |
655 |
64/32 |
