The advantages of this Flail Chopper
- Dedicated for intensive work for tractors up to 260hp
- Heavy construction for reliable operation
- Wide choice of blades for different conditions
- Precise assembly and accurate rotor balancing
- Minimal maintenance, reduction of maintenance costs
Description

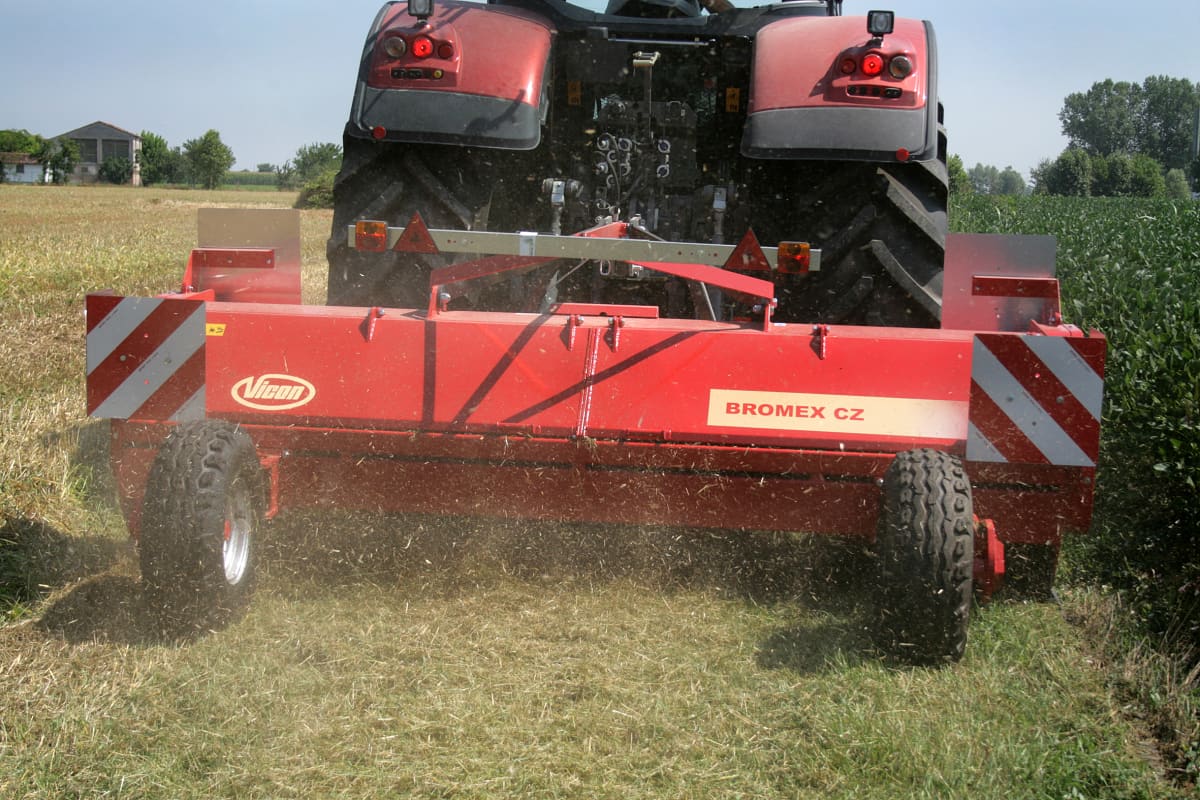

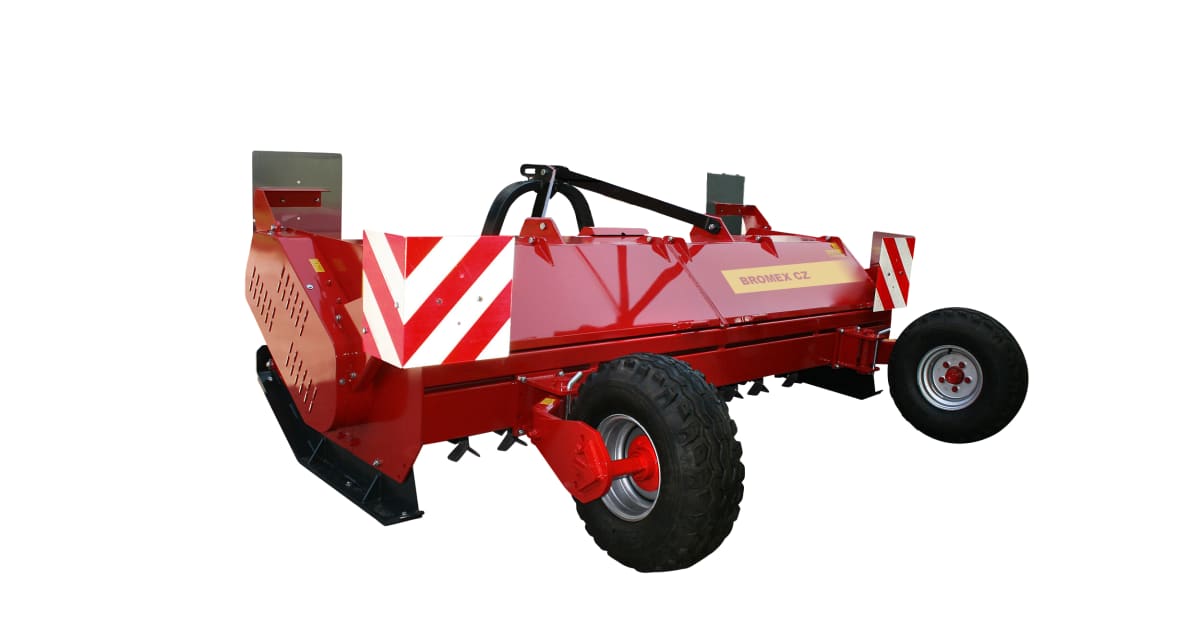

The Vicon Bromex CZ chopper has been developed to match the most demanding user requirements in terms of performance and reliability. The Bromex CZ ensures maximum chopping of crop residues, allowing for more rapid and effective natural decomposition. The Bromex CZ is excellent for shredding crop residues, chopping straw, maize and sunflower stalks as well as maintaining set-aside land. The same rotor can be equipped with either Y blades or hammer blades. The big rotor (760mm cutting diameter) guarantees an excellent cut with a low power requirement.
Features
- Third point linkage with oscillating bracket.
- This flail chopper always works independently from the tractor pulling force
- Headstock designed and tested for heavy applications
- PTO tractor input at 1000rpm; lateral transmission by 2 PTO shaft
- Central gearbox up to 260 hp with integrated free wheel as standard
- Transmission on each side by 4 grooved V-belts.
- Heavy construction of the frame; 8-10mm plates and robust welding guarantee a longer working life
- A 273x10mm strong tube accommodates both universal and hammer blades.
- The large diameter allows for precise balancing and smooth, vibration-free operation.
- The rotor's wide diameter (767mm) ensures an excellent cut with lower power requirements.
- Universal Y and Hammer blades are designed to provide exceptional performance and reliability.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Bromex CZ 320 | Bromex CZ 400 | ||
|---|---|---|---|
| Working width (cm) | 320 | 400 | |
| Transport width (cm) | 352 | 432 | |
| No.of blades (univ /hammer) | 120/60 | 156/78 | |
| Weight (kg) | 1750 | 2200 |
Unable to load the table
Agri choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of universal/hammer blades |
Bromex CZ 320 |
3.2 |
1750 |
120/60 |
Bromex CZ 400 |
4.0 |
2200 |
152/78 |
