Vicon EXTRA 400
Compact design – high output
Centre mounted disc mowers with hydraulic suspension.
Highlights
Hydraulic suspension for precise and easy operation Excellent ground following on slopes Direct drive of the cutterbar Centre suspension for even weight distribution NonStop BreakAway deviceDescription

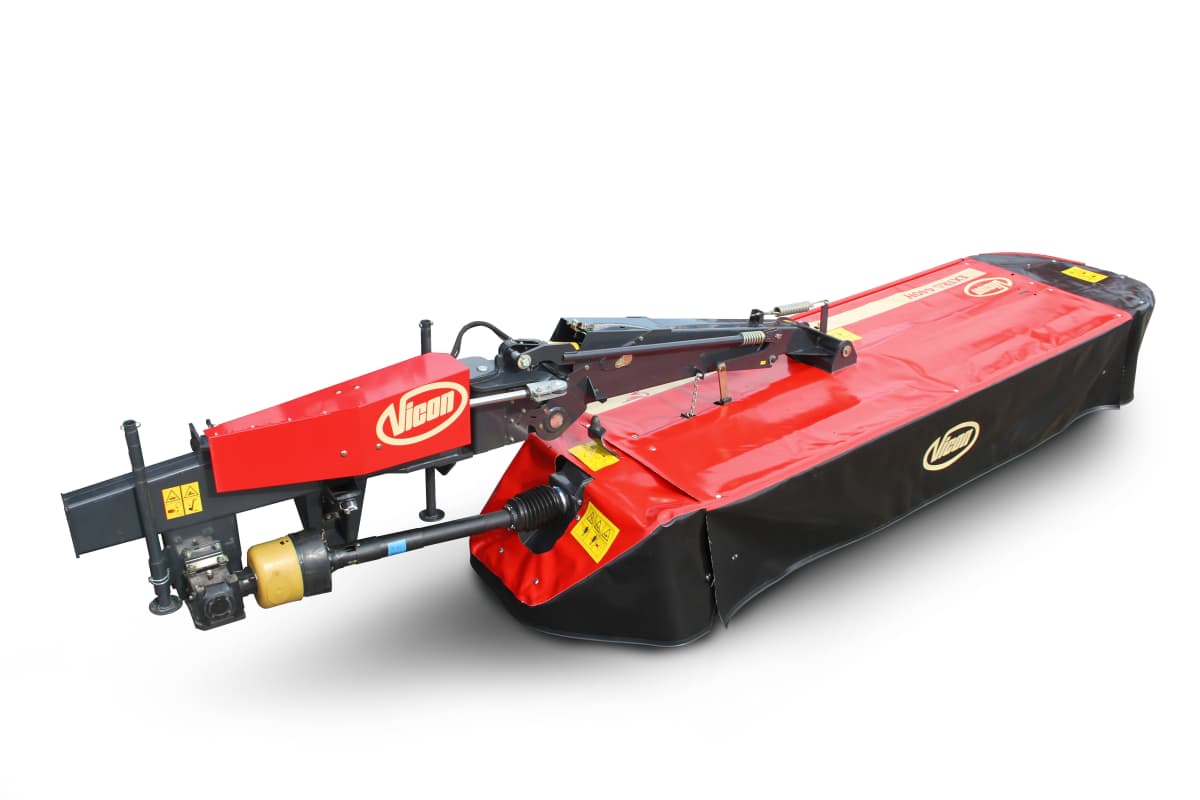

Vicon EXTRA 400H series is a 3.18-3.94m working width, centre suspended plain mower, which provides advantages such as equal ground pressure and fast adaptation to varying field contours. This facilitates a cleaner cut, better protection of the stubble and in addition, an improved fuel economy, as well as less skid wear. The design of the suspension, with an extra pivoting point, allows greater flexibility in the working range, enabling mower operation at 15º upward or downward angles. The EXTRA 400H series is equipped with a direct drive system from the gearbox to the first disc. This ensures an efficient power transmission and allows you to take full advantage of the whole width of the cutterbar.
Features
- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.
- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.
- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.

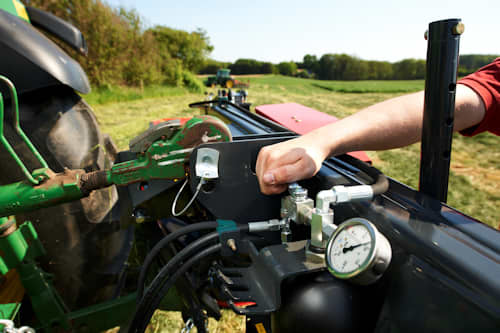

- The EXTRA 432H, 436H and 440H are designed with a hydraulic suspension system, allowing easy setting of ground pressure, to adapt to varying field conditions. This provides the best conditions, for an even cutting height and maximum protection of the stubble. The result is better forage quality, less wear on the mower and reduced fuel consumption.
- The ground pressure can be continuously and quickly adjusted from the tractor seat, even while operating. All you need to do, is to activate the hydraulic outlet.
The EXTRA 432H, 436H and 440H disc cutterbar features a direct drive from the gearbox to the first disc that efficiently reduces power wastage and takes full advantage of the whole working width of the cutterbar

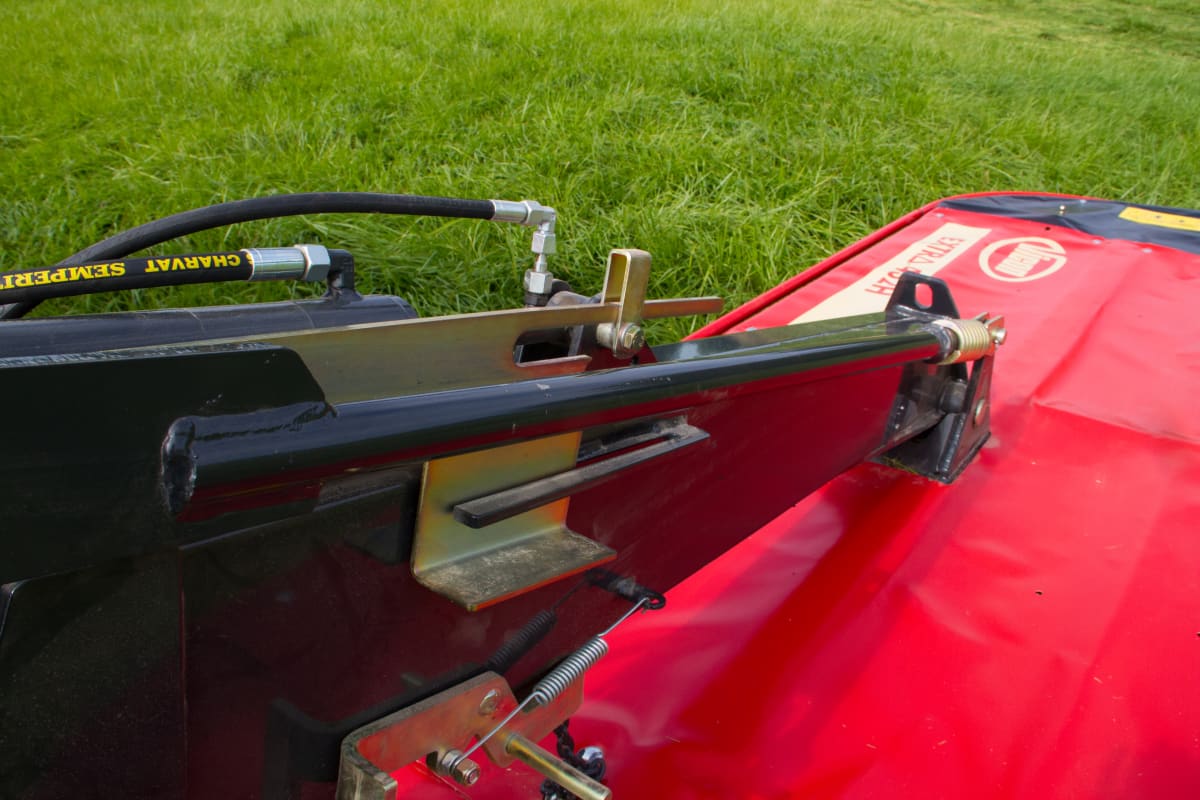

- To offer maximum protection of the cutterbar, these machines are fitted with the well-known Vicon BreakAway solution.
- When encountering an obstacle, the BreakAway will swing the machine backwards and over the obstacle, returning it to the original working position once the obstacle has been passed
Technical specifications
Technical specifications
Download brochure| Model EXTRA | 432H | 436H | 440H | |
|---|---|---|---|---|
| Working width (m/ft) | 3.18(10'5") | 3.50(10'6") | 3.94(12'11") | |
| Transport width (m) | <3.0 | <3.0 | <3.0 | |
| Linkage (CAT) | 2 | 2 | 2 | |
| PTO (rpm) | 540 | 1000 | 1000 | |
| Min. power req. PTO output (kW/hp) | 40/55 | 45/60 | 50/70* | |
| Number of discs and knives | 8/24 | 10/30 | 10/30 |
⃰ Please note there is a minimum weight requirement of tractor. |
Technical specifications
Technical specifications
Download brochureWorking Width |
Weight |
Power Req, Min |
|
EXTRA 432H |
3.18m |
805kg |
40/55 kW/hp |
EXTRA 436H |
3.50 |
1040kg |
45/60 kW/hp |
EXTRA 440H |
3.94 |
1060kg |
50/70 kW/hp |
⃰ Please note there is a minimum weight requirement of tractor. |
