Vicon ANDEX 464
High-Performance HydroLift concept rakes
ProLine single rotor rakes with 4.60m working width
Highlights
HydroLift for a quick adaptation to field conditions Maintenance-free rotor head Adjustable curve disc Tandem axles offer perfect ground contour followingsDescription

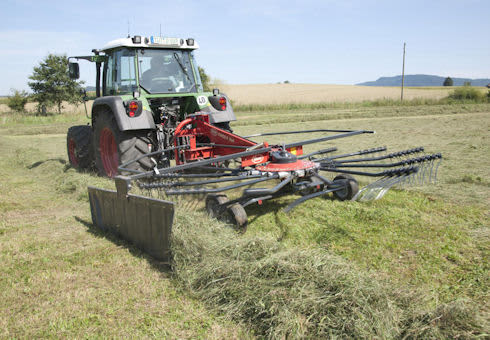

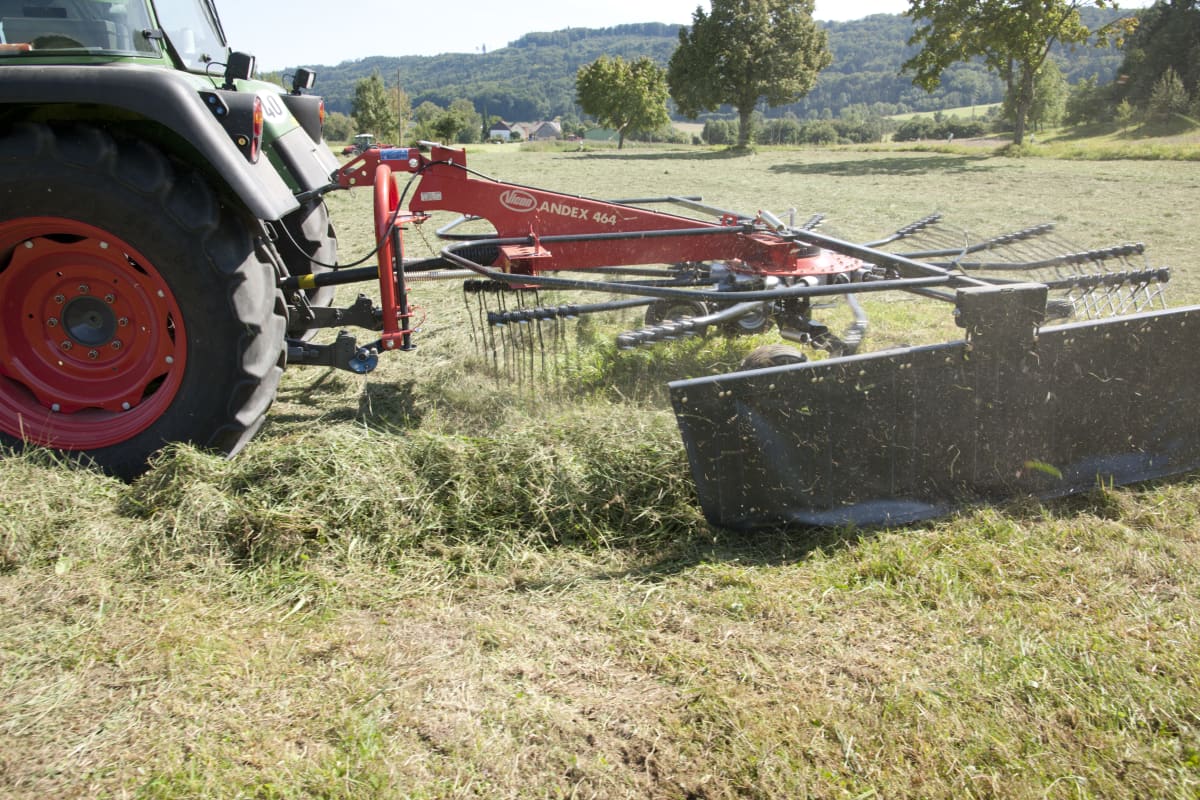

Andex 464 ProLine, 3-point mounted rotary rakes with a working width of 4.60m are designed based on the ProLine gearbox technology. The fully enclosed design ensures complete and permanent lubrication. It makes the entire system maintenance-free. Features such as oscillation dampers, tandem axles, hydraulic height adjustment and adjustable curve disc are standard hallmarks of the single rotor rakes.
Features
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400 mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- Andex 424 and Andex 464 are fitted with the hydraulic height adjustment system ‘Hydrolift’ as standard.
- Vicon Hydrolift allows you to adjust the rake to different field conditions.
- From the tractor cab you can quickly set the raking height to suit the length of the stubble or varying ground conditions.
- All Vicon CompactLine rakes feature curved tine arms for significantly cleaner raking performance and optimised swath formation.
- This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift out of the tine from the formed swath.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Andex | 464 | |
|---|---|---|
| Working Width | 4.6m | |
| Tine Arms | 13 | |
| Weight (kg) | 670 | |
| Rotor diameter (m) | 3.65 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 424 |
4.20m |
12 |
640kg |
Andex 464 |
4.60m |
13 |
670kg |
