Vicon ANDEX 804
ComfortKit rotor height
ProLine heavy-duty two-rotor rakes with 8m working width
Highlights
Strong frame for stable raking & high-ground clearance TerraLink Quattro with adaptation in 3 dimensions Adjustable working width from the tractor cab ProLine gearbox with fully enclosed oil-bath design Special designed rear axle for narrow roadsDescription

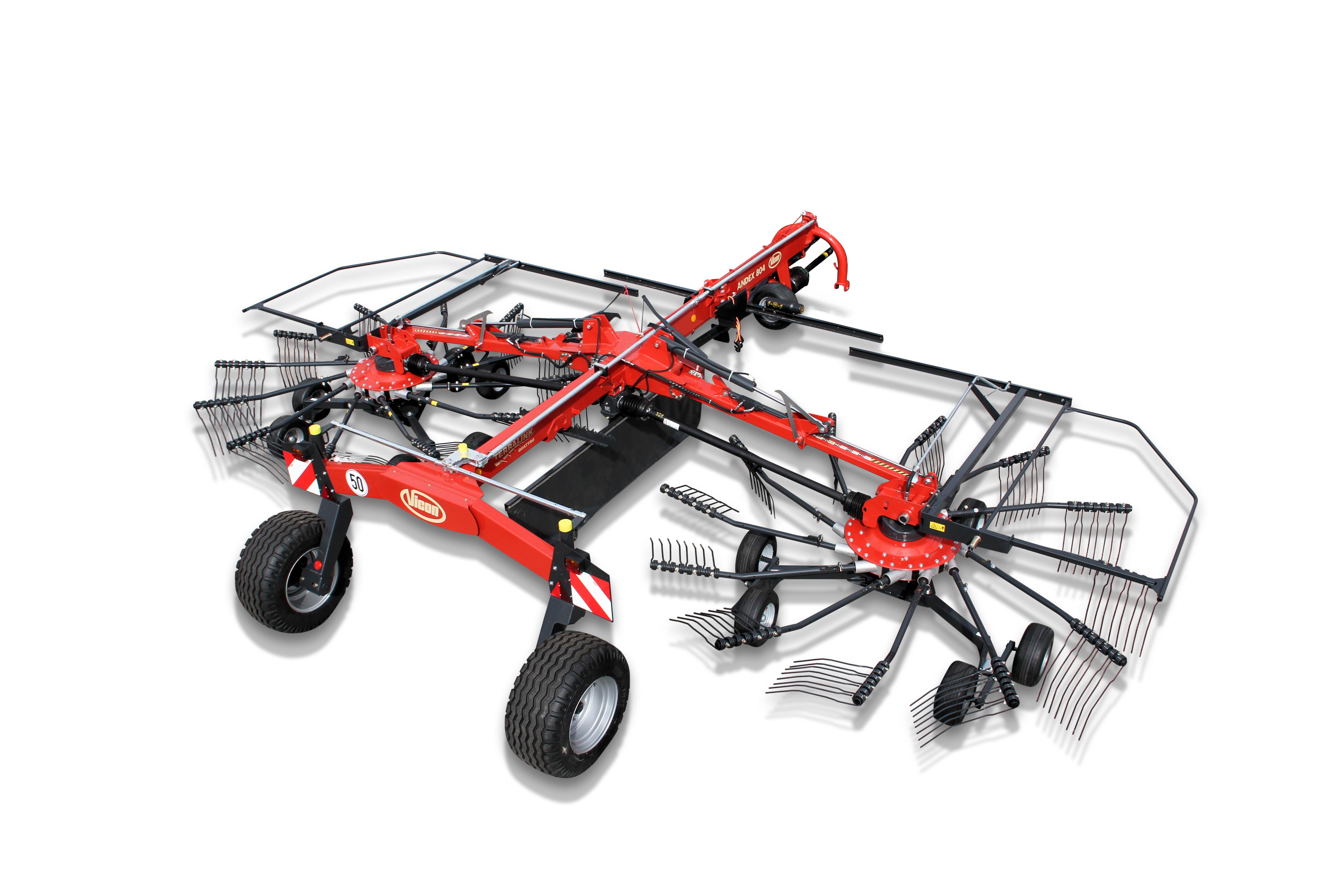

The Andex 804 ProLine heavy-duty two-rotor rakes with 8m working width and newly designed wheel axles provide a transport height below 4m, even with tine arms mounted. Andex 804 is designed for the toughest conditions and features a high-performance oil-bath gearbox and a strong carrier frame. The hydraulically adjustable working/ swath width and the ability to make sharp turns of up to 80° are essential features of these rakes.
Highlights
Strong carrier frame for stable raking performance and high ground clearance
TerraLink Quattro Ground contour following system with adaptation in 3 dimensions
The working width is hydraulically adjustable from the tractor cab
Maintenance-free ProLine gearbox with fully enclosed oil bath design
Special designed rear axle for narrow roads with 380 mm wheels standard
Features
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400 mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Vicon features.
- Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Vicon centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
Technical specifications
Technical specifications
Download brochure| Andex | 804 | |
|---|---|---|
| Working Width | 7.0-8.0m | |
| Tine Arms | 2x12 | |
| Weight (kg) | 2065 | |
| Rotor diameter (m) | 3.35 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 804 |
7.00-8.00m |
2x12 |
2065kg |
Andex 844 |
7.60-8.40m |
2x12 |
1950kg |
Andex 904 Hydro |
8.00-9.00m |
2x14 |
2350kg |
