The advantages of this Multi Crop Merger
- Up to 9.2 m working width for high output
- Adjustable pick‑up spacing on the go
- Flexible discharge options to suit field layouts
- Full ISOBUS control with automatic belt shut‑off and lighting
- 3.0 m transport width for easy road transport
Description

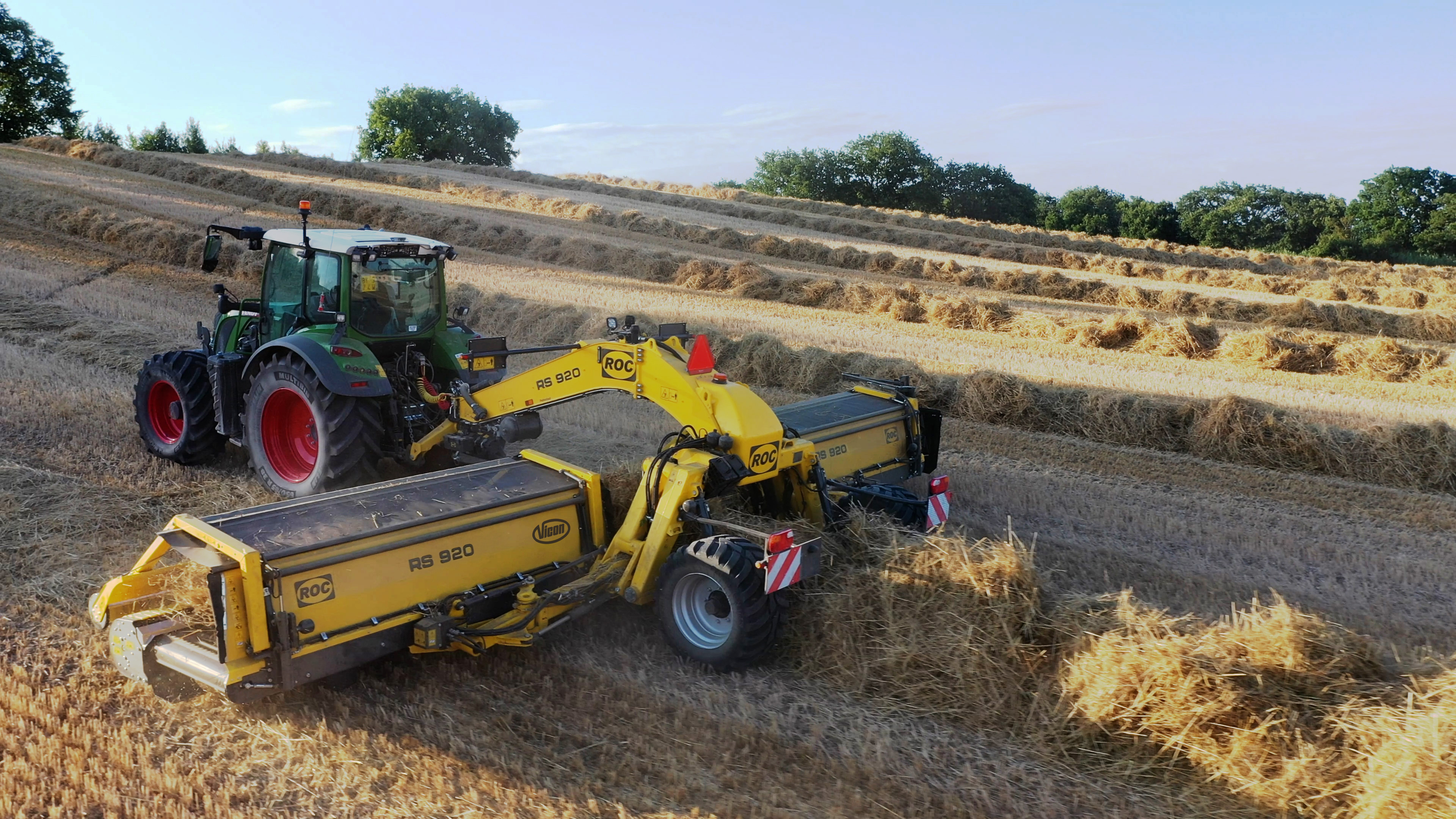

The Vicon ROC RS 920 Continuous Merger is a two-element continuous merger equipped with three cams per element. The working width is hydraulically adjustable from 7.3 m to 9.2 m. The distance between the two pick-ups is controlled by a double hydraulic rocker-arm system and can be adjusted during operation. With the pick-ups joined, the machine allows discharge on both sides independently or fully on one side. With the pick-ups separated, the crop can be discharged in the centre, on one side and the centre, or on both sides.
High-capacity 6-bar pick-ups ensure clean crop lifting with gentle handling. The proven Vicon ground-following system delivers consistent performance while preserving crop quality and reducing contamination. Automatic belt shut-off, integrated lighting and hydropneumatic suspension ensure reliable operation both in the field and on the road. The Vicon ROC RS 920 is ISOBUS compatible, allowing intuitive control via the tractor terminal. The machine features a robust frame and low‑maintenance components, supports operation with one element folded, has no braking system, and offers a transport width of 3.0 m.
Highlights
- Working width up to 9.2 m for high productivity in every pass
- Flexible discharge configurations for optimised adaptation to field layouts
- Adjustable pick‑up spacing during operation for maximum working flexibility
- Proven Vicon ROC ground‑following system for clean crop lifting and reduced contamination
- Single‑element operation for narrow fields or restricted working areas
- Compact 3.0 m transport width for easy handling between fields
- Full ISOBUS control with integrated safety features, including automatic belt shut‑off and lighting
Features
Features
- A single belt system with two pick-ups
- Fibreglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- The belt is reinforced on the outside.
- No roler is used to drive the belt, reducing frustration with slipping and blockages.
- The belt is actively driven, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- And indicator helps for the daily check to see if tension is OK from the the outside
- Large roller ensuring reliable operation in all crop conditions
- Hydraulically suspended roller in all working positions
- Specially designed belt and pick‑up for gentle, efficient crop handling
- Cab‑controlled roller lift to protect leaves in dry crop conditions
- Controlled pickup with three cams and six tine bars
- Heavy duty plastic strippers maintain their shape when hitting rocks and prevent crop loss
- Even short crops are transported efficiently thanks to the hydraulically adjustable roller, suspended in all positions
- Tines can be replaced by removing only two bolts (one per tine and one per plastic stripper), using one hand
- Bearings, cam tracks, and tine bars can be repaired without disassembling the pickup
- Manual height adjustment
- Designed for centre and side delivery for maximum flexibility
- Several working widths can be merged together thanks to raking without roping
- Working width can be adjusted
- Night swath palcement is possible too
- Crop from corners or narrow spots can be loaded on the stopped belt
- Working with one side in transport position is asa well possible
- Four suspension points ensure high operating speed and clean crop handling in all conditions.
- Hydraulic pic up suspension secures tandem wheels don´t sink in in wet conditions
- Turning point suspension secures vibrations don´t arrive in frame and stability during headland turns
- Dampening in driving direction via folding cylinder secures hard shocks are reduced.
- Transport suspension secures as well comfortable traveling on the road.
- Spring‑suspended tandem wheels improve ground following and reduce stress on the machine as they take the shock away where it is created.
- With Isobus extended features in combination with load sensing hydraulic. The hydraulic can as well be switched to constant flow if no LS system is available.
- Isobus allows to control the pickup and belt speed for each pick up individual.
- Isobus allows to operate all added features from the cabine
- Optional height control is integrated in the control, including a height indication on the terminal
- Optional swath boards are integrated in the control
- Suspension levels are factory set values to secure a perfect performance of the machine in all conditions
- The lifting and lowering for headland stays on single acting spool valve for comfortable headland turns, but as well to allow transporting the machine without a terminal.
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Small, wear‑resistant parts allow fast replacement with minimal effort
- Easy replacement of wearing parts of the cam track, without disassembling the pickup allows it to be unique in the market.
- With this machine you can use the high performance of the controlled pickup without the frustration of difficult and expensive maintenance.
- Only 3 m transport width for easy travel on narrow roads
- Raod suspension
- Main weight on transport wheels allow to use small tractors.
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Vicon ROC RS 920 | ||
|---|---|---|
| Working width (m) | 9.2 | |
| Pick up width (m) | 2x3.65 | |
| Transport width (m) | 3.0 | |
| Belts n. | 2 | |
| Power requirement (hp) | 90 | |
| Weight (kg) | 4940 |
