The advantages of this Fixed Chamber round baler
- Low profile pick-up for fast & efficient throughput
- Easy and fast unblocking of crop blockage
- Patented PowerBind net system
- RotaMax bale chamber
- Intuitive control with the Focus 3 & ISOBUS terminal
Description

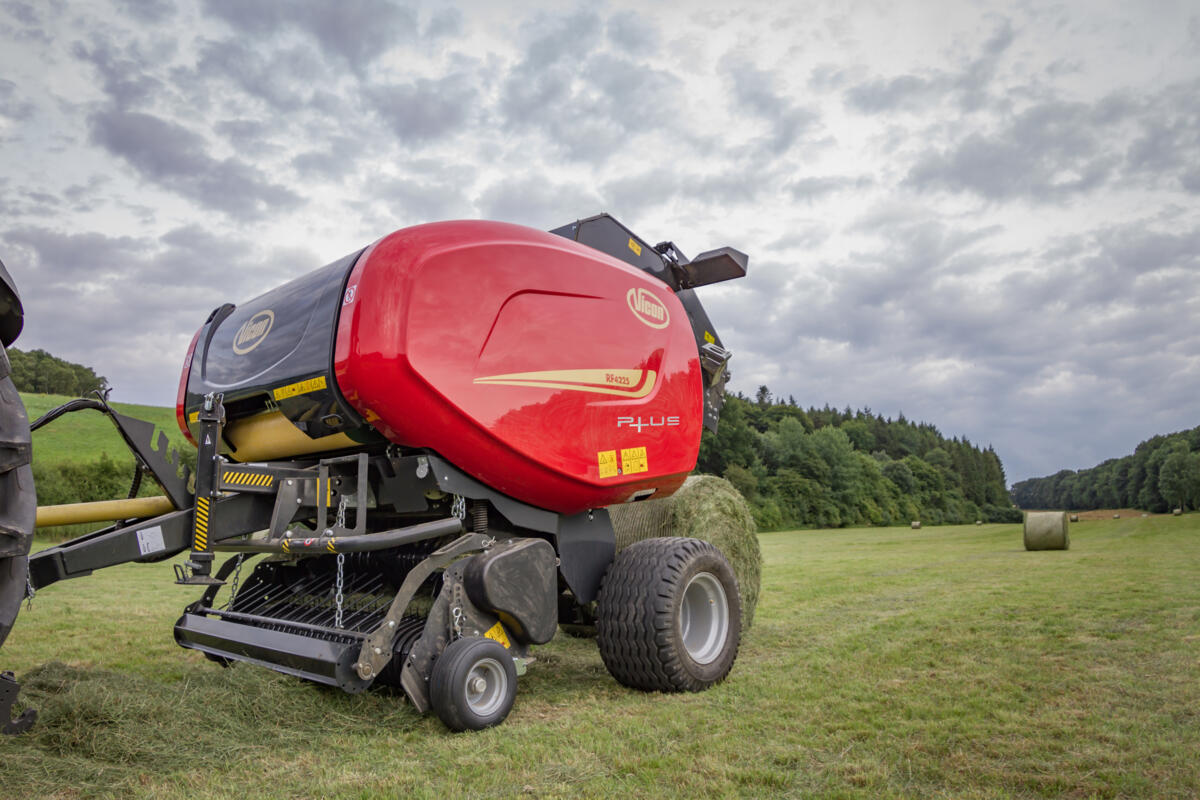

The Vicon RF 4225 Plus series fixed chamber balers are designed for maximum flexibility in all crop conditions. Perfectly shaped bales, combined with long-lasting, reliable performance, ensure that the RF 4225 Plus series will be a profitable investment. The Vicon RF 4225 Plus has a bale chamber designed with five rollers in the front section of the bale chamber and chain and slats in the tailgate. This combined solution gives excellent crop handling in all conditions with consistent, high-density bales in both wet and dry material.
Highlights

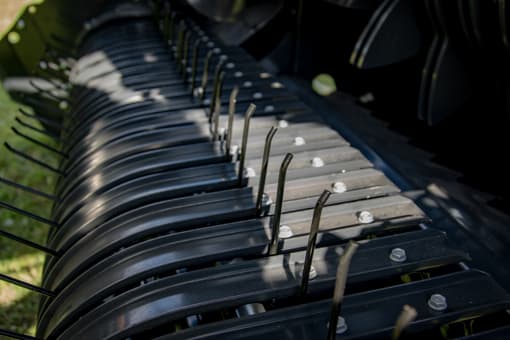

2.0 or 2.20m working width low profile pick-up with small diameter reel for fast and efficient throughput
Feeder Fork, PowerFeed rotor intake or Supercut 14 knife pre-chopping device
Parallelogram Drop Floor system for easy and fast unblocking of crop blockage
Patented PowerBind system for fast and reliable net & twine binding
RotaMax bale chamber- roller front section with chain & slat tailgate for high bale density and good bale shape in all conditions
Simple and intuitive control with the Focus 3 terminal and optional Isobus configurations
Features
Features
TIM (Tractor Implement Management)
TIM is a cross-product and cross-manufacturer ISOBUS solution for the agricultural machinery industry whereby the implement is able to control certain tractor functions. It enables two-way communication between tractors and implements, allowing both machines to work in perfect harmony. As well as increasing efficiency, the possibility of human error due to fatigue is also greatly reduced. TIM technology has the advantage of significantly increasing driver comfort by automatically performing many of the repetitive actions of the baling process.
The cost aspect is another factor to bear in mind. Highly efficient use of TIM-equipped baler results in lower costs for parts that wear out.
- TIM system as optional equipment
- TIM takes most of the work off the operator's hands when baling
- Significant increase in comfort for the operator, as endless work steps are saved
- Reduced operator fatigue and faster completion of work while maintaining high bale quality
- High user-friendliness of the TIM system, which even regularly changing operators can quickly master
Focus 3 Control
Kverneland Group Mechatronics has recently launched a new operator terminal, the Focus 3. This terminal is developed for specific implement types and will only be delivered as package for those implements, together with the electronics for balers. The terminal Focus 3 is positioned in the market as an economy solution.
- Focus 3 terminal is easy to learn and very intuitive, with control terminal with focus on functionality and operating simplicity.
- Focus 3 terminal is a universal control terminal which can also be used with other implements from the Kverneland Group.
- Focus 3 terminal gives you full control of all functions from the tractor cab. They are shown on a large, clear digital display.
- Focus 3 terminal monitors and controls all necessary functions with all relevant parameters are visible at a glance.The control box is also driving the binding automatically without any intervention from the operator.

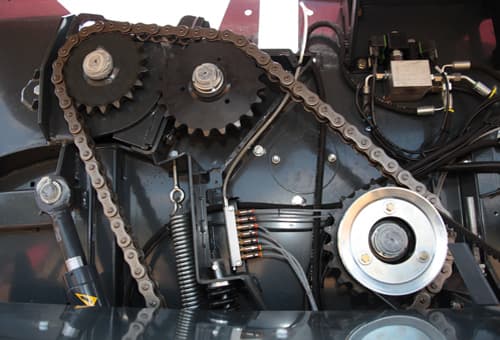

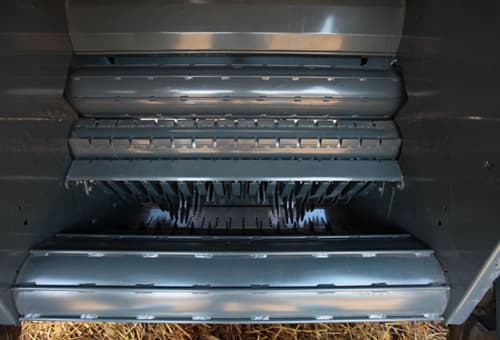

- The Vicon RF 4225 offers a bale chamber designed with 5 rollers at the front and chain and slat at the rear part.
- The combined solution gives excellent crop handling in all conditions with consistent, high-density bales in both wet and dry material.

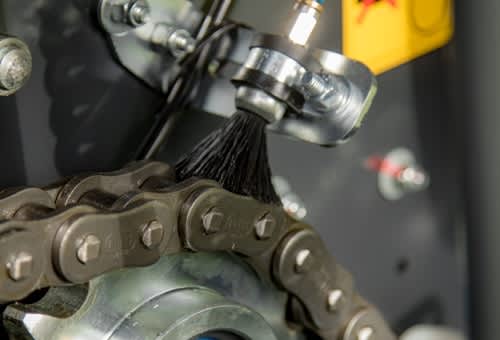

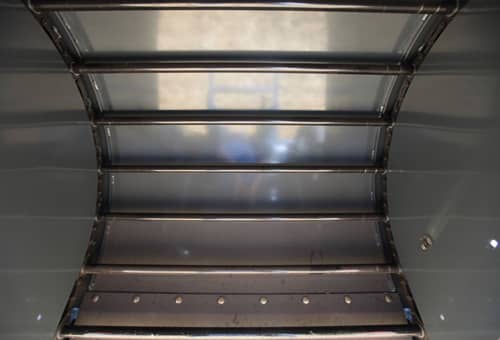

- The chains and slat of the rear section give an early and 100% regular bale rotation and hence faster bale formation leading to a denser core of the bale. Even in very dry crops.
- The heavy-duty rollers of the front section ensure a well-shaped bale finish and very tight bales.
- The chains in the rear section result in less crop loss compared to a full-roller concept.
- The tailgate has a completely enclosed design to reduce crop loss to a minimum, especially when operating in silage.
Parallelogram DropFloor System for faster Unblocking
Parallelogram Drop Floor enables the operator to clear blockages easily from the tractor cab without any crop loss.
Drop the floor to free the rotor of blockage, engage the PTO to feed the blockage through and close the floor to continue baling.
SuperCut-14
- The SuperCut-14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 70 mm it is the ideal solution for producing tight bales with superb silage quality.
- Each individual knife is spring protected against foreign obstacles. The knife will immediately return to its working position once the obstacle has passed.
SuperCut-25
- The SuperCut-25 pre-chopping system offers the ultimate solution for short chop baling with a chop length of 40mm. The short and precise chop provides dense and airtight bales for the best possible silage quality.
- The operator can choose to engage 25, 13, 12,6 or 0 knives, giving maximum flexibility in operation.
- The SuperCut- 25 knives are fitted with dual action protection against foreign objects. Each knife is individually spring protected and can move in two directions

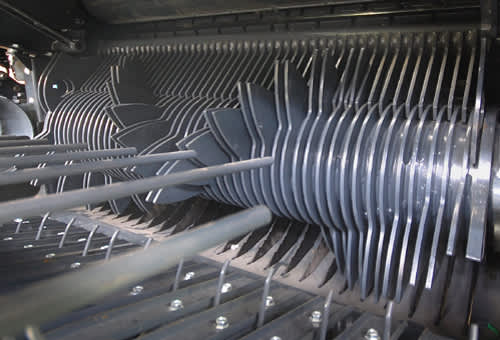

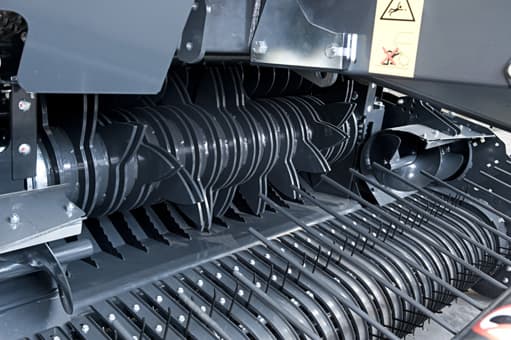

SuperFeed Rotor Intake
- Truly impressive intake capacity can be achieved with the SuperFeed rotor intake system - handling all crop types with ease, whatever the conditions.
Single or Dual Fork Feeder
- The fork feeder versions are fitted with a cost-efficient fork feeder intake system. This system provides a direct feed into the bale chamber, and the wide opening allows almost unrestricted intake capacity for a fast and efficient bale start.
- In addition the fork feeder gives less vibration and reduced power consumption.
- The fork feeder is provided with a crop press above the pick-up that ensures a regular crop flow even from large bulky swaths.
- Dual fork feeder with double feed tines ensures even higher capacity, while still safeguarding fragile crop types.

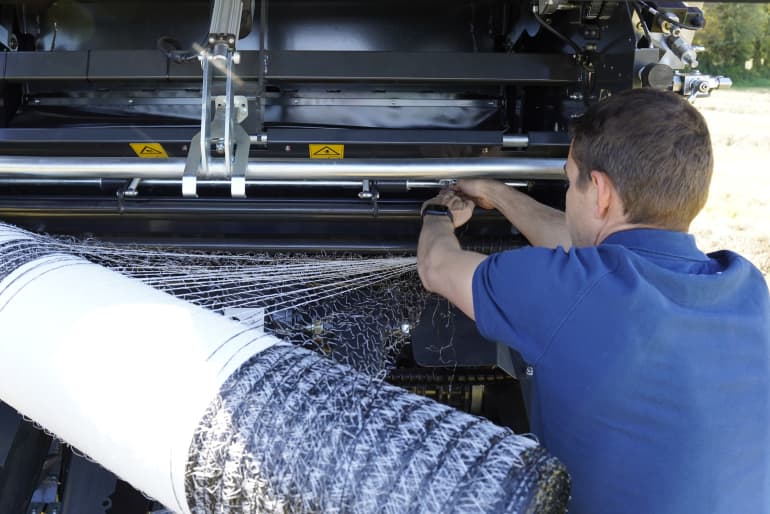

Easy Loading
- The very low loading height and the very easy threading of the system mean minimum downtime and maximum time baling. Storage for three rolls of net means you don’t have to worry about running out of net when the pressure is really on during long working days.
Twine Tying
- Automatic twine tying with the fast-acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum.
- Overcrossing of twines in the centre of the bale provides no loose ends at the end of the binding cycle.
- The system is fully user programmable to make sure you make the best-looking bales in all crop conditions.

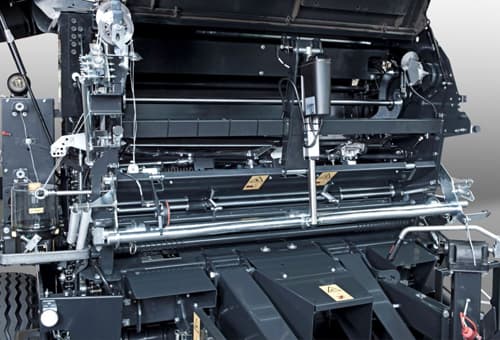

PowerBind Net Wrap
- The RF and RV series are equipped with the patented Vicon PowerBind net wrap system. PowerBind provides a positive and reliable injection of the net in all crop conditions, while also eliminating potentially troublesome feed rollers. Additionally the PowerBind provides one of the fastest net wrap actions available. This means minimum downtime and maximum time baling
- Net is fed right to the outside of the bale, with a specially widened entry channel, which also allows extra wide net types to be utilized if required.
- The simple net wrap system allows the net to extend past the edge of the bale. The 1.30m net is wider than the baling chamber, so that the net can be pulled over the edge of the 1.20m bale. The result is consisten, perfectly-shaped and tightly secured bales
Precision Farming
Precision Farming
When deciding what equipment to purchase, it is not always easy to find the optimal solution within today’s broad market offering. We understand this complexity and are committed to providing easy and intuitive farming solutions.
That is why Vicon’s precision farming offering is built on ISOBUS compatibility, with the Tellus 700 and Tellus 1200 terminals at its core. Acting as the central control hub, these terminals enable seamless integration between your ISOBUS machine, the electronics, and digital products.
This ensures simple and intuitive machine control, efficient operation, and full flexibility across your entire farming setup – giving you complete control from the cab, across every task.
The Tellus 1200 Universal Terminal is a high-performance 12-inch display designed for maximum control and flexibility. With multiple customisable screen views, it allows operators to monitor and manage several functions simultaneously for greater efficiency. Fully ISOBUS compatible, it integrates seamlessly with tractors, implements and precision farming solutions. Advanced guidance and application capabilities ensure precise, controlled operation, while the intuitive interface and adaptive day/night mode provide optimal visibility and ease of use in all conditions.
The Tellus 700 Universal Terminal combines precision farming capabilities in a compact and intuitive 7-inch display. With ISOBUS compatibility, it enables seamless control of tractors, implements and smart add-ons from a single interface. Its straightforward design ensures easy operation, while integrated guidance and application features support accurate and efficient fieldwork. The adaptive day/night mode guarantees clear visibility in all conditions, making it a reliable solution for a wide range of farming operations.
Technical specifications
Download brochure| RF 4225 Plus F | RF 4225 Plus R | RF 4225 Plus SC14 | ||
|---|---|---|---|---|
| Bale chamber: | Rollers & chain | Rollers & chain | Rollers & chain | |
| Bale size (m): | 1.20 x 1.25 | 1.20 x 1.25 | 1.20 x 1.25 | |
| Intake: | Feeder Fork | PowerFeed rotor | SuperCut-14 | |
| Binding: | Net, Net & Twine | Net, Net & Twine | Net, Net & Twine |
Technical specifications
Technical specifications
Download brochureBale Diameter |
Intake System |
Binding |
|
RF 4225 Plus F |
1.20 x 1.25m |
Feeder Fork |
Net or Net & Twine |
RF 4225 Plus R |
1.20 x 1.25m |
PowerFeed |
Net or Net & Twine |
RF 4225 Plus SuperCut 14 |
1.20 x 1.25m |
SuperCut 14 |
Net or Net & Twine |
