The advantages of this Flail Chopper
- A double headstock for mounting in front or behind
- Ideal for clearing out field edges
- Rear roller with skids for reliable depth control
- Auto-alignment for a smooth drive & a longer lifetime
- Solid construction for long working life
Description

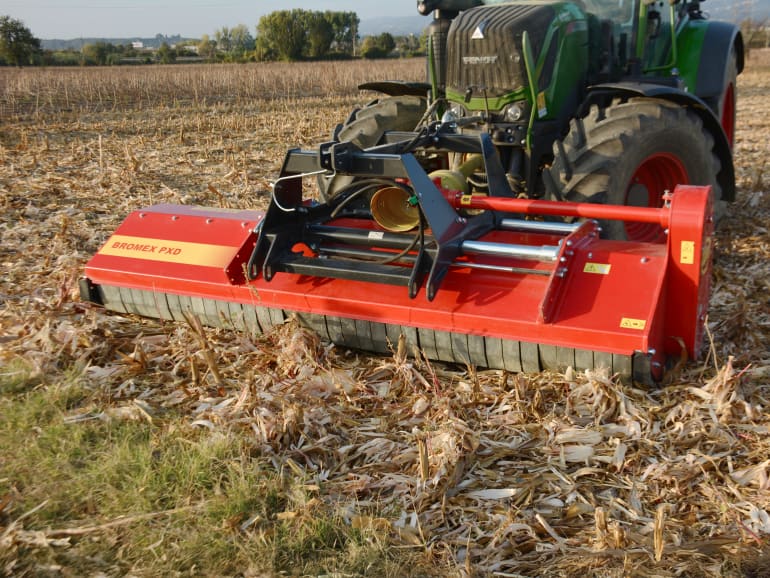

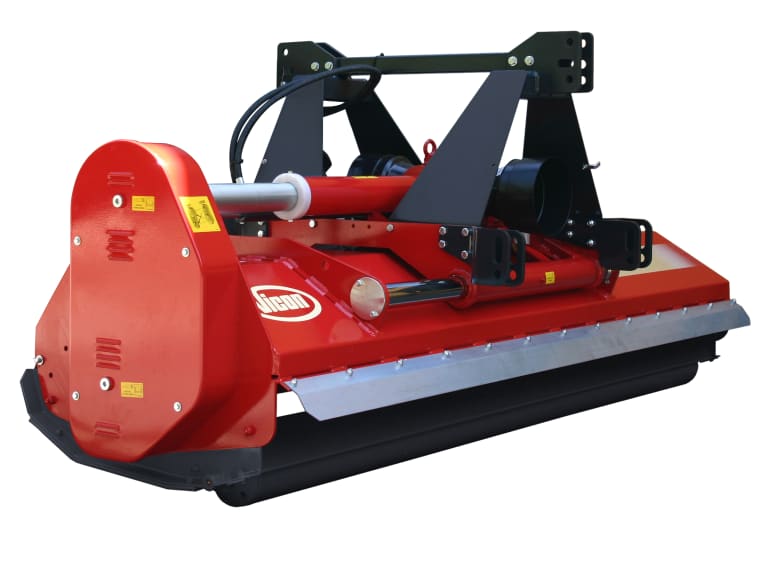

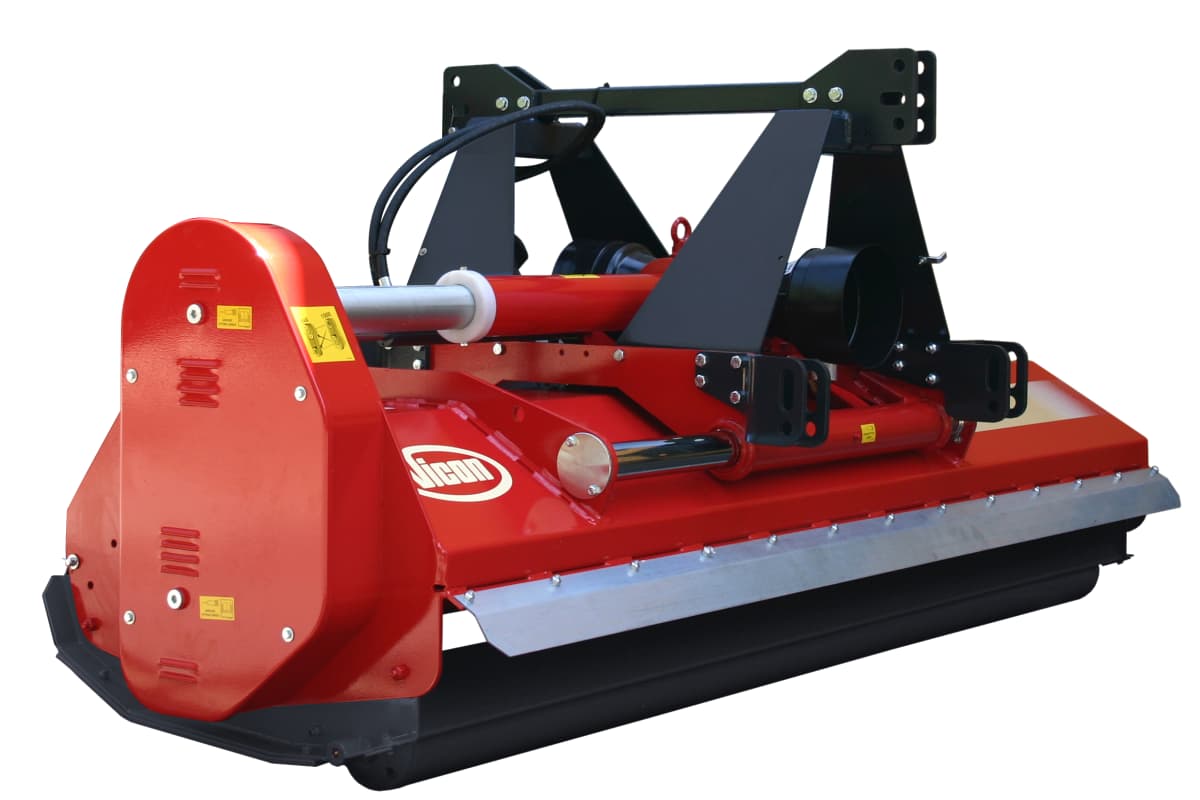

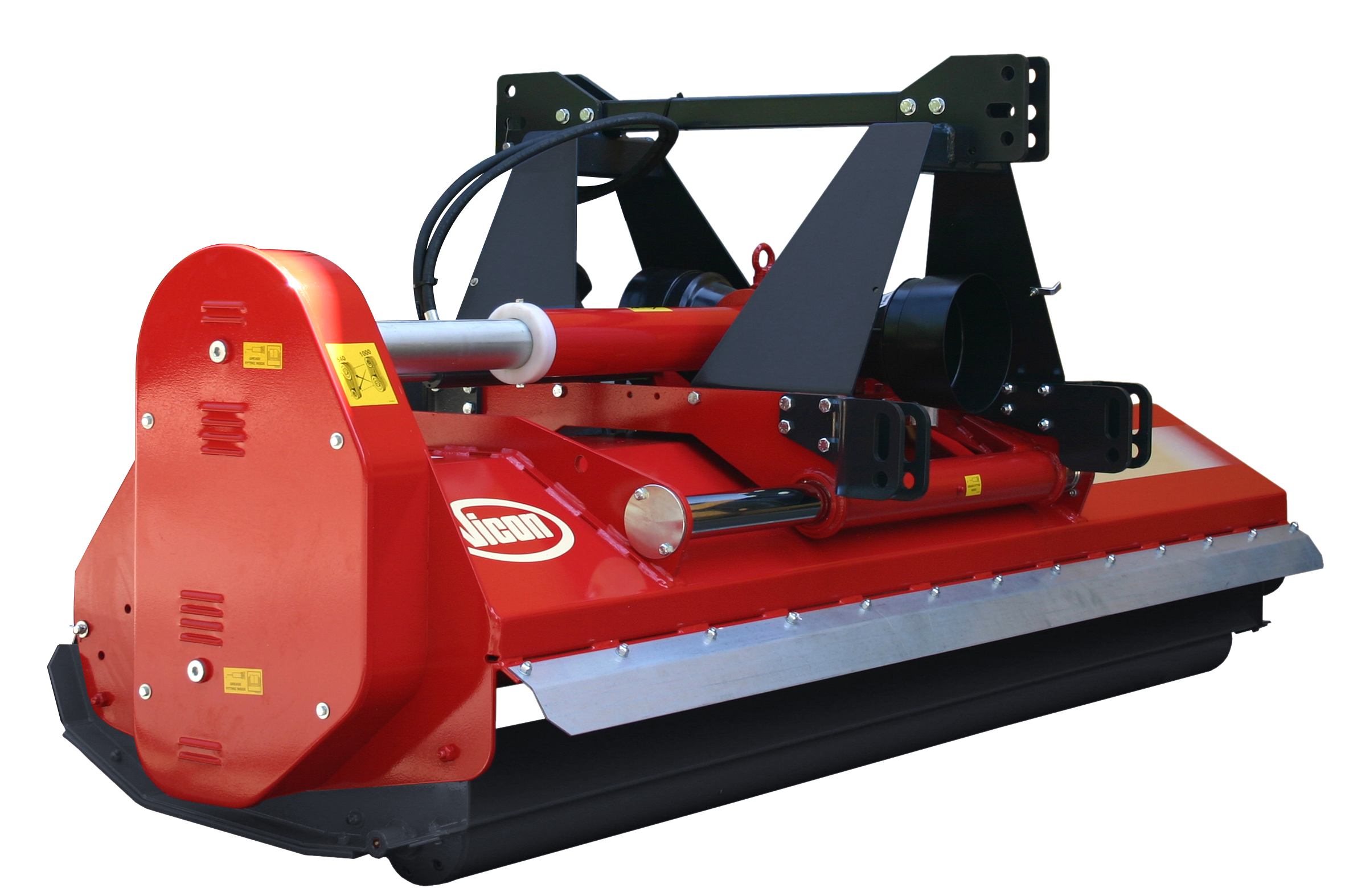

The Vicon Bromex PF is a multipurpose chopper for chopping grass, pasture, set-aside land and stubble. A strong double headstock allows mounting on the front or rear of the tractor. The hydraulic offset gives multi-purpose versatility and is suitable for a wide variety of specialist conditions e.g. clearing out field edges, orchards, roadside verges, etc. Bromex PF is suitable for tractors up to 140hp and is available in a working width of 2.35m, 2.80m, and 3.25m. The central gearbox is fitted into the headstock and ensures that the PTO shaft remains straight in all working positions.
Highlights

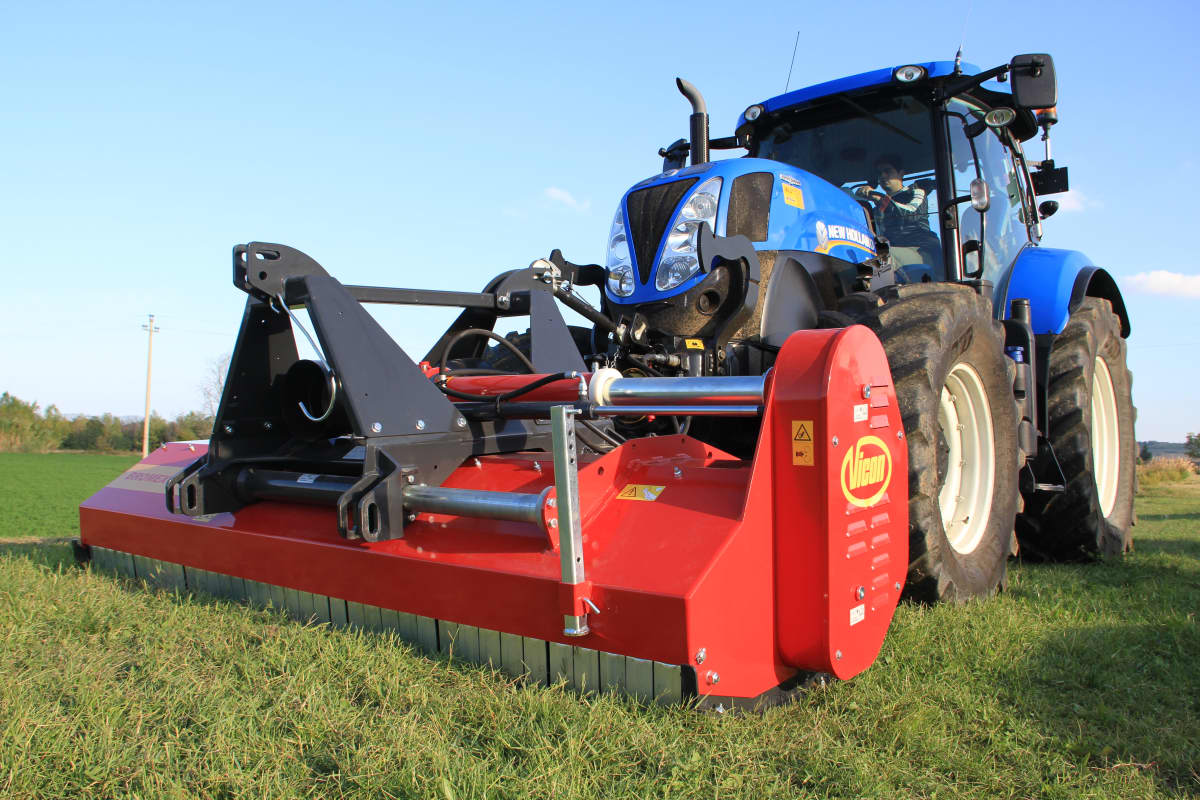

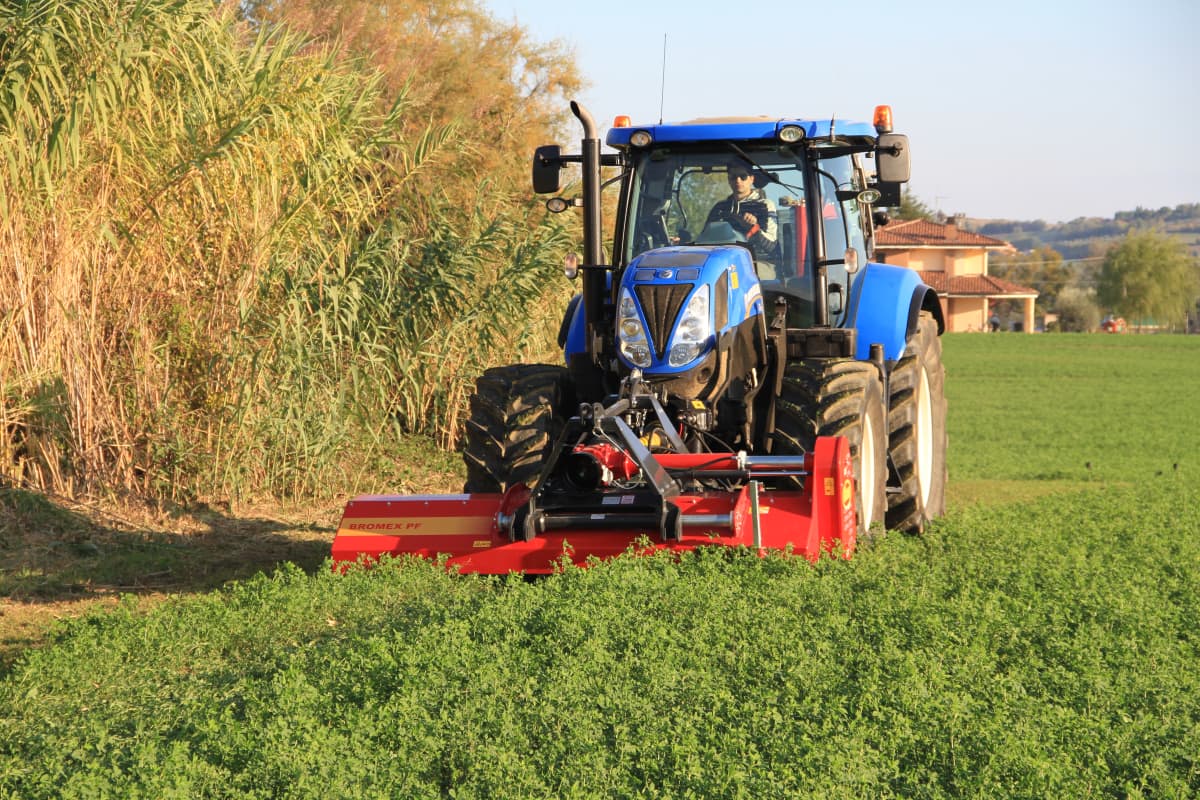

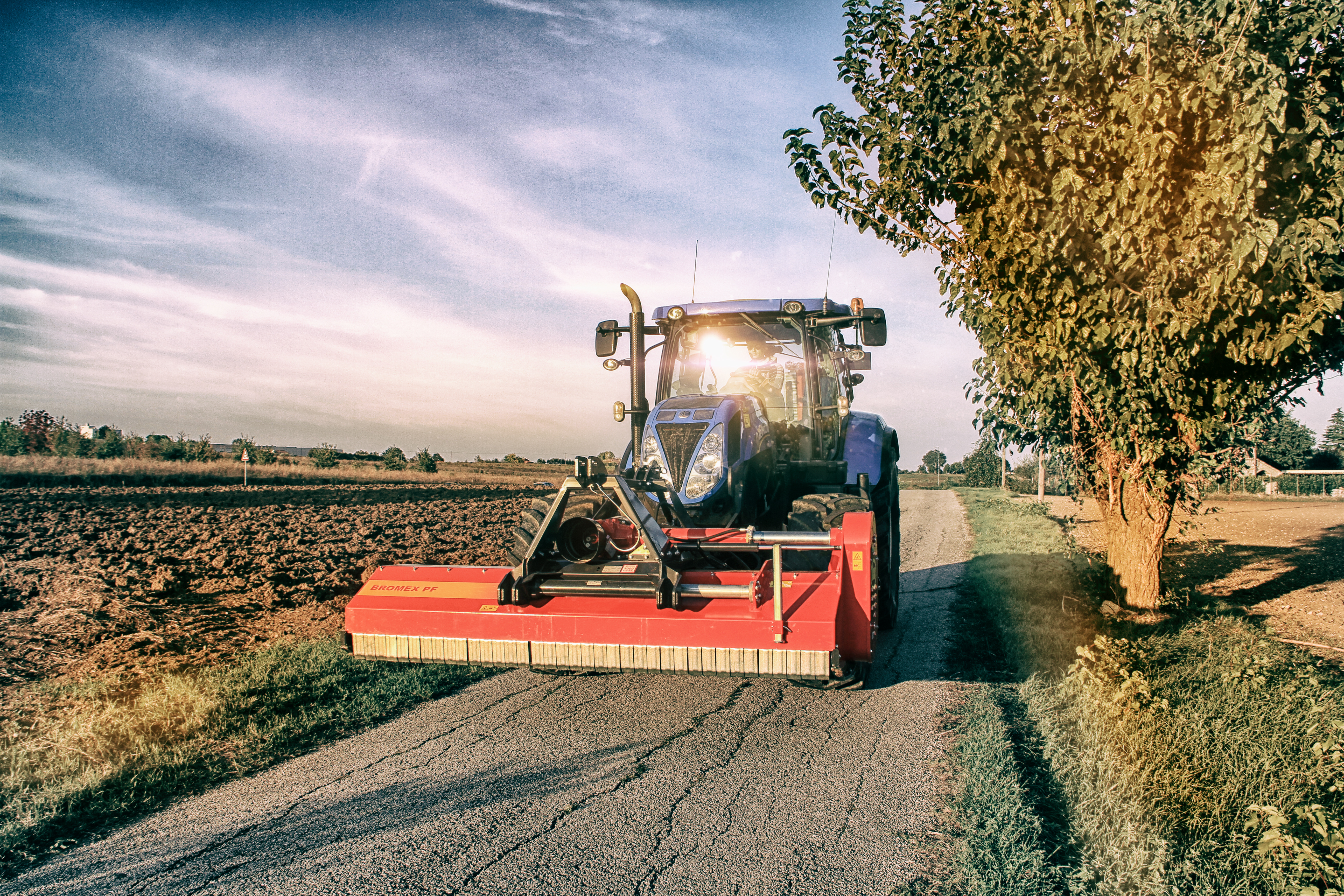

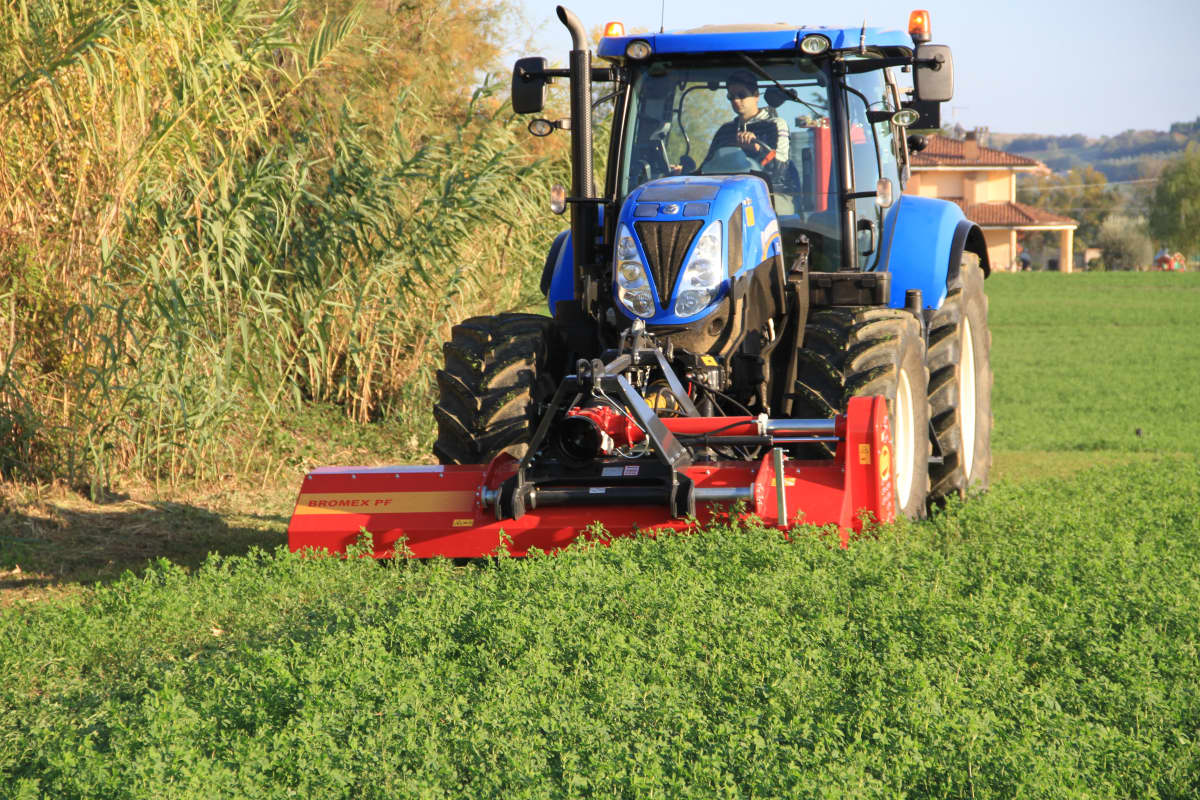

A strong double headstock allows mounting the machine in front or behind the tractor
The hydraulic offset offers multi-purpose versatility
the auto-alignment for a smooth drive allows reduced wearing and a longer lifetime of the PTO shaft (crosses and yokes) and of the whole driveline
Solid construction for long working life (double skin)
- Equipped with either universal short Y fan blades or hammer blades
Features
- A strong double headstock allows mounting the machine in front or behind the tractor

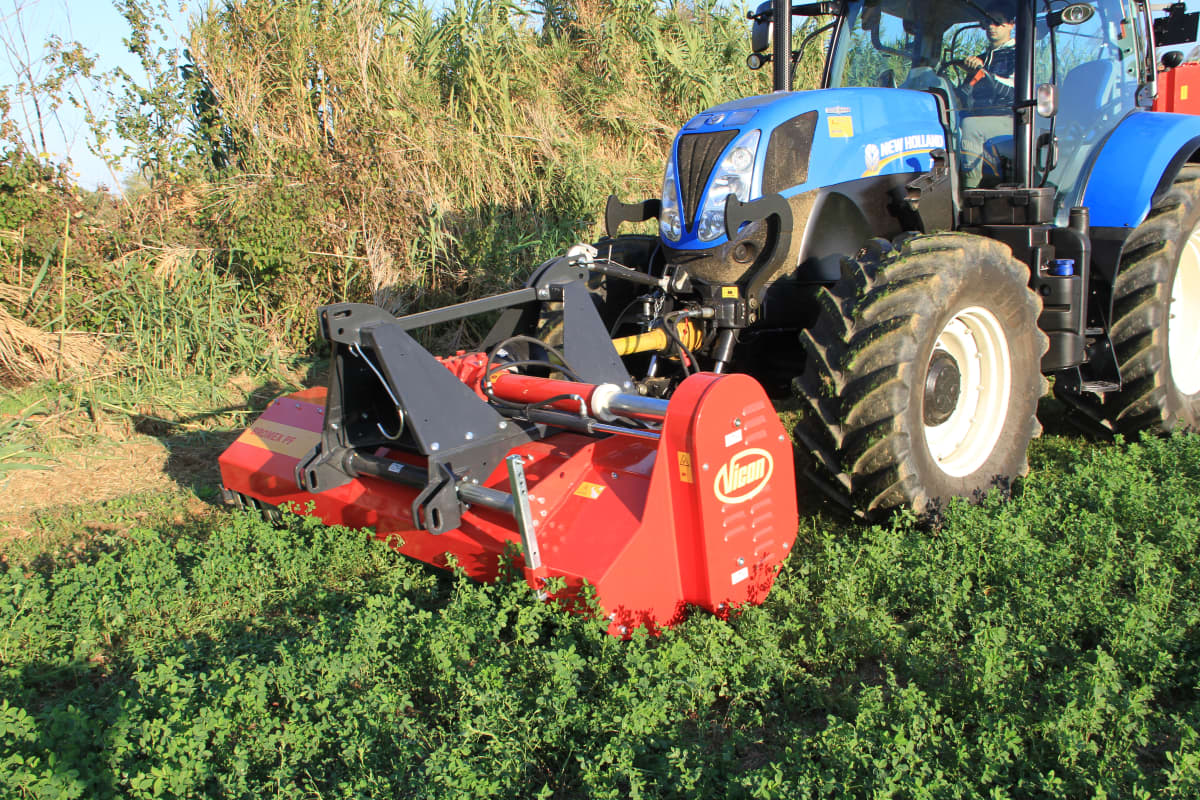

- Hydraulic Offset, flexible adjustment with a 500mm range, this feature enhances flexibility ( field edges, orchards, and roadside verges)
- Gearbox up to 140 hp, unified with the headstock for seamless power transmission.
- Oil-Bath System: Ensures longevity and reliable performance
- 5 V-belts combined with automatic belts tensioner, preventing slippage in toughest working conditions
- Heavy-Duty Construction: The frame is built to withstand tough conditions and heavy use.
- Reinforced Design includes reinforced areas to handle the stress and strain of chopping operations.
- Adjustable Components: Frame parts are designed to adapt to various working conditions and tractor setups.

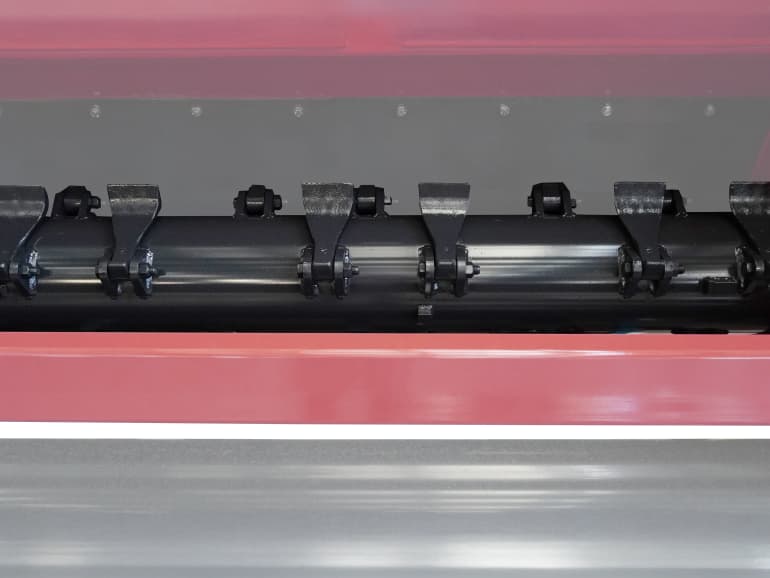

- Constructed with a sturdy 219x10mm tube for outstanding durability.
- The large diameter ensures precise balancing and vibration-free performance.
- The rotor stays straight during operation, guaranteeing an even and clean cut.

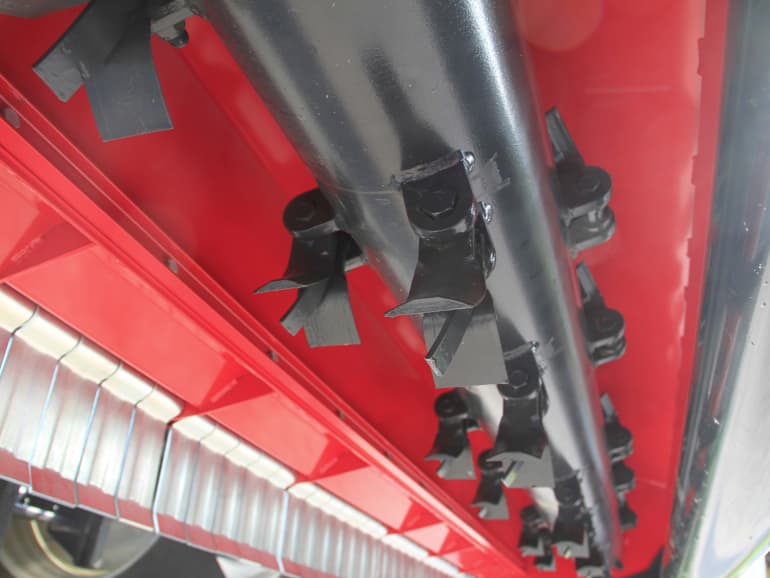

- Universal Y and Hammer blades are designed to provide exceptional performance and reliability
- Wheel kit for front use with Ø 580mm
Technical specifications
Technical specifications
Download brochure| Bromex PF 235 | Bromex PF 280 | Bromex PF 325 | ||
|---|---|---|---|---|
| Working width (cm) | 235 | 280 | 325 | |
| Transport width (cm) | 255 | 300 | 345 | |
| No.of blades (univ /hammer) | 40/20 | 48/24 | 56/28 | |
| Weight (kg) | 863 | 980 | 1080 |
Multipurpose choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of universal/hammer blades |
Bromex PF 235 |
2.35 |
863 |
40/20 |
Bromex PF 280 |
2.80 |
980 |
48/24 |
Bromex PF 325 |
3.25 |
1080 |
56/28 |
