Vicon EXTRA 7100

Tackle Curves Without Leaving Uncut Crop

CurvePilot is an automatic system, featured on EXTRA 7110, that constantly adjusts overlap between front and rear mowing units so you can utilise the working width and capacity to the maximum.

Full Capacity On Headlands

When mowing headlands you typically position the mowing units with full overlap, reducing working capacity, to avoid leaving uncut crop in the field. With CurvePilot as standard you can mow at full working width and utilise the maximum capacity of the mower. CurvePilot will automatically choose the correct minimum overlap.

Avoid Mistakes During Headland Turns

When mowing A-B lines with a GPS steered solution the tractor can make sudden counter steers when starting again on headlands if you are not hitting the exact starting point of the GPS tracks. When this occurs, CurvePilot immediately increases overlap to compensate and avoid striping.

Comfortably Passing Obstacles

When mowing up and down the field you will typically mow with the mowing units at the maximum working capacity, leaving very little overlap between the front and rear mowing units. When driving around obstacles in the field, CurvePilot will automatically adjust the overlap and immediately compensates when you make turns in the field.

Hydraulic Adjustment of Overlap

EXTRA 736T Vario and 7100T Vario are fitted with hydraulic SideShift integrated into the carrying arm allowing each mowing units to move 400mm. To easily compensate for changing field conditions, the adjustable overlap is designed as a telescopic arm, directly into the suspension.

Ground Pressure Remains Constant

During mowing operation the carrying arm always remains even to the ground, giving the mowing unit the freedom to instantly compensate and float across uneven ground contours. The true benefit of the suspension concept is that even though overlap is changed, the chosen ground pressure remains the same.

The EXTRA 7100T provides generous clearance across the complete cutterbar, including the inside area. When lifting the mower on headlands, the mowing unit is raised and the carrying arm is tilted to a 10° angle. This provides the EXTRA 7100T with a level ground clearance of minimum 500mm across the full working width. When lowing the mowing unit the carrying arm is lowered evenly without one side touching the ground before the rest of the mower, avoiding unnecessary stress and wear on the mower

The Mower Made for Heavy Work

The Vicon BX is primed to maximise working capacity and utilise the full capacity of the EXTRA 7100 & EXTRA 7110 without compromising on quality of work. Vicon BX automatically does the job of adjusting belt speed to working width, for the same uniform swath width, regardless of position of mowing units. This means maximum working capacity, excellent operator comfort and an even, uniform swath formation.

The Advantages

Features all the same advantages as the standard EXTRA 7100 and 7110 models. Additional advantages include:

• Automatic belt speed adjustment
• Adjustable belt height
• Belt boost for headland operation
• Autostop function for minimised fuel consumption
• Versatile 4-in-1 solution

Effective SemiSwing Conditioning for Quality Feed

Speed up the drying process with SemiSwing tine conditioning. SemiSwing offer aggressive conditioning for faster wilting and excellent tine protection with virtually no wear and tear.

Get the Full Conditioning Effect with Minimum Blockages

Vicon’s SemiSwing tine conditioner is an aggressive full width conditioning system. When the rotor starts rotating, the SemiSwing tines will instantly move into their working position and stay in a fixed position.

Our NonStop BreakAway system just got even better. With the new QuattroLink suspension this system now offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower, giving the driver true peace of mind. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.

• The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
• Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
• Fully welded cutterbar for a very strong construction.
• Even number of contrarotating discs for improved overlap.
• Three bladed discs for more cuts.
• Smooth stone guard design for excellent cutting quality.
• High oil capacity ensuring low working temperature.
• Low noise level thanks to specially tooled gear wheels.
• Twisted knives for a clean cut in all conditions.

Compact During Transport

The mower folds hydraulically for transport and the telescoping frame arm moves to lowest overlap position, to reach a transport height of only 3.90m. And there is no need to leave the tractor before heading off, the outer FlexProtect protection guard hydraulically folds into transport position.

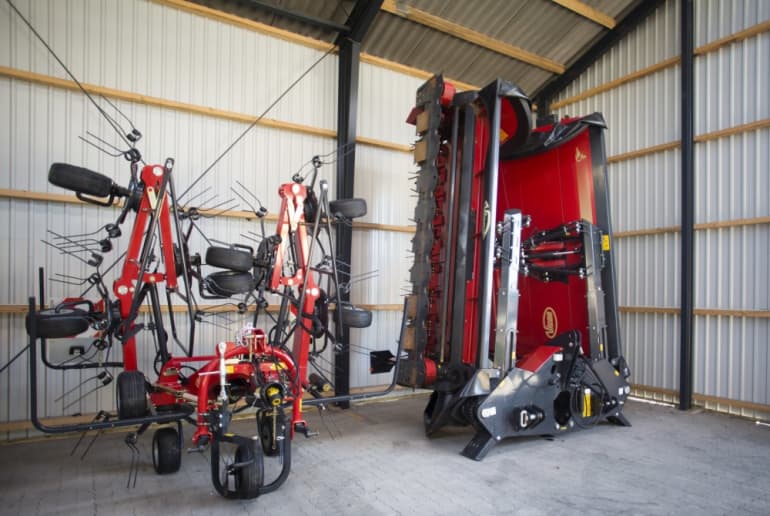

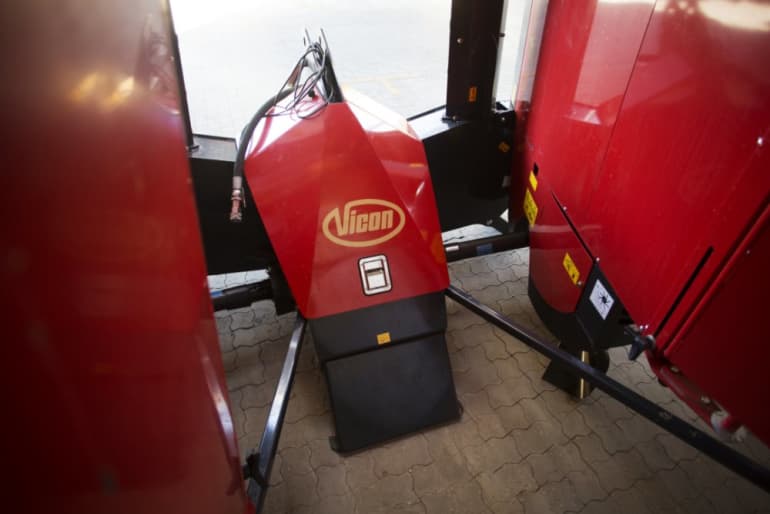

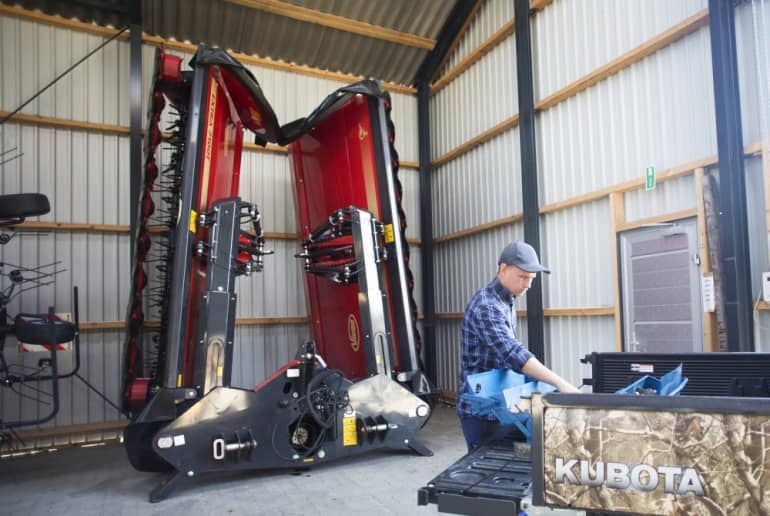

Parking, Safe and Sure-Footed

With the integrated parking device, storage of the EXTRA 7100T is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot.

When deciding what equipment to purchase, it is not always easy to find the optimal solution in the broad market offering of today. Technology is developing fast and tractors and implements are more and more equipped with high tech electronics. We understand this complexity and are committed to provide you with easy farming solutions. Therefore these cost-efficient ISOBUS Universal Terminals, IsoMatch Tellus and IsoMatch Tellus GO+ are made for easy machine control and efficient farming.

More about ISOBUS Universal Terminals >

With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything you need to get the maximum out of your machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives you the opportunity to view and control two machines and processes simultaneously.

More about the Tellus PRO >

Work easy. Be in control.

The new IsoMatch Tellus GO+ offers a more powerful processor, allowing for significantly faster responsiveness and increasing the ease of navigation. The IsoMatch Tellus GO+ can handle demanding applications like IsoMatch FarmCentre, allowing advanced features and remote connection to your implement for a higher yield at less cost.

Ease of setting up the machine with the soft keys and simple use of the hard keys and rotary switch for optimal control while driving remains the trademark of  the IsoMatch Tellus GO+ terminal, and is testimony to Vicon's commitment to bring farmers the most advanced technologies to improve productivity and efficiency.

More about IsoMatch Tellus GO+ >
