Seed Drills » Mechanical seed drills Mecasem L and XL

The mechanical seeding solution

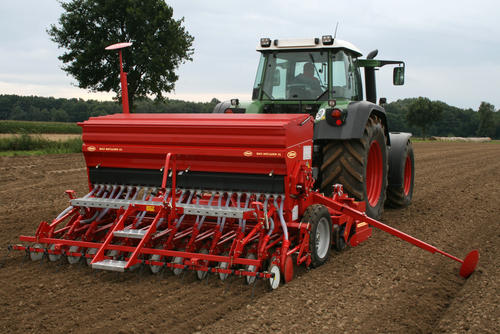

The Vicon Rau Mecasem L and XL are two tractor mounted mechanical seed drills. The Mecasem L is designed for small to medium size farms. For medium to big farms Vicon Rau has developed the Mecasem XL.

The Mecasem L and Mecasem XL mechanical drills can be used directly mounted to the tractor for solo operation or to a power harrow as well as to a cultivator via a 3 point linkage. The metering system can deliver seed quantities between 1- 400kg. Metering wheels for normal and fine seeds are standard. The special design of the metering wheels results in high quality seed distribution. The metering wheels are water and dust protected by the calibration trays. Easy and safe access to the whole calibration system is ensured by loading steps.

The Advantages:

  • Reliability
    Among other Vicon Rau coulters, the well-known and patented CX disc coulters for seeding in ploughed or cultivated land are available
  • Versatility
    Application rates from 1 - 400 kg and change from normal to fine seed without tools
  • Flexibility
    The tractor mounted seed drills can be operated solo or in combination with a power harrow or a tine cultivator
  • High performance
    Via hopper extension the hopper capacity can be increased over 1,000 l on a 3m machine
Model Working width (m)

Hopper capacity

(litres)

Weight

(Kg)

Mecasem L 2.5 / 3.0

425-530

(+ 500)

564-620
Mecasem XL 3.0 / 4.0

530-740

(+ 500 or 690)

607-870
