A flexible combination

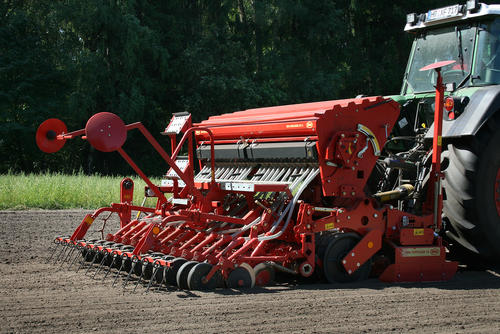

With its Mecasem XTC, Vicon has expanded its range of mechanical seeders with integral mounting model based on the tried and tested Vicon Toptiller, the Mecasem XTC ensures the best seeding results after ploughing and conservation tilling.

One of the main advantages for operators is the constant depth control for the coulters, thanks to the direct link between the coulter bar and the roller mounted with a parallelogram linkage system – additional settings due to tine wear on the rotary harrow are not necessary.

This seeder’s special linkage to the Vicon Toptiller allows fast disassemble when the power harrow is required for solo use. In addition, the wide range of options provide a solution to meet all requirements in the field.

The Advantages:

Up to 1.510 l hopper capacity for reduced set-up times and high performance
Automatic depth control of the coulter bar due to the direct connection to the frame of the packer roller (no re-adjustment needed if the working depth of the power harrow is changed)
Overload protected track marker arms mounted on the power harrow
Integrated brake of the land wheel to avoid “overdosing” on head lands
Easy uncoupling of the seed drill for solo operational due to linkage via saddle triangle

Model

Working width (m)

Hopper capacity

(litres)

Weight

(Kg)

Mecasem XTC

3.0 / 4.0

600-820

(+ 500 or 690)

890 - 1245
